Specifications:
| Gross weight | 2200g |
| Brands | ATTEN |

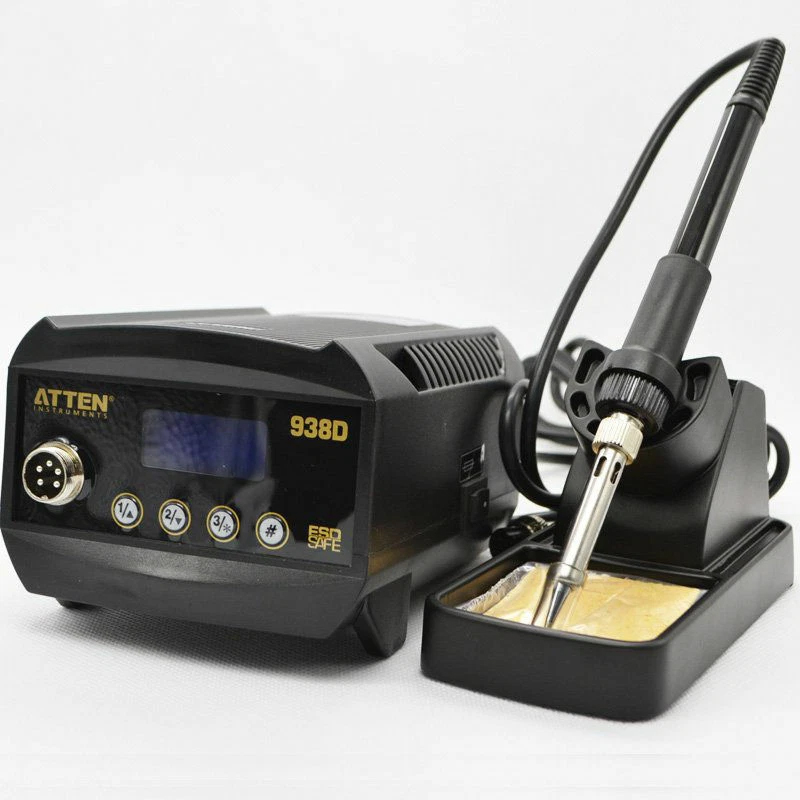

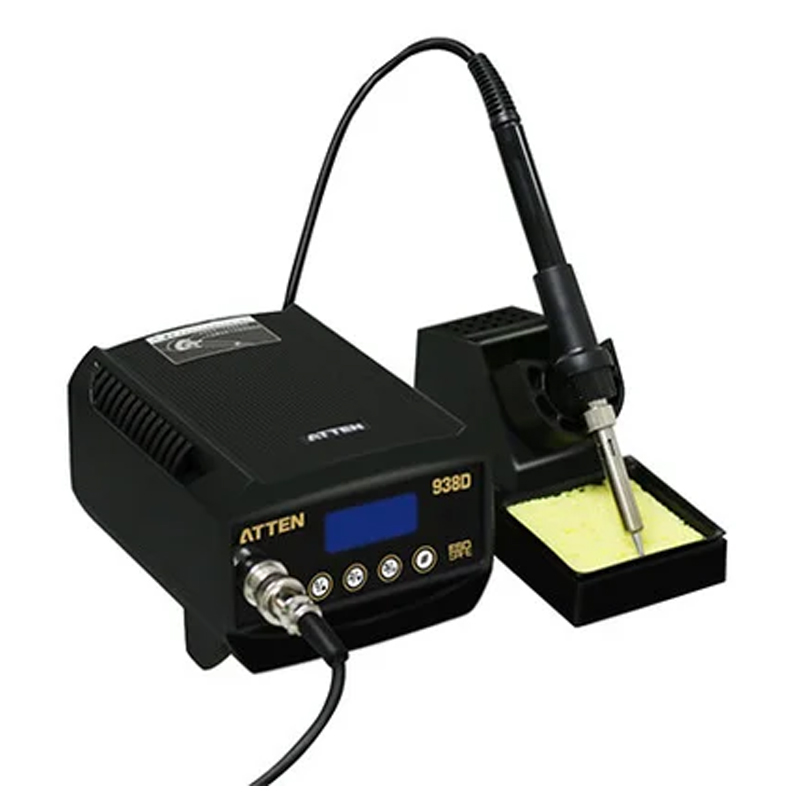

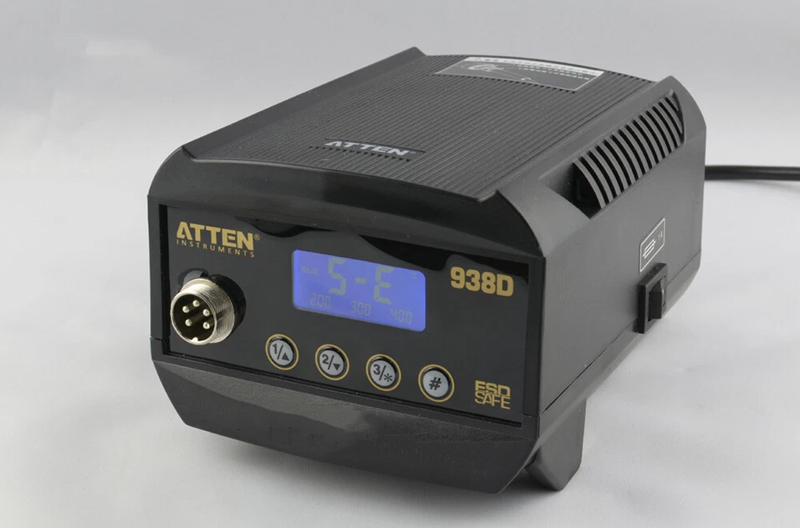

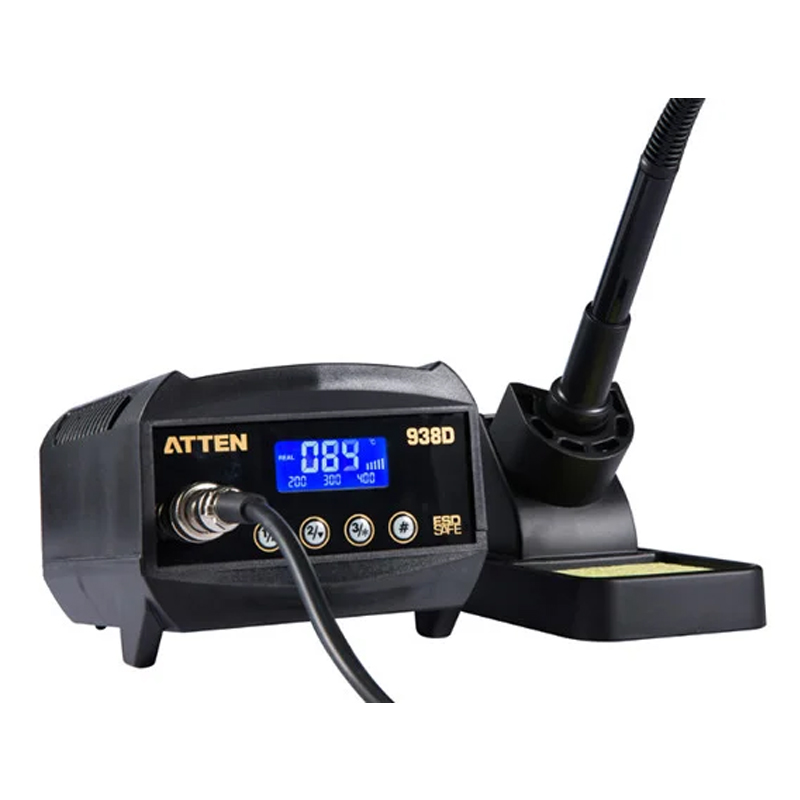

ATTEN AT938D 60W Digital Soldering Iron Station 220V EU Plug
Features
1. HD LCD, LCD display with backlight, and elegant appearance.
2. Digital temperature correction, and simple and easy to operate.
3. ESD safe – suitable for work on static-sensitive components.
4. Service temperature can be switchable between degree celsius and Fahrenheit degree. Easy temperature
read-out in ℃ or ℉.
5. Three programmable preset temperature buttons. Immediate temperature access facility and quick switch
of service temperature.
6. Heating core features the imported heat-resistant materials and it is made using the advanced process,
thus prolonging its service life and reducing its production cost.
7. Wide choices of soldering tips. Soldering tip is interchangeable with international brands, and convenient
to purchase on selection.
8. Digital soldering station with 60W heating element, strong enough for all soldering jobs in your lab or
production line.
Specification
1. Model： AT938D
2. Power Consumption： 60W
3. Input Voltage ：220VAC±10% 50HZ
4. Output Voltage ：26VAC
5. Temperature Range150 ~ 450℃ (302 ~ 842℉)
6. Temperature stability：±2℃(still air and have no load)
7. Temperature Accuracy：±15℃
8. Tip to Ground Impedance：<2Ω
9. Tip to Ground Voltage：<2mV
10. Setting Mode：keying Adjustment and Immediate Access
11. Temperature-correcting Mode ：Digital
12. Heating Core：60W Two-core Ceramics Heating Core
13. Physical Dimension of Principal Machine：146(L)×120(W)×91(H)mm
14. Standard tip：AT-900M
15. Net Weight：1.8kg
ATTEN-
Item NO: AS168579A
-
-
-
-
