3 In 1 SIM Card Signal Testing Card for iPhone

Off The Shelves

Specifications:

Gross weight35g
NameSIM Card Signal Testing Card
Suitable foriPhone
Version3 In 1

Product Specification:

1. Compatible with: iPhone

2. Size: 72*19*2 mm

3. Package Weight: about 50.00g

IP universal test card support almost GSM SIM card: Mobile Telecom Unicom three-network universality, IP universal

test card fit for apple series (iphone or SIM version ipad), IP universal test card adopt immersion gold process and not

easy to wear. place Nano SIM card of any operators to test your mobile phone signal without a card tray repair tool.

Preliminary diagnostic signal failure

For iPhone/ipad (card version) three-network universality

Mobile card Unicom card Telecom card

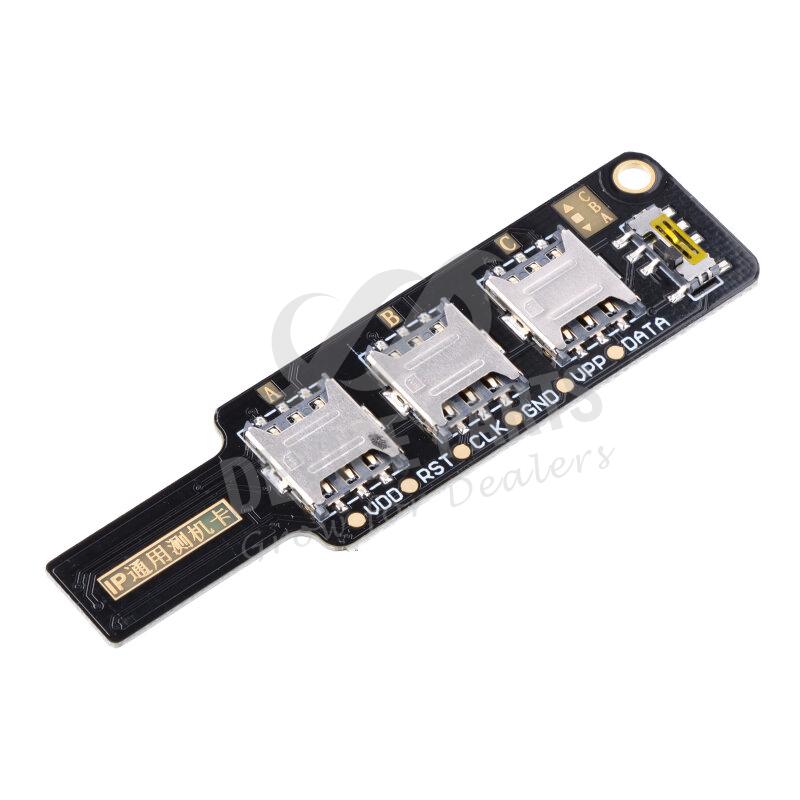

1. This product is suitable for the whole Apple series, the whole iPad (card version) series, do not support other brands

2. This product has three card slot positions, which can be used to place Nano SIM card of any operators. The switch is

     used to switch the working status of three card slots.

3. Three different SIM cards are placed in three card slots

4. Three switchs for switching 3 different SIM cards

5. Lanyard hole

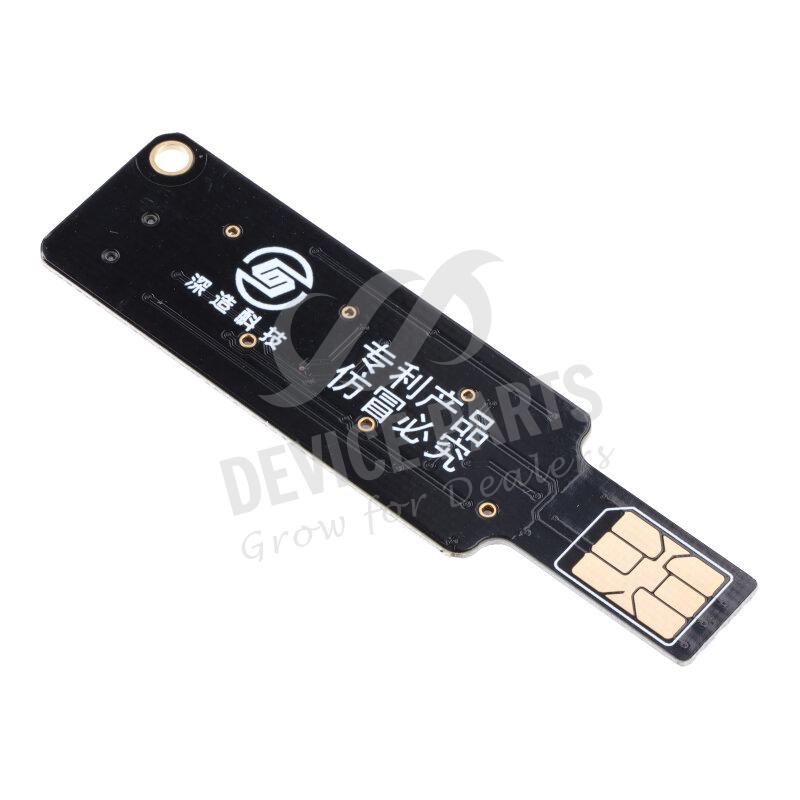

6. Immersion gold process not easy to wear

How to use IP universal test card

1. Insert the commonly used three major operators nano sim into the three card slots

2. Making the front of the slot surface toward you, and insert it horizontally into the SIM cart slot

3. Swith SIM. Adjust the switch to any of the three ABC gears to be used. The operator to be tested simultaneously pulls

     out the entire test deck and pushed it in to re-detect the new operator

4. There is a nano sim card pin test point on the test card deck, which is convenient for repairing the mobile phone without

    reading the card for quick detection. When testing the signal of SIM card at the test point, it is necessary to turn off the

    phone and measure the ground resistance. When the phone is turned on, the voltage signal and waveform can be tested.

Package Content:

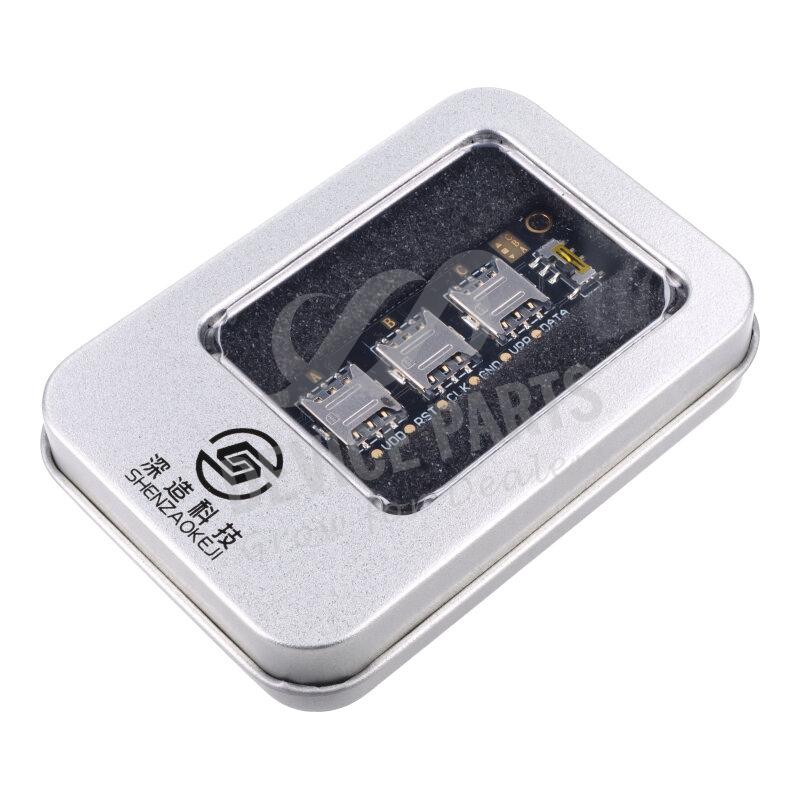

1 x  iPhone 3 in 1 SIM Card Universal Signal Testing Diagnosis Test Card

Tips:

1. The product prevails in kind, pictures are just for reference.

2. Please check your model and read related information carefully before ordering to avoid mistakes.

3. The item will be shipped in 2 working days after ordering.

4. We offer 1 year warranty for this item.
