Specifications:
| Gross weight | 330g |

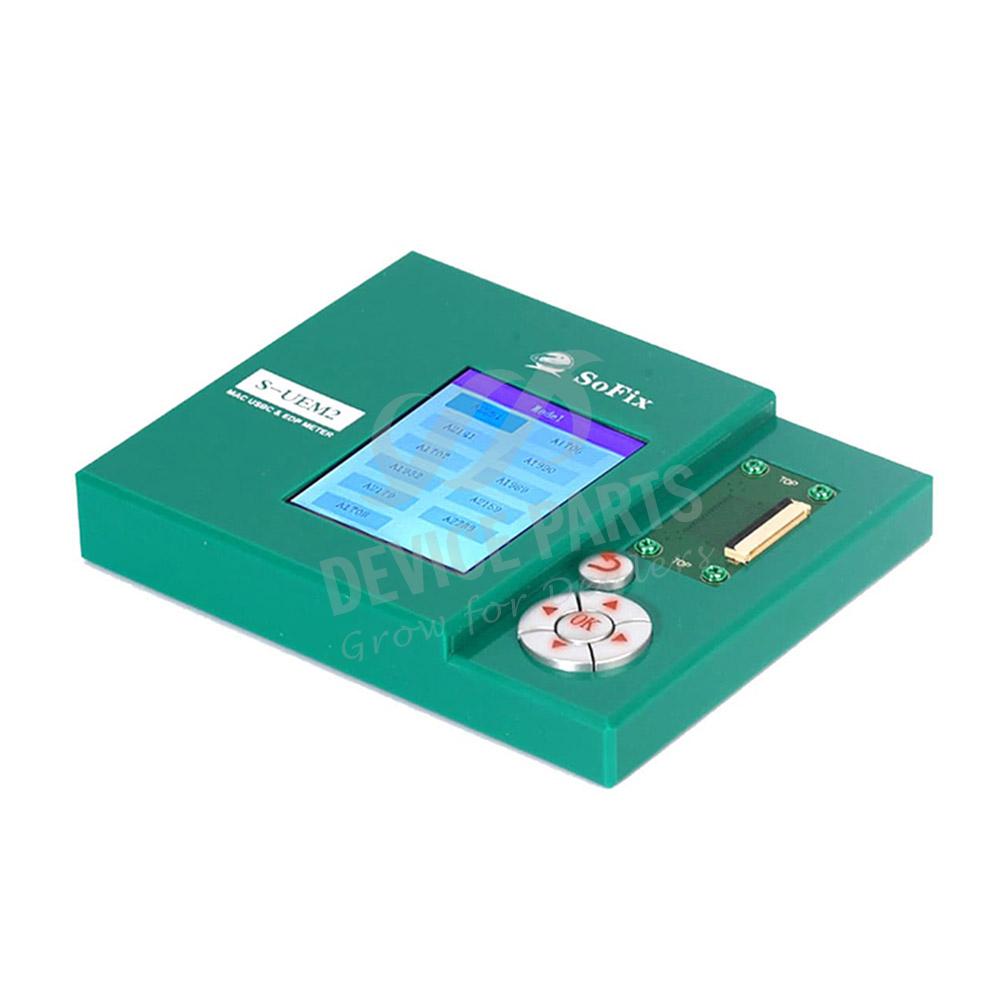

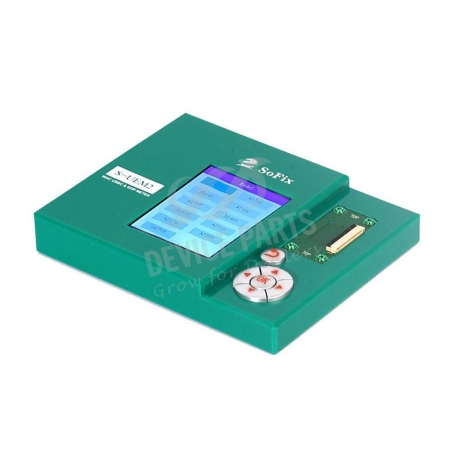

S-UEM2 USBC EDP Meter for Macbook Board Repair

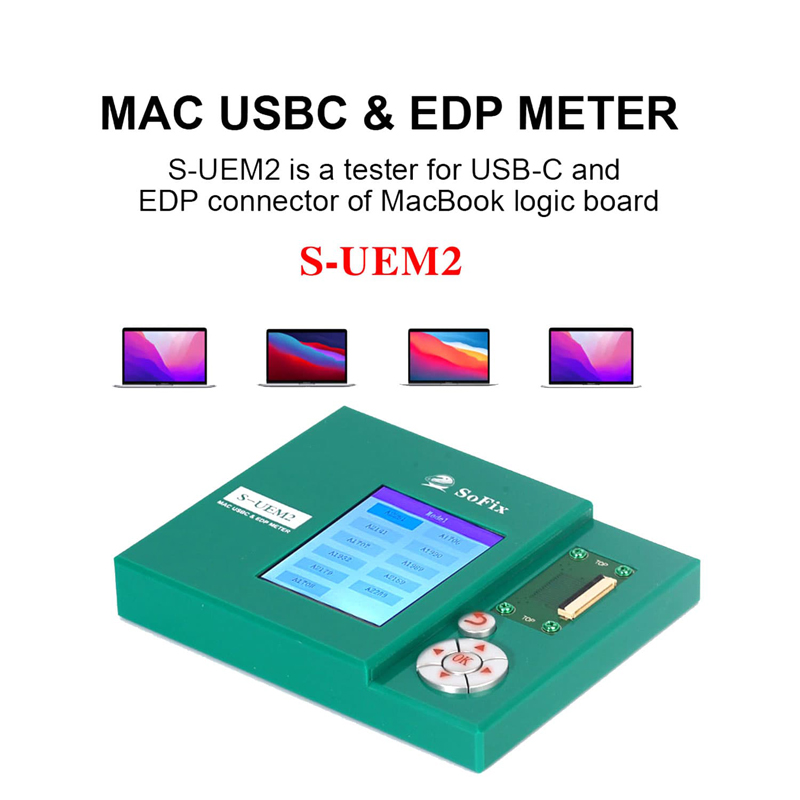

1. S-UEM2 is a tester for USB-C and EDP connector of MacBook logic board.

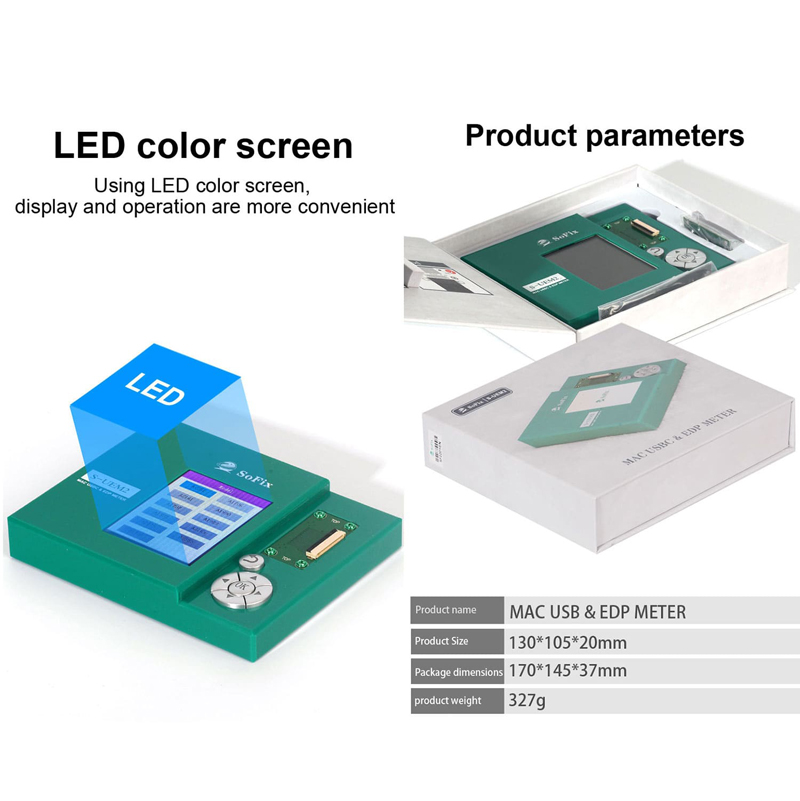

2. Using LED color screen, display and operation are more convenient.

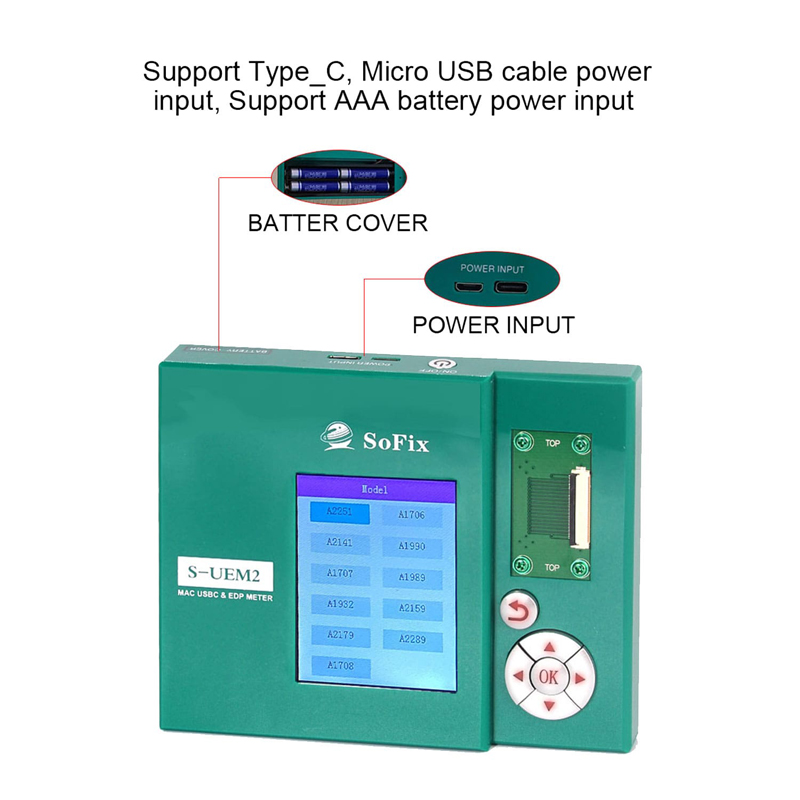

3. Support Type_C, Micro USB cable power input, Support AAA battery power input (Easy to carry).

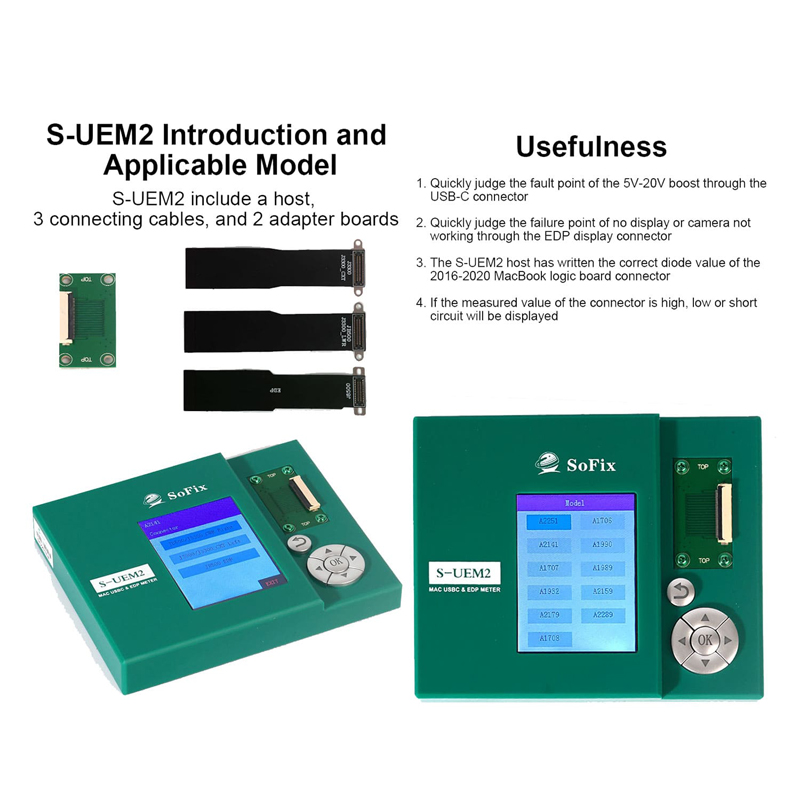

4. S-UEM2 include a host, 3 connecting cables, and 2 adapter boards
Usefulness
1. Quickly judge the fault point of the 5V-20V boost through the USB-C connector.
2. Quickly judge the failure point of no display or camera not working through the EDP display connector.
3. The S-UEM2 host has written the correct diode value of the 2016-2020 MacBook logic board connector.
4. If the measured value of the connector is high, low or short circuit will be displayed.

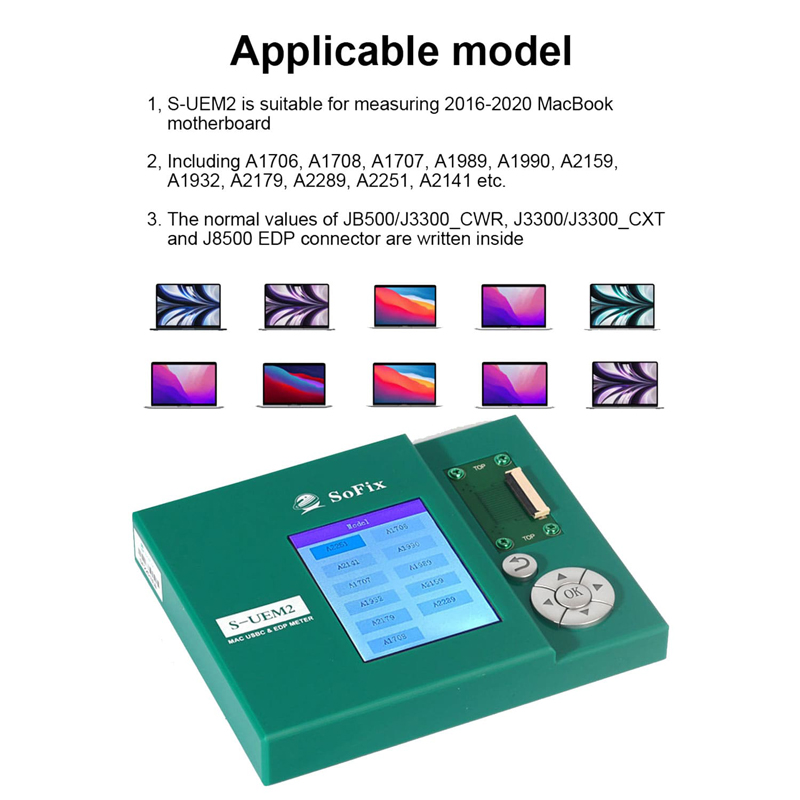

Applicable model
1. S-UEM2 is suitable for measuring 2016-2020 MacBook motherboard.
2. Including A1706, A1708, A1707, A1989, A1990, A2159, A1932, A2179, A2289, A2251, A2141 etc.

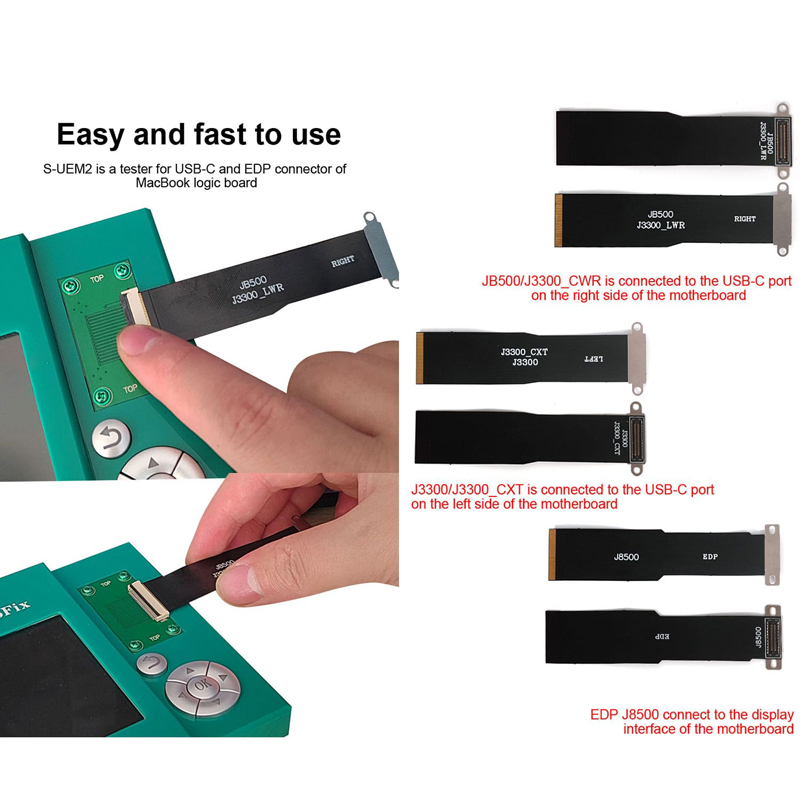

3. The normal values of JB500/J3300_CWR, J3300/J3300_CXT and J8500 EDP connector are written inside.
