Specifications:
Gross weight | 42451g |
Brands | M-Triangel |
power | 20W |
Plug | EU Adapter |
Name | Automatic Laser Removal Back Cover Glass Machine |

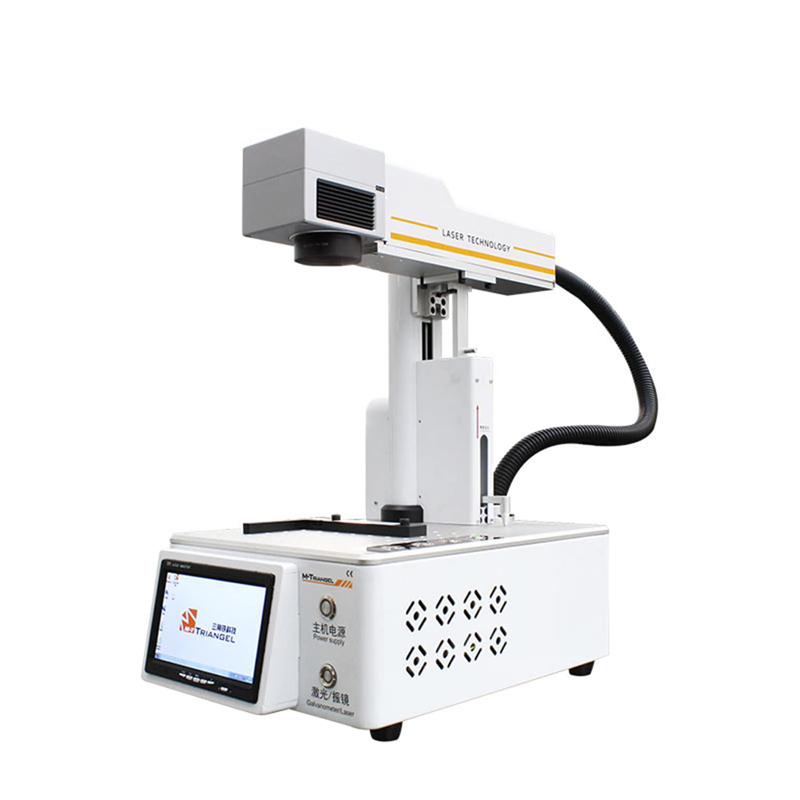

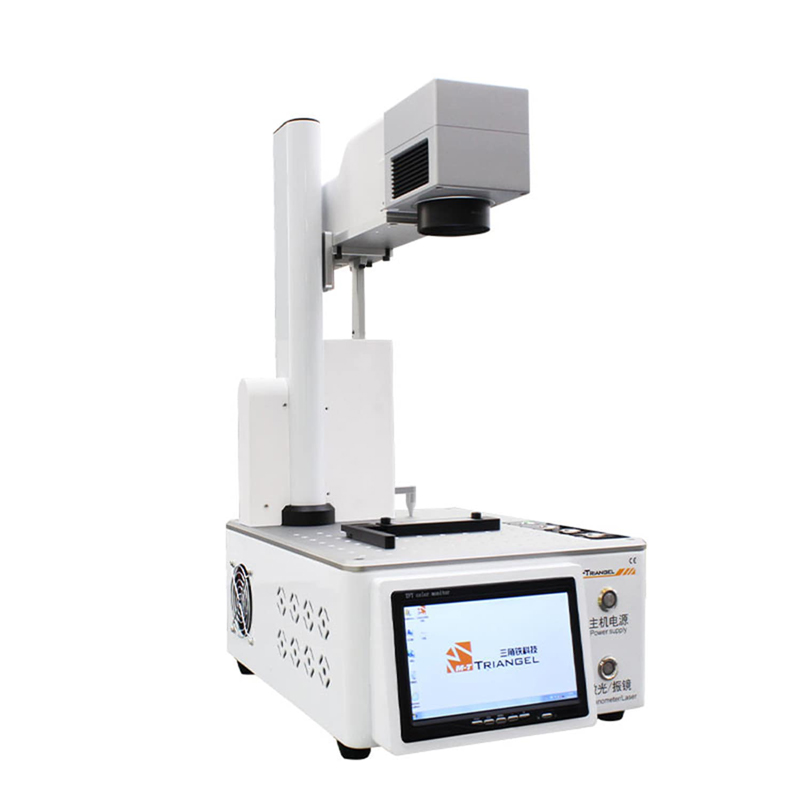

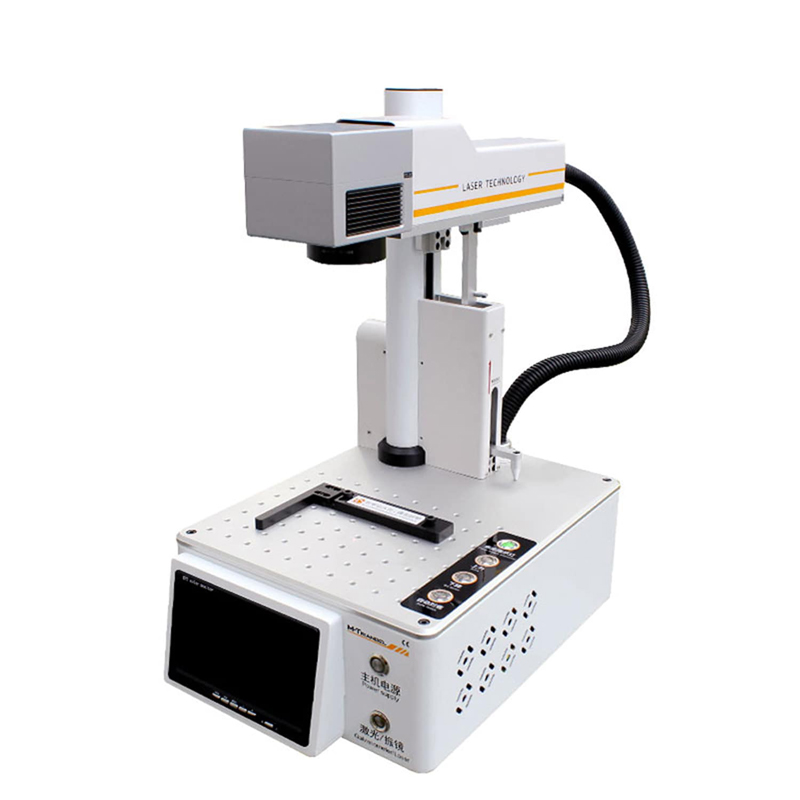

M-Triangel PG oneS 110V-220V 20W Automatic Laser Removal Back Cover Glass Machine
1. Unique styling design
2. Rated power of 20W
3. Insufficiently intelligent and flexible closed system
4. Buil-in computer and comes with software, easy for operating
5. Recommended to phone middle frame and rear glass separation/disassembly/Marking/Engraving
6. Suitable for all touch screen smartphones Laser Repair in the market, such as iPhone, Huawei,
XiaoMi, OPPO, Vivo, LG
7. Applicable Many types of metals materials: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome
Brass, etc Metal
Engraving, Mobile Phone LCD Separate, Mobile Phone Middle Frame Cutting, Mobile Phone Back Cover
Glass Separator, Alloy, and metal oxides: Anodized Aluminum, Some nonmetal materials & Special surface
treatment: silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink, Plating, Spraying, Coating film.
Specifications
1. Voltage: 220V/110V to choose
2. Laser power: 20 W
3. Total power: not more than 800 W
4. Making accuracy:≤ 0.001 mm
5. Making speed: ≤10000 mm/s
6. Cooling method: built-in air cooling
7. Laser wavelength: 1.06 μm

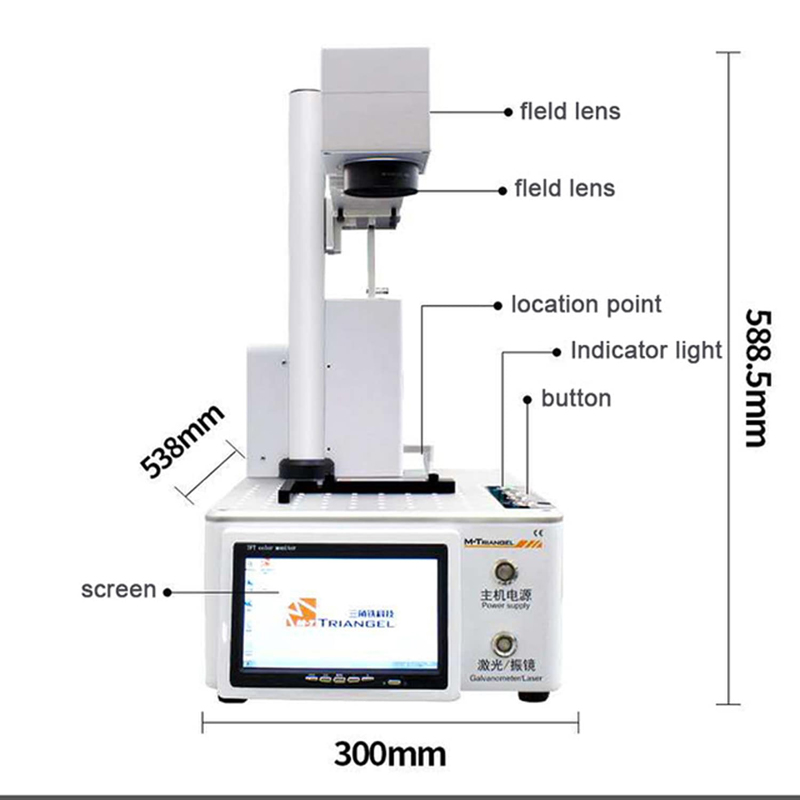

8. Equipment size: 588.5*300*538 mm
9. Power supply: 220 V±10%, 50 Hz± 5%
10. Ambient temperature: -10℃~65℃
11. Repeat-ability: ≤0.001 mm
12. Marking depth: 0.015-0.5 mm
13. Marking format: 175 mm x 175 mm
14. Marking line width: 0.05-0.01 mm
