Specifications:
| Gross weight | 6800g |

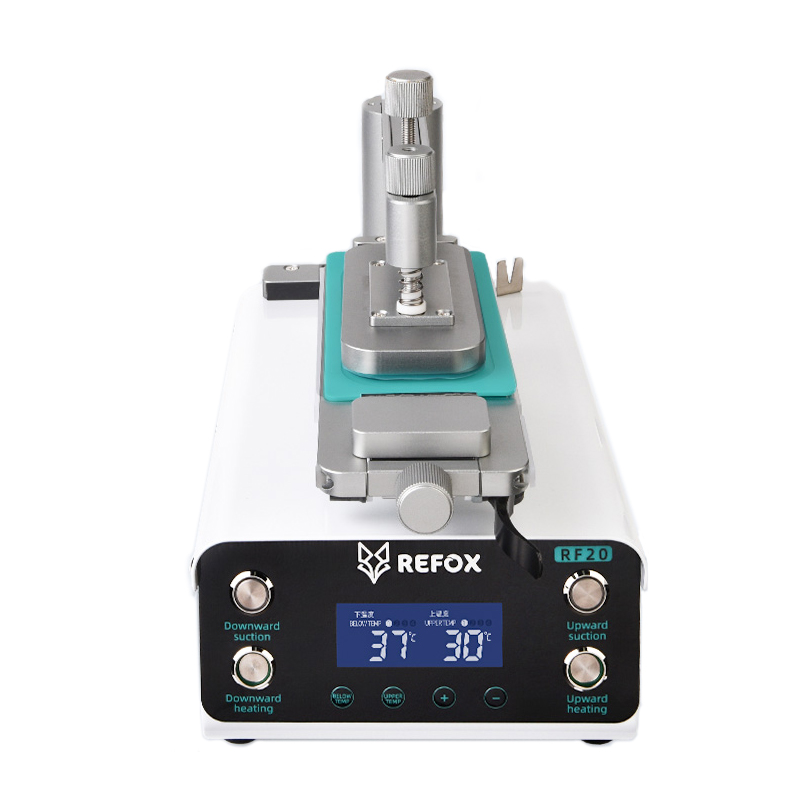

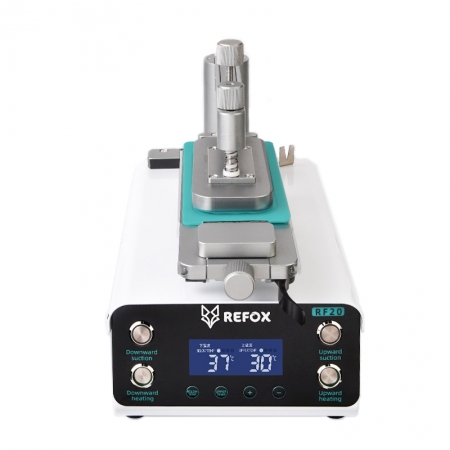

REFOX RF20 360° Rotating Heating Platform Universal Mobile Phone Screen Separation Machine 110-220V EU Adapter

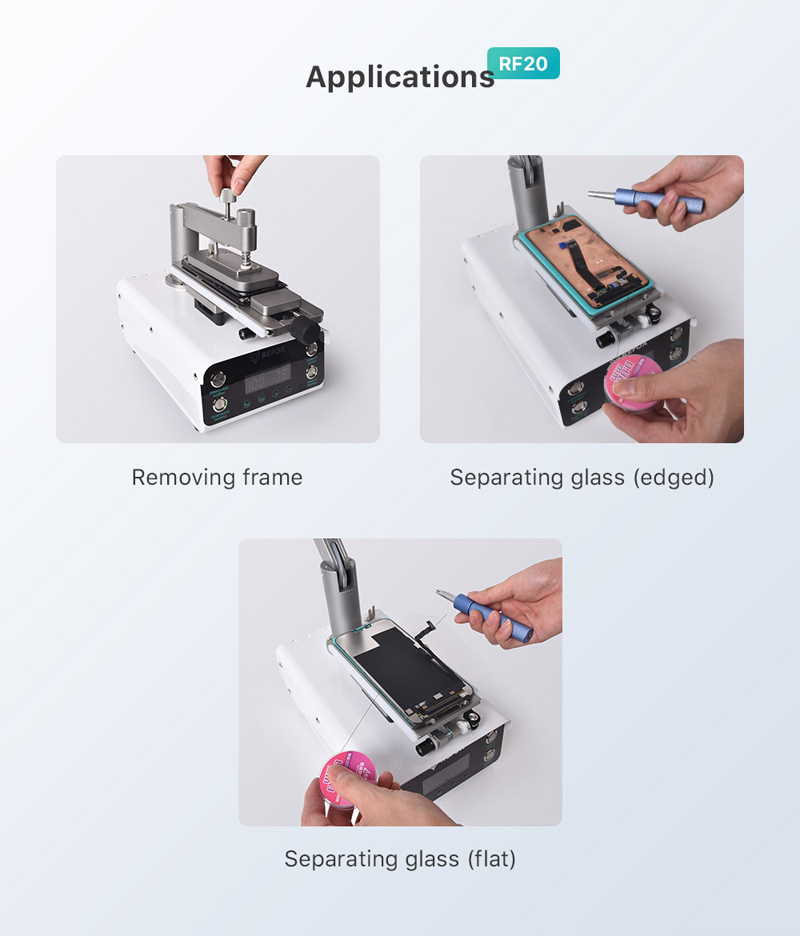

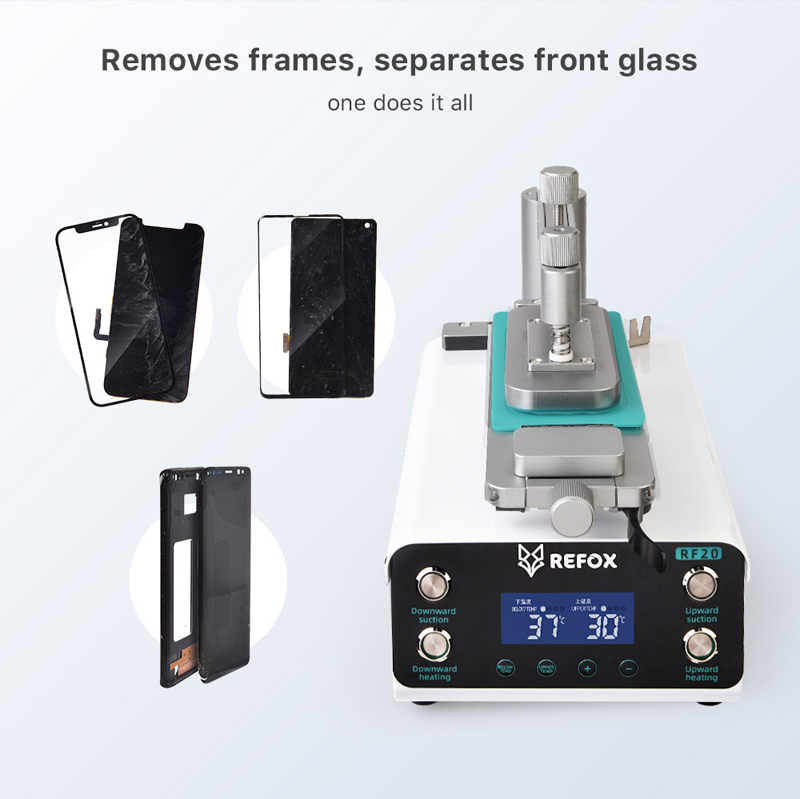

Functions
1. Flat screen glass separator.
2. Curved screen glass separation
3. Frame Removal, Remove the back cover
Operating Steps
For Flat Screen
1. Turn on the power switch.

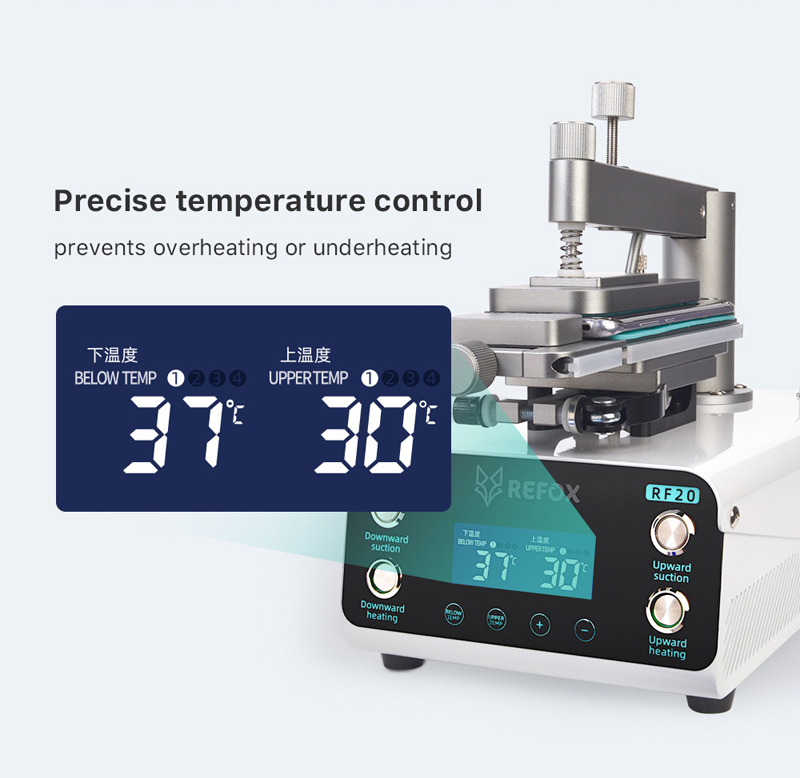

2. Set the "BELOW TEMP" to 90°C and press the "Downward Heating" button to start heating.
3. Place the silicone pad on the heating panel, place the phone screen face down on the heating panel,
and press the "Downward suction" button.
4. First, separate the frame, then separate the glass.
For Curved Screen Frame Removal
1. Turn on the power switch.
2. Set the “UPPER TEMP” to 80°C and the “BELOW TEMP” to 110°C, then press the "Upward Heating" and
"Downward Heating" buttons to start heating.
3. Remove the phone separation silicone pad and insert the clamp module into the heating panel.
4. Place the phone screen face up on the heating panel and tighten the screws.

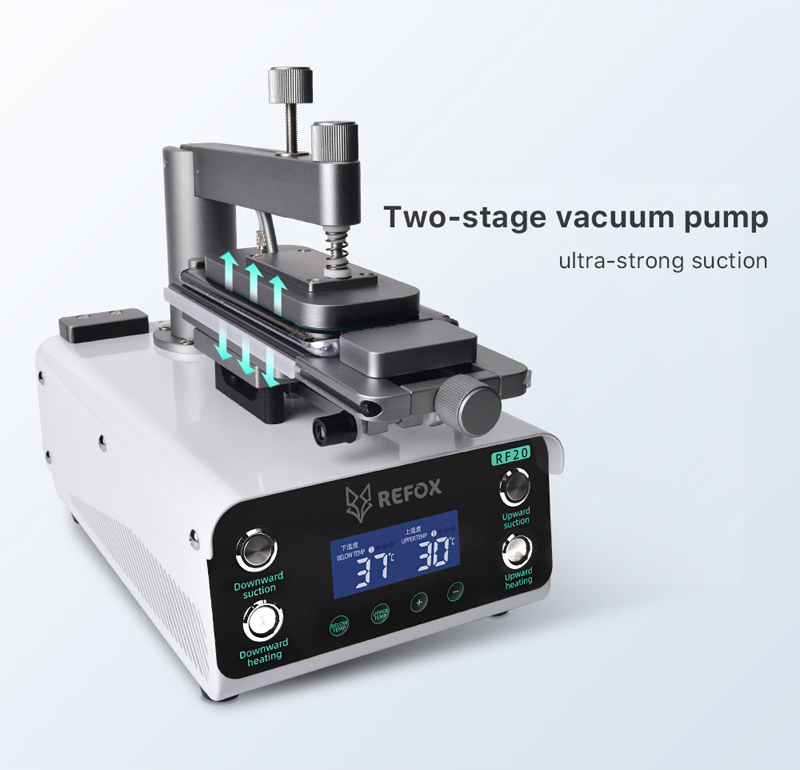

5. Lower the Vacuum Suction Cup, hold the "Upward suction" button, and attach it to the screen.
6. Tighten the Suction Cup Knob to lift the screen.
Specification
1. Name: Screen Separating Machine
2. Brand: REFOX
3. Model: RF20
4. Working Voltage: 110V/220V
5. Power: 320W
6 Product Size: 326*176*248 mm
7. Packaging Size: 345*250*285 mm
8. Net Weight: 5KG
