Specifications:
| Gross weight | 30g |

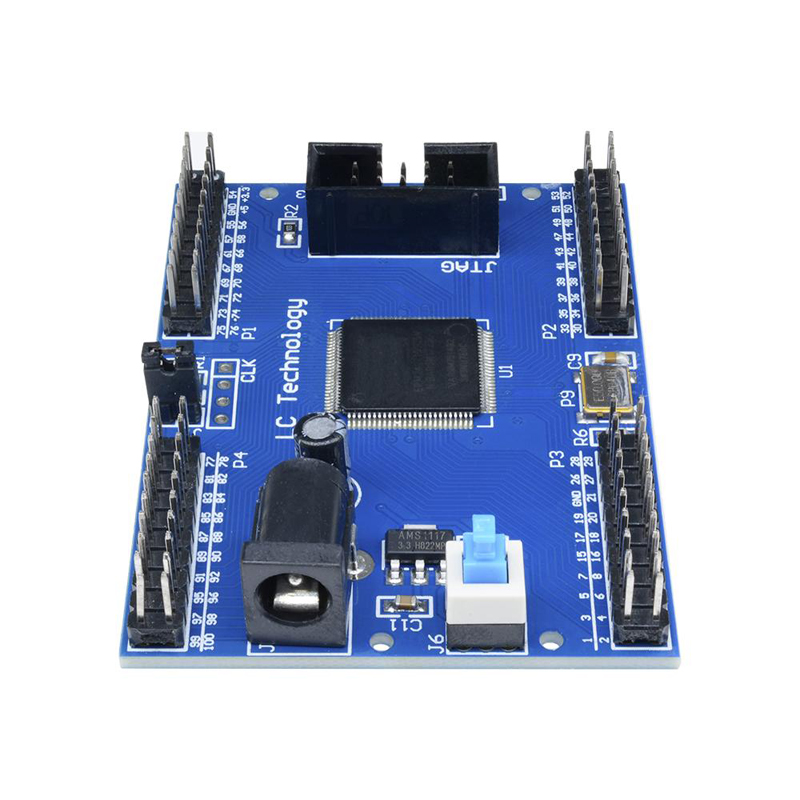

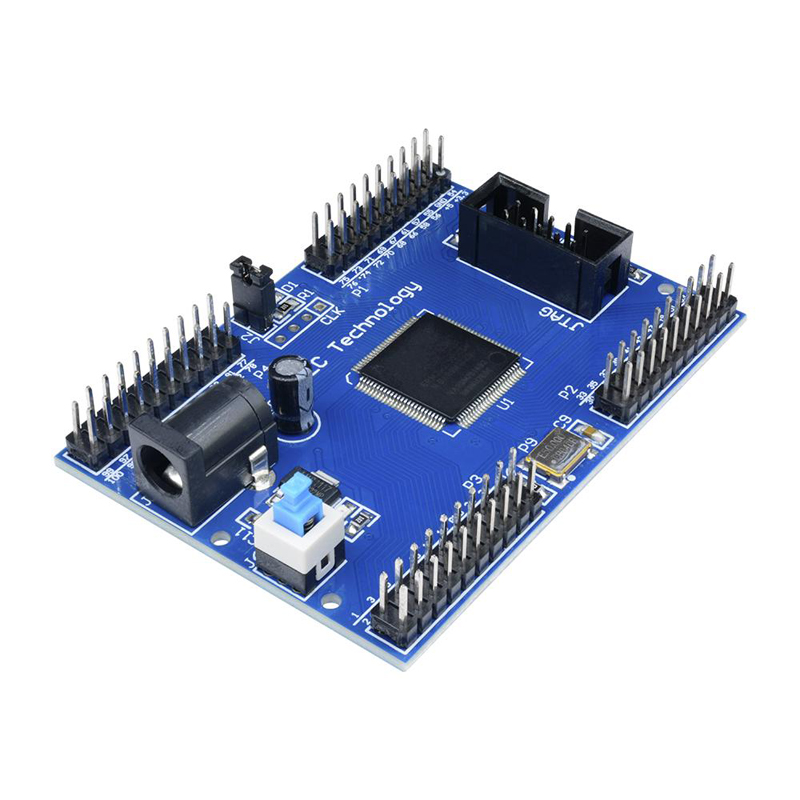

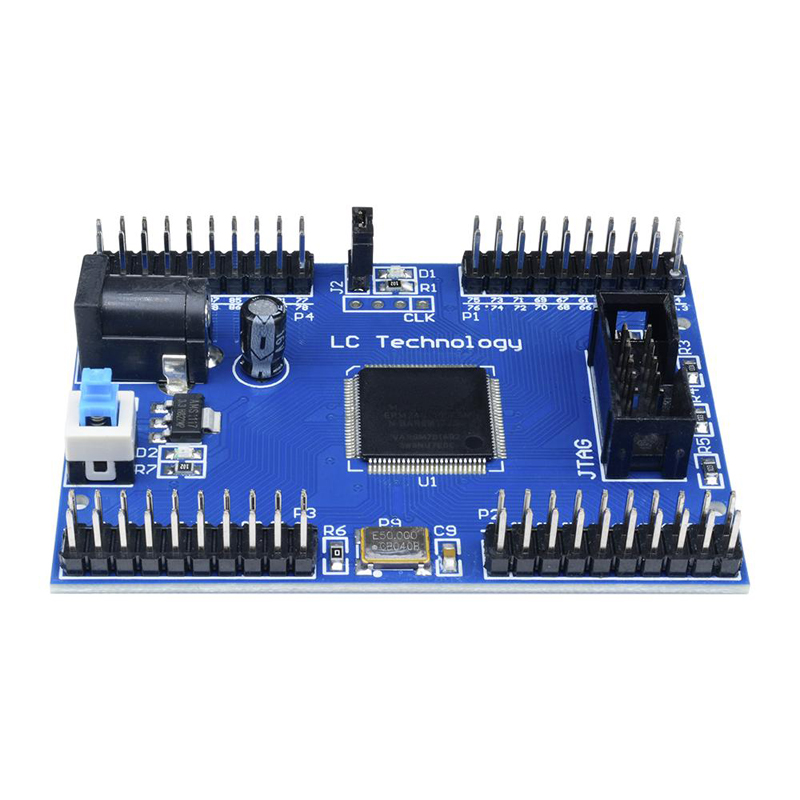

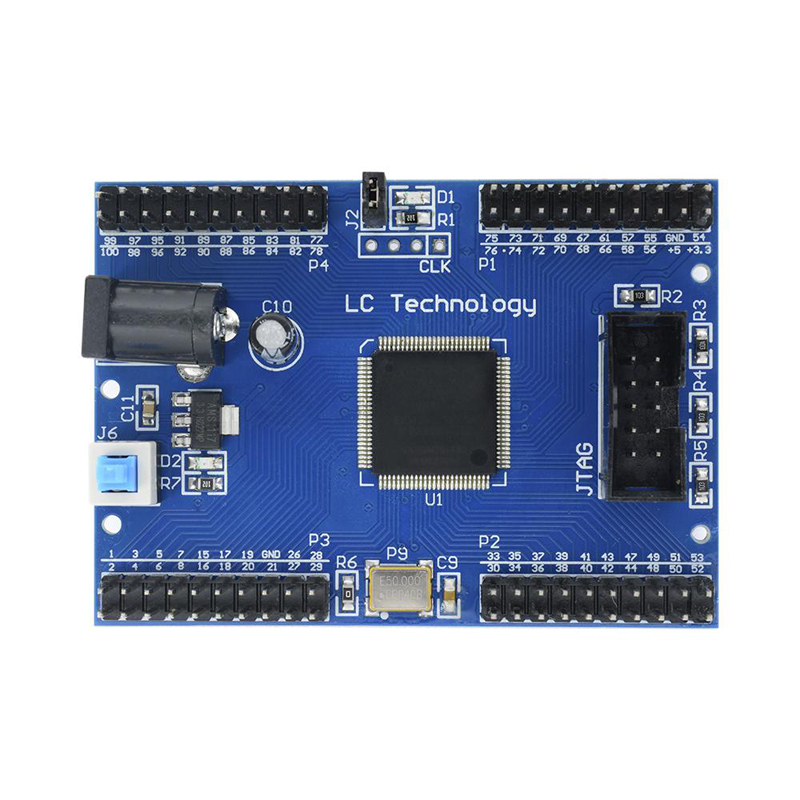

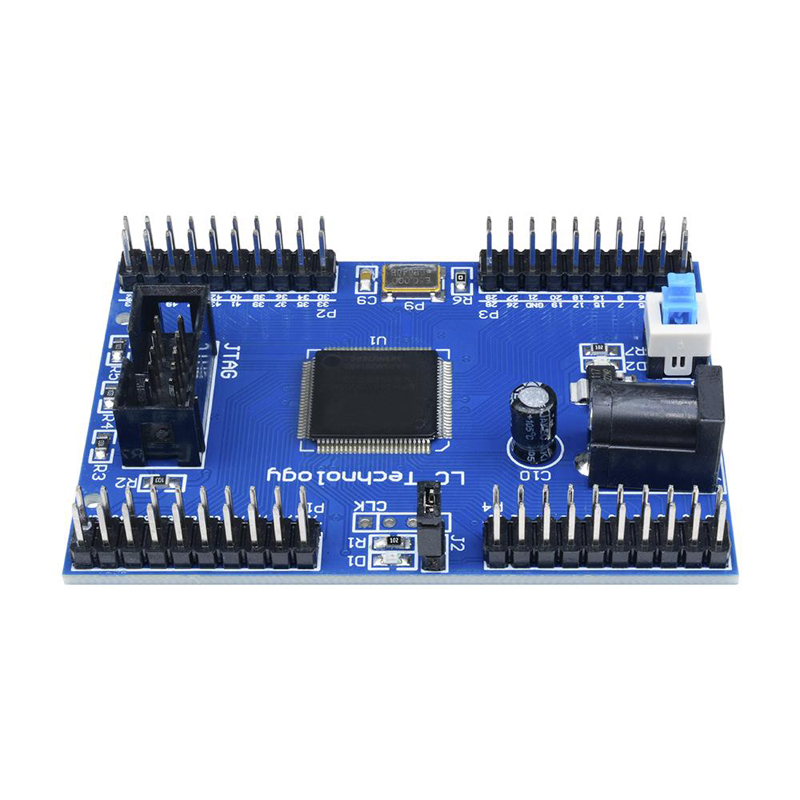

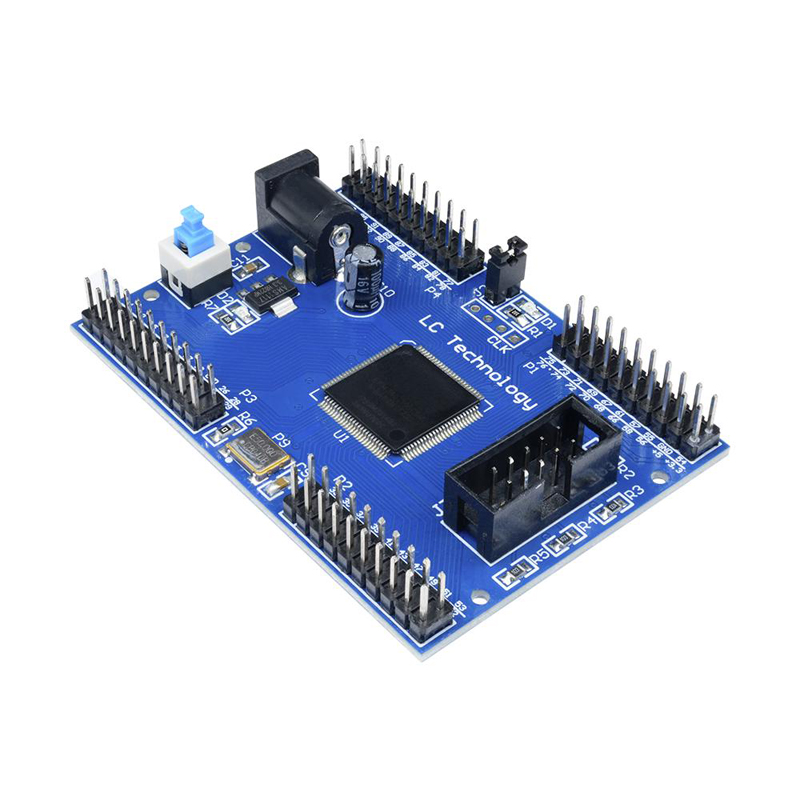

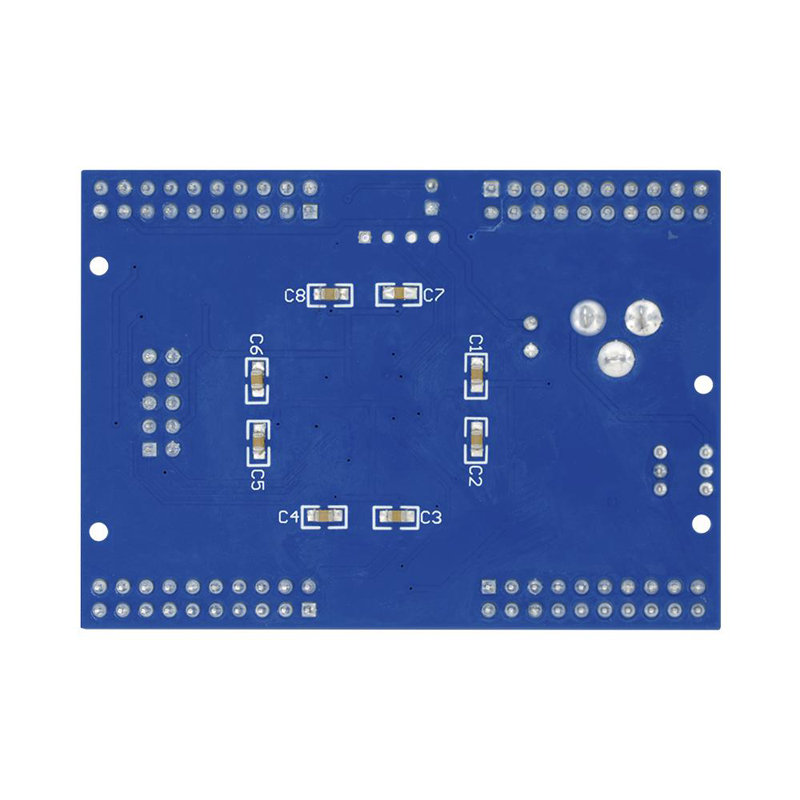

Altera MAX II EPM240 CPLD Development Learning Board
1. The product is ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board,
together with a Byte-Blaster and USB-Blaster Download for product validation and development.
JTAG and power supply interface board has been set aside, and leads to all the pins, simply
connect the 5V power supply can work extremely convenient to use. The CPLD chip for the entry
of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate
leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal,
serial communications, etc. Facilitate the users to develop their own products to maximize the
learning development cost savings for the user.
2. Chip board EPM240T100C5
3. Board JTAG interface,
4. Active board 50MHZ crystal
5. With a programmable LED
6. With a 5V chip, 3.3V AMS1117-3.3 switch
7. 5V power supply with switch
