Product Specification:
1. Compatible With: iPhone iPhone SE/6S/6SP/7/7P/iPad Pro9.7/Pro 10.5/Pro 12.9
2. Color: Blue
3. Package Weight: About 200g
Product Features:

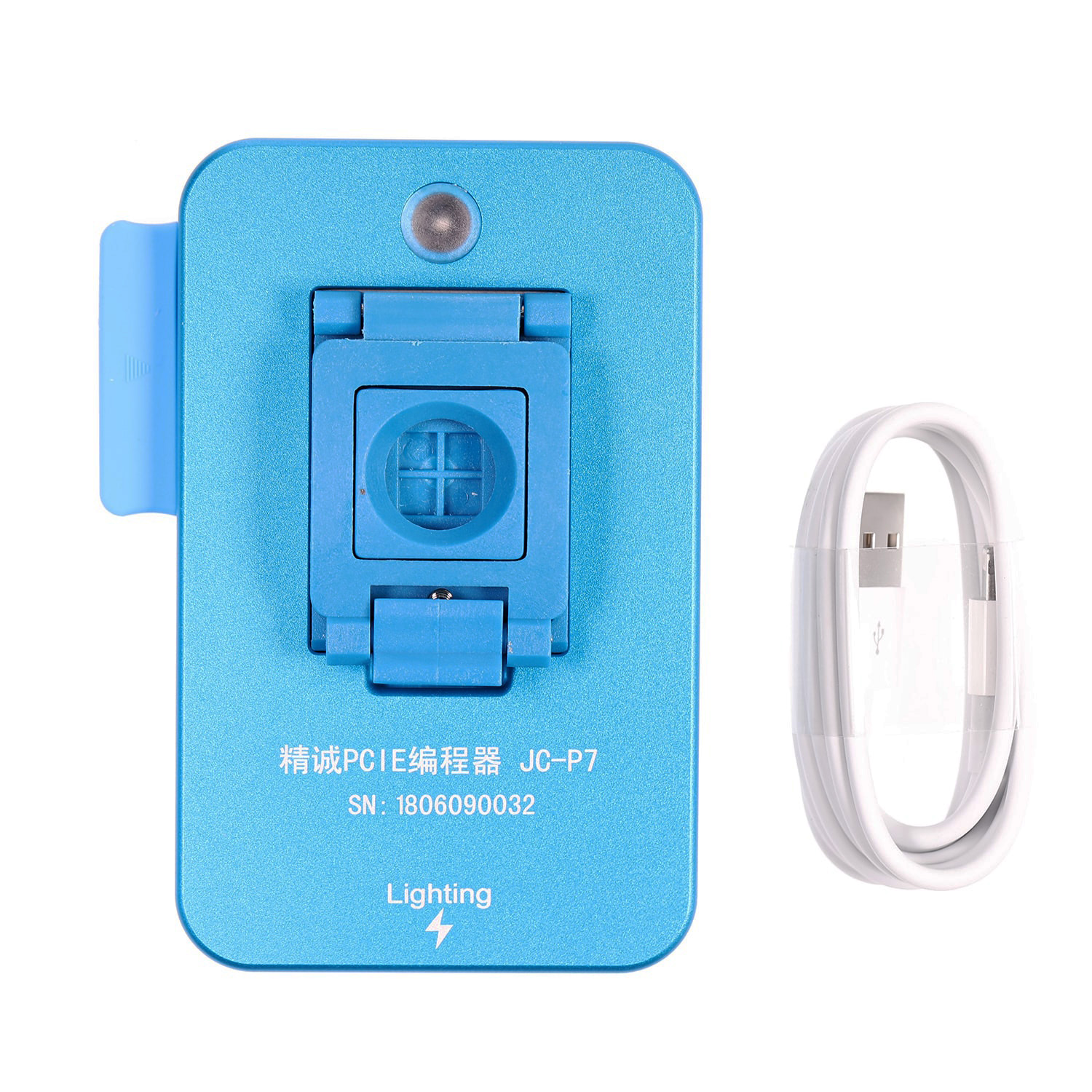

JC P7 PCIE Nand Test Fixture is a revolutionary NAND underlying error repair tool for iPhone SE/6S/6SP/7/7P/iPad Pro9.7/Pro 10.5/Pro 12.9, NAND Flash Format function, backup the partition data (*.bin file), check partition
data and doing data analysis (not file data, just is partition data).iphone underlying Data Reading / Writing /
Repairing Test fixture for iPhone SE/6S/6SP/7/7P/iPad Pro9.7/Pro 10.5/Pro 12.9, Repair / fix iphone 6s-7P NAND error,
Expand iphone / ipad NAND Memory Storage, remove WIFI Binding problem, unzip wifi, changing WIFI IC anywhere
1. Efficient: Mass Programming by consistent operating of reading/writing
2. Easy: Oprerating not needing any loading or mother chip
3. Safe: Protecting Function/Lower Operating Voltage 4.2V
4. Durable: Long Time Running and Usage Lifetime
Product Function:
1. JC P7 module support depth level repairing of underlying data and Kernel data
2. JC P7 support almost PCIE NAND, and fast underlying data reading / writing speed (1-2 seconds), JC PCIE
about need 6-8 seconds
3. Brand new NAND Flash, need re-flash the nand, or JC-P7 can't read / write,
4. Not only can working on JC online software platform, and but also can work on JC PRO1000S offline machine.
5. Cos new JC-P7 PCIE Test fixture not including the Engineering motherboard, Unable to get the ECID, please
reboot with boot nand, perhaps, will error: Entering iboot mode, please replace nand ic and then click [load boot file]
6. You need re-store the nand by JC PCIE or the iphone motherboard Test fixture.
(1) JC P7 added new function: NAND Flash Format function, JC PCIE module can't support this function. PCIE NAND
Flash Partition formatting can fix many itunes error code, then you can re-flash the NAND Flash again by test fixture,
you also can backup the partition data (*.bin file): underlying data and Kernel data, and check partition data and doing
data analysis (not file data, just is partition data).
(2) JC P7 module support depth level repairing of underlying data and Kernel data
(3) JC P7 support almost PCIE NAND, and fast underlying data reading / writing speed (1-2 seconds), JC PCIE about
need 6-8 seconds
(4) Brand new NAND Flash, need re-flash the nand, or JC-P7 can't read / write,
(5) Not only can working on JC online software platform, and but also can work on JC PRO1000S offline machine.
Cos new JC-P7 PCIE Test fixture not including the Engineering motherboard, Unable to get the ECID, please reboot with
boot nand, perhaps, will error: Entering iboot mode, please replace nand ic and then click [load boot file] you need re-store
the nand by JC PCIE or the iphone motherboard Test fixture.
Repair Tools-
-
Item NO: AS143177A
-
Item NO: AS143174A
-
-
