Specifications:
| Gross weight | 1100g |

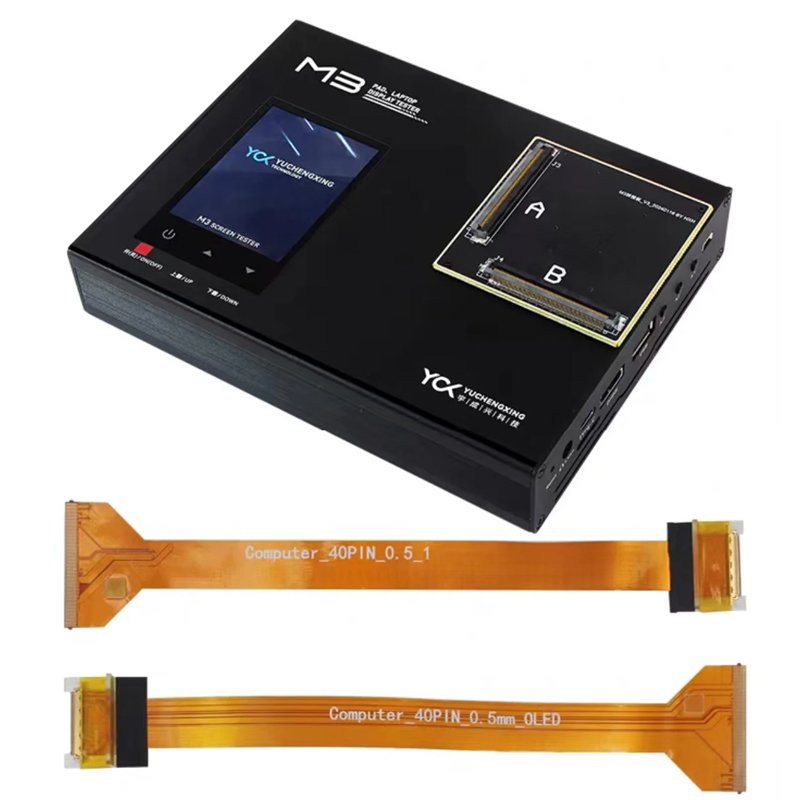

YCX M3 Cellphone/Tablet/Laptop Screen Tester with Two Universal Flex Cable EU Adapter
Function1. Support multi-interface screen tester: support eDP, 8LAN, dual MIPI C/D PHY, HDMI2.1, SPI, IIC and
other interfaces

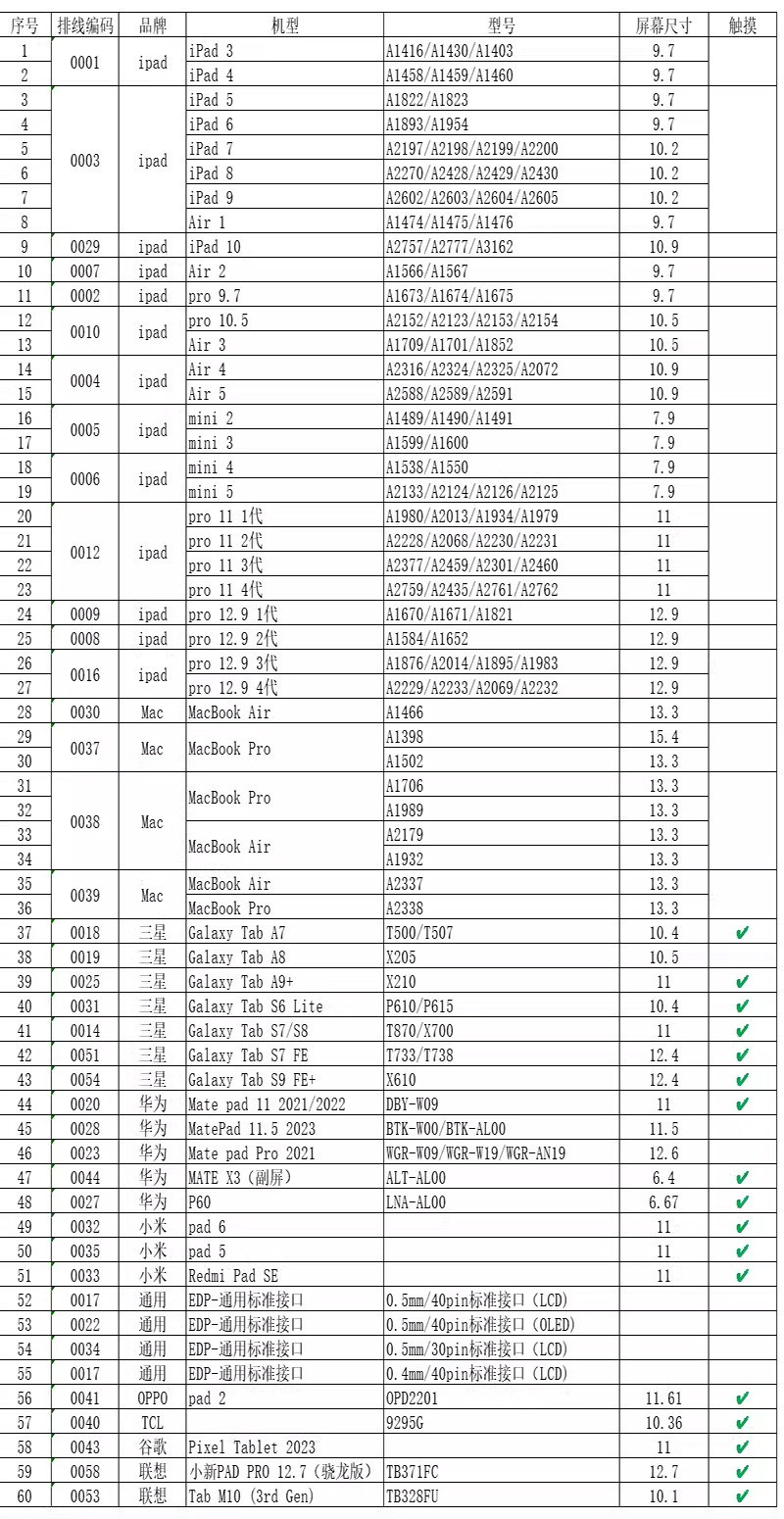

2. Support iPad, tablet, laptop, cell phone and other screen testing
3. Support touch test, picture playback, video playback (up to 8K resolution)
4. Support logic screen, BMP format picture, monochrome, grayscale, color bar, gradient, radiation,
characters, crosshairs, checkerboard grid
5. Provide logic screen, customized picture, and compression mode picture display to meet the test
screen requirements of production line inspection and R&D experiment.
6. Provide power supply for various displays (IOVCC, VCI, AVDD, DVDD, OTP, ELVDD/VSP, ELVSS,/NSN, etc.).
7. As well as up to 5OV backlight power supply, each power supply provides high-precision voltage and
current measurement, OVP, OCP, UVP, UCP, and other protection can be the user-programmable interface.
8. The system integrates 6 buttons (3 buttons for display + 3 buttons for motherboard) and a screen touch
function for human-computer interaction, and the buttons are respectively for module power-up switch,
upward flip, downward flip, picture top, return to the system interface, system upgrade/automatic
manual working mode.
9. With a 2.8-inch LCD display (resolution 320 * 240), display and configure the relevant power supply,
lighting, burning, and other parameter data and real-time data.
10. Support EDID burning, comparison function, the system each way I2C supports a variety of EEPROM chip
EDID burning/reading comparison functions.
11. Print debugging information window display and other functions, support for UART, USB, Ethernet
(can be upgraded and configured), IIC, SPI communication, support for network MES systems / PLC / AOI
and other equipment docking, interactive module detection information and control instructions.
