Specifications:
| Gross weight | 170g |
| Brands | MaAnt |

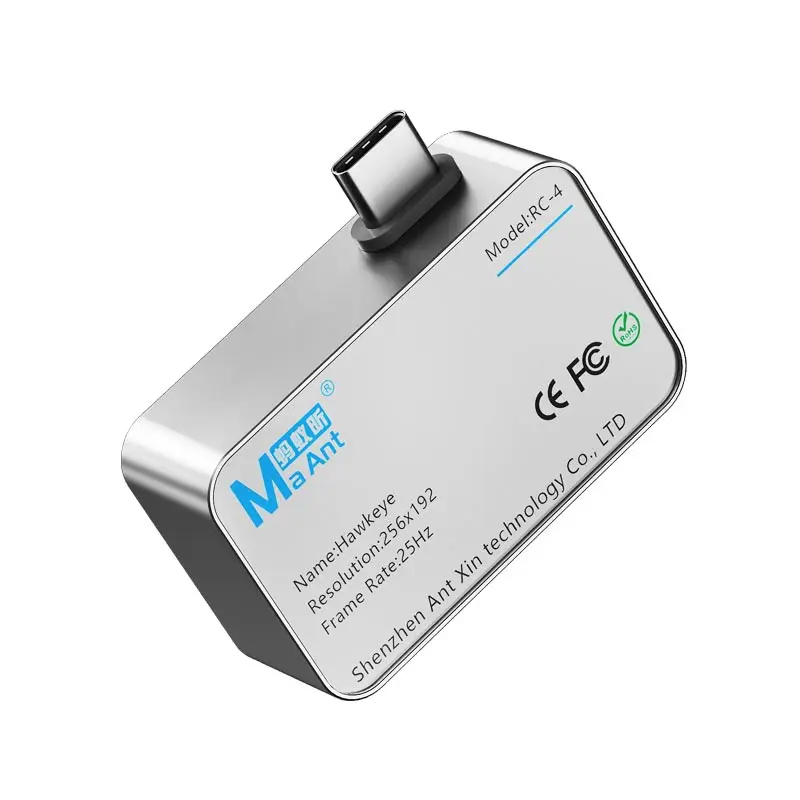

MaAnt Hawkeye RC-4 256*192 Type-C Port Infrared Thermal Camera for Android Phones
Features

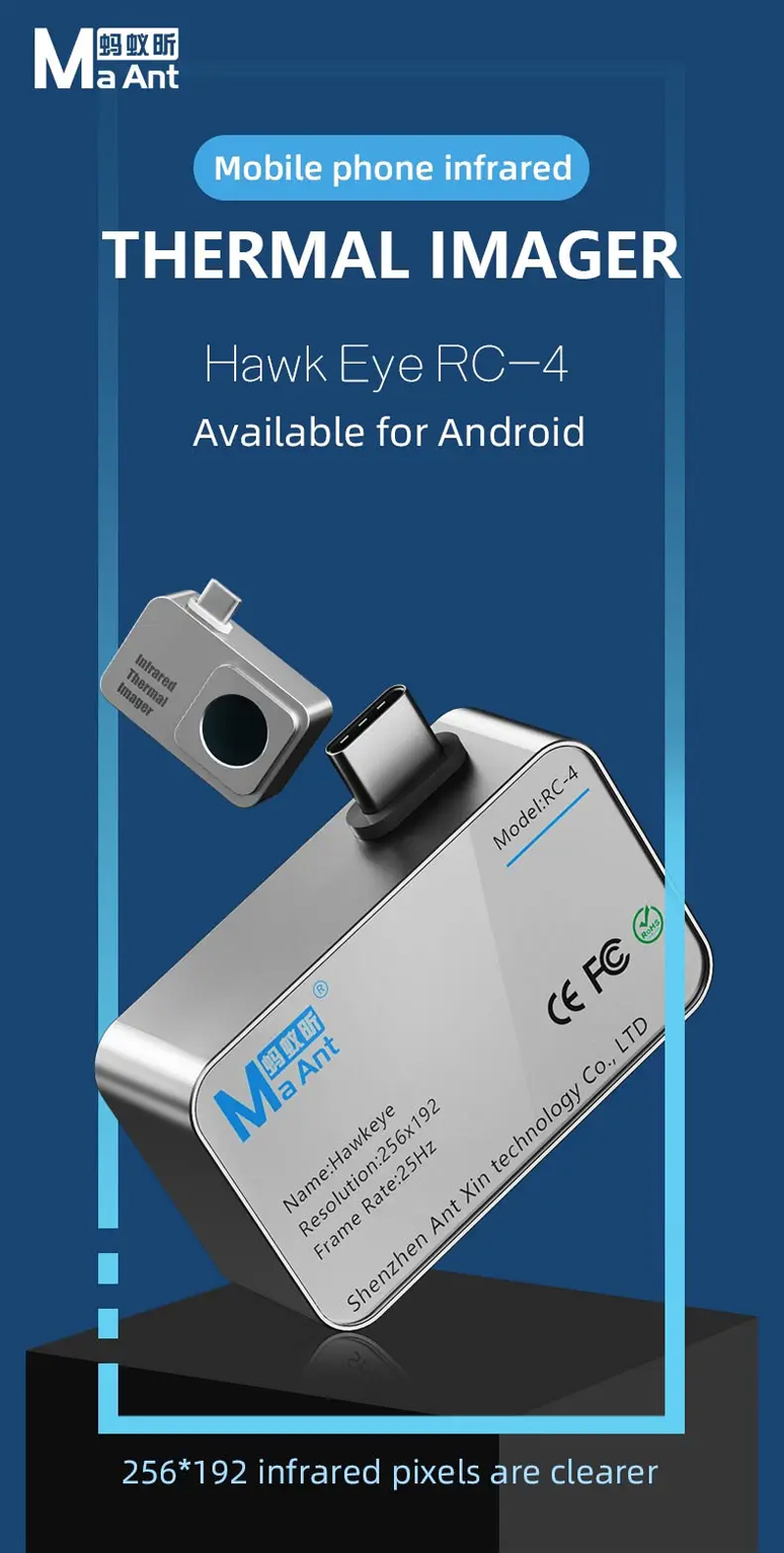

1. Hawk Eye RC-4 mobile phone infrared is available for Android, 256*192 infrared pixels are clearer.

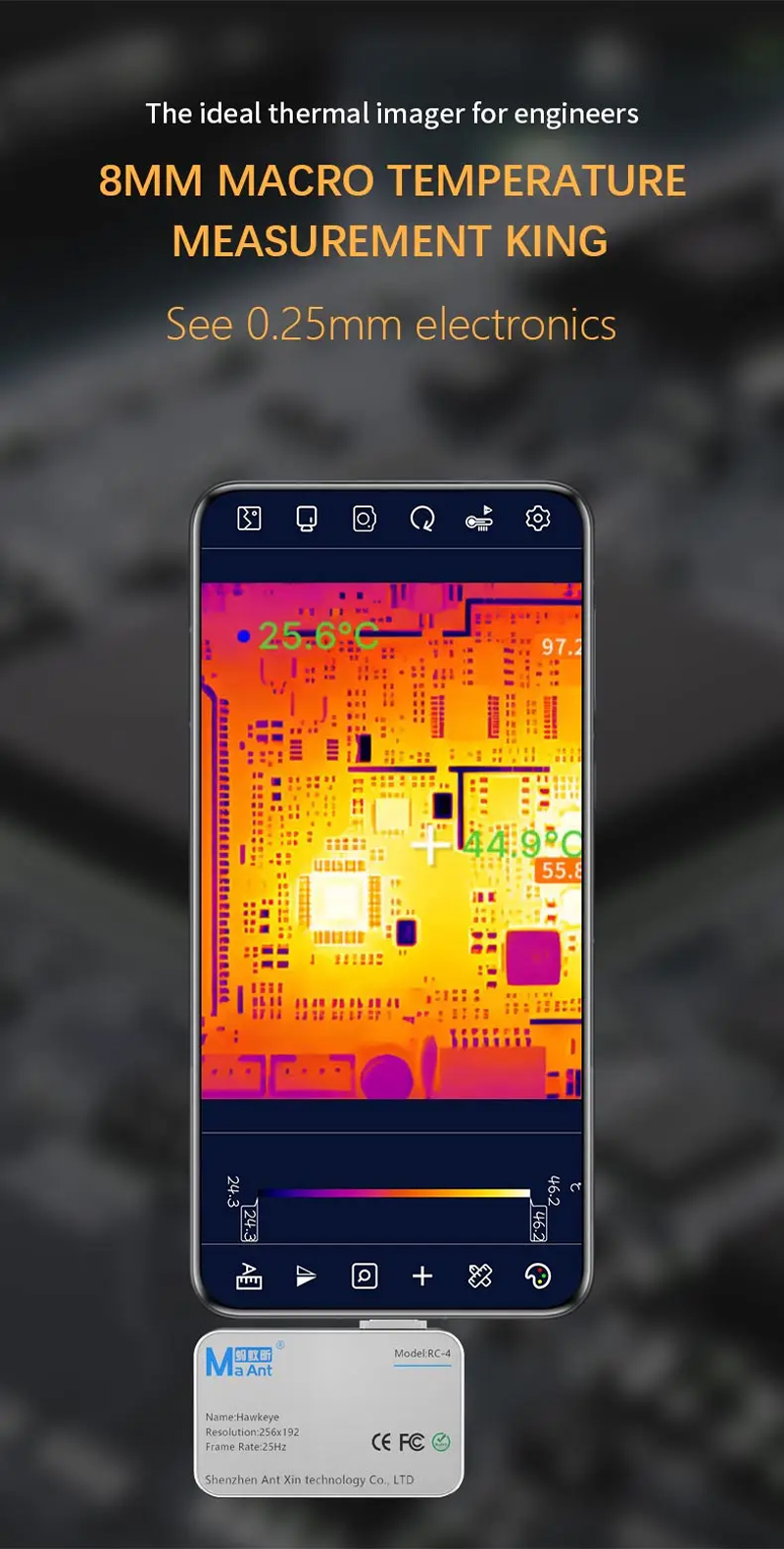

2. The ideal thermal imager for engineers, 8mm macro temperature, measurement king, can see 0.25mm electronics.
3. 25Hz high frame rate, the picture is smooth and low latency, and the temperature is quickly refreshed.

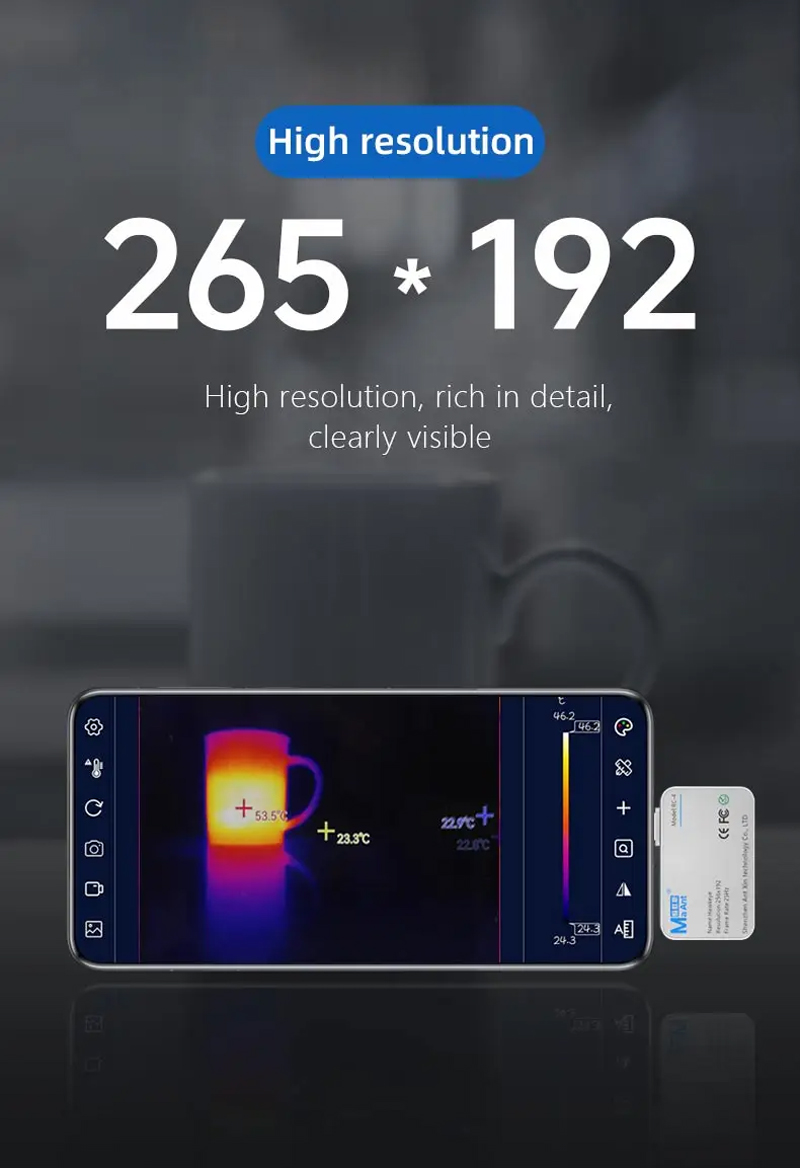

4. High resolution 265*192, high resolution, rich in detail, clearly visible

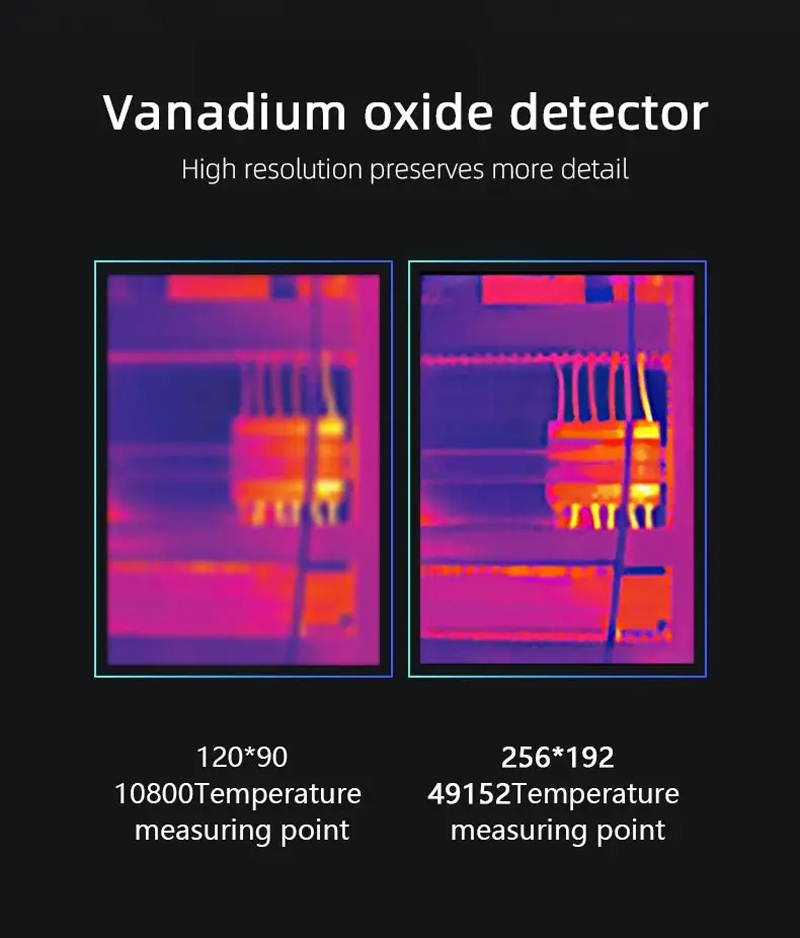

Vanadium oxide detector, high resolution preserves more detail

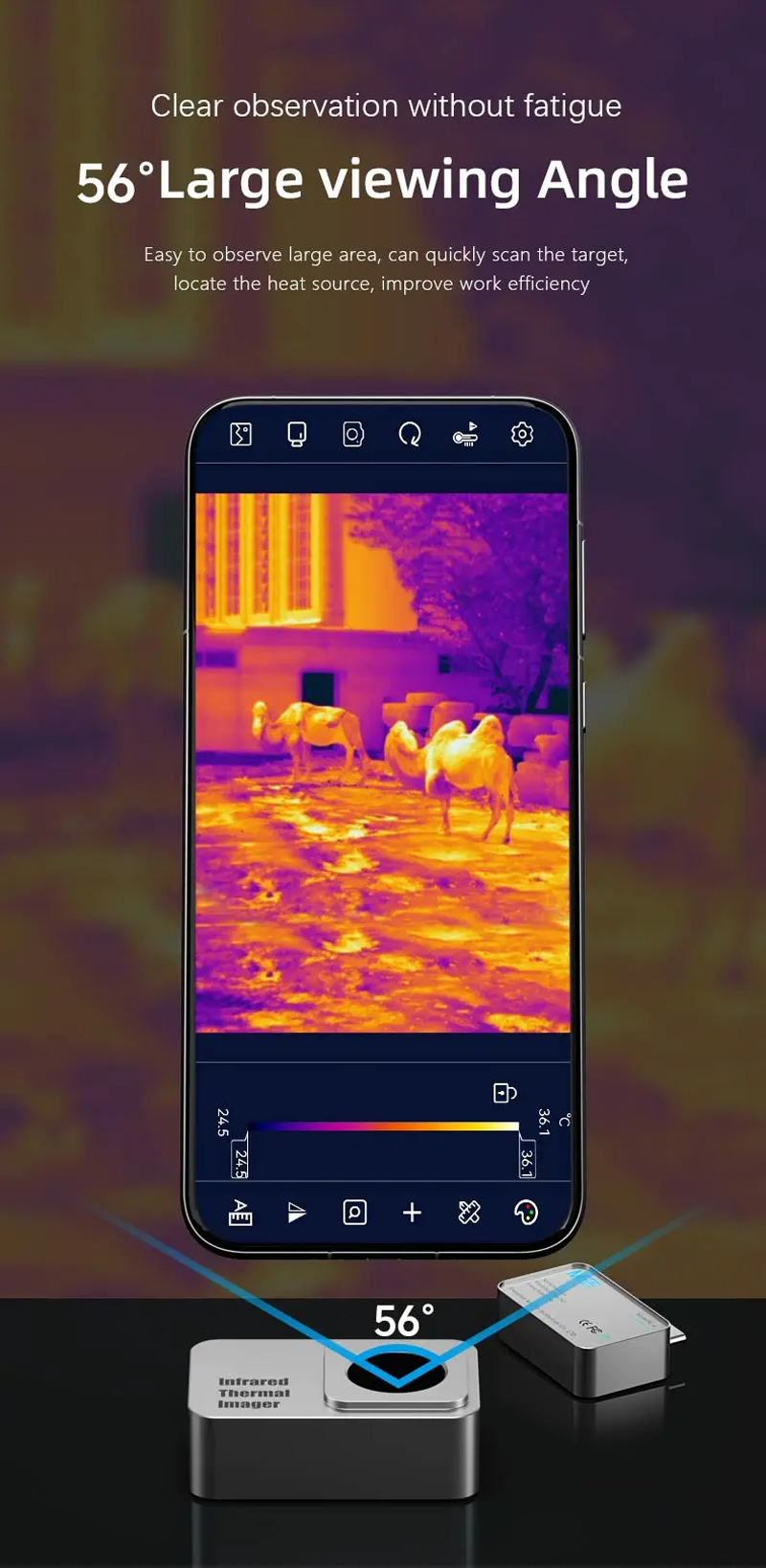

5. Clear observation without fatigue 56° large viewing angle, easy to observe large area, can quickly scan the target, locate the heat source, improve work efficiency.

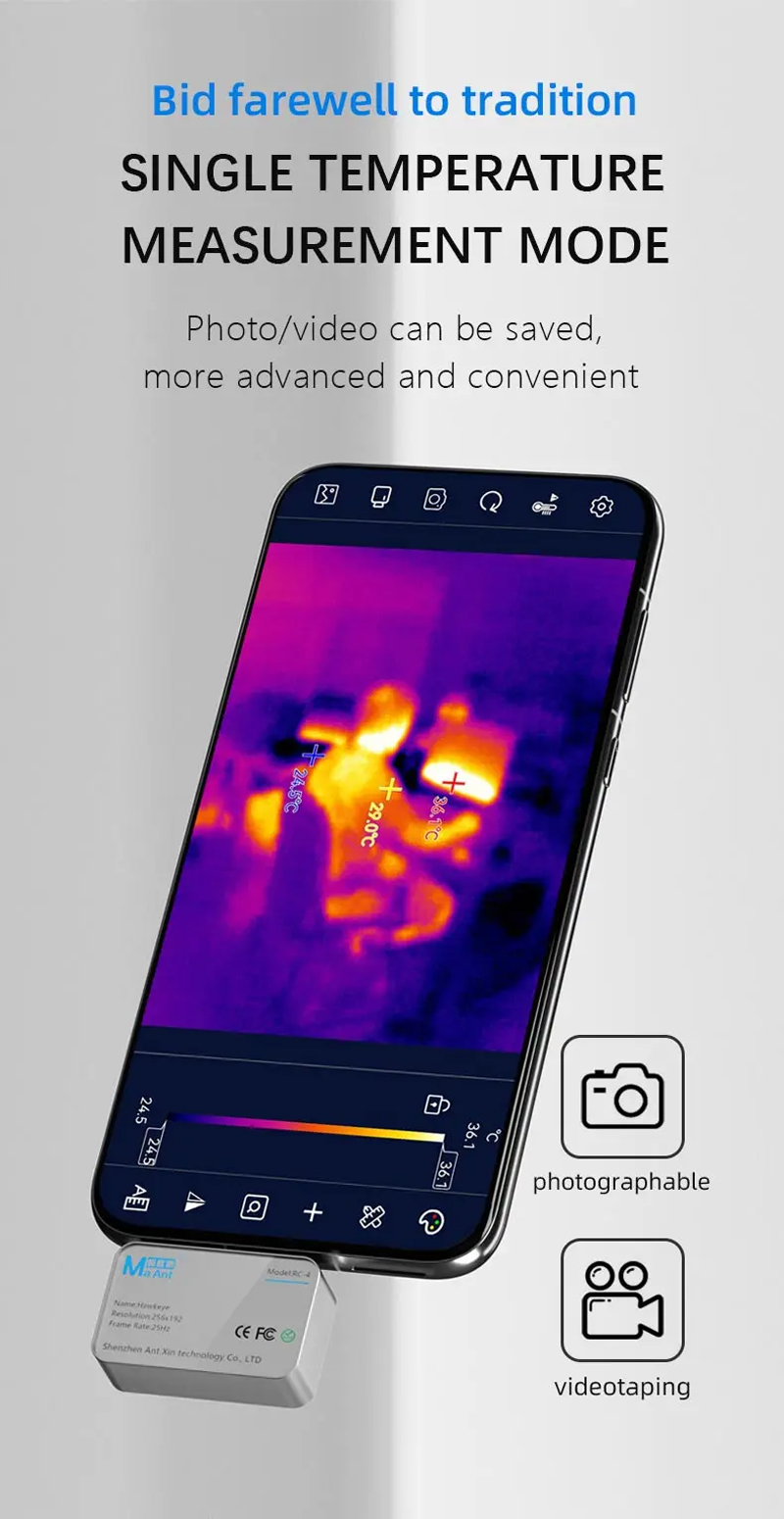

6. Bid farewell to tradition, single temperature measurement mode photo/video can be saved, which is more advanced and convenient.

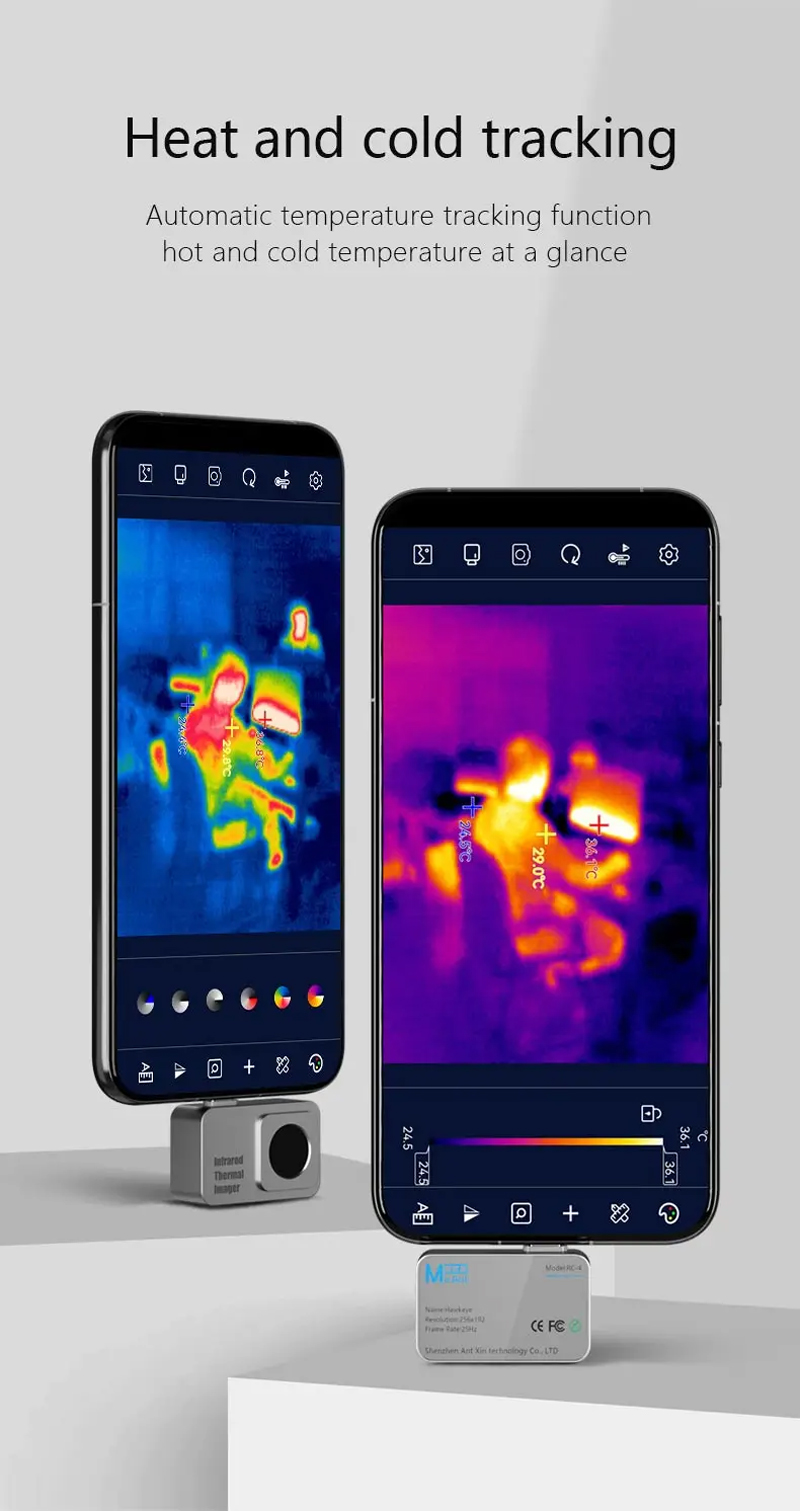

7. Heat and cold tracking, automatic temperature tracking function, hot and cold temperature at a glance.

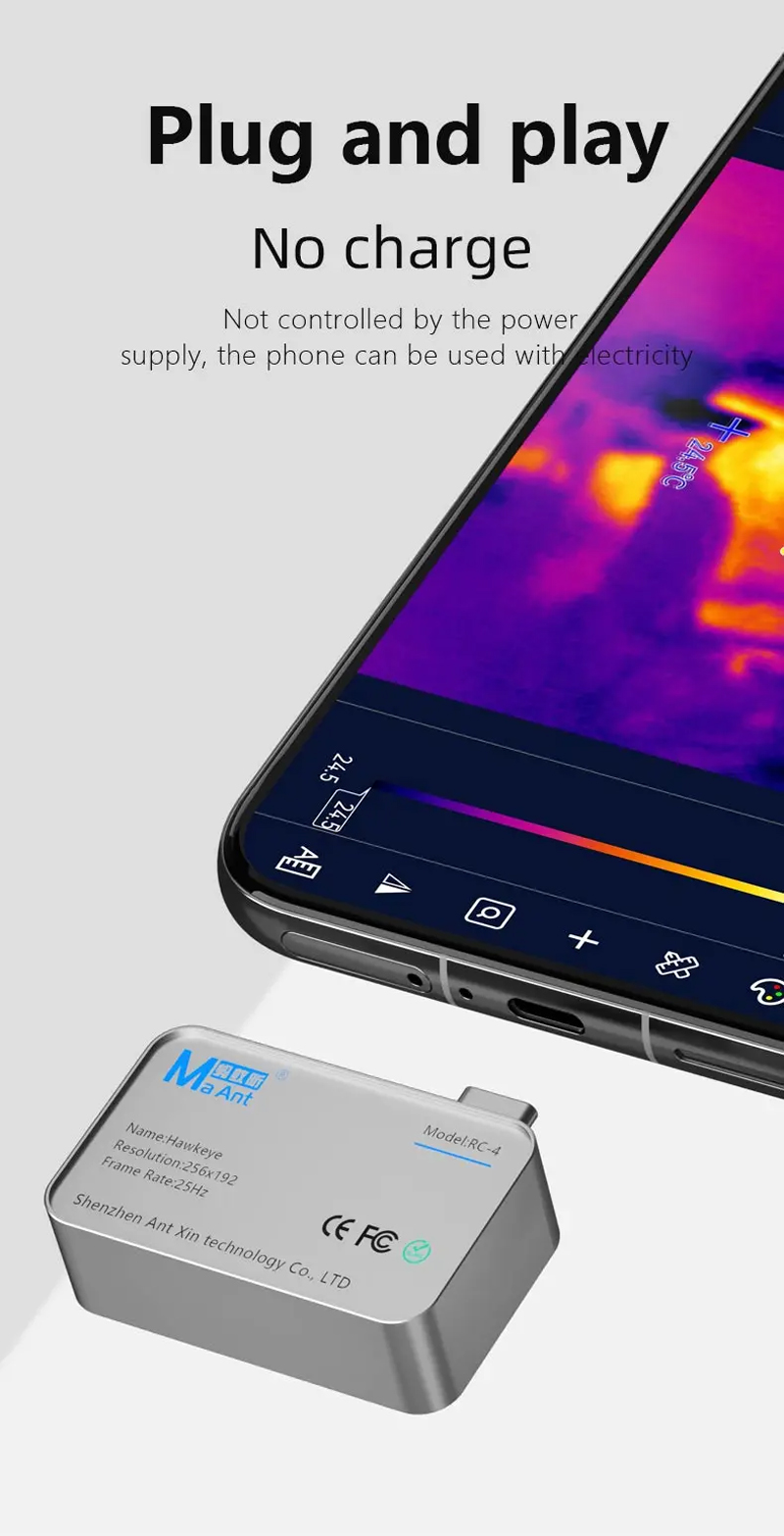

8. Plug and play, no charge, not controlled by the power supply, the phone can be used with electricity.

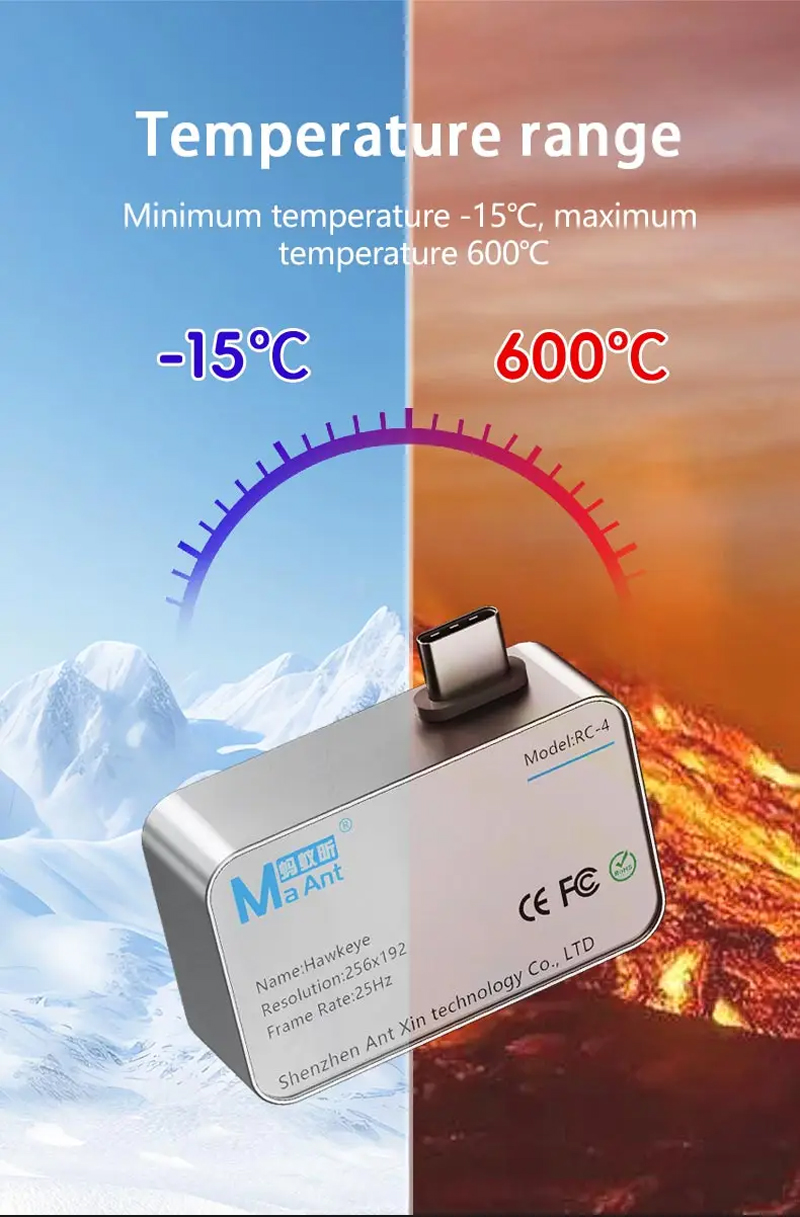

9. Temperature range, minimum temperature -15℃, maximum temperature 600℃.

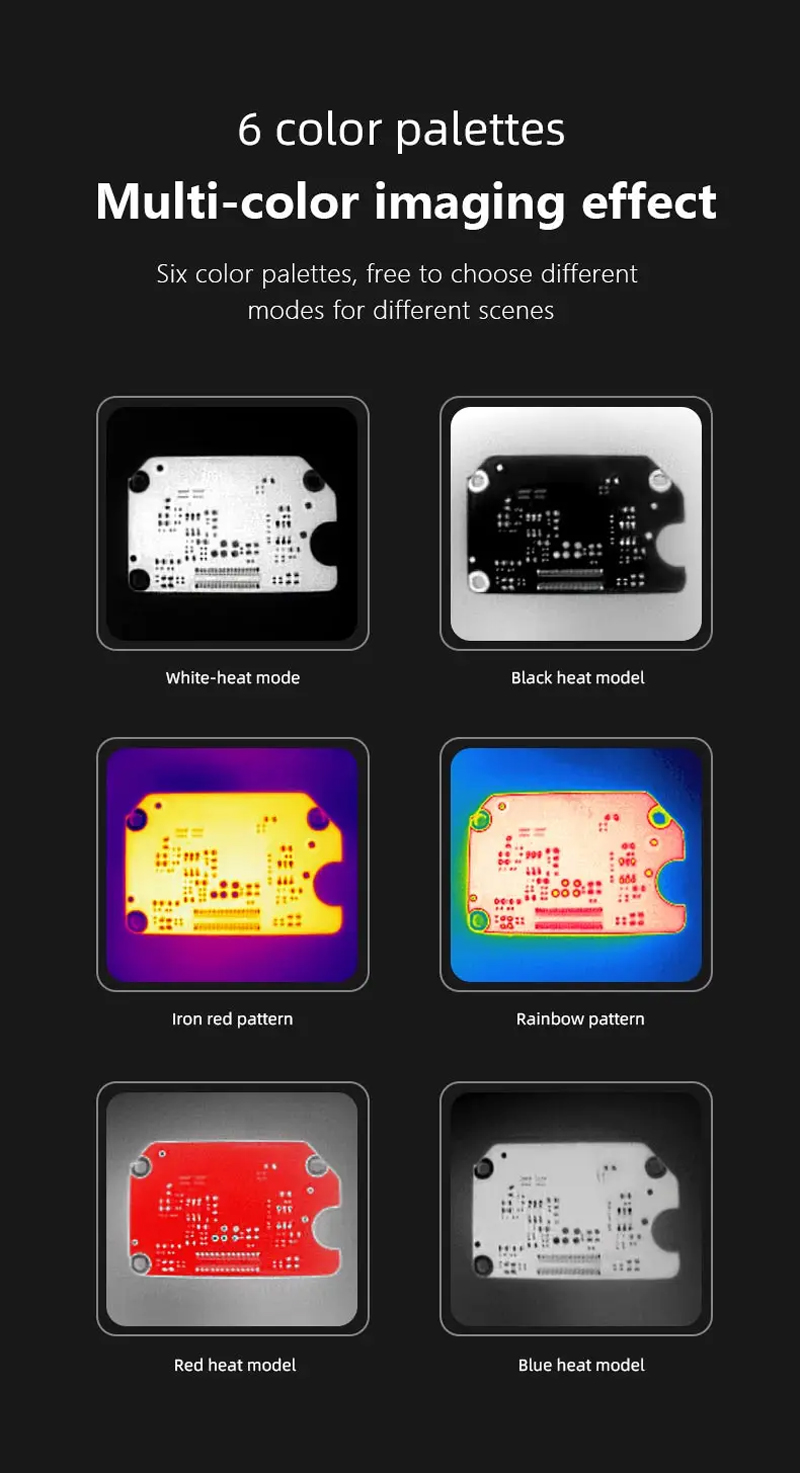

10. 6 color palettes multi-color imaging effect, six color palettes, free to choose different modes for different scenes.

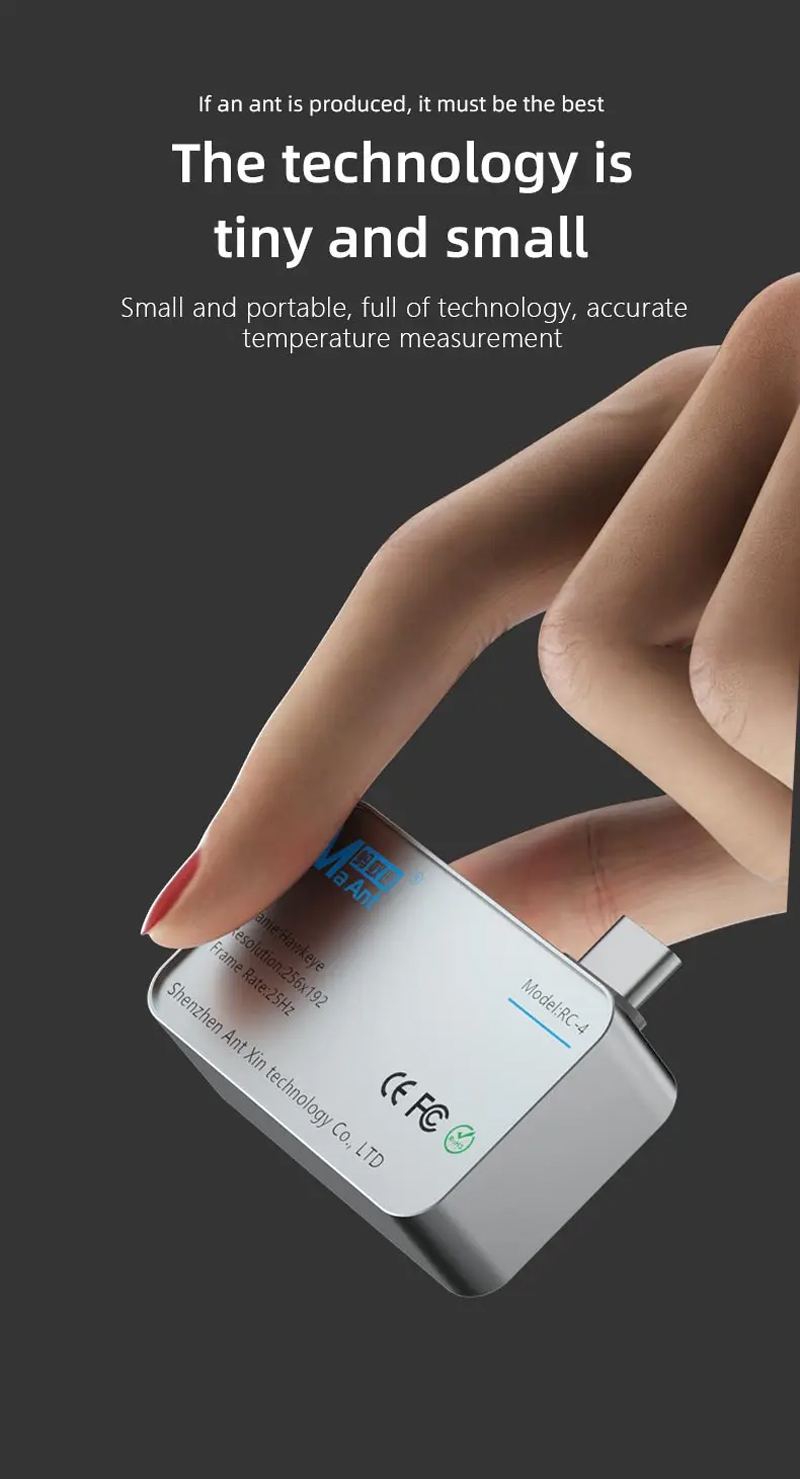

11. The technology is tiny and small, small and portable, full of technology, accurate temperature measurement.

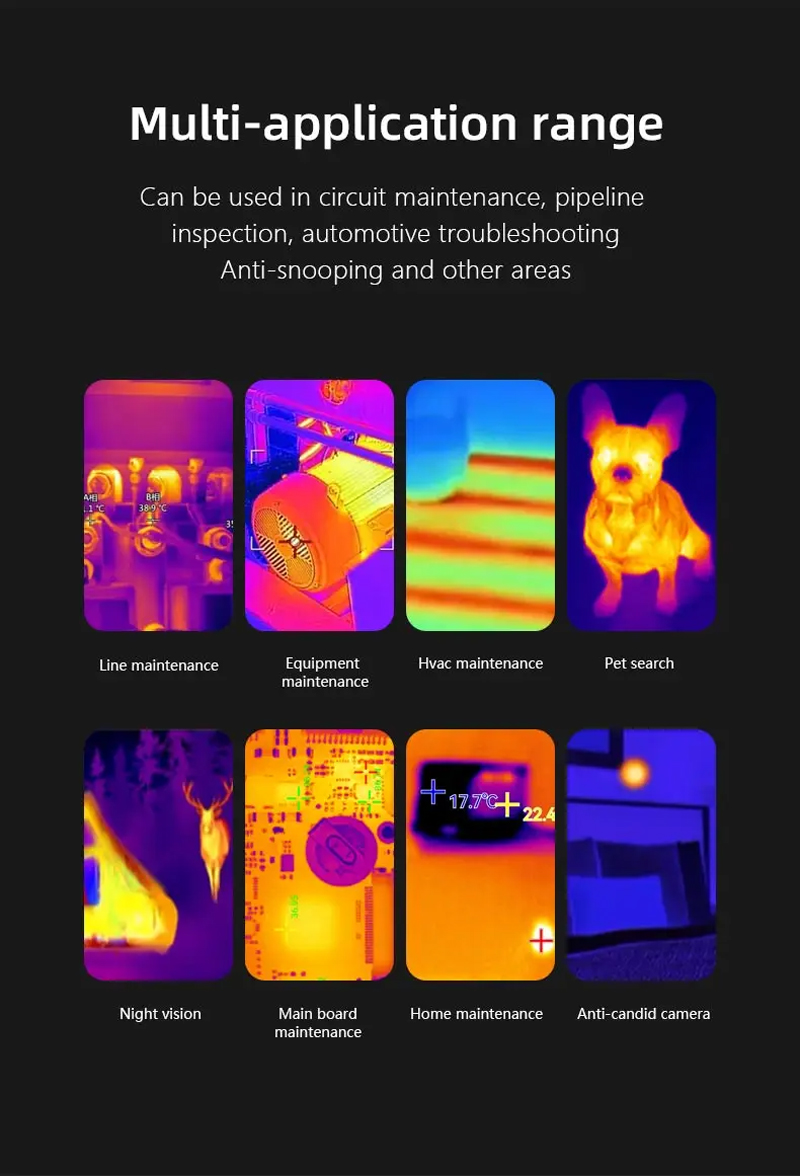

12. The multi-application range can be used in circuit maintenance, pipeline inspection, automotive troubleshooting, anti-snooping, and other areas.

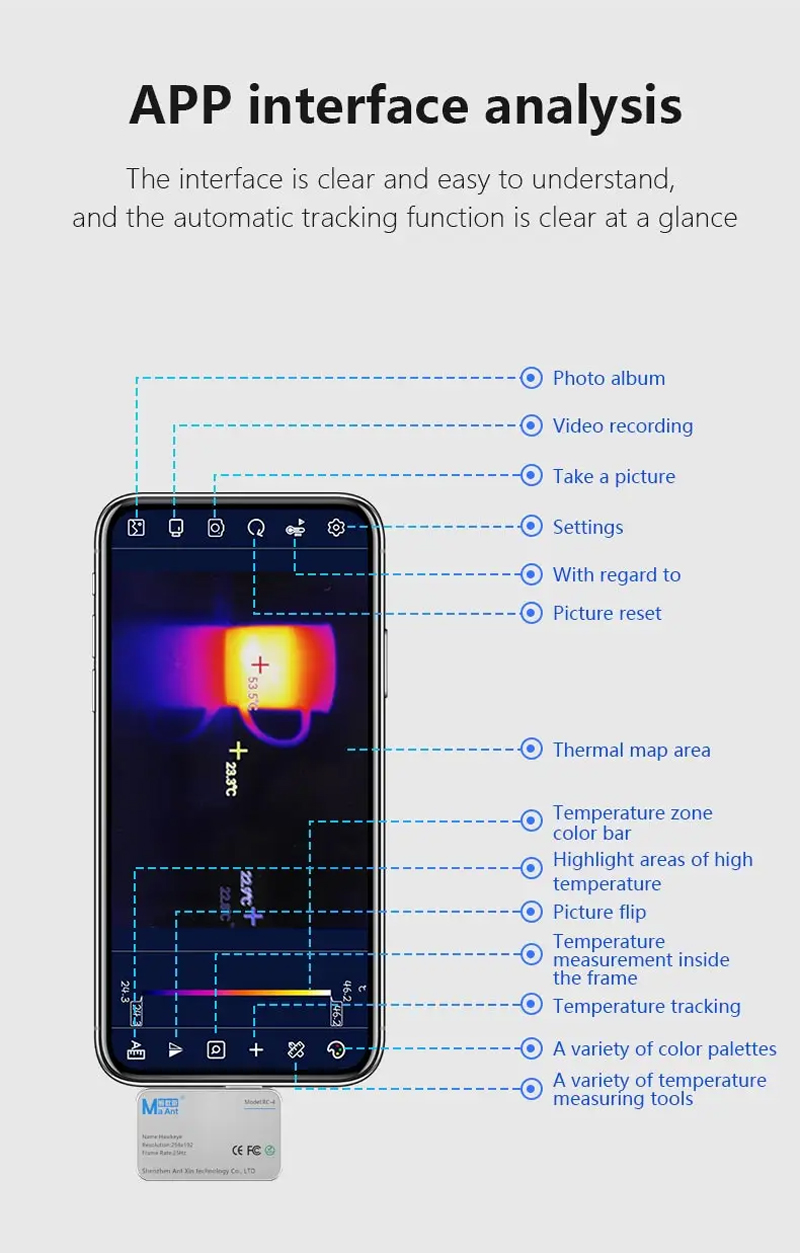

13. APP interface analysis, the interface is clear and easy to understand, and the automatic tracking function is clear at a glance.

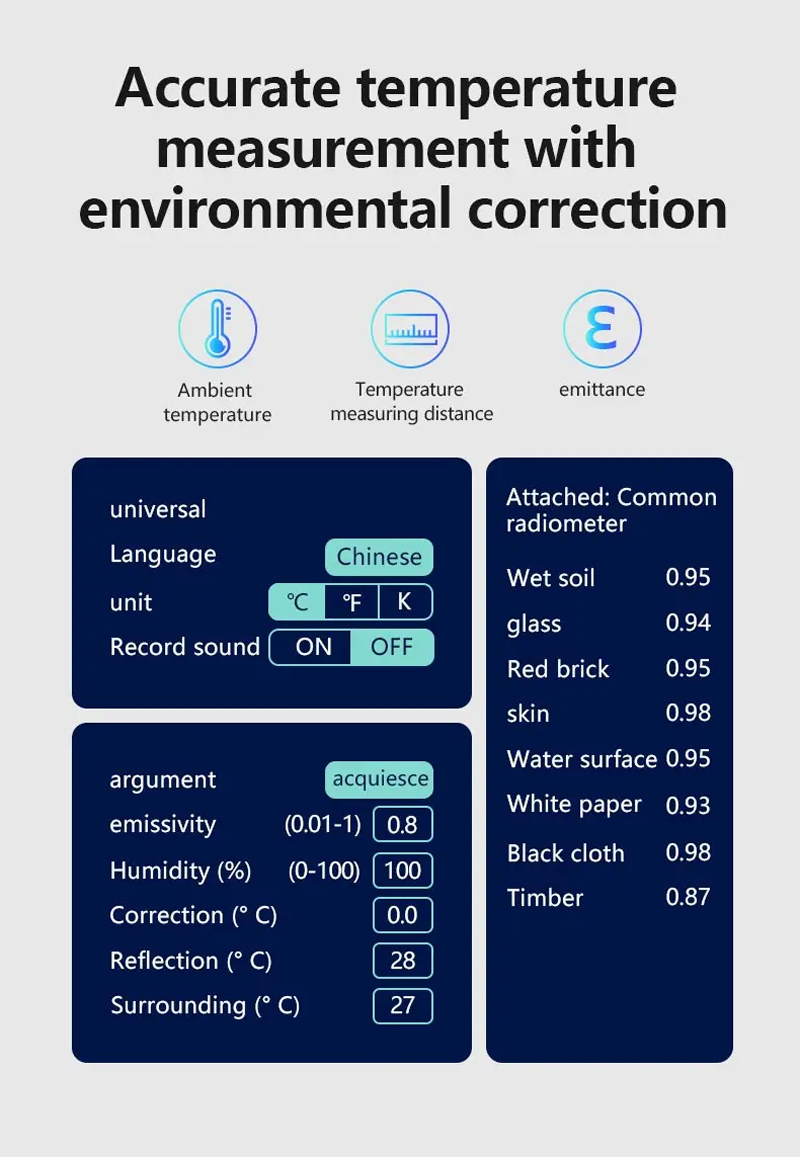

14. Accurate temperature measurement with environmental correction.

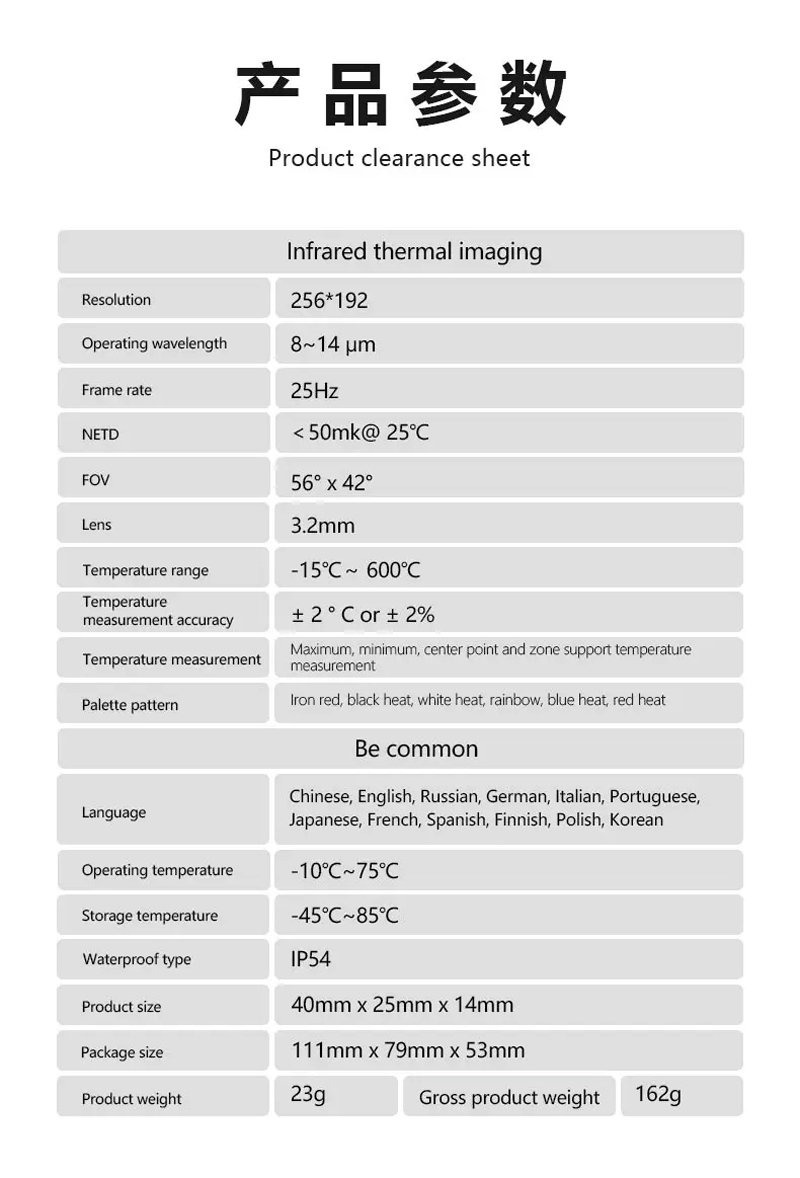

Specification
1. Resolution: 256*192
2. Operating wavelength: 8~14μm
3. Frame rate: 25Hz
4. NETD: <50mk@25℃
5. FOV: 56°x42°
6. Lens: 3.2mm
7. Temperature range: -15℃~600℃
8. Temperature measurement accuracy: ±2℃ or ±2%
9. Temperature measurement: Maximum, minimum, center point, and zone support temperature measurement
9. Palette pattern: Iron red, black heat, white heat, rainbow, blue heat, red heat
10. Language: Chinese, English, Russian, German, Italian, Portuguese, Japanese, French, Spanish, Finnish, Polish, Korean
11. Operating temperature: -10℃~75℃
12. Storage temperature: -45C~85℃
13. Waterproof type: IP54
