Product Specification:
1. Model: Panasonic 2300W CMSO sensor
2. Dimensions: approximately 7.3x7.3x3.0 cm
3. Image sensor: 23 megapixels from 1 / 2.3 inches
4. Effective pixels: 23 megapixels
5. Pixel size: 1.35 * 1.35um
6. Frame rate: 30 fps
7. Resolution of the HDMI image: 1920x1080 60FPS
8. Video format: MP4, MOV (for TF card)
9. USB video resolution: 1920x1080 @ 30FPS
10. White balance: Auto / manual
11. TF card interface: up to 64G
12. Digital enlargement: 8 times digital zoom
13. USB interface: standard USB 2.0 interface
Technical Parameters:
1. iMager Sensor: Panasonic Original 2300W Pixel CMOS Sensor
2. Sensitive size: 1/2.3 inches, a larger field of view than the usual 1/3
3. Cell size: 1.335μm x 1.335μm
4. Output interface: HDMI(Type A), USB(Type B), TF Card
5. Photo resolution: 23 Mega Pixal2300W pixel
6. Video resolution: 2K@30frame, 1080P@60frame
7. HDMI output: Progressive 1920/1080 60frame can be output simultaneously with usb
8. HDMI output ratio: Support 4:3 16:9 16:10 screen to keep the image not be deformed
9. USB 2.0 output(free drive): 1920*1080@30 1280*720@30 640*480@30 can be output simultaneously with usb
10. TF card storage capacity: Up to 64GB
11. White balance: One button while balance/manual/automatic RGB individally adjustable
12. Exposure: Manual/automatic exposure value adjustable
13. Crosshair: 8 strip color,thickness adjustable
14. Crosshair scale: 2 strip with scale
15. Cross dotted line: 2 strip color,thickness adjustable
16. Sharpness,Contrast,Saturation: Support adjustable
17. Black and whte/negative: Support
18. Mirror:Horizontal vertical mirrow
19. Language: Chinese/English
20. Digital Zoom: Support
21. remote control: Support/Remote video recording,the screen does not shake
22. Input voltage: DC 12V(support 5-9V) 55-21 large interface
23. Power consumption: Maximum 0.15W (12V 0.12A)
24. Lens interface: c/cs port
25. Gross weight: 180g
26. Net weight: 400g

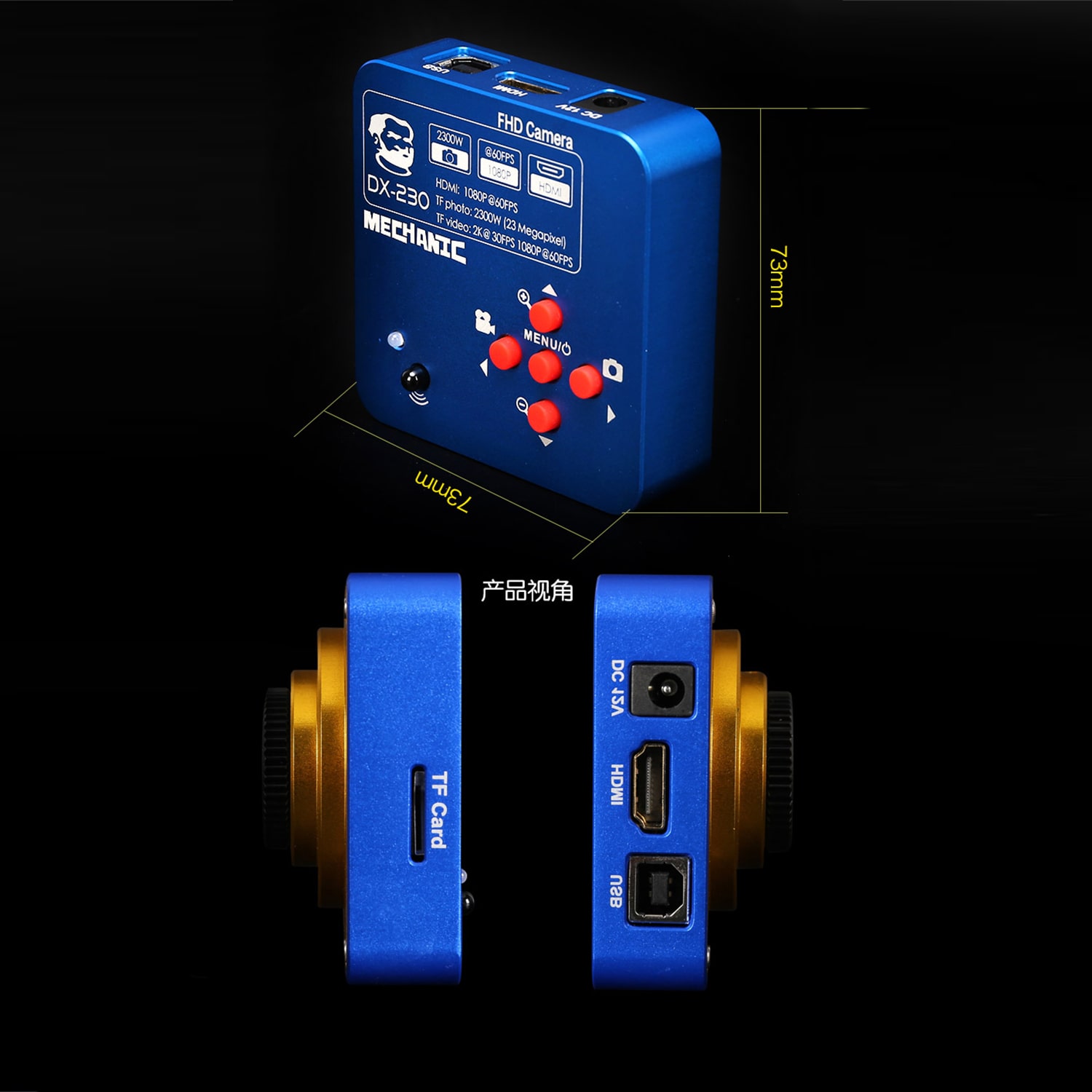

27. Product size: 75*75*35mm
28. Package dimensions: 165*102*82mm
Packing list:
1 x Camera
1x Adapter
1 x Remote Control
1 x B-type Square USB Cable
1 x Chinese And English Manual
1 x Packing Box
Tips:
1. The product prevails in kind, pictures are just for reference.
2. Please check your model and read related information carefully before ordering to avoid mistakes.
3. The item will be shipped in 2 working days after ordering.
4. We offer 1 year warranty for this item.
