Specifications:
| Gross weight | 29000g |
| Brands | M-Triangel |

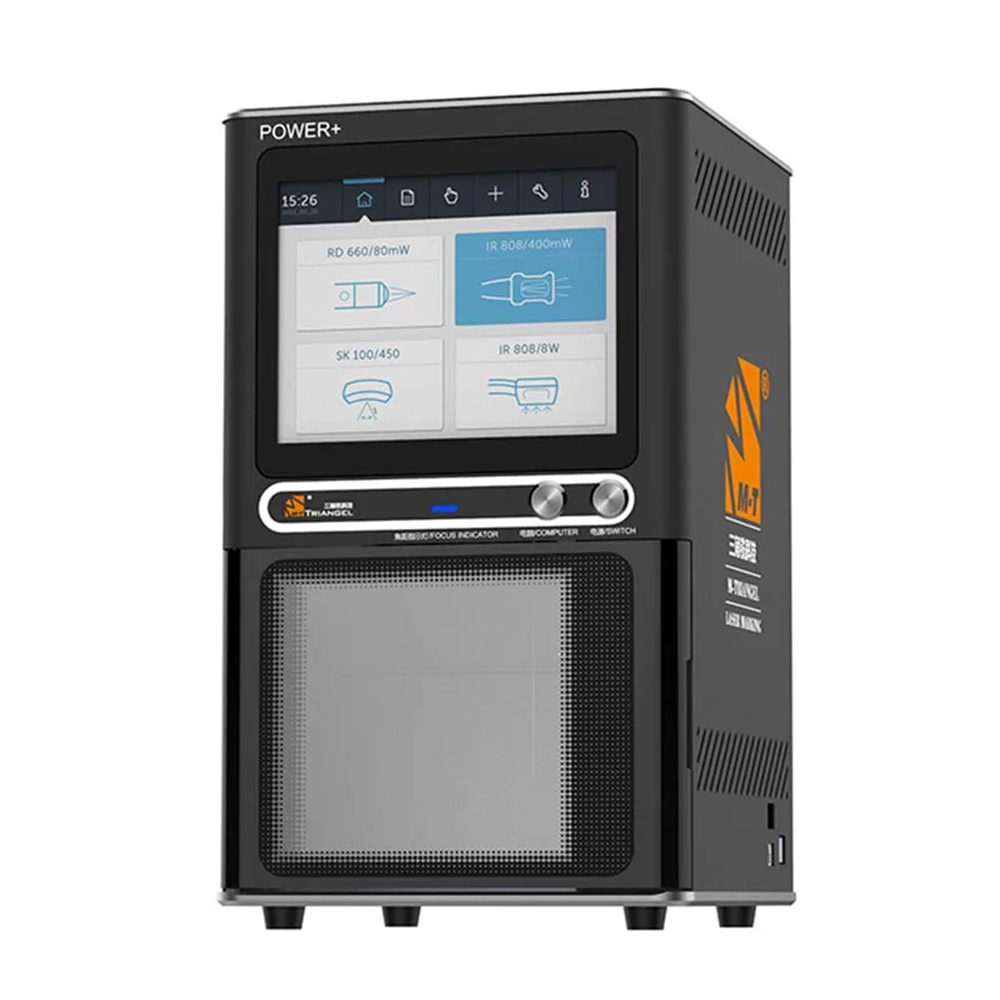

M-Triangel PG Pro Plus 20W Laser Marking Machine with Large Screen for iPhone Back Cover Glass Removal Repair
1. M-Triangel PG Pro Plus laser power: 20W.
2. The latest laser machine, high safety, and environmental protection coefficient, built-in air cooling,
and built-in smoking.
3. With a large screen, M-Triangel PG Pro/ Pro+ features the WiFi, visual auto-focus fuction and built-in
air filter.
4. High-quality fiber laser source, long working life.
5. Built-in computer and comes with laser software, easy to set up.
6. Support for back glass separation: iPhone 8- 14 Pro Max.
7. LCD middle frame separation: iPhone, Samsung, Xiaomi, Huawei, LG, OnePlus, VIVO, OPPO, etc.
8. Engraving a wide range of metal materials: stainless steel, copper, aluminum, chrome brass, credit
card, etc.
9. Engraving non-metallic materials: silicon wafers, ceramics, plastics, rubber, epoxy resin, ABS, ink,
electroplating, spraying, and coating.
10. Laser Machine for Mid frame, Bezel, Back glass Separate, Marking, Engraving.
Specification
1. Total power: less than 800w
2. Environment temperature: -10°C~65°C
3. Marking accuracy: <0.001mm
4. Repeatability: <0.001mm
5. Marking speed: <10000mm/s
6. Marking depth: 0.015-0.5mm
7. Cooling method: Built-in air cooling
8. Marking area: 175mmx175mm
9. Marking line width: 0.05-0.01mm
10. Laser power Pro Plus: 20W
11. Laser wavelength: 1064nm
12. Smoking function: Built-in fume extractor
13. Equipment size: 275*295*461.5(mm)
14. Packing size: 355*375*580(mm)
M-Triangel
