Specifications:
| Gross weight | 1300g |
| Brands | QIANLI |

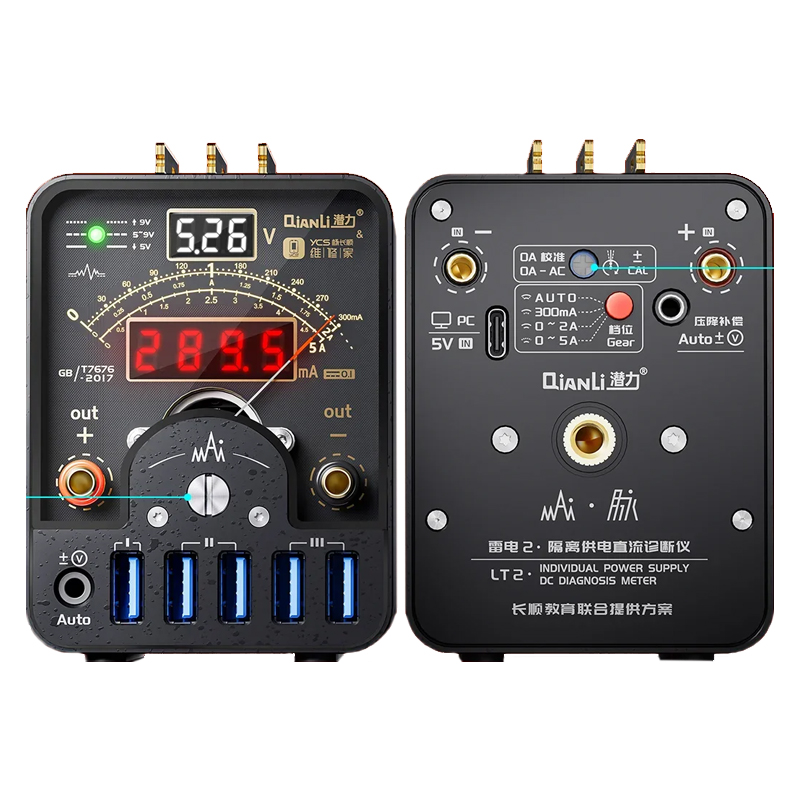

QIANLI & YCS LT2 Insulate DC Power Supply Phone Power iBoot
Features

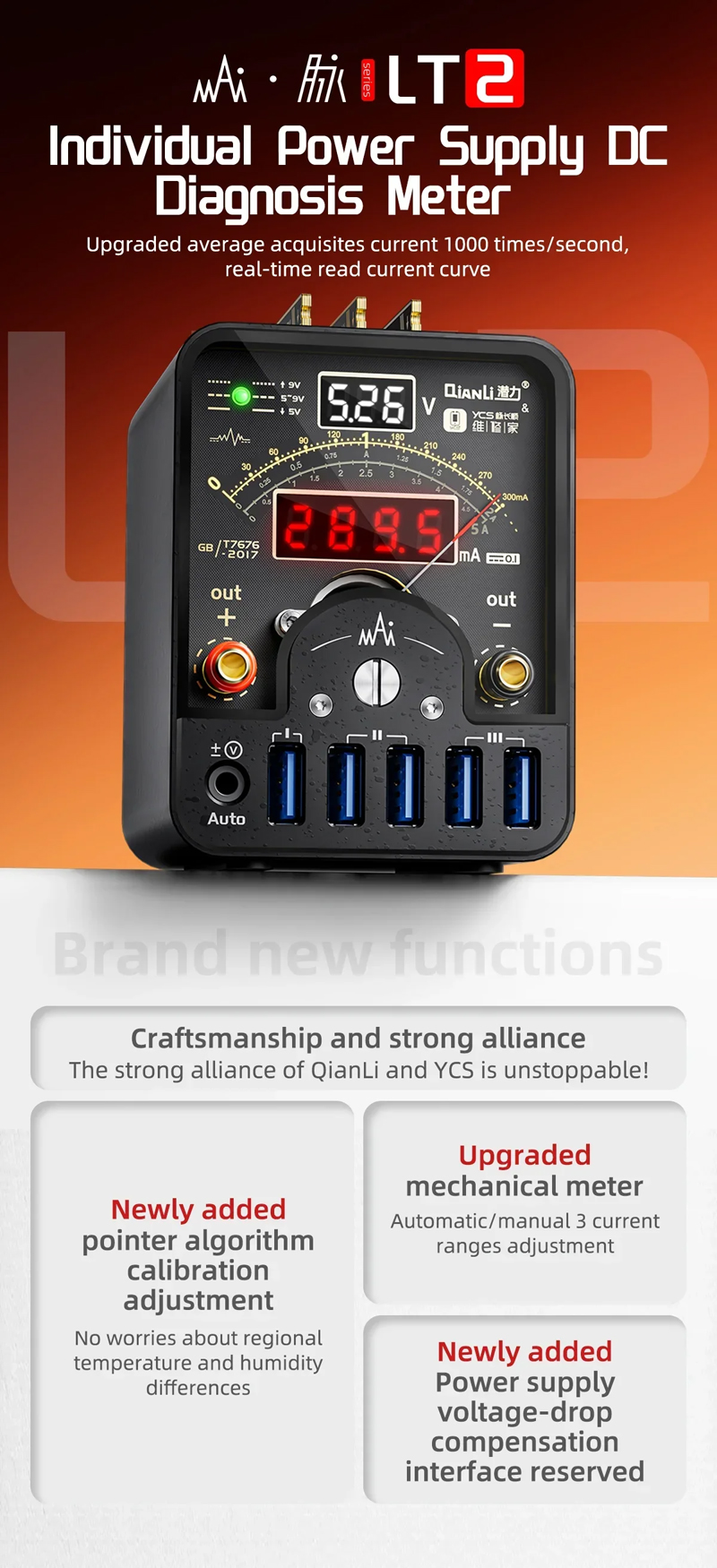

1. Individual power supply DC diagnosis meter, upgraded average acquisitions current 1000 times/second,
real-time read current curve.

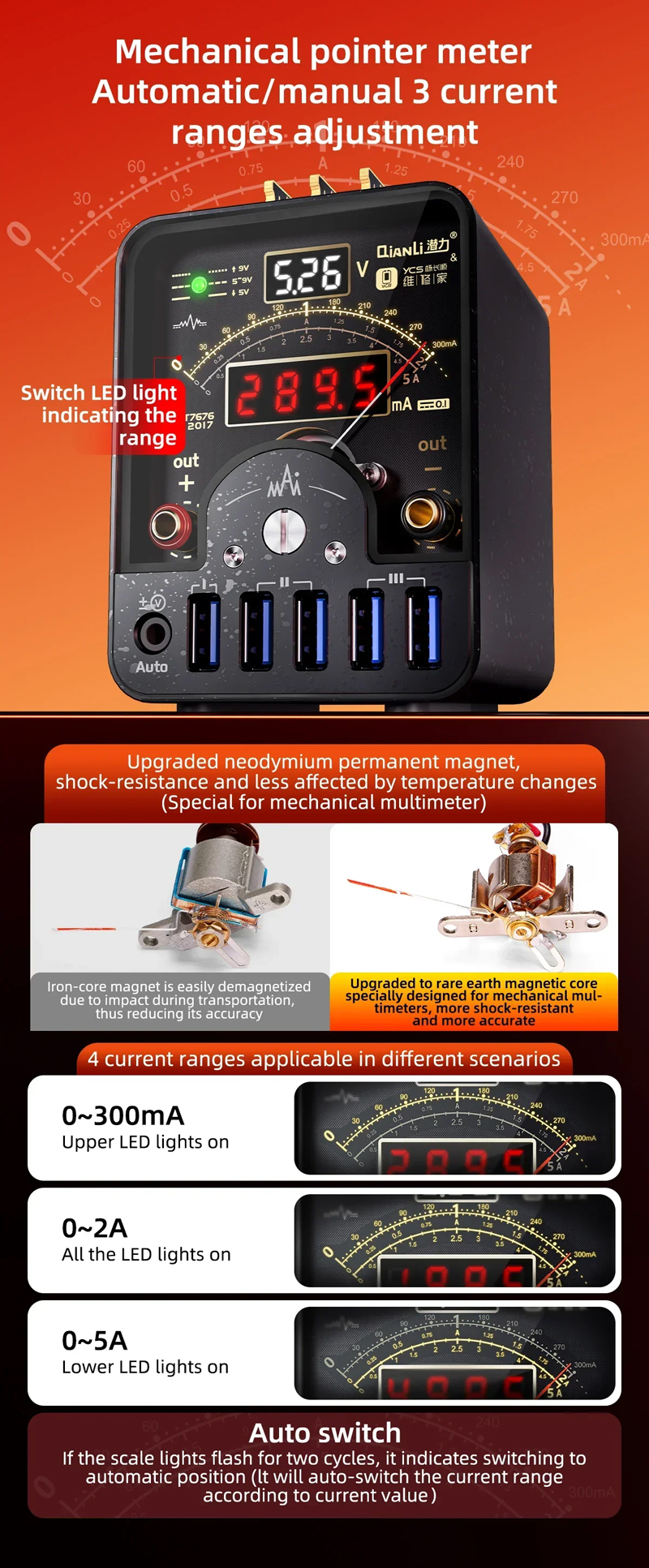

2. Mechanical pointer meter, automatic/manual 3 current ranges adjustment, upgraded neodymium
permanent magnet, shock-resistance and less affected by temperature changes (Special for mechanical
multimeter).
3. 4 current ranges applicable in different scenarios: 0~300mA upper LED lights on; 0~2A all the LED lights
on; 0~5A lower LED lights on
4. Auto switch: If the scale lights flash for two cycles, it indicates switching to automatic position
(It will auto-switch the current range according to the current value of 300mA.

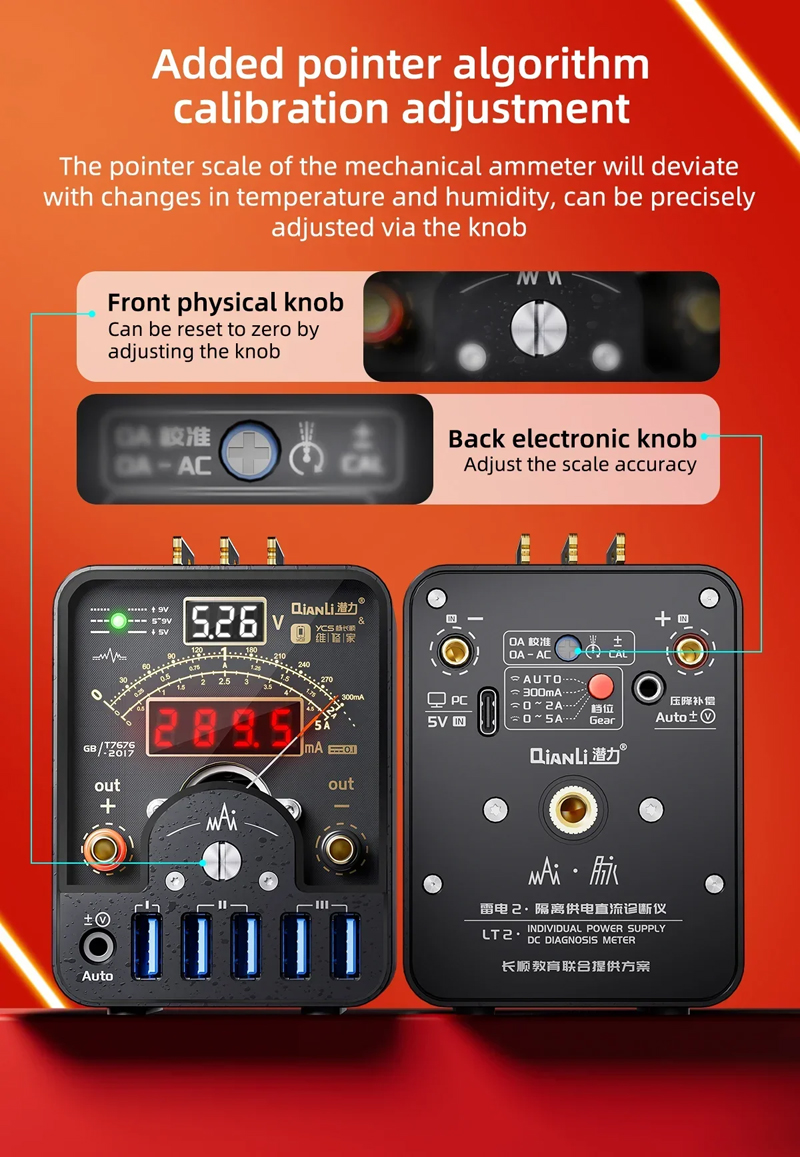

5. Added pointer algorithm calibration adjustment, the pointer scale of the mechanical ammeter will
deviate with changes in temperature and humidity but can be precisely adjusted via the knob.

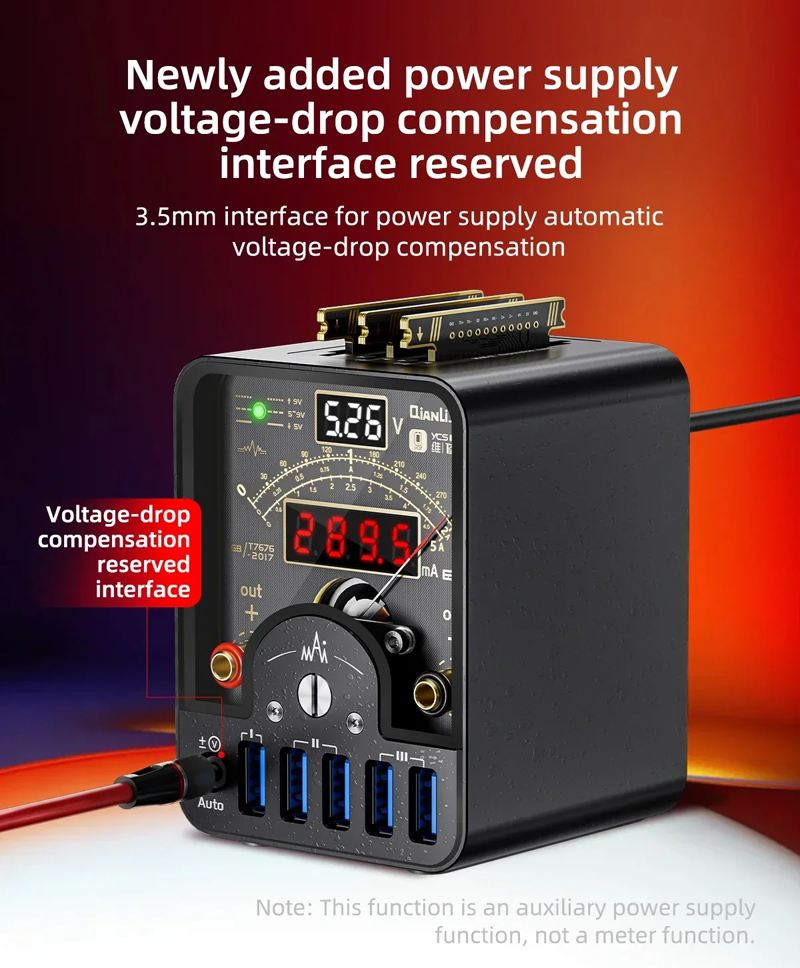

6. A newly added power supply voltage-drop compensation interface was reserved, and a 3.5mm interface
for the power supply automatic voltage-drop compensation.

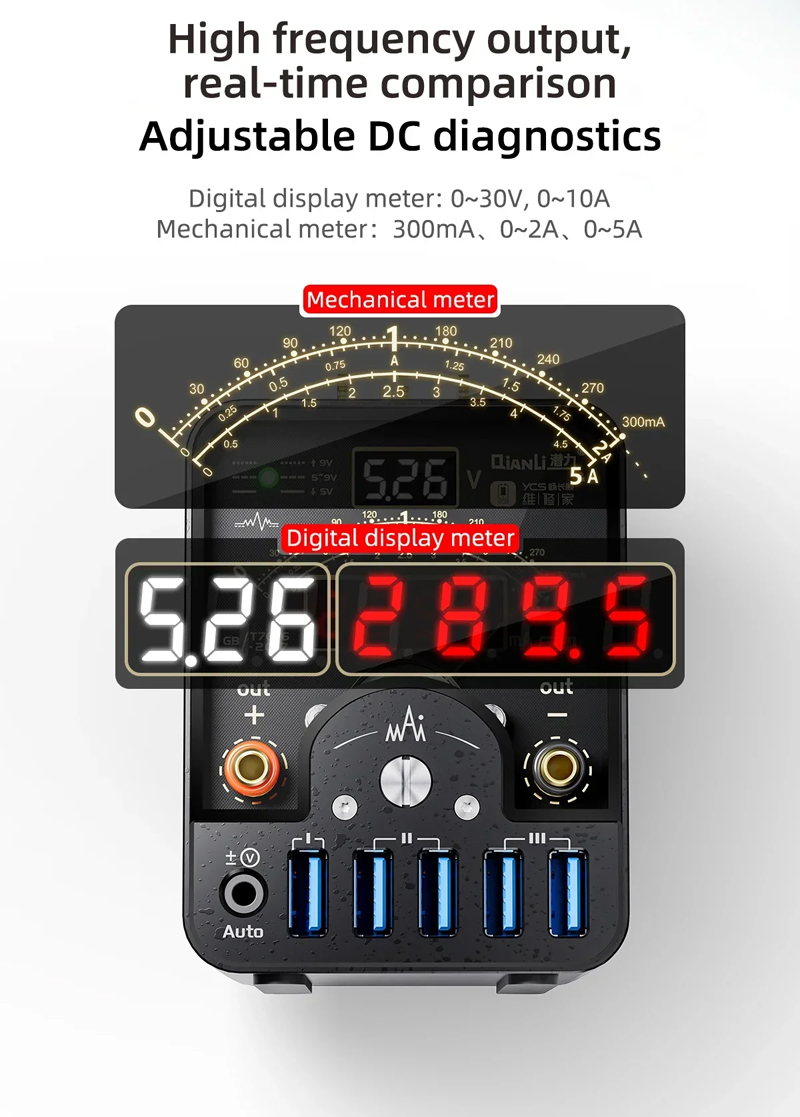

7. High-frequency output, real-time comparison, adjustable DC diagnostics, Digital display meter: 0~30V,
0~10A; Mechanical meter: 300mA, 0~2A, 0~5A.

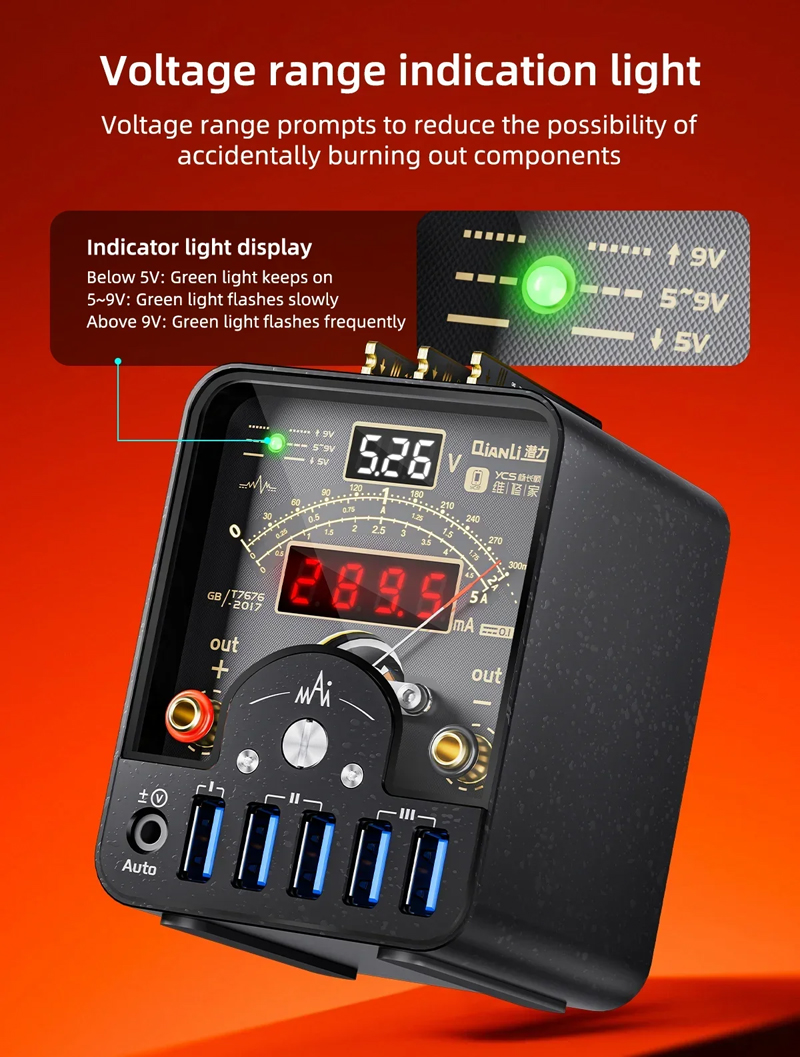

8. Voltage range indication light, voltage range prompts to reduce the possibility of accidentally burning
out components.

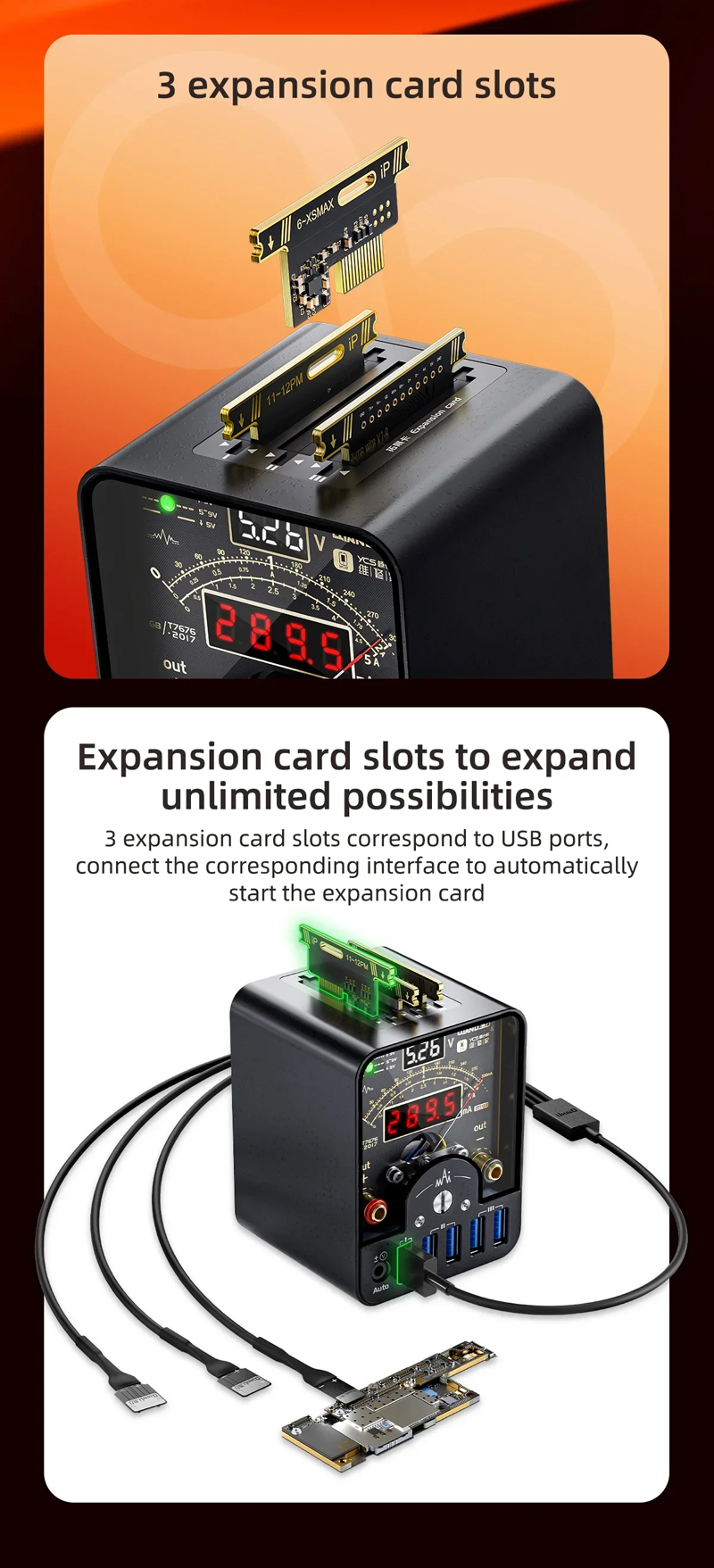

9. Expansion card slots to expand unlimited possibilities, 3 expansion card slots correspond to USB ports,
and connect the corresponding interface to start the expansion card automatically.

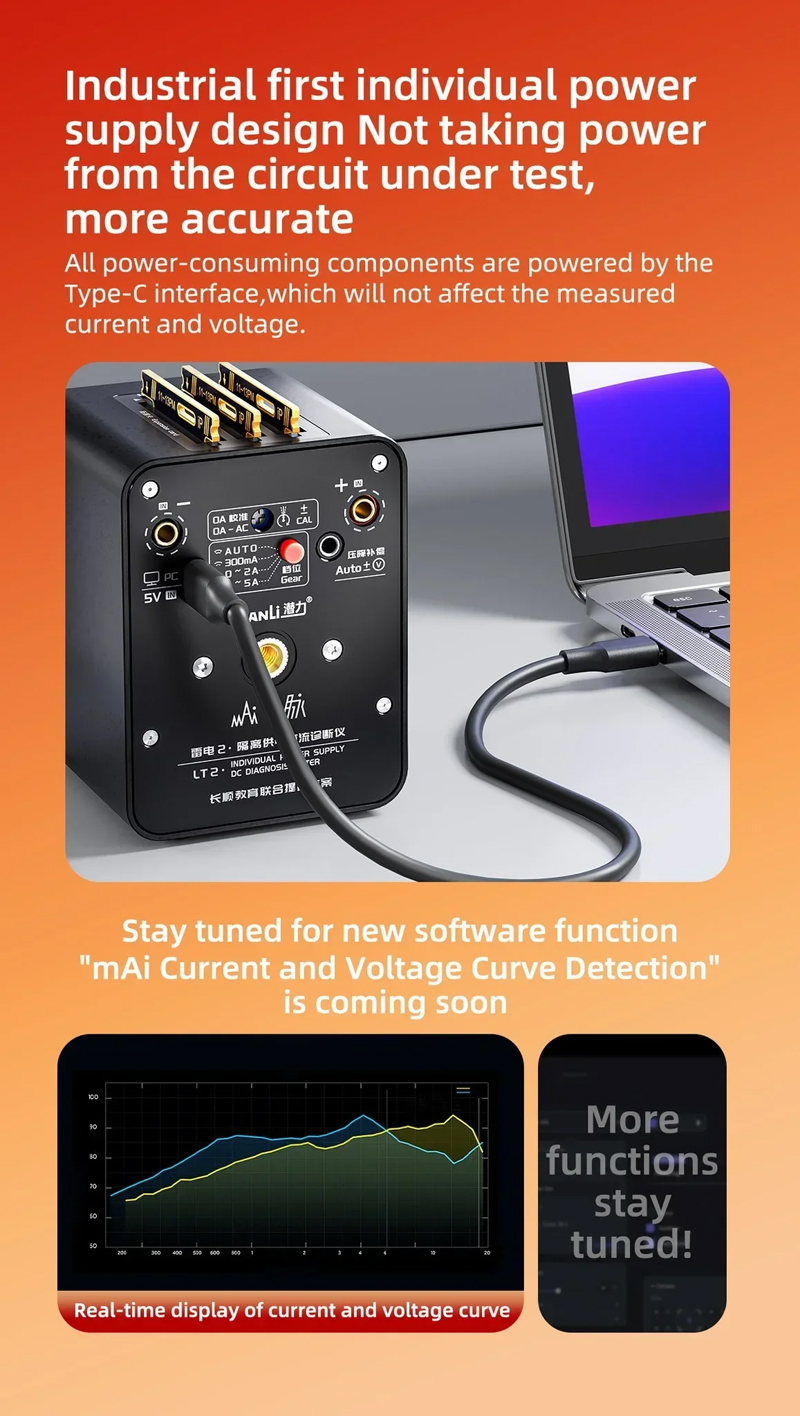

10. Industrial first individual power supply design, not taking power from the circuit under test, more accurate.
11. All power-consuming components are powered by the Type-C interface, which will not affect the measured
current and voltage.
12. Reserved 1/4 threaded hole, optional expansion bracket, design of this device (with 1/4 threaded hole),
can be installed on various brackets that fit 1/4 holes.
13. Highly integrated and saves space, the smallest size achieves the most functions, and modifications by
masters are welcome.
