Specifications:
| Gross weight | 26000g |
| Brands | REFOX |

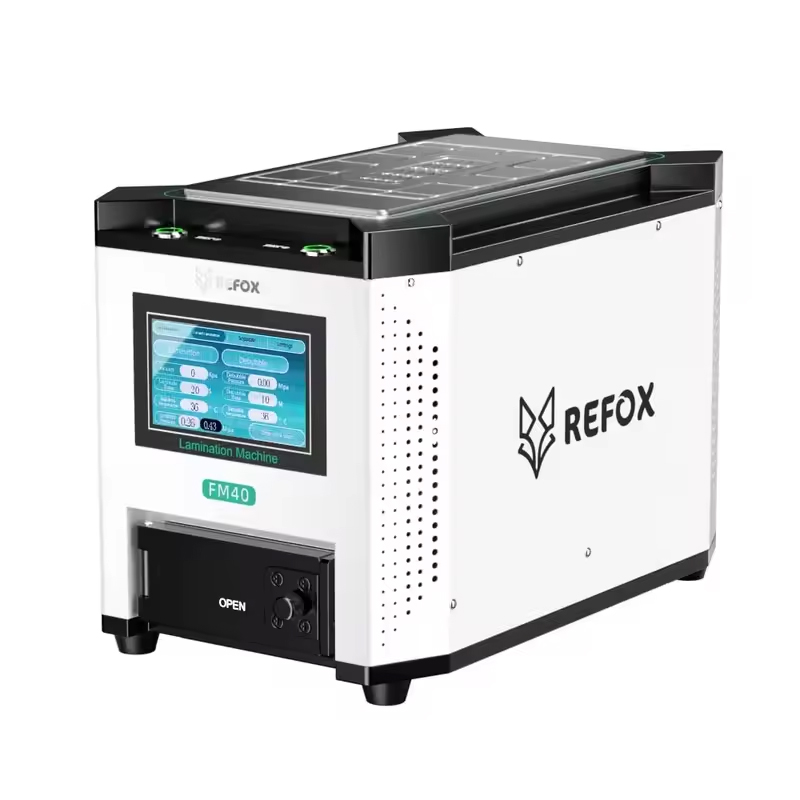

REFOX FM40 REFOX FM40 Multi-function Desktop Laminating and Bubble Remover Machine for 10.0 inch Screen 220V EU Plug
1. The REFOX FM40 Laminating Machine is a versatile desktop device that combines separation, lamination,
and bubble removal functions.

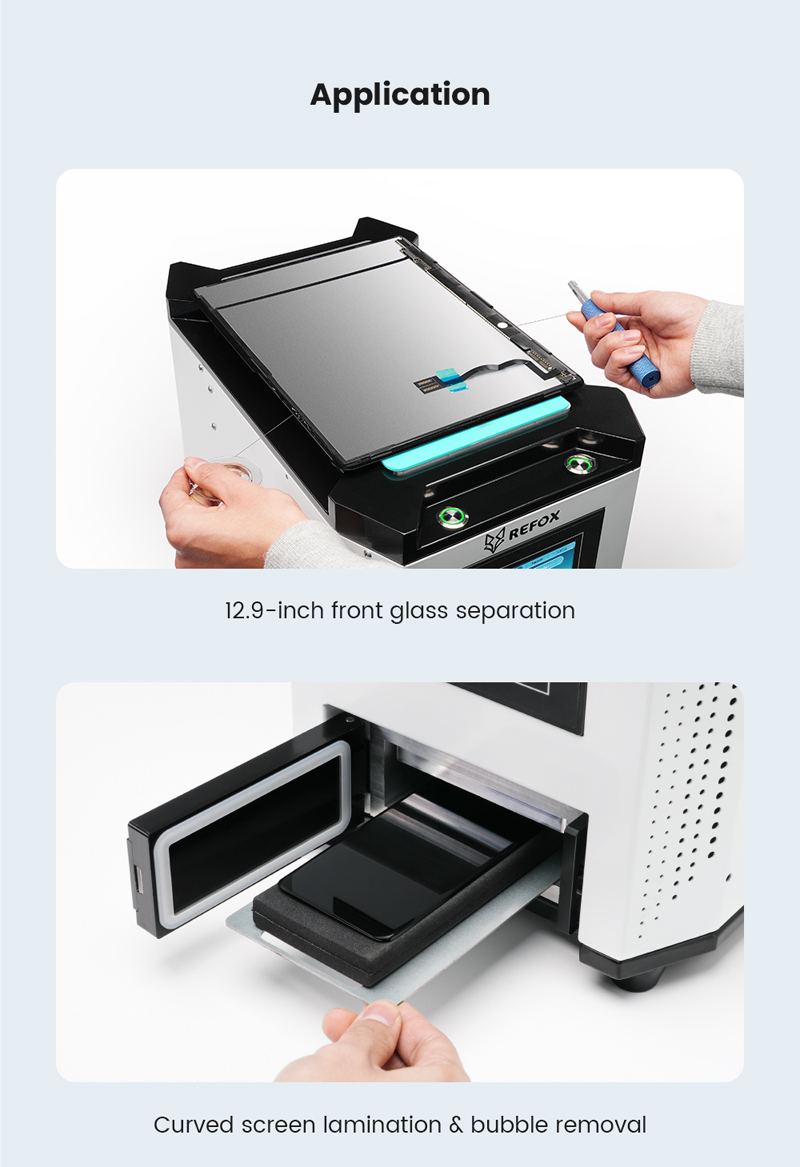

2. FM40 is typically used for phone/tablet screen separation, front glass lamination, OCA bonding,
and bubble removal.
3. It features automatic vacuuming without the need for an external air compressor or vacuum pump.
4. This machine's heating platform is capable of separating flat screens up to 12.9 inches, including iPads
and Android tablets.
5. The lamination and bubble removal chamber of the machine is particularly suitable for devices with flat
or curved screens up to 7 inches. Bonding and bubble removal processes are completed in one step,
resulting in high precision and efficiency.
Features

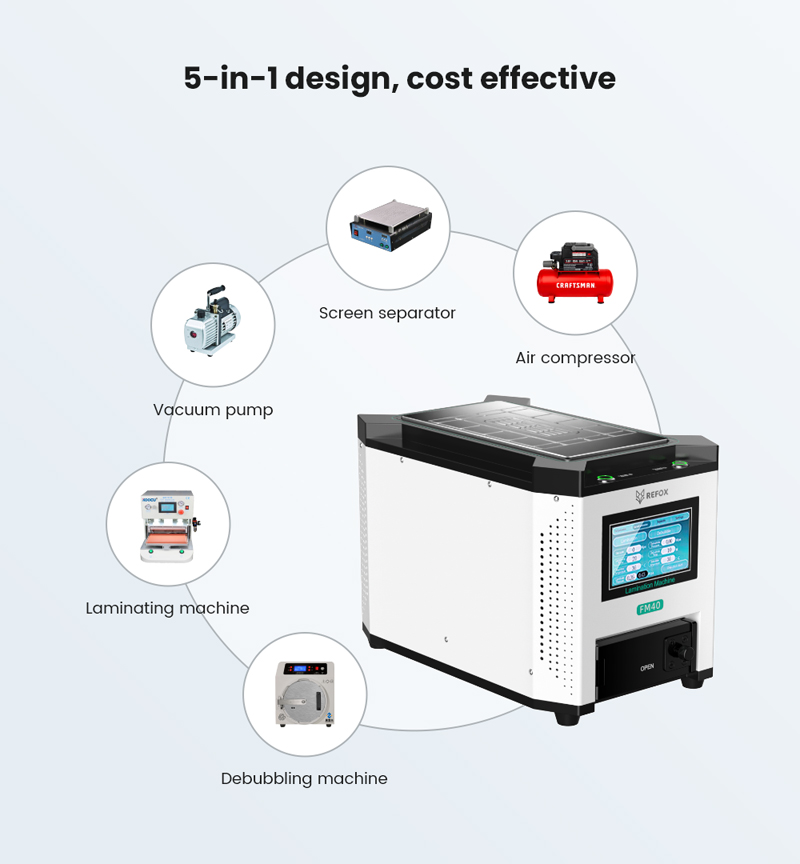

1. Integrated Design: Combines separation, lamination, and bubble removal into one desktop device without
the need for other external equipment, simplifying the screen repair process.
2. Automatic Vacuuming: Features automatic vacuuming to ensure precise lamination between the LCD/OLED and
front glass/touch digitizer/bezel during the repair process, eliminating air bubbles and improving repair quality.

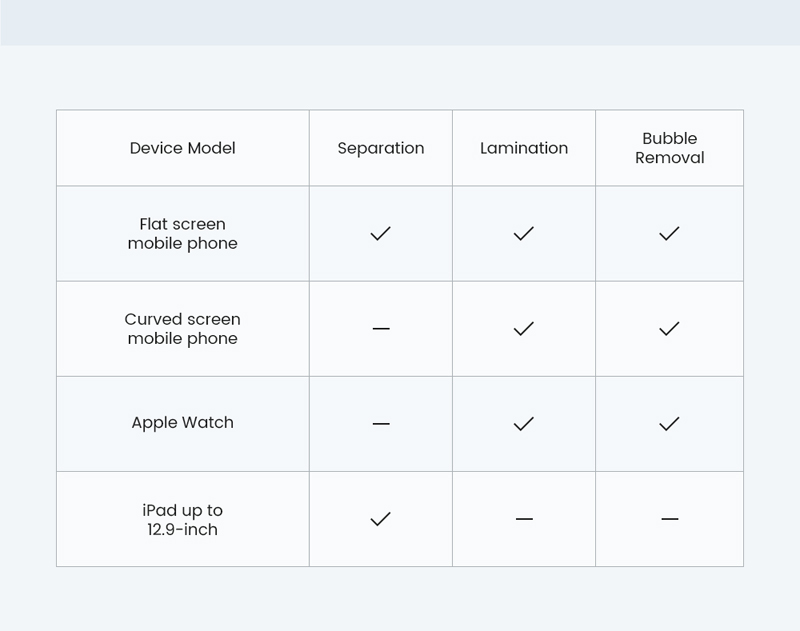

3. Wide Applicability: Suitable for various mobile phones, tablets, and even wearables, including the complete
iPhone series, curved-screen phones (lamination & bubble removal only), tablets (separation only), and
wearables (lamination & bubble removal only), it meets a wide range of devices' repair needs.
4. Upgraded Efficiency: The device is easy to operate, applicable to separation for screens up to 12.9 inches
and lamination with bubble removal for screens up to 7 inches. This enhances repair efficiency, reduces repair
time, and helps repair professionals better serve customers.

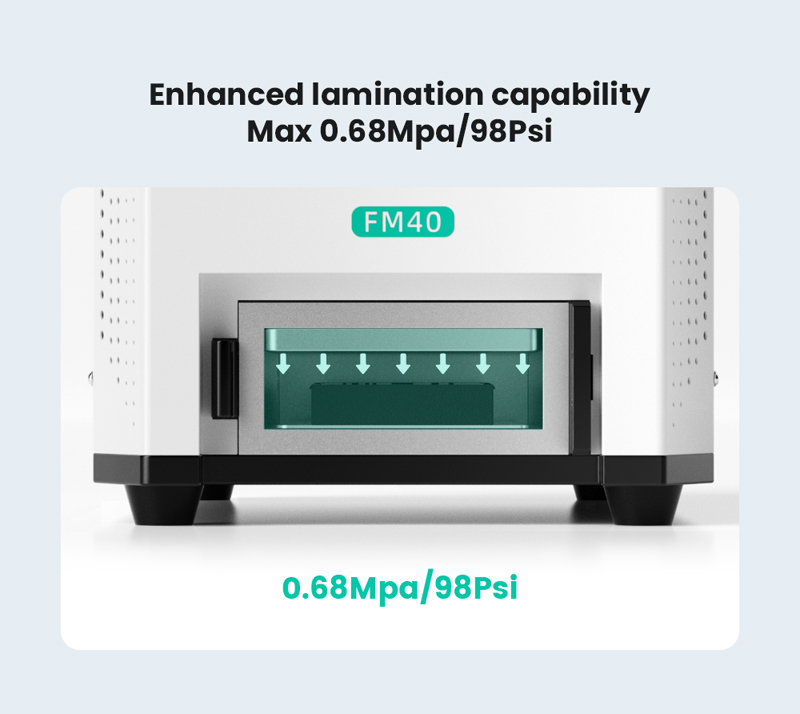

5. Enhanced Performance: The lamination and bubble removal capabilities have been enhanced, delivering
a maximum 0.68 Mpa/98 Psi pressure due to building in a more powerful air compressor.
The Attentions For Using the REFOX FM40 Edge Screen Laminator
1. Curved screen lamination excludes the Huawei Mate 30 Pro and Mate 40 Pro.
2. This equipment only supports lamination and bubble removal for flat-screen and curved-screen phones.
3. Upon receiving the machine, it is recommended to run a test without any materials to ensure proper
functioning.
4. Before lamination, ensure that the screen surface to be laminated is free from oil, dust, water, etc.
5. Set the laminate pressure appropriately to avoid screen damage. Excessively high or low pressure can
adversely affect screen laminate effects.
6. The machine operates under high pressure during bubble removal. 7. Check if the bubble removal chamber
door is securely locked before starting bubble removal.
7. Do not set the bubble removal chamber temperature too high, as higher temperatures increase the risk
of re-bubbling.
8. Regularly wipe and clean the machine to ensure it is free of debris and dust accumulation.
