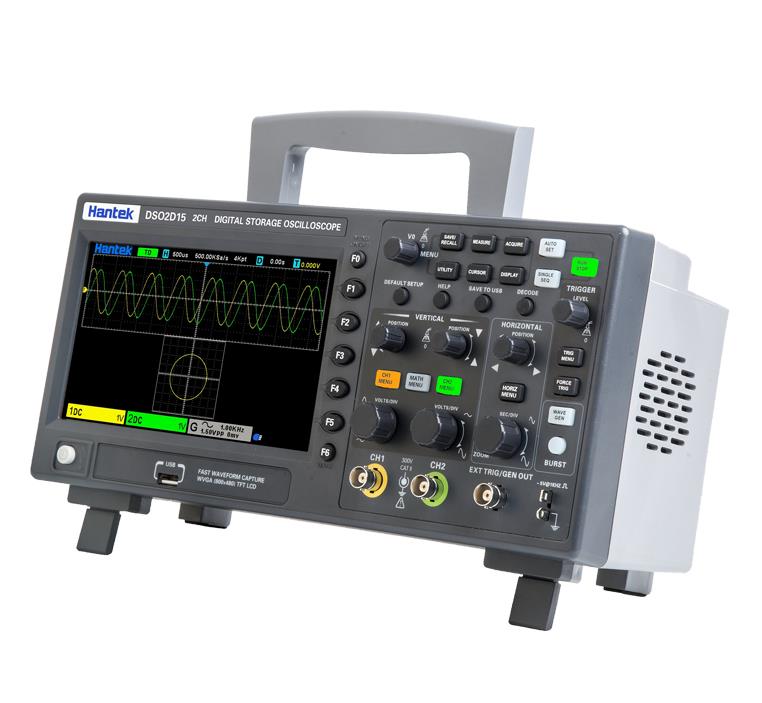

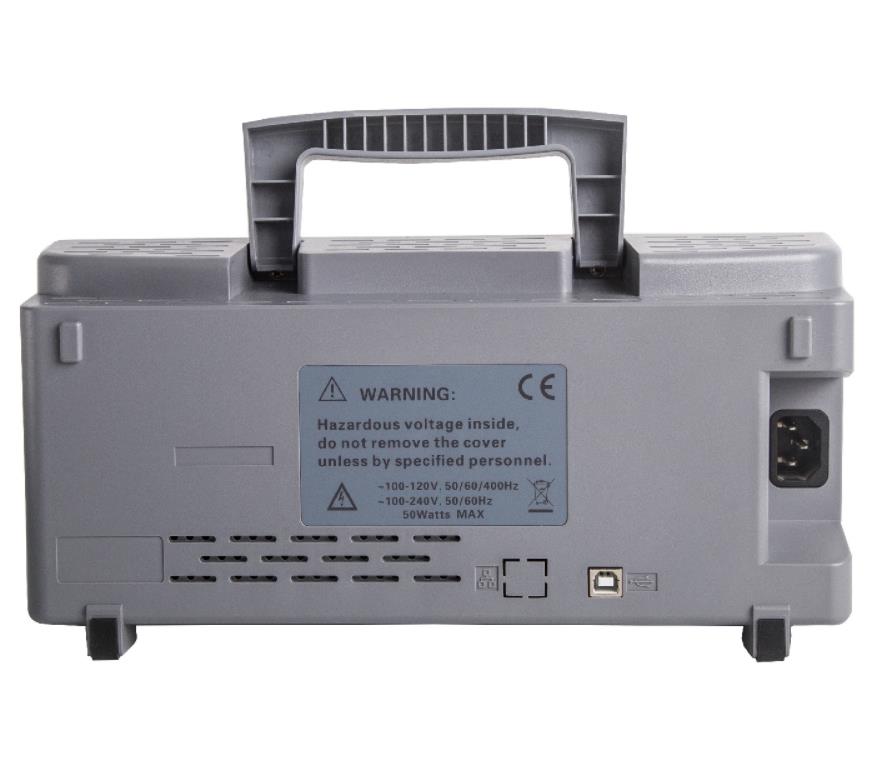

Hantek DSO2D15 Oscilloscope 100-240V EU Adapter

CODE: AS072653

Ships in 24 hours Any questions? Email us

Specifications:

Gross weight3382g



Parameters

ModelDSO2D15DSO2D10DSO2C15DSO2C10
Bandwidth150MHz100MHz150MHz100MHz
Oscilloscope channels2CH2CH2CH2CH
Waveform generator1CH1CH - -
Oscilloscope
Sample rate1GSa/s (single channel) 500MSa/s (two channels)
Acquisition
NormalSample data
Peak-to-peak valueDisplay high frequency and random burr
AverageAverage waveform, times:  4, 8, 16, 32, 64, 128
High resolutionUp to 12bit
Input
Input couplingDC, AC, GND
Input impedance1MΩ±2% ‖20pF±3pF
Probe attenuation  factor1X, 10X, 100X, 1000X
Voltage rating300V CAT II
Maximum input voltage300VRMS (10X)
Horizontal
Waveform interpolation(sin x)/x
Maximum record lengthSingle channel maximum 8M
Two channels maximum 4M
Horizontal scale range2ns/div~100s/div  1, 2, 5 step by step
Time base modeY-T, X-Y, Roll
Zero offset±0.5 div×minimum time base gear
Sample Rate and Delay Time Accuracy±25ppm
Delta Time Measurement Accuracy (Full Bandwidth)Sample Rate and Delay Time Accuracysingle-shot, Normal mode   ±1 sample interval+100ppm×reading+0.6ns
16 times averages ±1 sample interval+100ppm×reading+0.4ns
Sample interval=sec/div÷200
Sample Rate and Delay Time Accuracy±50ppm(at any interval greater than 1ms)
Vertical
ModelDSO2D15DSO2D10DSO2C15DSO2C10
Bandwidth150MHz100MHz150MHz100MHz
Rising time in BNC position (typical)2.4ns3.5ns2.4ns3.5ns
Vertical resolution8 bits resolution, each channel samples simultaneously
Vertical sensitivity2mV/div to 10V/div
Offset range 200mV/div, ±1V;
200mV/div ±50V
Mathematical operation+, -, ×, ÷, FFT
FFTWindow: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth Limit20MHz
Bass response(-3db)In BNC position ≤ 10Hz
Vertical gain accuracyIn ''normal''  or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%;
In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger
Trigger typeEdge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
Trigger level range ±5 divisions from the center of the screen
Trigger modeAuto, Normal, single
LevelCH1~CH2±4 divisions from the center of the screen
EXT(Only With AWG Model)0~3.3V
Holdoff range8ns~10s
Trigger level accuracyCH1~CH20.2 div×volts/div within ±4 divisions from the center of the screen
EXT(Only With AWG Model)±(Set value× 6%+40mV)
Edge triggerSlopeRising edge, falling edge, rising or falling edge
Signal sourceCH1, CH2, EXT(Only With AWG Model)
Pulse width triggerPolarityPositive polarity, negative polarity
Condition(When)<, >, !=, =
Signal sourceCH1~CH2,
Pulse width range8ns ~ 10s
Accuracy8ns
Video triggerSignal standardNTSC, PAL
Signal sourceCH1~CH2
SynchronizationScanning line, line number, odd field, even field, all field
Slope triggerSloperising, falling
Condition(When)<, >, !=,  =
Signal sourceCH1 ~ CH2
Time range8ns ~ 10s
Accuracy8ns
Overtime triggerSignal sourceCH1~CH2,
PolarityPositive polarity, negative polarity
Time range8ns ~ 10s
Accuracy8ns
Window triggerSignal sourceCH1~CH2
Pattern triggerPattern0: low level; 1: high level; X: ignore
Level(signal source)CH1~CH2
Interval triggerSloperising, falling
Condition(When)<, >,  !=,  =
Signal sourceCH1~CH2
Time range8ns ~ 10s
Accuracy8ns
Under Amp triggerPolarityPositive polarity, negative polarity
Condition(When)<, >, !=, =
Signal sourceCH1~CH2
Time range8ns ~ 10s
Accuracy8ns
UART triggerCondition(When)Start, Stop, data, Parity ERR, COM ERR
Signal source(RX/TX)CH1~CH2
Data formatHex (hexadecimal)
Data length1 byte
Data bit width5 bit, 6 bit, 7 bit, 8 bit
Odd-even checknone, odd, even
Idle levelhigh, low
Baud rate (optional)110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
Baud rate(user-defined)300bit/s~334000bit/s
LIN triggerCondition(When)Interval field, synchronization field, ID field, synchronization error, identifier, ID and data
Signal sourceCH1~CH2
Data formatHex (hexadecimal)
Baud rate (optional)110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
Baud rate(user-defined)300bit/s~334000bit/s
CAN triggerCondition(When)Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame
Signal sourceCH1~CH2
Data formatHex (hexadecimal)
Baud rate (optional)10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000
Baud rate(user-defined)5kbit/s~1Mbit/s
SPI triggerSignal sourceCH1~CH2
Data formatHex (hexadecimal)
Data bit width4, 8, 16, 24, 32
IIC triggerSignal source (SDA/SCL)CH1~CH2
Data formatHex (hexadecimal)
Data index0~7
When(condition)Start bit, stop bit, No Ack, address, restart, address and data
Measurement
CursorVoltage difference between cursors △V
Time difference between cursors △T
Reciprocal of △T, in Hertz (1/△T)
Auto measurementfrequency, period, mean, peak-to-peak, RMS, minimum, mixmum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
DVMData sourceCH1, CH2
Measurement typeDC RMS
AC RMS
DC
Frequency meterhardware 6 bits frequency meter
Arbitrary waveform generator
Channel1
Sample rate200MSa/s
Vertical resolution12 bits
Maximum frequency25 MHz
Standard waveformssine, square, ramp,Exp, noise, DC
Arbitrary waveformArb1, Arb2, Arb3, Arb4
SinFrequency range0.1Hz~25MHz
Square/pulseFrequency range0.1Hz~10MHz
Triangular waveFrequency range0.1Hz~1MHz
Sampling waveFrequency range0.1Hz~1MHz
IndexFrequency range0.1Hz~5MHz
Noise
Arb1Frequency range0.1 Hz to 10 MHz
Arb2Frequency range0.1 Hz to 10 MHz
Arb3Frequency range0.1 Hz to 10 MHz
Arb4Frequency range0.1 Hz to 10 MHz
Waveform length4KSa
FrequencyAccuracy100 ppm (<10 kHz) 50 ppm (>10 kHz)
Resolution0.1 Hz or 4 bits,take the greater one
AmplitudeOutput range10mV~7Vp-p (high impedance)
5mV~3.5Vp-p (50Ω)
DC offsetRange±3.5 V, high impedance
±1.75 V, 50 Ω
Resolution100 μV or 3 bits, take the greater one
Accuracy2% (1 kHz)
Output impedance50 Ω
General specifications
DisplayDisplay type7'' diagonal TFT liquid crystal
Display resolution800 (horizontal)*480 (vertical) pixels
Display colour16 million colours (24 bits true colour)
Persistence timeminimum, 1 s, 5 s, 10 s, 30 s, infinite
Display typedot, vector
Display brightnessadjustable
Grid typeadjustable
Grid brightnessadjustable
InterfaceStandard interfaceUSB Host,USB Device
General specificationsProbe compensator output
Output voltage, typicalabout 2Vpp input ≥1MΩ load
Frequency, typical1kHz
Power supply100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power consumption<30W
FuseT, 3.15A, 250V, 5x20mm
Operating temperature0~50 °C (32~122 °F)
Storage temperature-40~+71 °C (-40~159.8 °F)
Humidity≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
AltitudeOperating and nonoperating3, 000m (10, 000 feet)
Mechanical shockRandom vibration0.31 g RMS from 50Hz to 500Hz,
10 minutes on each axis
Nonoperating2.46g RMS from 5Hz to 500Hz,
10 minutes on each axis
Operating50g, 11ms, half-sine wave
MechanicalSize318 x 110 x 150mm (length x width x height)
Weight2900g
