Specifications:
| Gross weight | 850g |
| Brands | Mechanic |
Mechanic iScout 256*192 Infrared Thermal Imaging Camera for PCB Motherboard Locate Faulty Detection
Features:
1. Mechanic iScout cellphone version thermal imaging analyzer, professional motherboard testing instruments
make your maintenance faster and more accurate
2. Support one-key leakage detection, the minimum can detect 6mA current leakage.
3. Support different areas of the image color change contrast fine check
4. Supports comparison between good and bad boards to locate faulty circuit boards quickly
5. Compatible with phone/computer, thermal imager through Type-C data cable, connect your phone/computer
/laptop, install thermal imager software on your phone/computer can be used

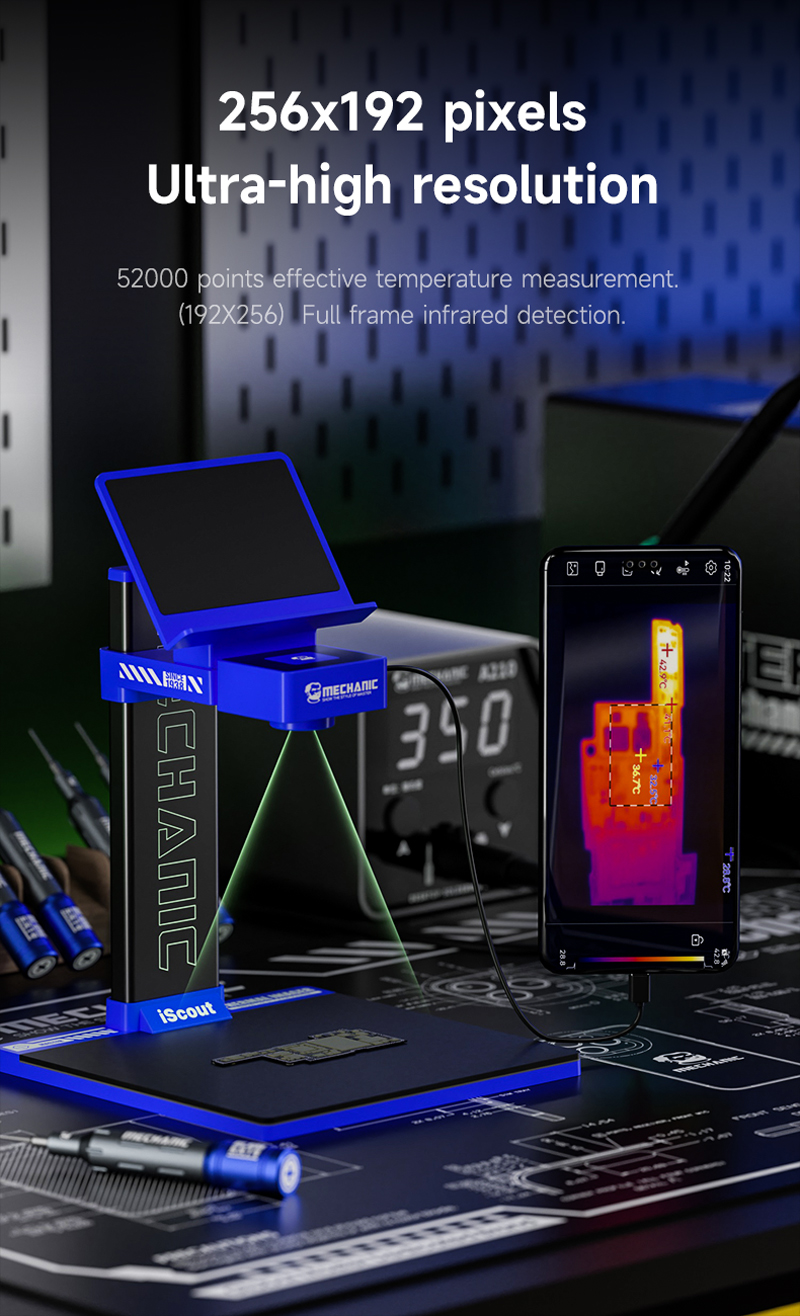

6. 52000 points effective temperature measurement, 192x256 full frame infrared detection

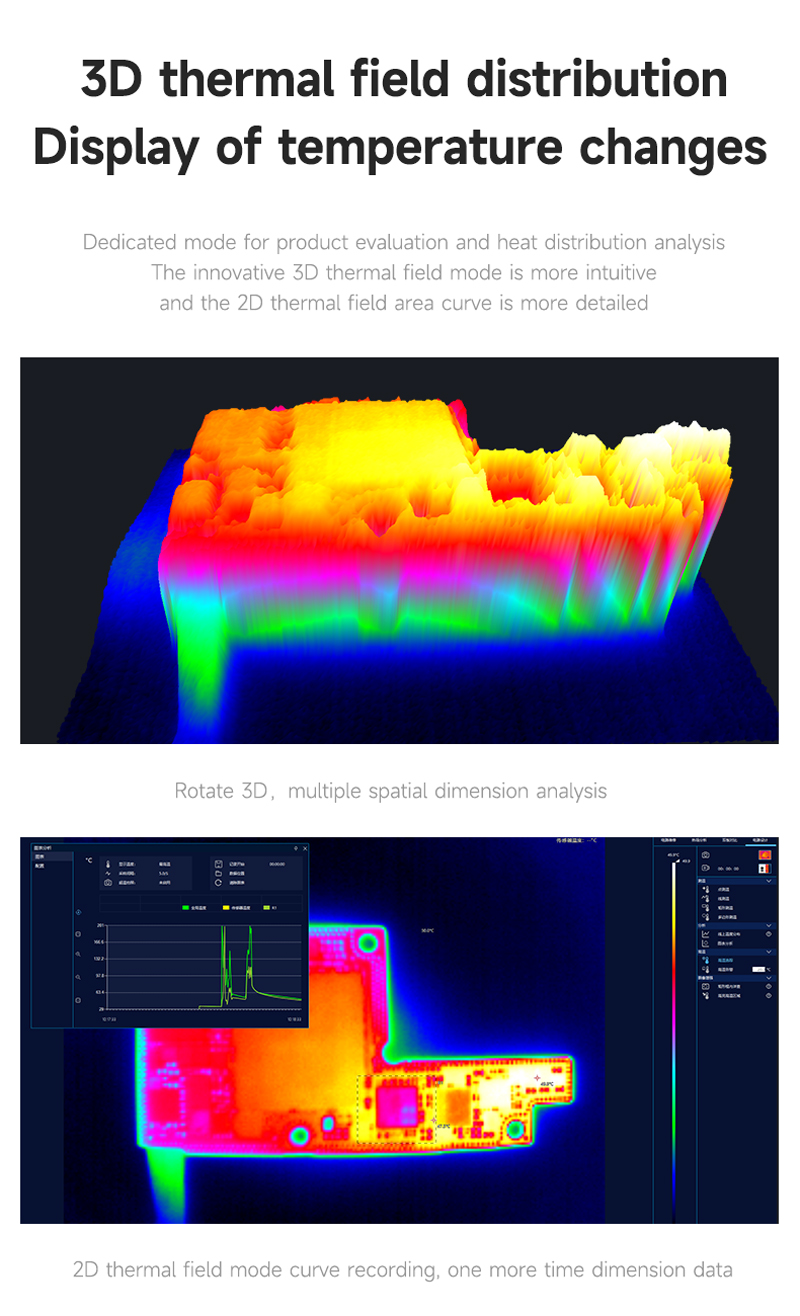

7. 3D thermal field distribution, display of temperature changes, a dedicated mode for product evaluation, and
heat distribution analysis
8. The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed

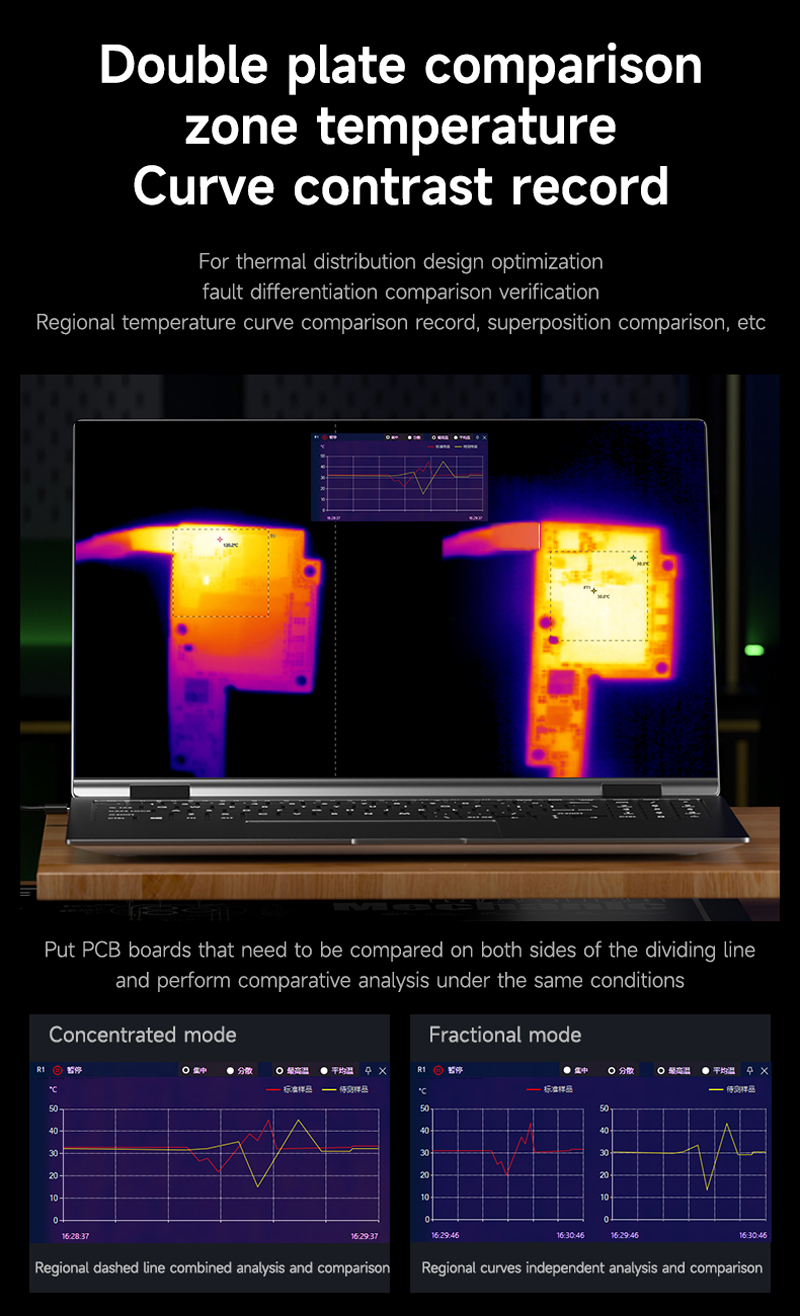

9. Double plate comparison zone temperature, curve contrast record, for thermal distribution design optimization,
fault differentiation comparison verification, regional temperature curve comparison record, superposition comparison, etc

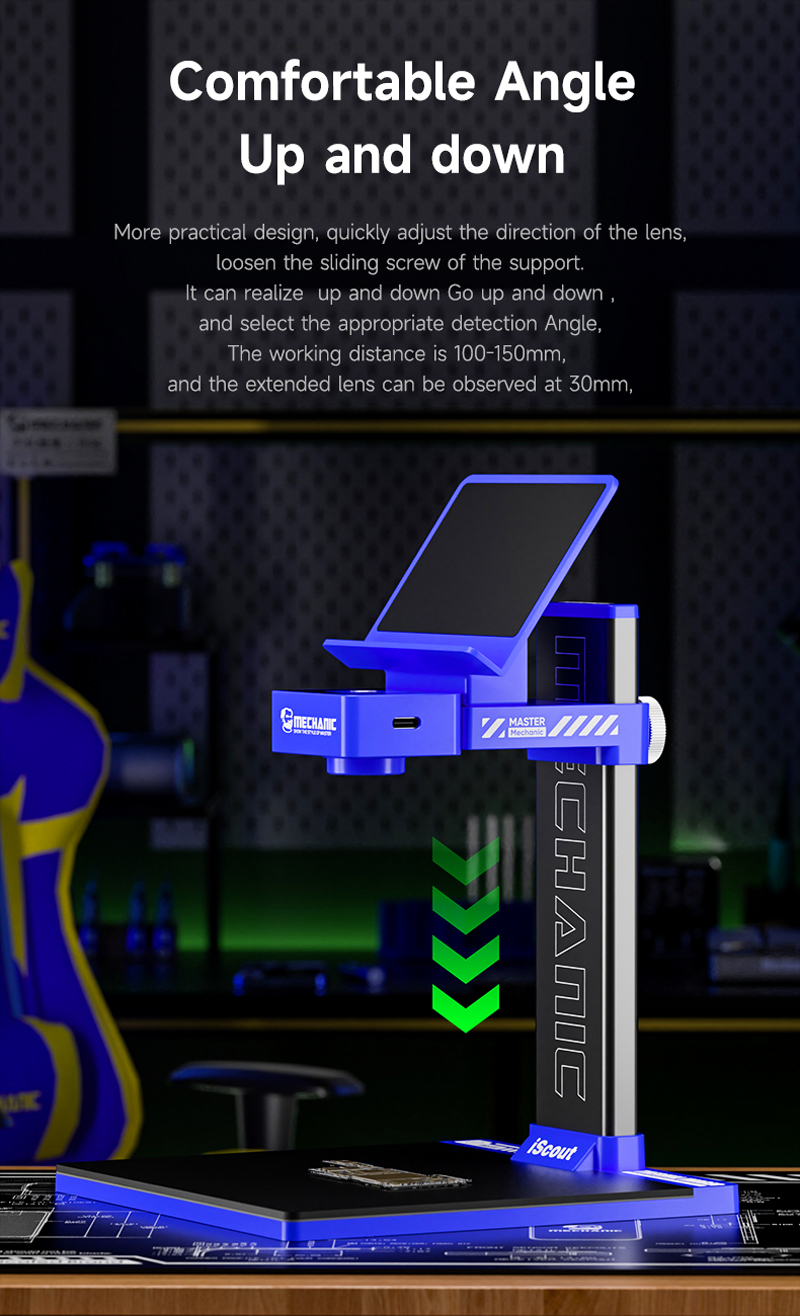

10. Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the
sliding screw of the support
11. It can realize up and down, go up and down, and select the appropriate detection angle, the working distance
is 100-150mm, and the extended lens can be observed at 30mm

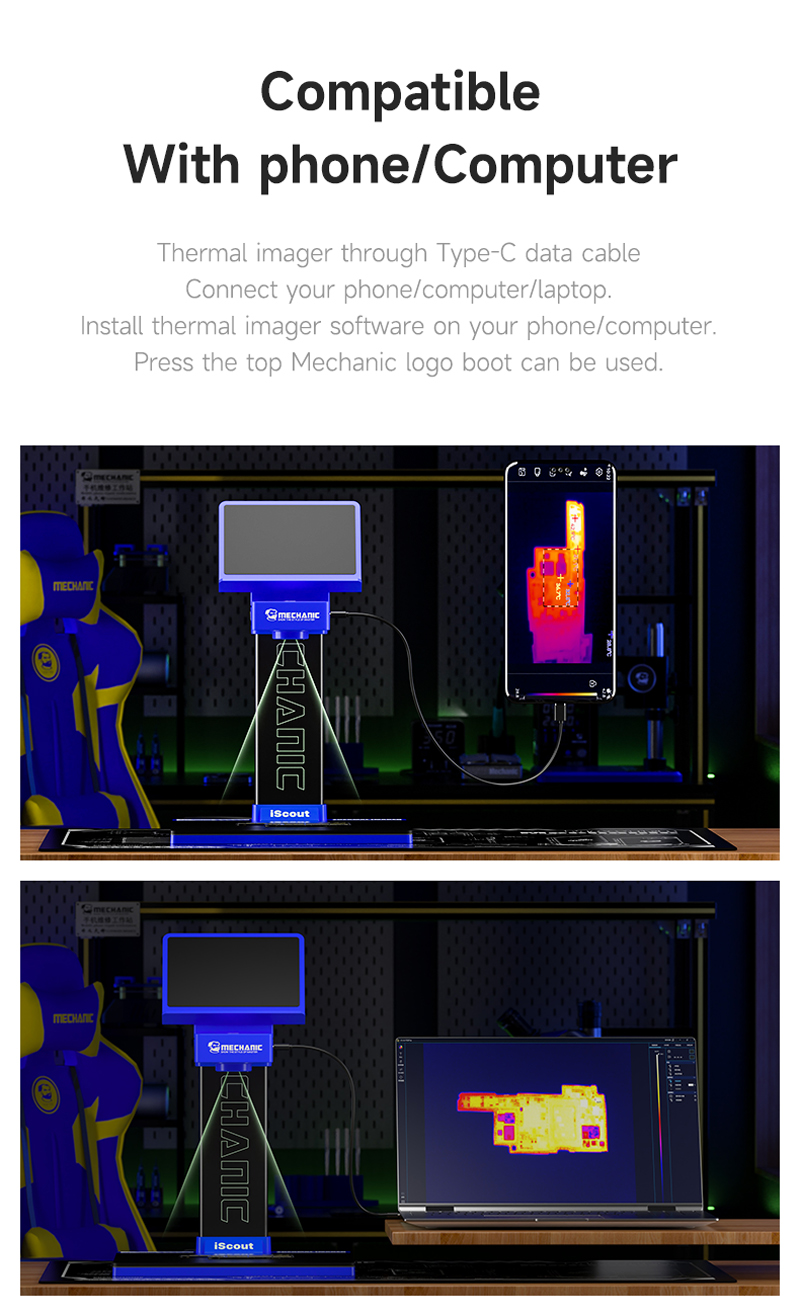

Compatible with phone/computer steps:
1. Thermal imager through Type-C data cable.
2. Connect your phone/computer/laptop.
3. Install thermal imager software on your phone/computer.(Please contact your sales manager for software downloading)
4. Press the top Mechanic logo boot can be used.

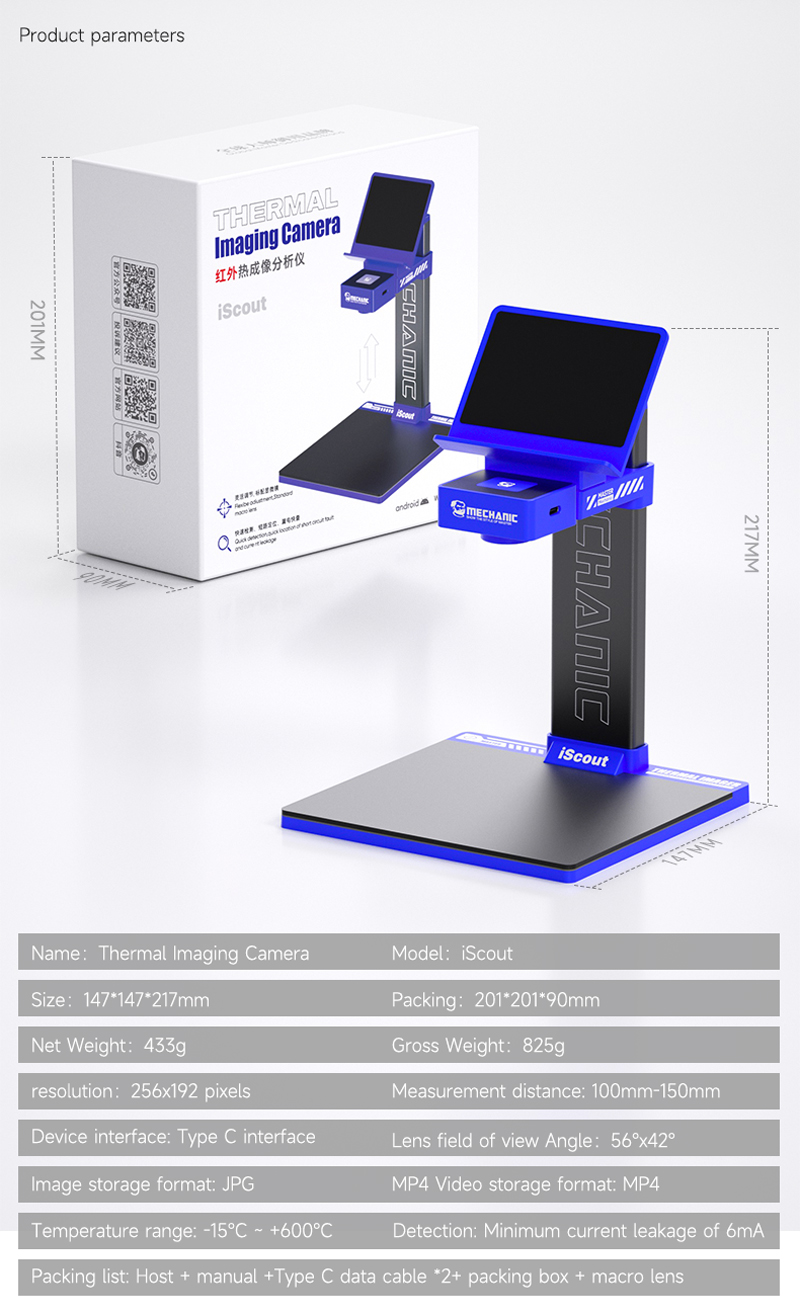

Specification:
1. Model: iScout
2. Name: Thermal Imaging Camera
3. Resolution: 256x192 pixels
4. Measurement distance: 100~150mm
5. Device interface: Type-C interface
6. Lens field of view Angle: 56°x42°
7. Image storage format: JPG
8. MP4 Video storage format: MP4
9. Temperature range: -15℃~+600℃
10. Detection: Minimum current leakage of 6mA
11. Size: 147*147'217mm
