Specifications:
| Gross weight | 685g |
| Brands | SUNSHINE |

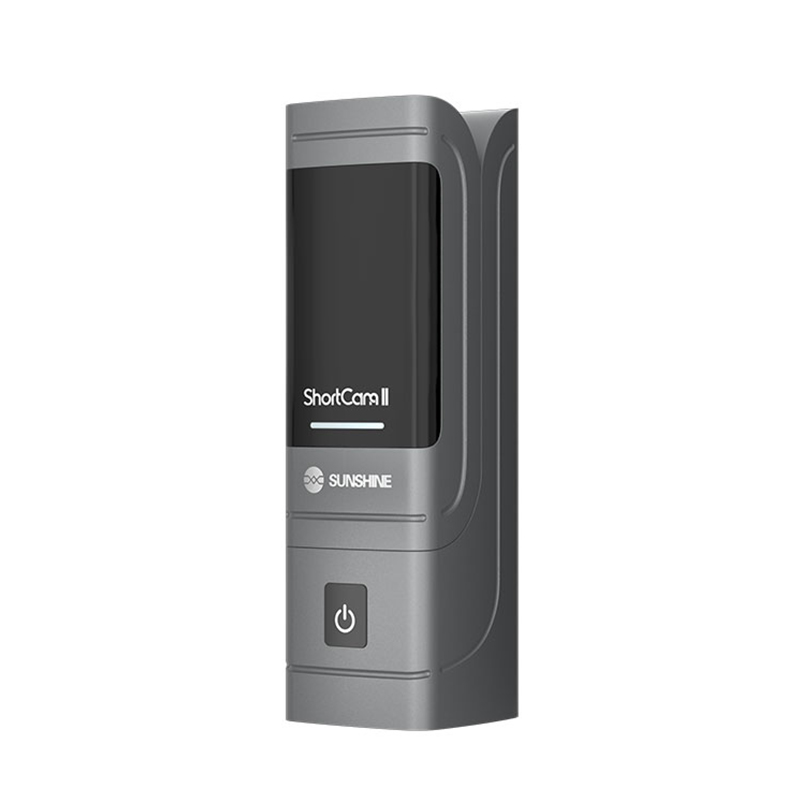

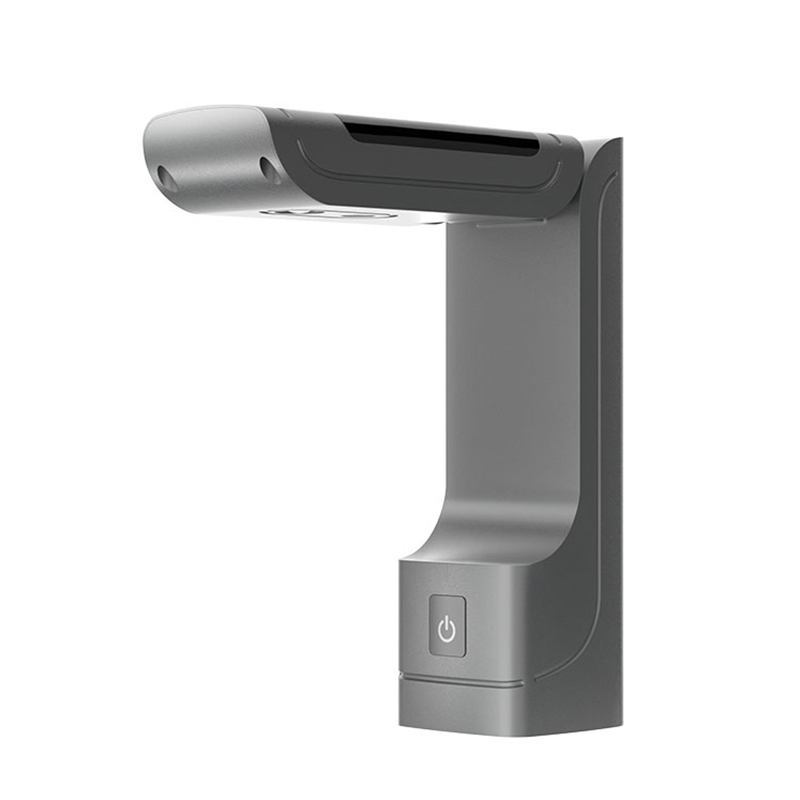

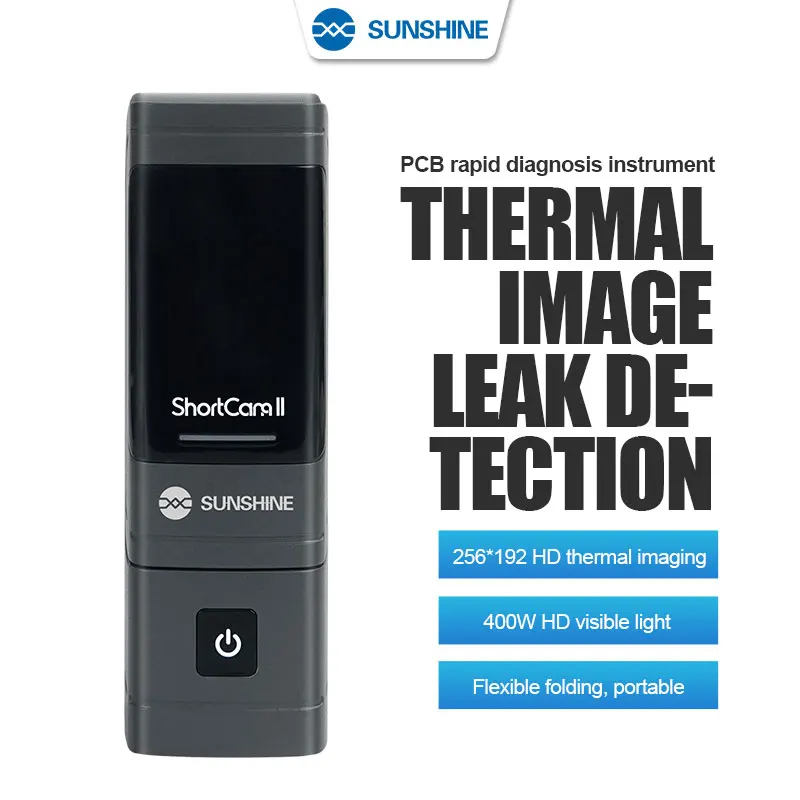

SUNSHINE ShortCam II LC-AD15 256*192 400W Dual Light Imaging PCB Rapid Diagnosis Instrument
Features
1. Support detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.

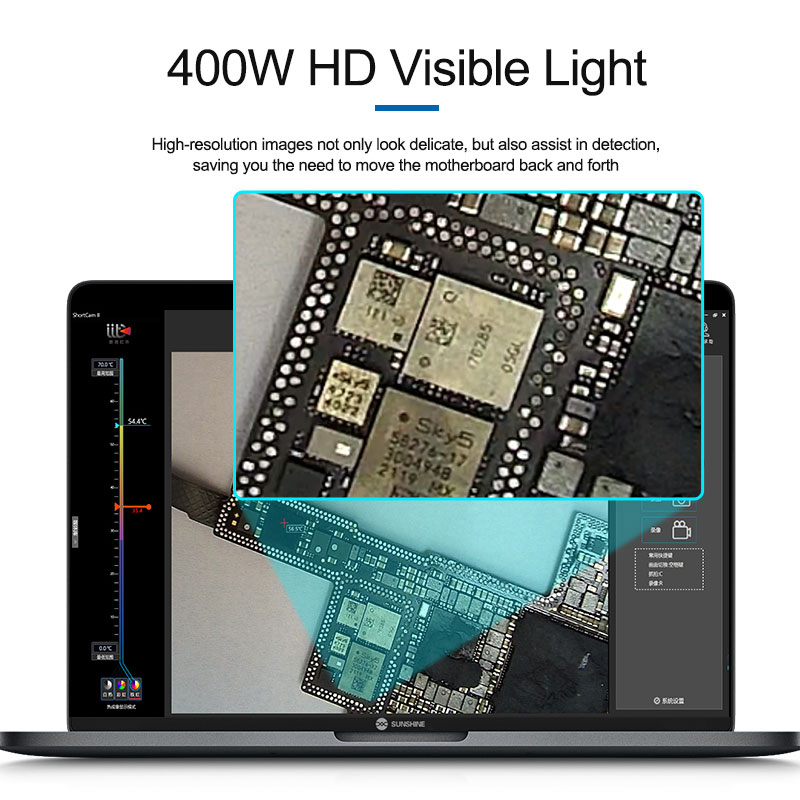

2. 400W HD visible light, high-resolution images not only look delicate but also assist in detection, saving you the need to move the motherboard back and forth.

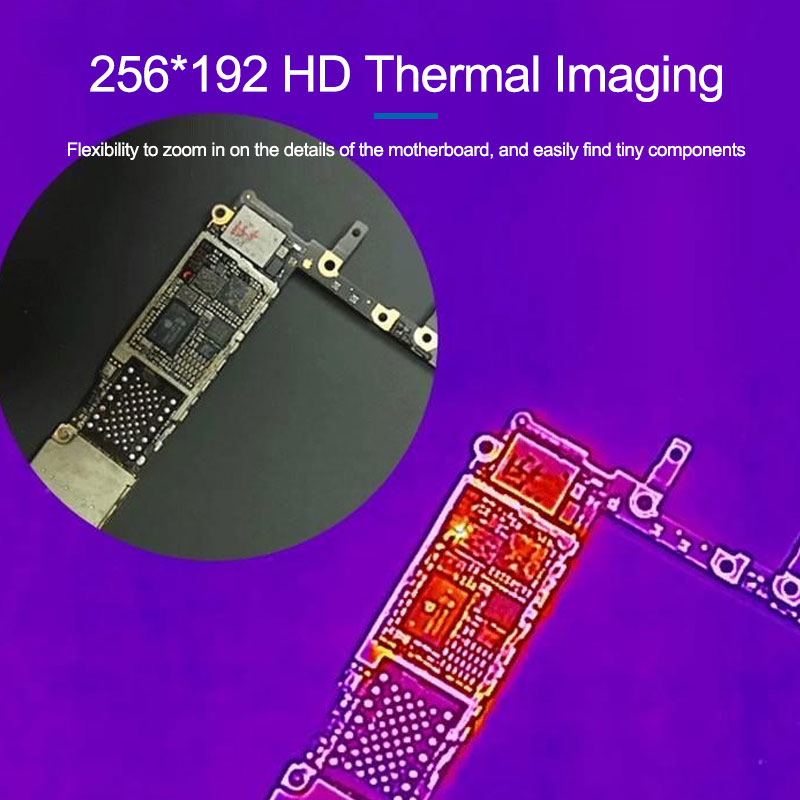

3. 256*192 HD thermal imaging, flexibility to zoom in on the details of the motherboard, and easily find tiny components.

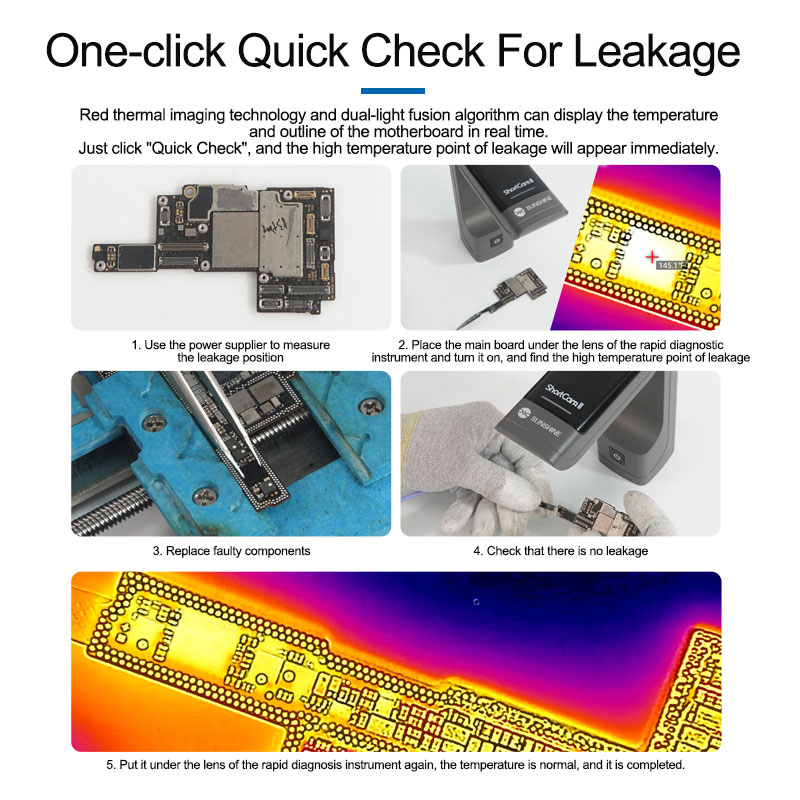

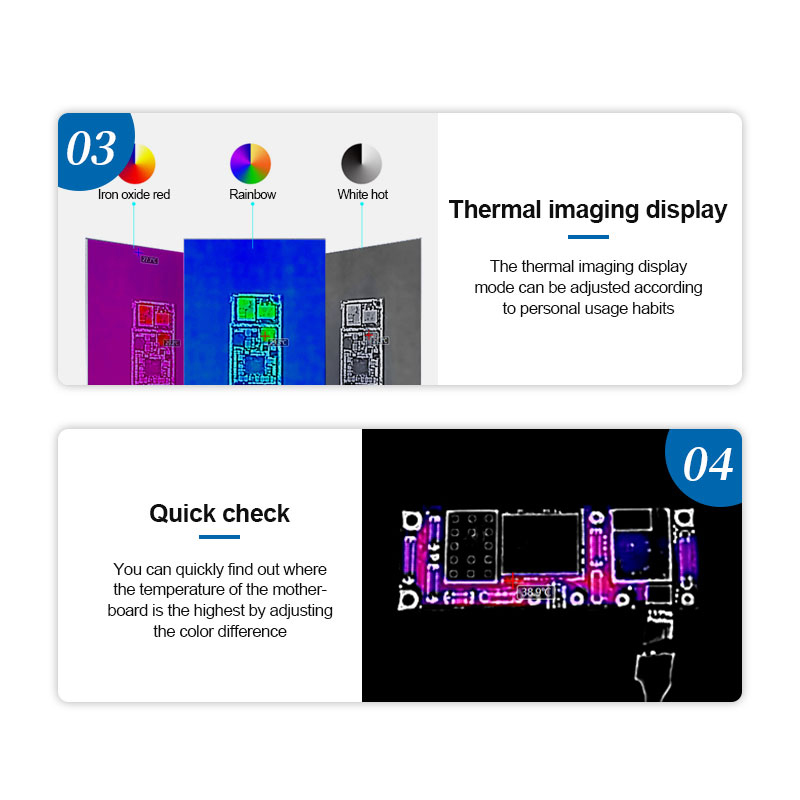

4. A one-click quick check for leakage, red thermal imaging technology, and dual-light fusion algorithm can display the temperature and outline of the motherboard in real-time.
5. Just click "Quick Check", and the high-temperature point of leakage will appear immediately.

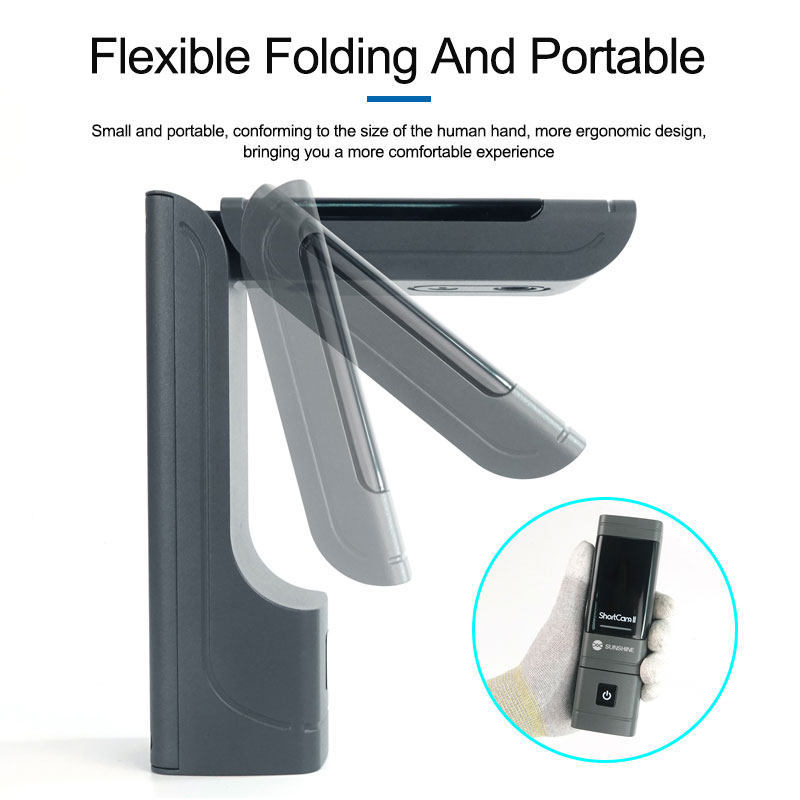

6. Flexible folding and portable, small and portable, conforming to the size of the human hand, more ergonomic design, bringing you a more comfortable experience.

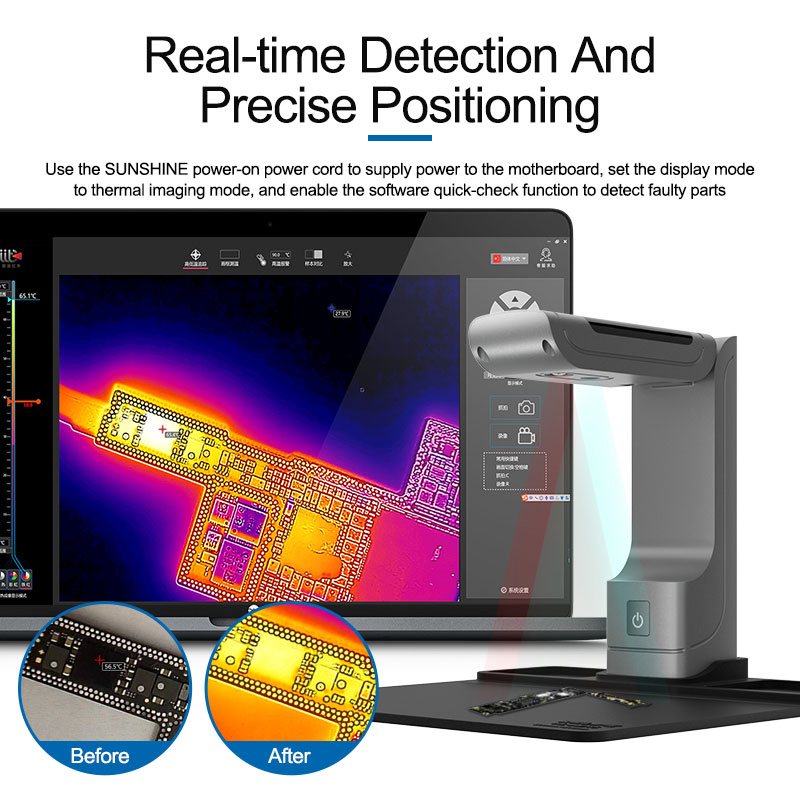

7. Real-time detection and precise positioning, use the power-on power cord to supply power to the motherboard, set the display mode to thermal imaging mode, and enable the software quick-check function to detect faulty parts.

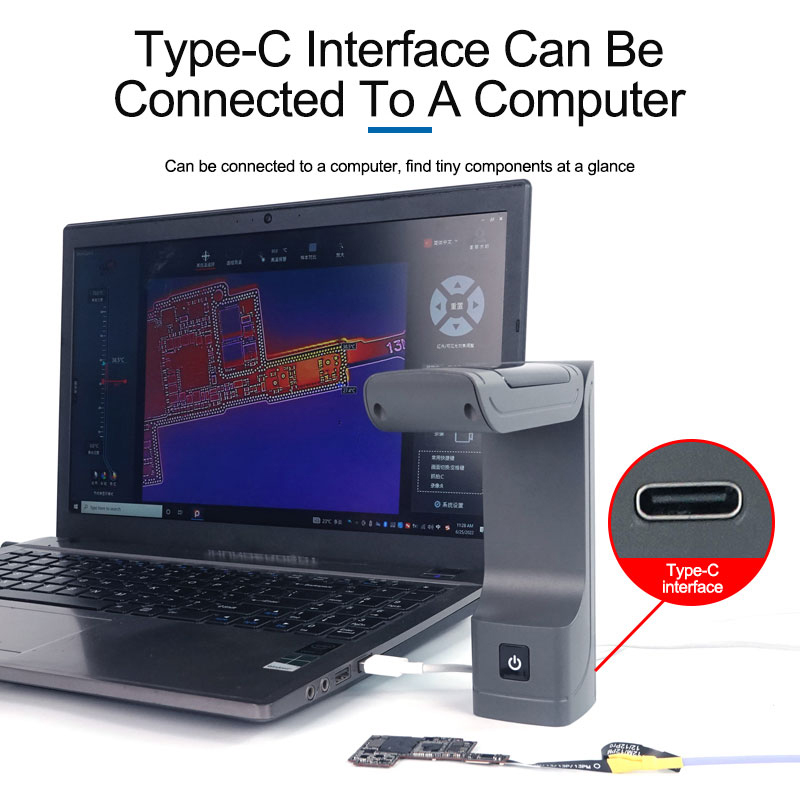

8. Type-C interface can be connected to a computer, find tiny components at a glance.
Specification
1. Brand: SUNSHINE
2. Product name: PCB rapid diagnosis instrument
3. Detector type: Uncooled Vanadium Oxide (VOx)Detectors
4. Infrared resolution: 256*192
5. Wavelength range: 7.5-13.5um
6. Camera angle: 25°*13.5°
7. Visible light resolution: 2568*1448
8. Display mode: Visible Light/Thermal Imaging/Quick Check
9. Connection method: Type-C
10. Image storage format: JPC
11. Video storage format: MP4
12. Input supply voltage: 5V DC
13. Power consumption: 2.5W
14. Storage temperature range: 20℃~60℃
15. Working temperature: 3℃~45℃
16. Humidity: 95%relative humidity

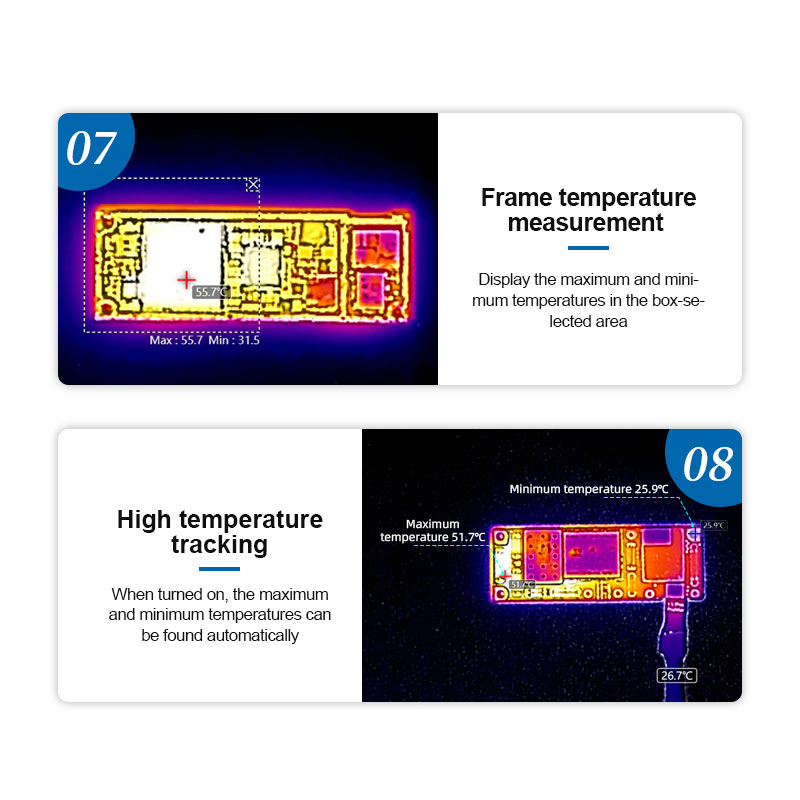

17. Temperature measurement function: Full-frame temperature measurement/frame temperature measurement
18. Temperature measurement distance: 13cm
19. Temperature measurement accuracy: ±5℃ or ±5℃ (whichever is the largest)
20. Temperature measurement range: -20℃-550℃
21. Install: Plug and play, no installation required
