Specifications:
| Gross weight | 1550g |

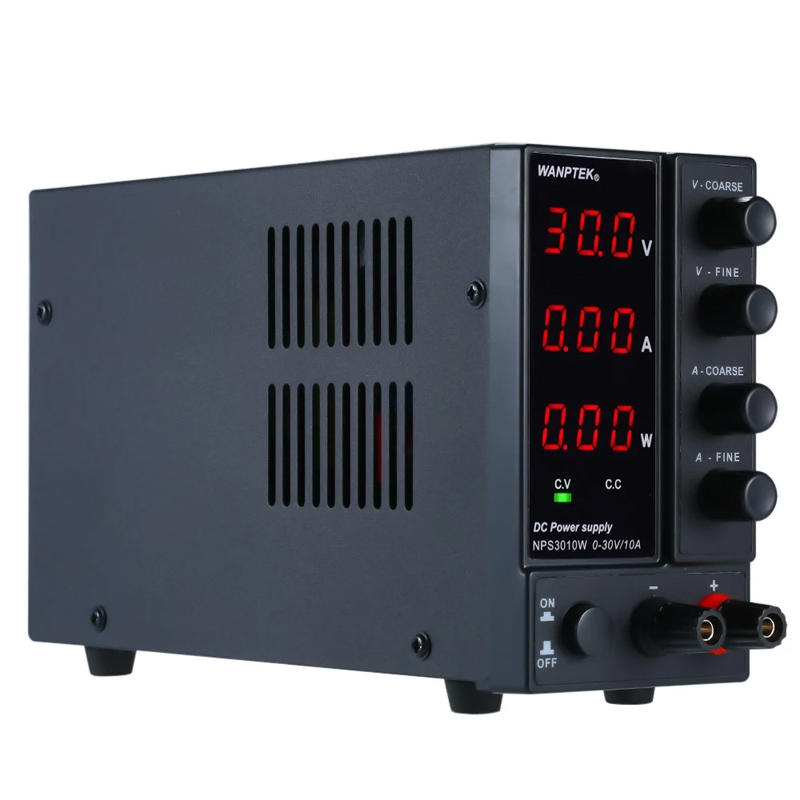

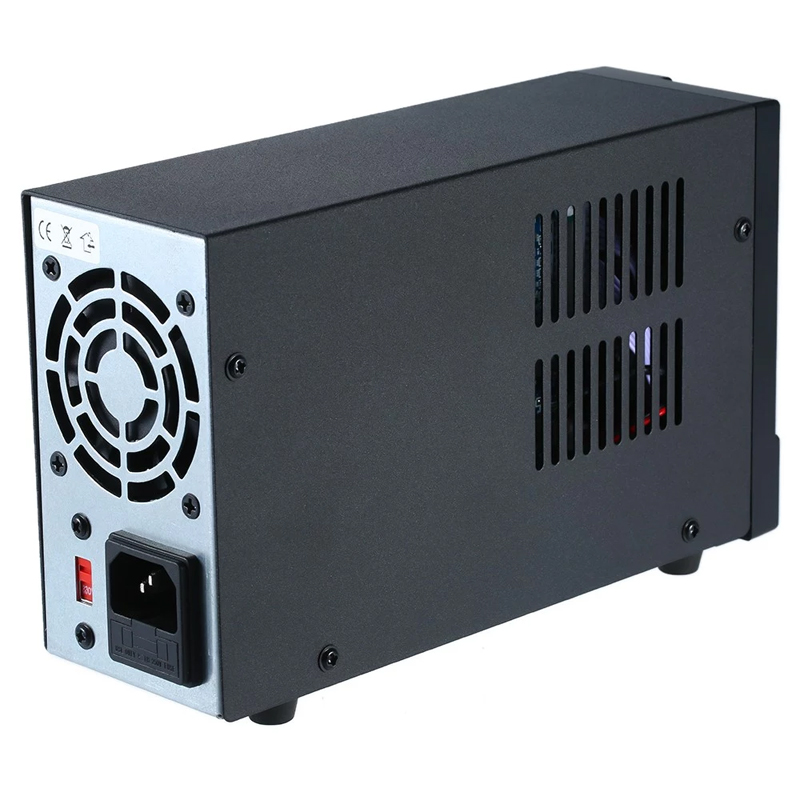

WANPTEK NPS3010W 30V/10A LED 3-digit Display High Precision Voltage & Current Regulated Dual Output Mini Power Supply
Features
1. LED 3 digits display of voltage, current and power, high precision with single channel output.
2. Voltage stabilization, current limiting, simple operation feature the DC power supply.
3. Over voltage protection(OVP), over current protection(OCP) with over temperature protection.
4. Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
5. Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting protection
mode, and any external service state will not be damaged.
6. With replaceable fuse for safe use, convenient to change the fuse.
7. Applied in production line test, electrical maintenance, aging products, battery charging, laboratories
scientific research and teaching and all other need DC regulated power supply.
Specifications
1. Plug Type: AU / EU / US / UK (Optional)
2. Model: NPS3010W
3. Output Voltage: 0～30V
4. Output Current: 0～10A
5. Output Power: 300W
WORKING ENVIRONMENT
1. Input Voltage: AC 230V/115V ± 10%; 50Hz/60Hz
2. Working Temperature: 0~40℃; Relative Humidity: <80%RH
3. Storage Temperature: -10~70℃; Relative Humidity: <70%RH
CONSTANT VOLTAGE CV
1. Voltage Stability: 0.1% ± 3mV
2. Load Stability: 0.2% ± 3mV
3. Ripple Voltage: =0.5% Vp-p
4. 0 to rated voltage continuously adjustable
CONSTANT VOLTAGE CC
1. Current Stability: 0.1% ± 3mA
2. Load Stability: 0.2% ± 3mA
3. Ripple Current: =0.5% Vp-p
4. Recovery Time: =500μS
5. Temperature Coefficient: =100ppm/℃
6. 0 to rated current continuously adjustable
DISPLAY
1. Three-window digital tube display: voltage, current, power
2. Display Accuracy: 0.5% ± digits
3. Display Resolution: voltage 0.1V; current 0.01A; power 0.1W/1W
