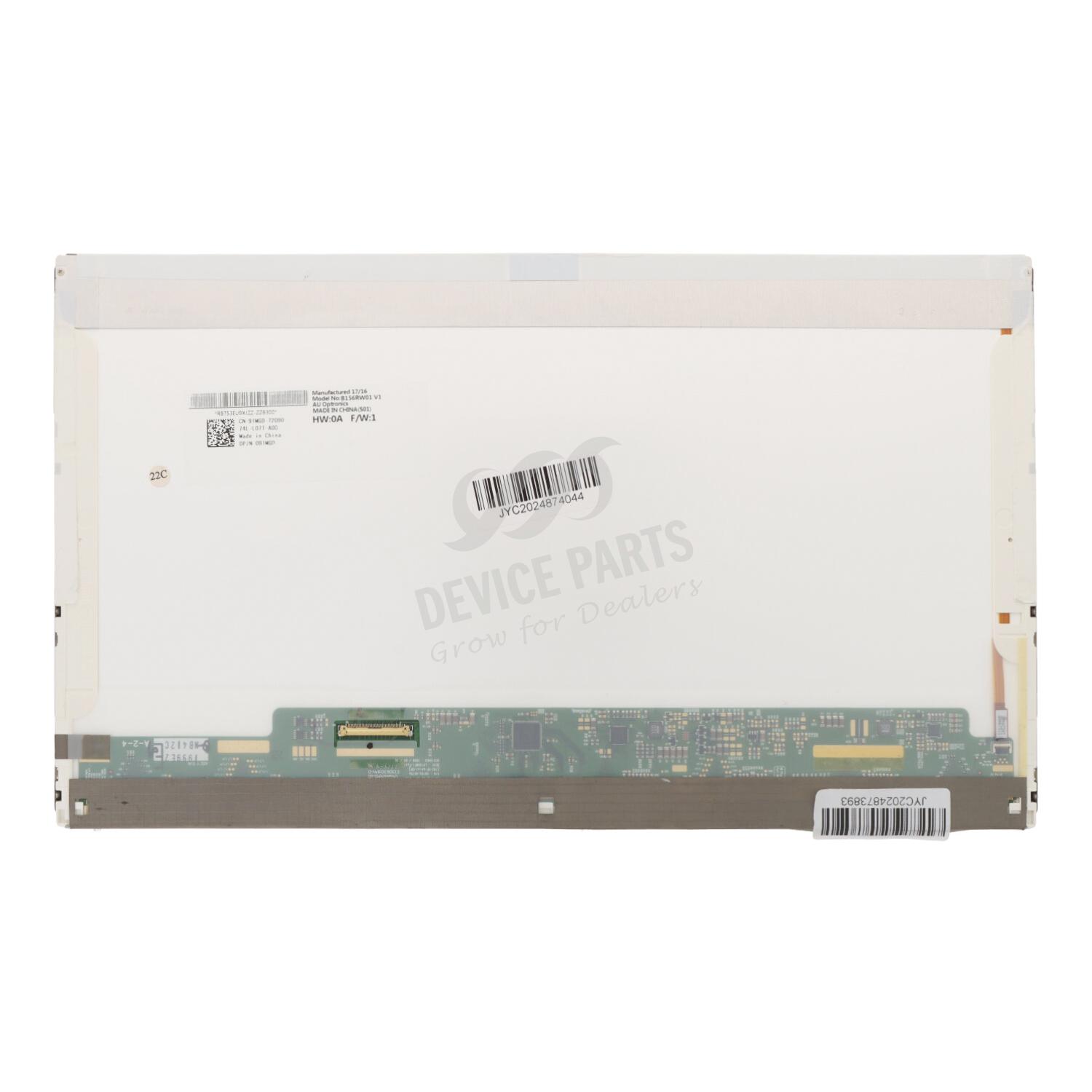

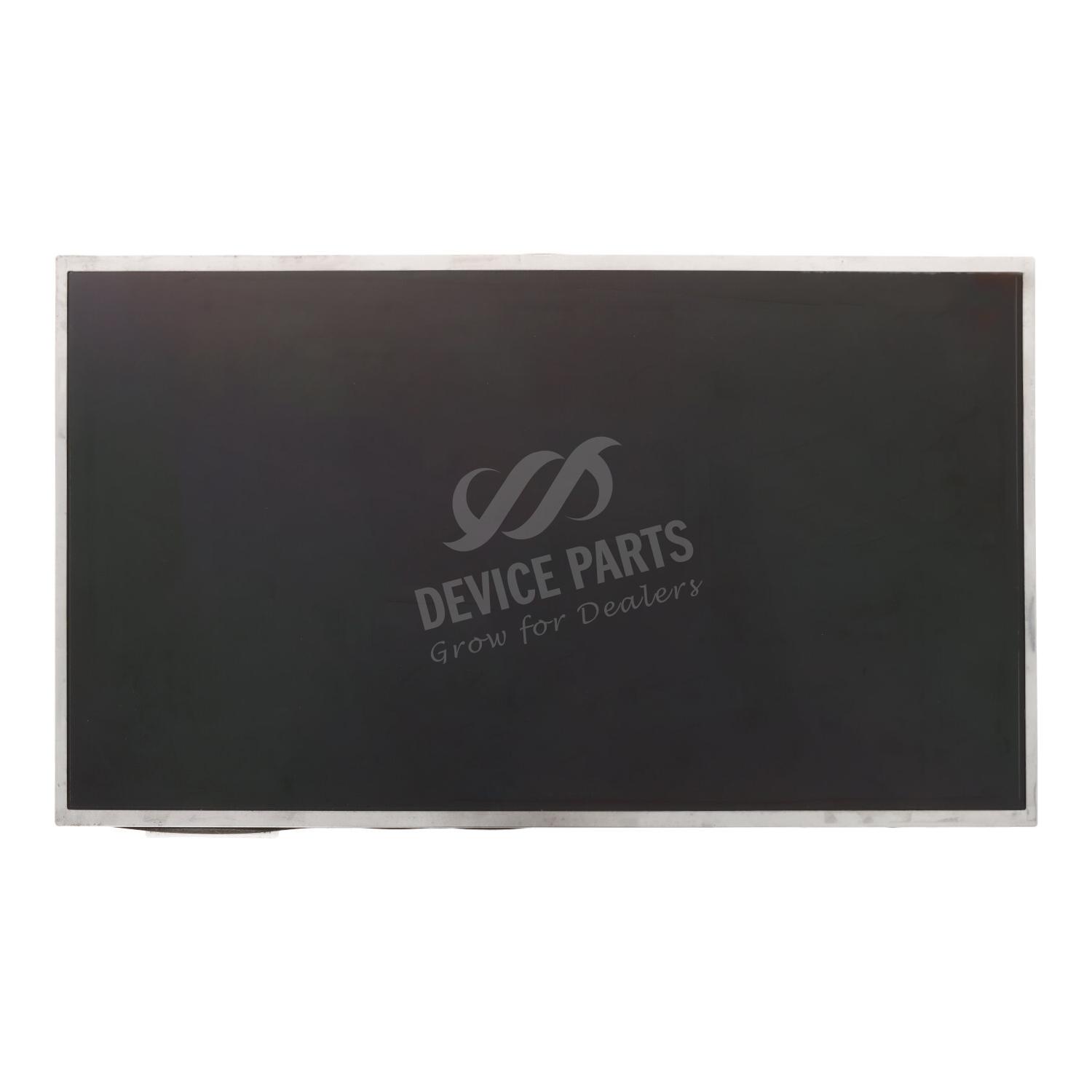

15.6 Inch B156RW01-V1-HW1A LCD Screen Non-Touch Matte 1600*900 60Hz Ori LVDS 40Pin

Price: $40.47

CODE: AS102173

Ships in 24 hours Any questions? Email us

Specifications:

QualityOri
Gross weight500g
Include small partsNon-Touch
VersionMatte

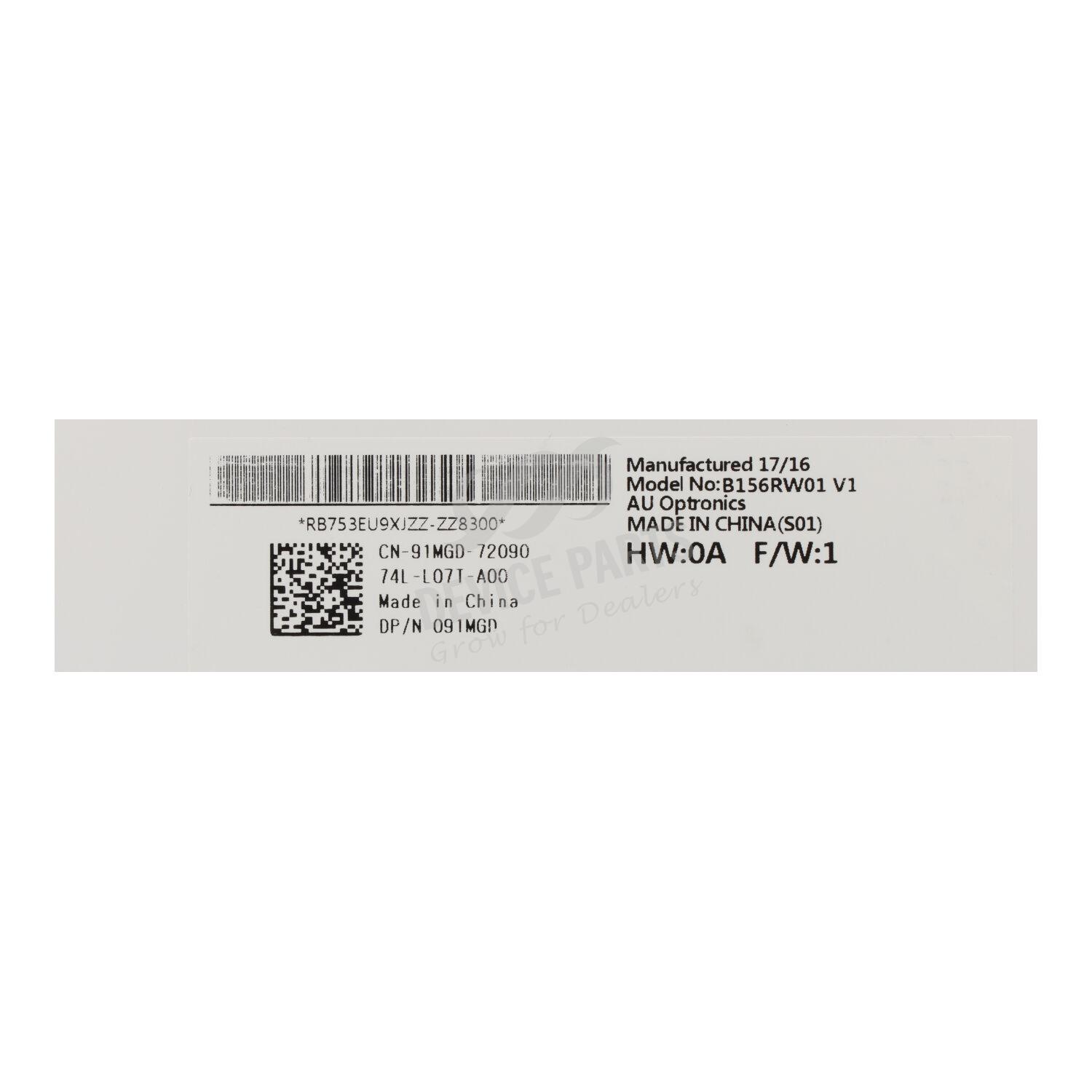

Model NumberB156RW01-V1-HW1A

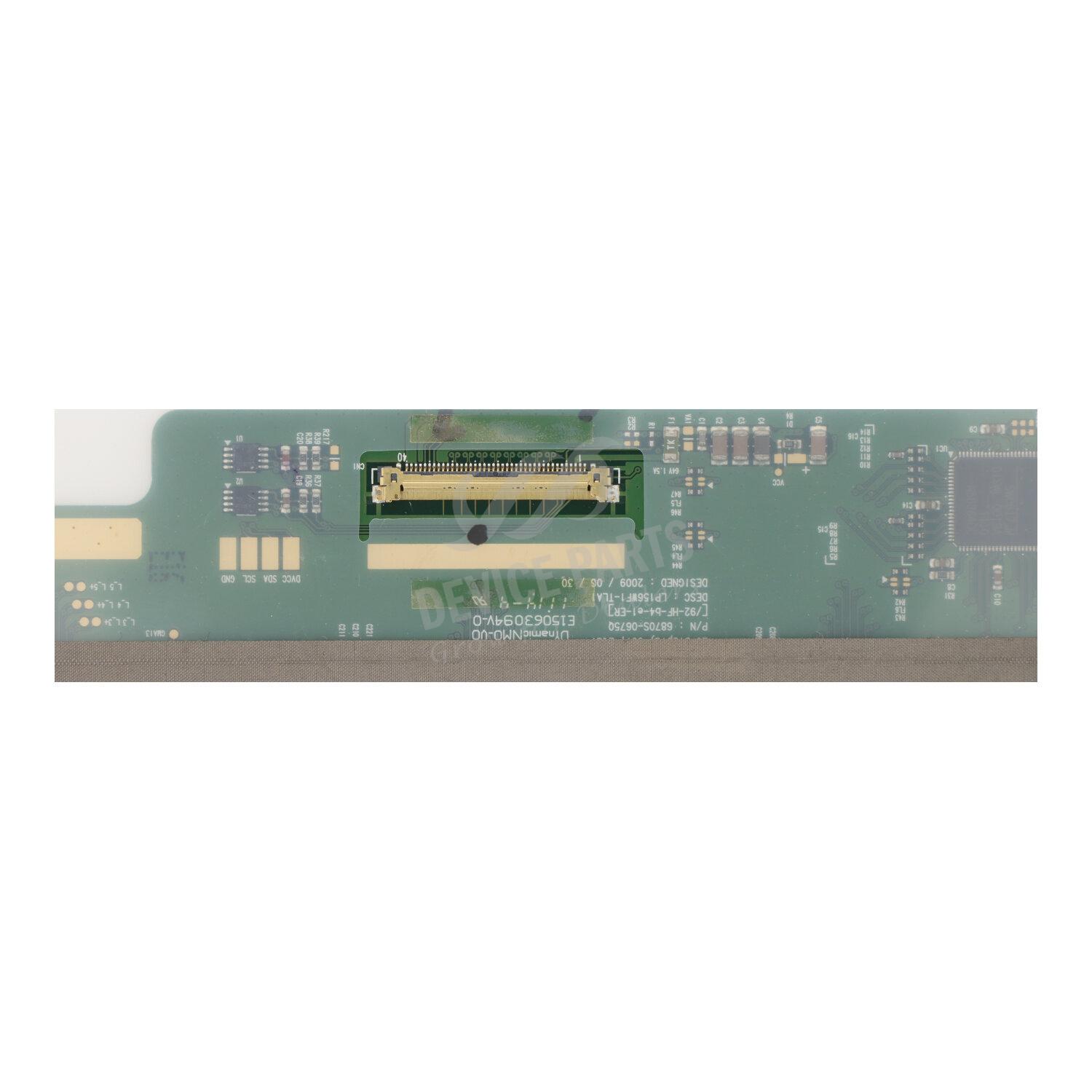

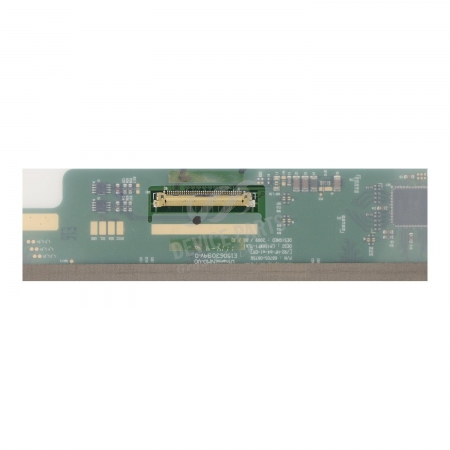

PinLVDS 40Pin
Size15.6 Inch
Resolution1600*900

Test before installation

1.A screen is a breakable item, we strongly suggest you to test it before installing it. When testing, do not remove any protective film or tags. please pay attention the problem of static discharge.

2.Testing process - please conect the flex cable of the new replacement screen to the monthboard cable of the test device , power it on, start the testing. if it turns on as usual, you can install the screen. if the device doesnt turn on, please contact us as soon as possible and do not install the screen.

3.please make sure that the screen flex cable is not over bent - an angle of more than 90 degree will cause a black screen or stripes.

Packaging process diagram
