Specifications:
| Gross weight | 6000g |

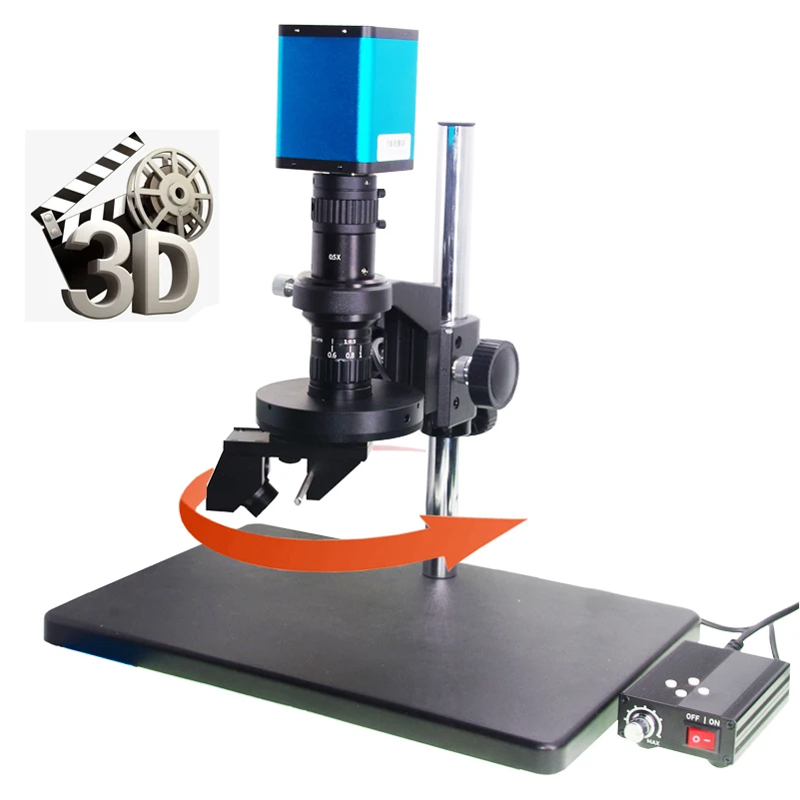

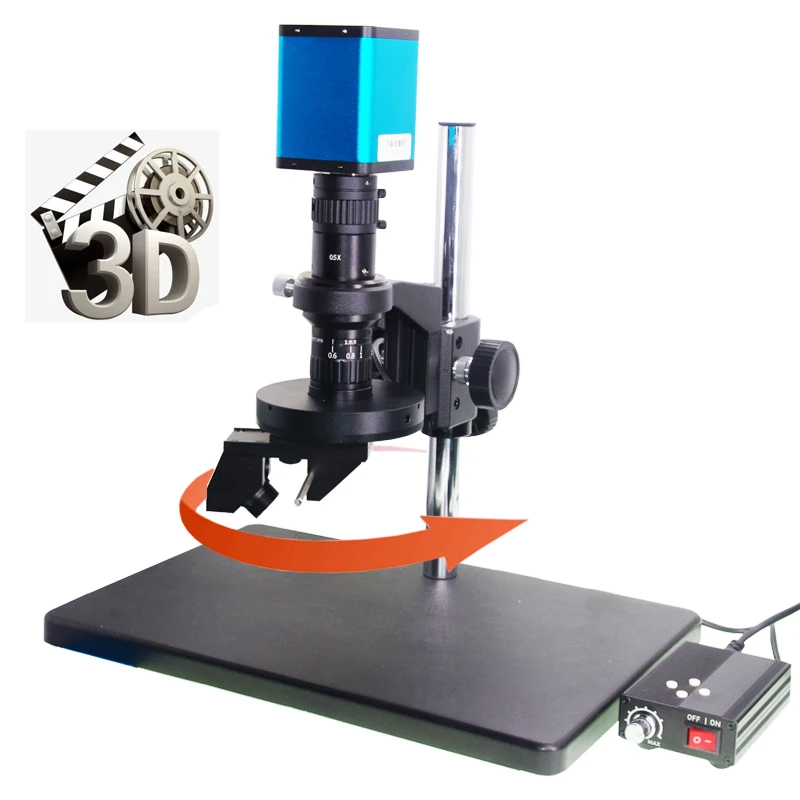

3D & 2D 20X-200X Parfocal Industry Microscope Set with Auto Focus 1080P Camera

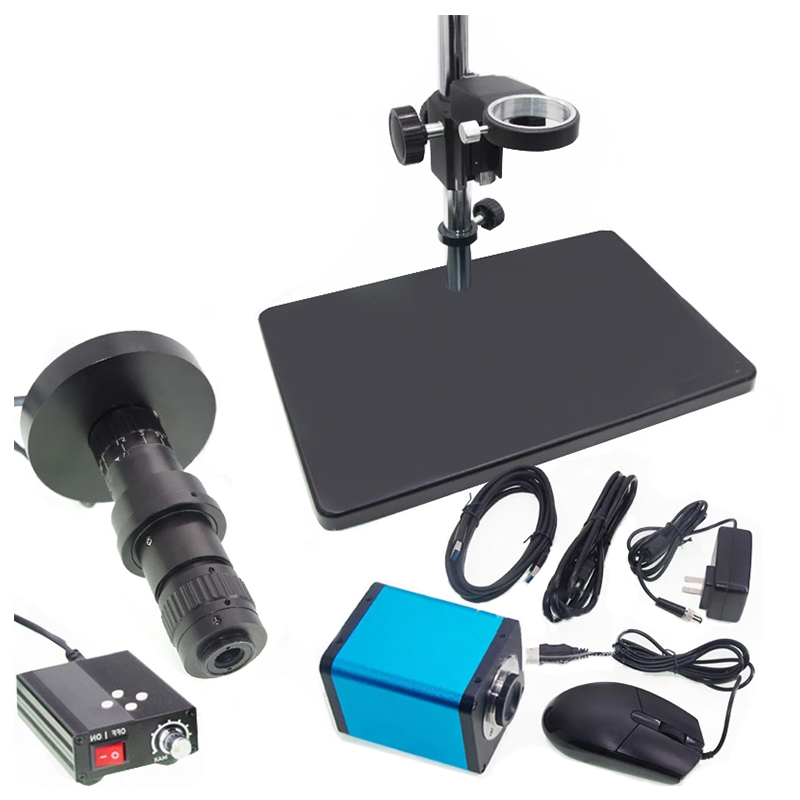

Package List:
C-mount Digital Autofocus Camera x1
HDMI Cable x1
USB Mouse x1
100V-240V power supply (EU Adapter) x1
Metal stand x1
Parfocal 2D & 3D C-MOUNT Lens with LED Light x1
Parfocal 2D/ 3D Lens:
1. The 3D industry lens based on infinity optical system

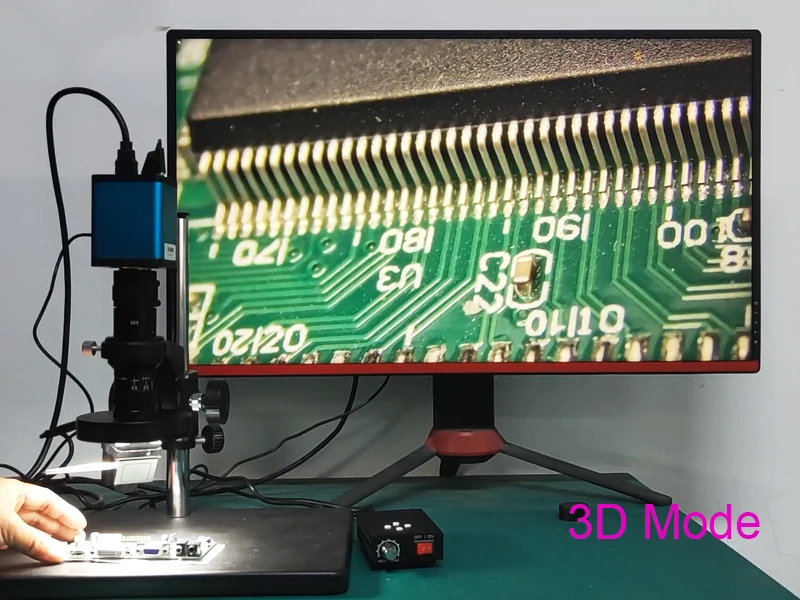

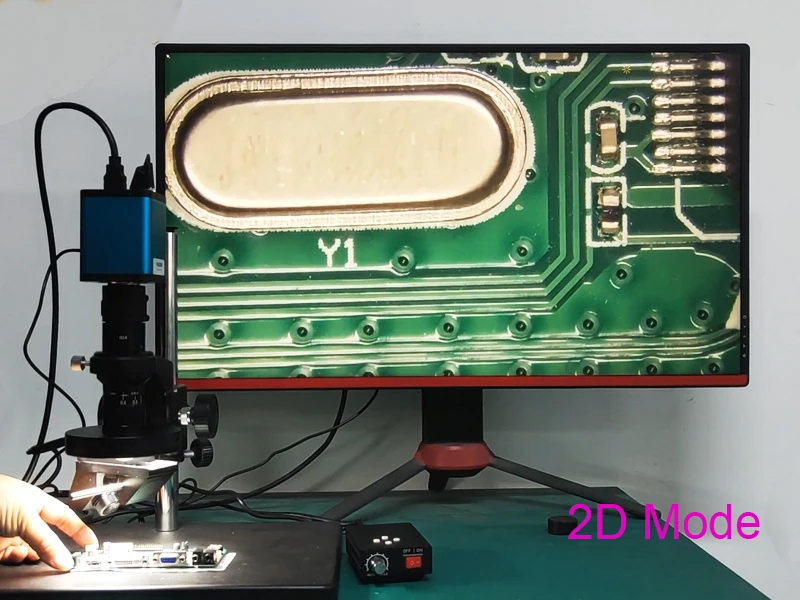

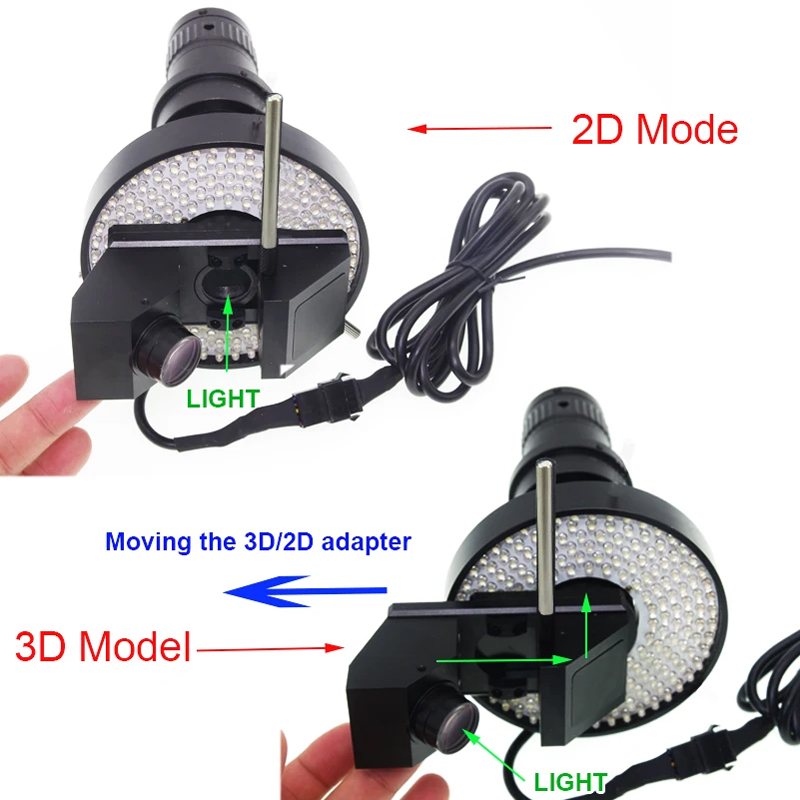

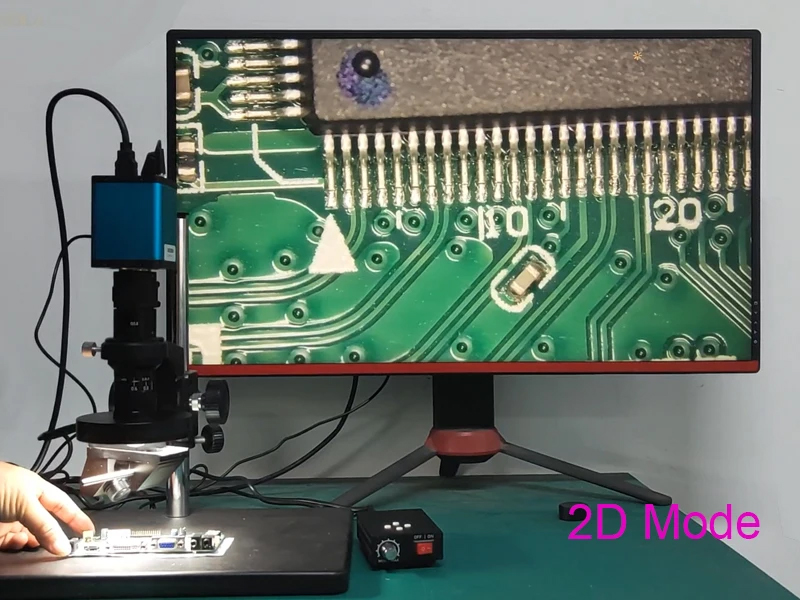

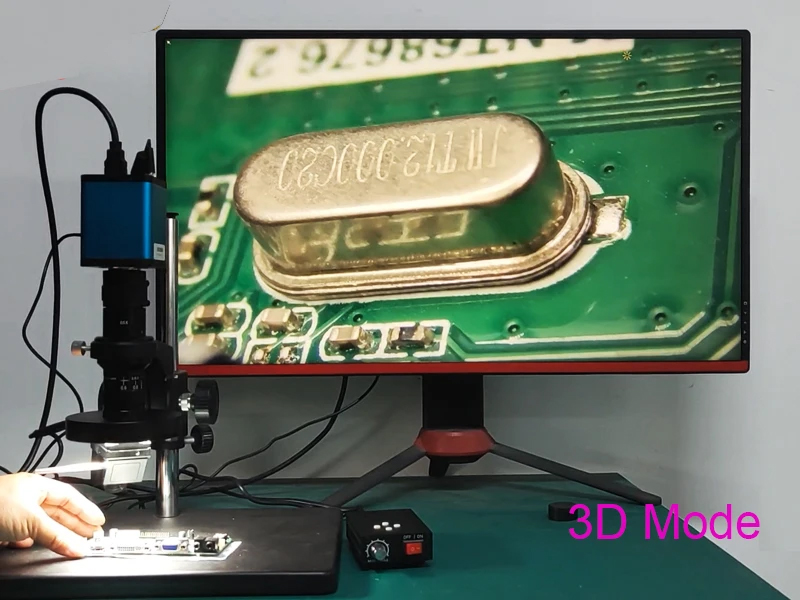

2. It can manual swtich 2D and 3D observation, 360 degree rotation. When you swtich 2D to 3D Model, the working
distance can keep at the same working distance.
3. At mininum magnification, the field of view is full image without dark edge, high solution, and large depth of view.
4. CCD adapter with fine-tuning device, it can match any CCD camera.
5. Widely used in microelectronic, precision electrics, precision hardware, deep hole wall, life science, morphology

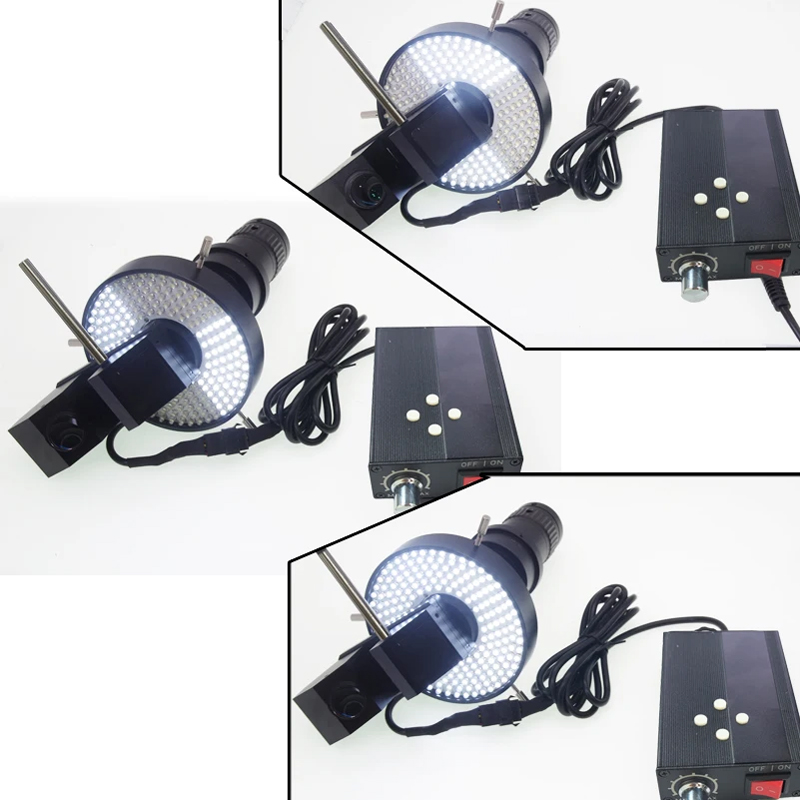

6.Ring LED light 4 zones control
Working distance:
2D model: 8CM
3D model: 5CM
Field of view:
2D model: 2mm-25mm
3D model: 2.4mm-20mm

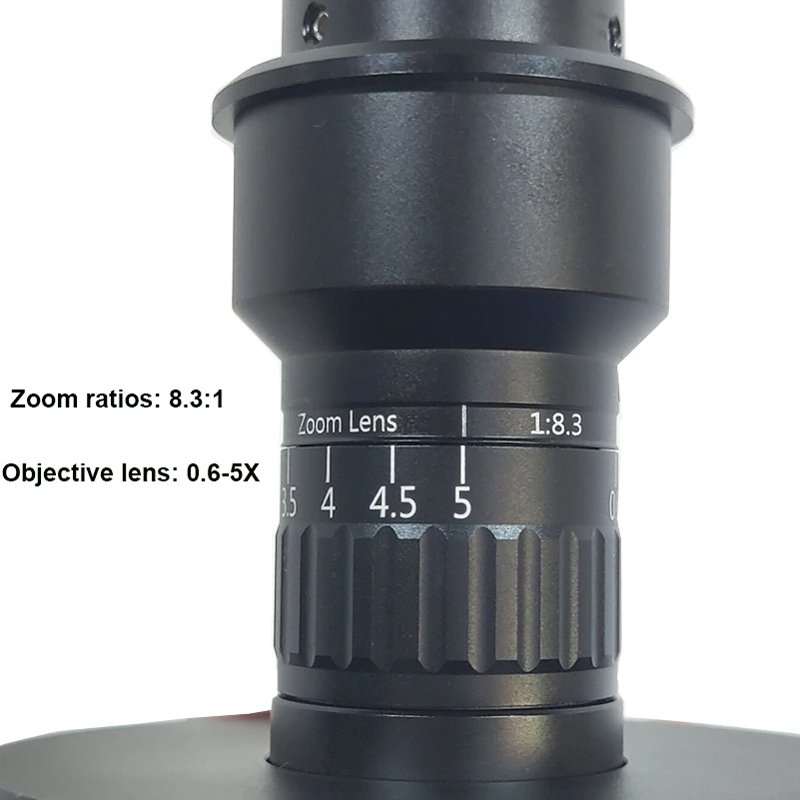

7. zoom c-mount Lens

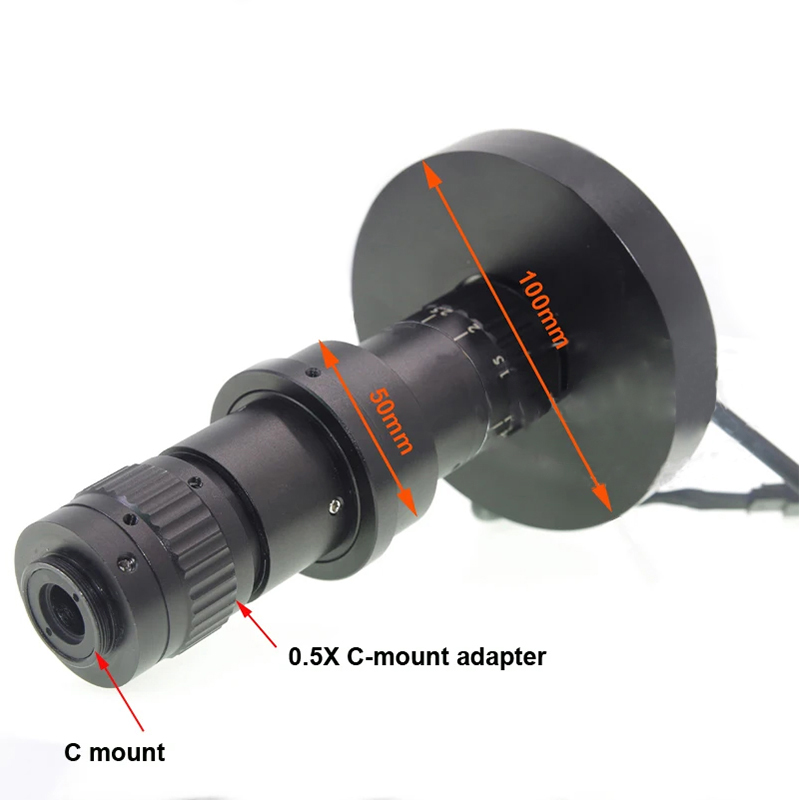

8. 0.5X C-mount adapter
9. Objective Magnification Power by 0.6 - 5X
10. ALL Optical mag: 0.3X- 2.5X(about 20 - 200X on the display)
11. Size: 220mm(L) * 105mm

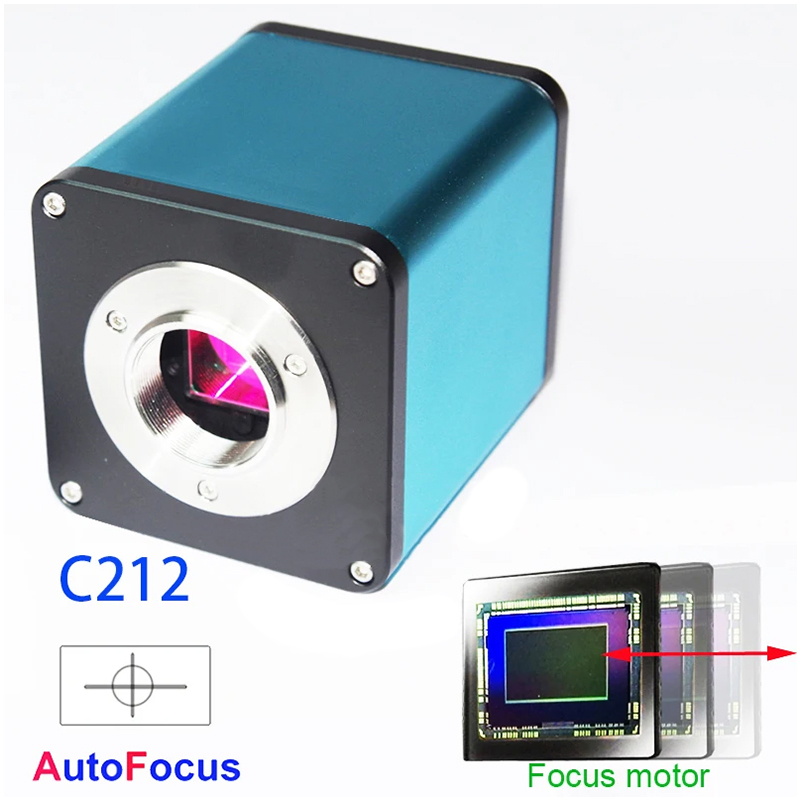

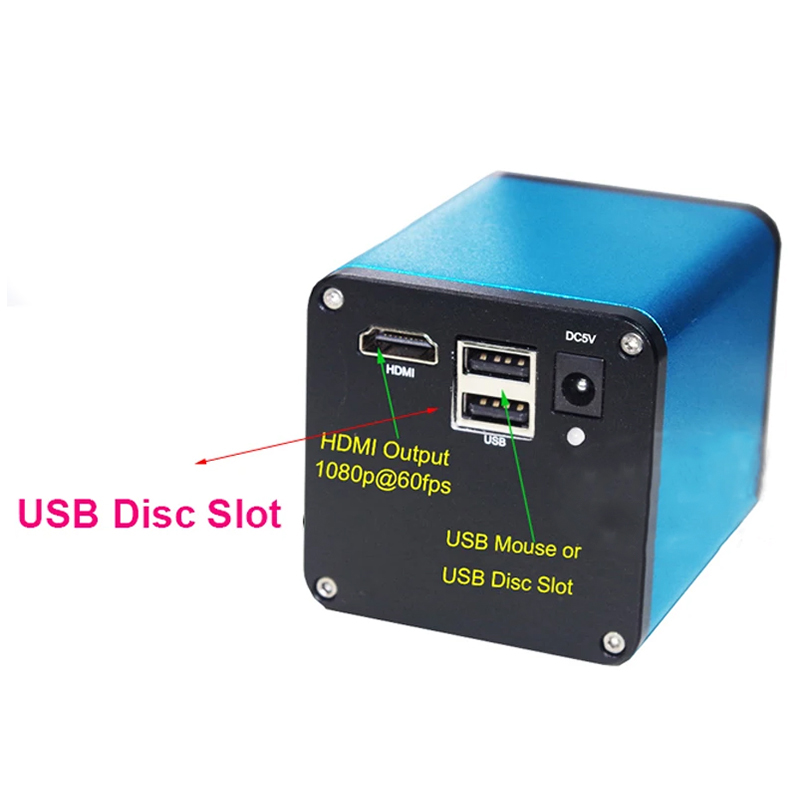

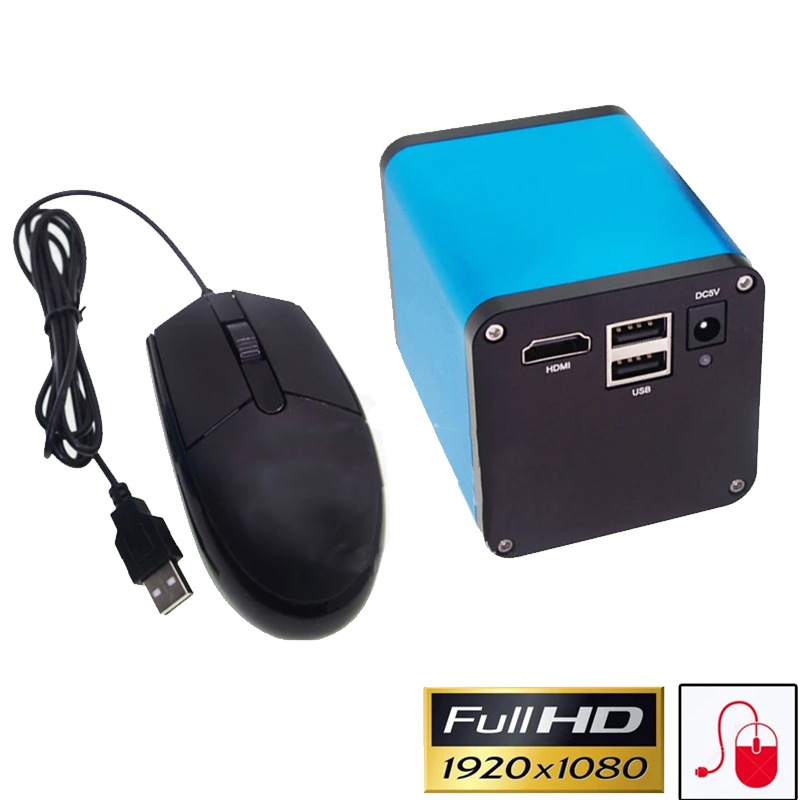

Camera Specification:
1. Image Sensor : SONY IMX307 Colour CMOS
2. Pixel size : 1/2.8〞
3. Menu : Fully digital UI design
4. Method of Operation : Mouse
5. Lens interface : C/CS-type
6. Power DC : DC5V
7. Output method : HDMI
8. White Balance : Auto / Manual / One-push control
9. Exposure : Auto / Manual
10. Display Frame rate : 1080P@60fps
11. Scanning method : Line by line scanning
12. Shutter Speed : 1/50s(1/60s)～1/10000s
13. Operating Temperature : 0℃～50℃
14. Magnification / Zoom : Support
15. Saving function : Support USB stick
16. Autofocus
