Specifications:
| Gross weight | 340g |
| Brands | BAIYI |

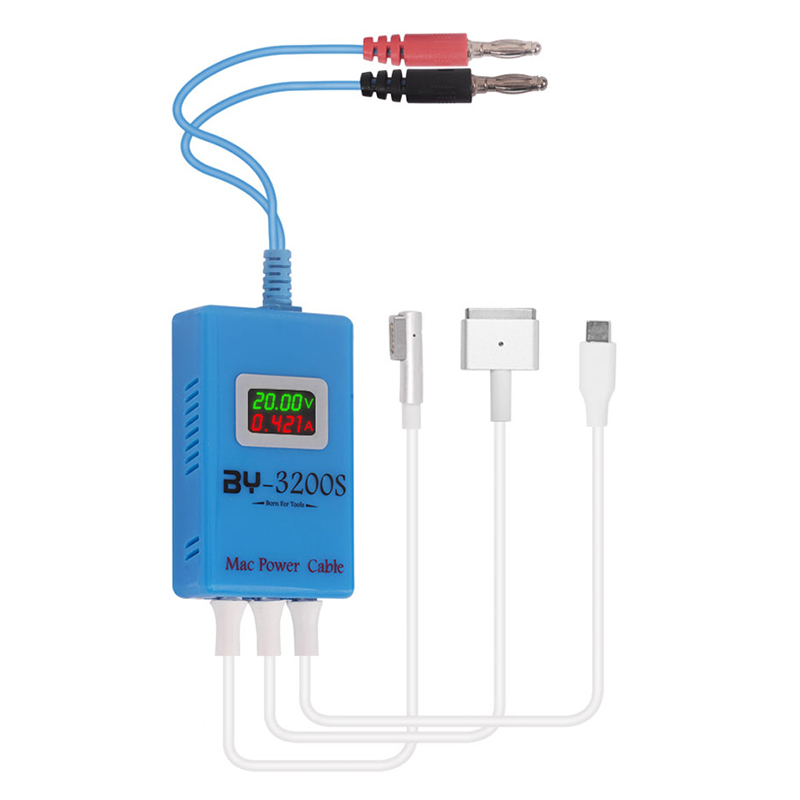

BAIYI BY-3200S Boot Cable Tool KIT for Macbook Board Repair

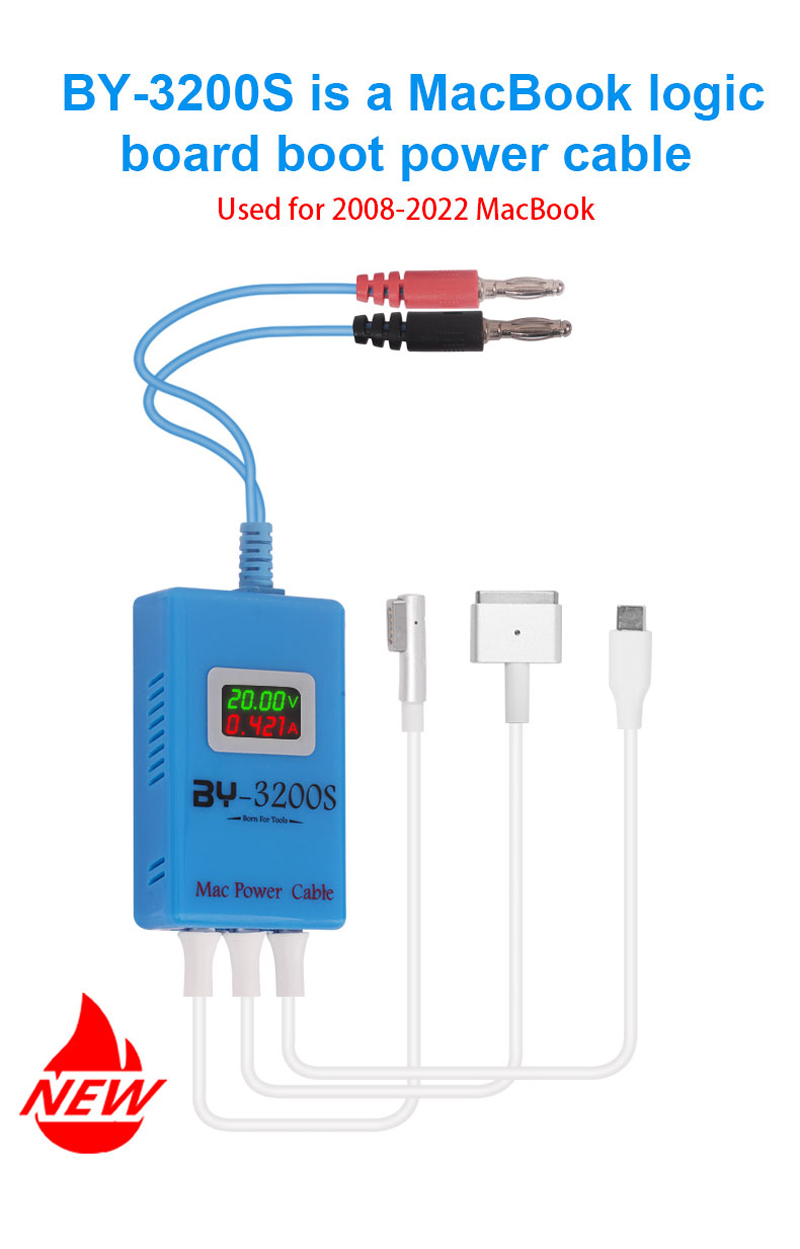

1. BY-3200S is a MacBook logic board boot power cable, used for 2008-2022 MacBook

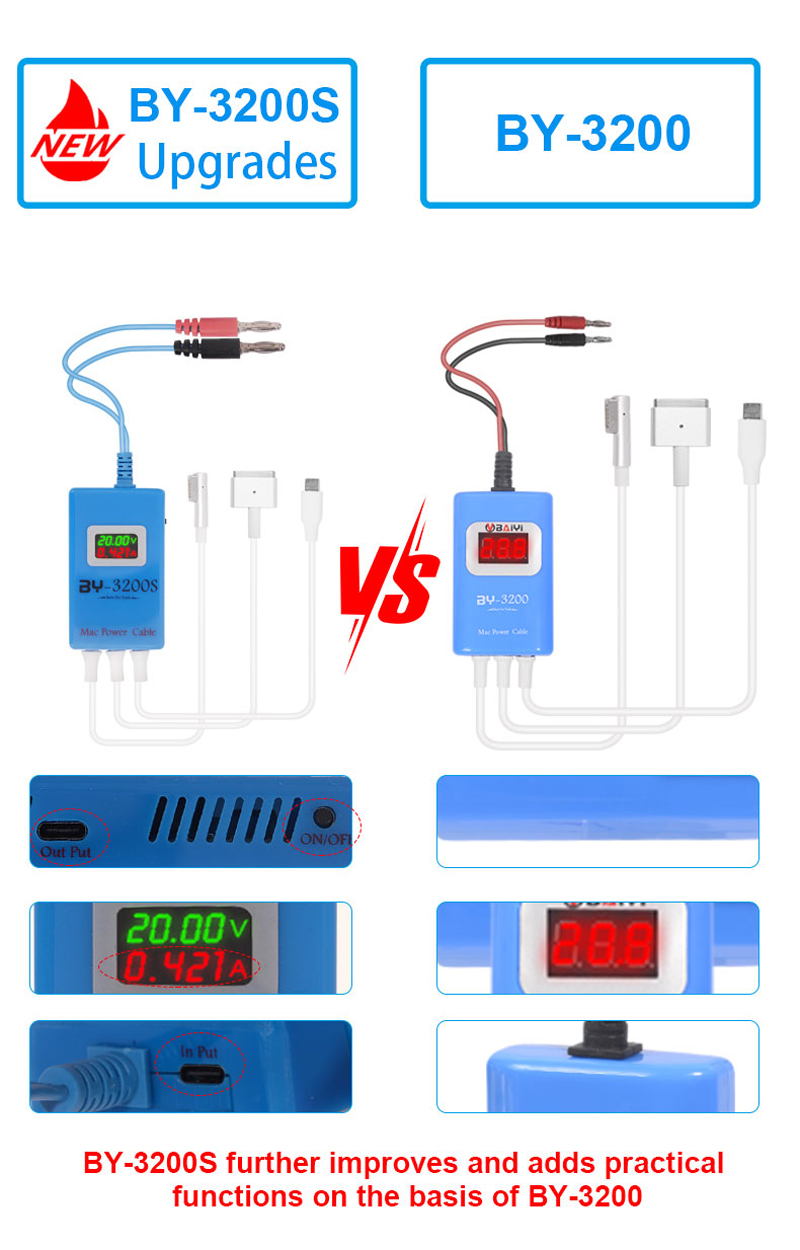

2. BY-3200S further improves and adds practical functions on the basis of BY-3200

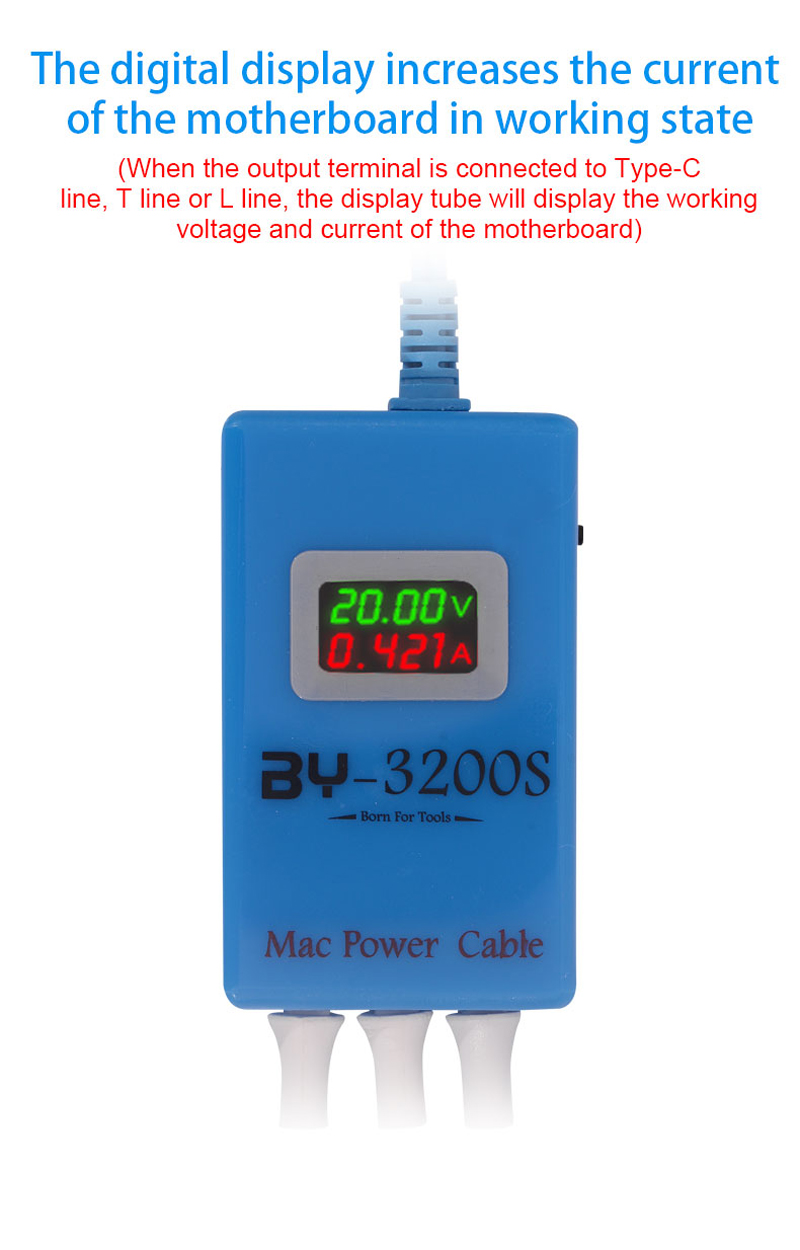

3. The digital display increases the current of the motherboard in working state (When the output
terminal is connected to Type-C line, T line or L line, the display tube will display the working voltage
and current of the motherboard)
4. A Type_C interface is added to the input port, and the input port can be directly input by an 87W-140W
Type_C charger, and instead of 220V DC power supply (Convenient for maintenance personnel to carry and operate)

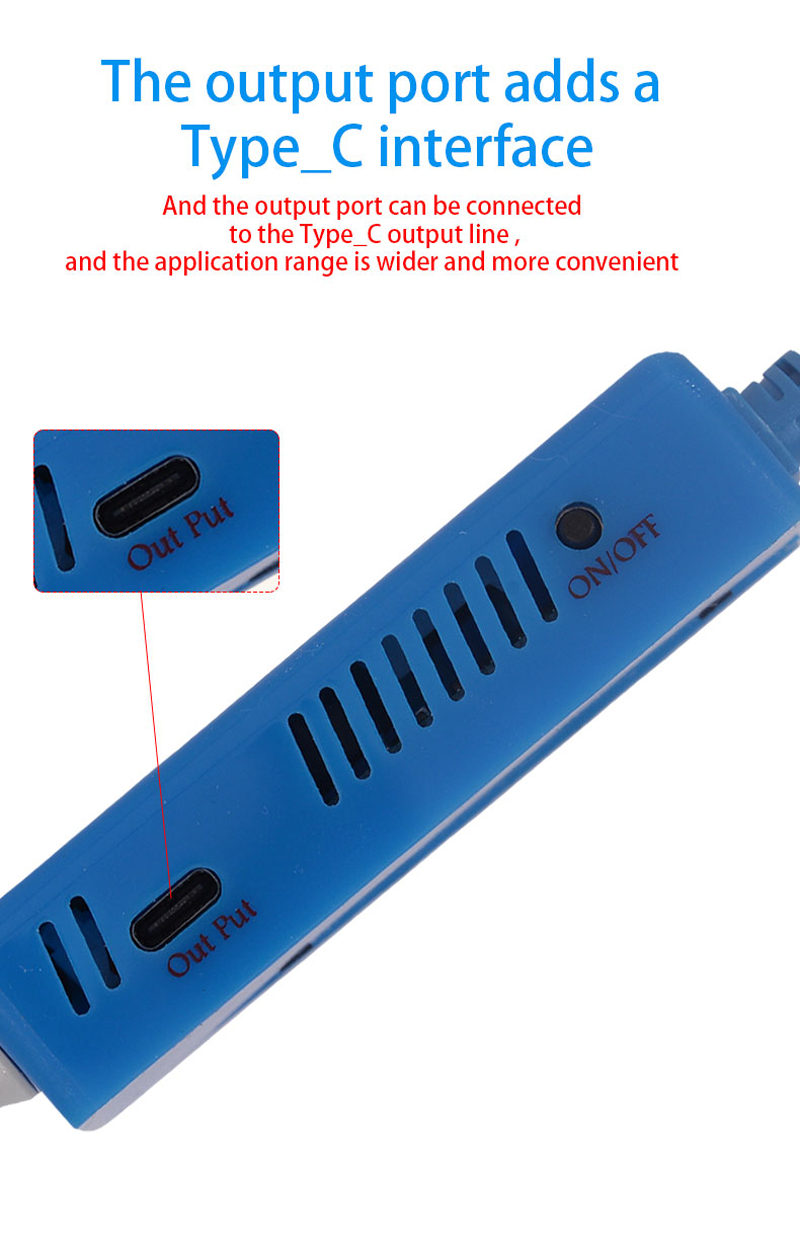

5. The output port adds a Type_C interface, and the output port can be connected to the Type_C output
line ,and the application range is wider and more convenient
6. The LCD ON/OFF switch is used to control the LCD digital tube display and power input (when the switch
is pressed once, the digital tube is turned off or on; when the switch is often pressed for 3S-5S, the power
input is turned off, and when it is necessary to turn on the power input again, You need to press the switch 3S-5S)
7. The LCD digital tube is off by default. When the output port is connected to the main board, BY-3200S will
automatically sense and turn on the digital tube display

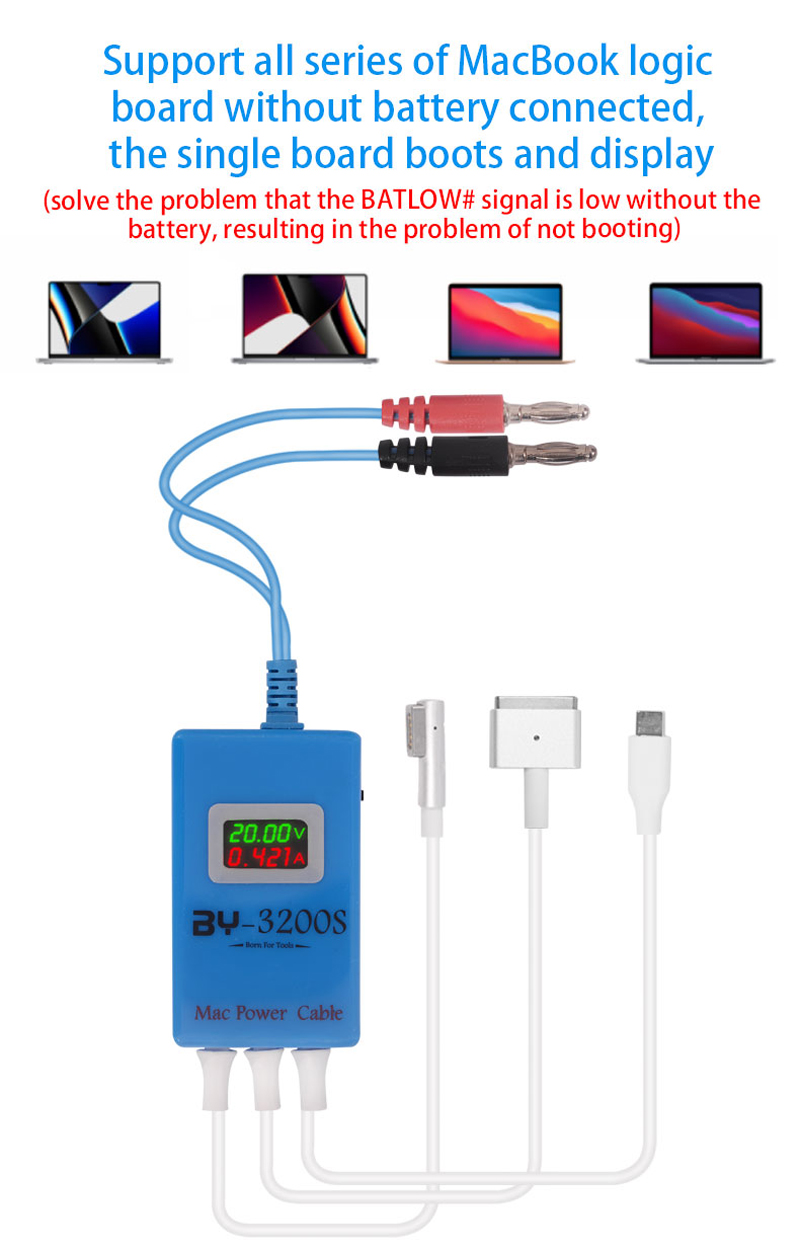

8. Support all series of MacBook logic board without
battery connected, the single board boots into the system (solve the problem that the BATLOW# signal is
low without the battery, resulting in the problem of not booting)

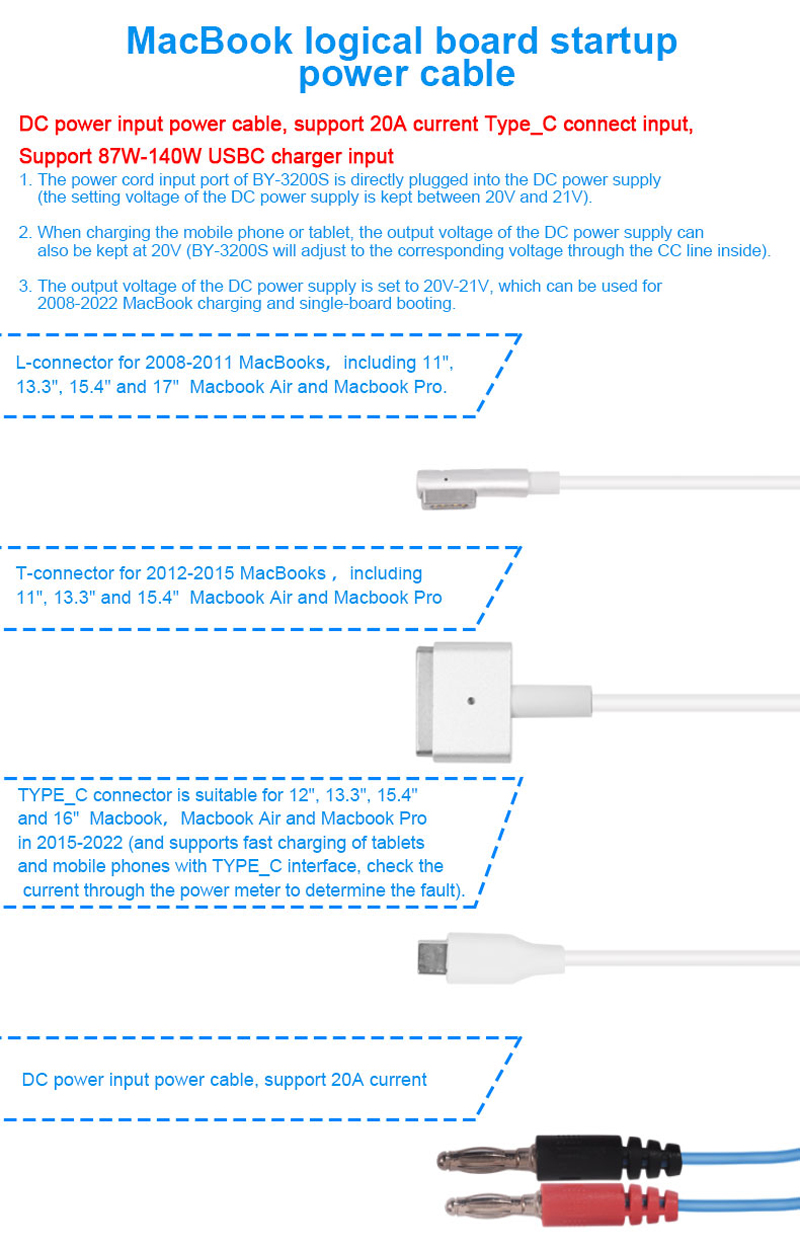

Includes three output power cables
1. L-connector for 2008-2011 MacBooks，including 11", 13.3", 15.4" and 17" Macbook Air and Macbook Pro.
2. T-connector for 2012-2015 MacBooks ，including 11", 13.3" and 15.4" Macbook Air and Macbook Pro
3. TYPE_C connector is suitable for 12", 13.3", 15.4" and 16" Macbook，Macbook Air and Macbook Pro in
2015-2022 (and supports fast charging of tablets and mobile phones with TYPE_C interface, check the
current through the power meter to determine the fault).
Input DC power input power cable, support 20A current
1. The power cord input port of BY-3200S is directly plugged into the DC power supply (the setting voltage
of the DC power supply is kept between 20V and 21V).
2. When charging the mobile phone or tablet, the output voltage of the DC power supply can also be kept
at 20V (BY-3200S will adjust to the corresponding voltage through the CC line inside).
3. The output voltage of the DC power supply is set to 20V-21V, which can be used for 2008-2022 MacBook
charging and single-board booting.
Type_C connect input, Support 87W-140W USBC charger input

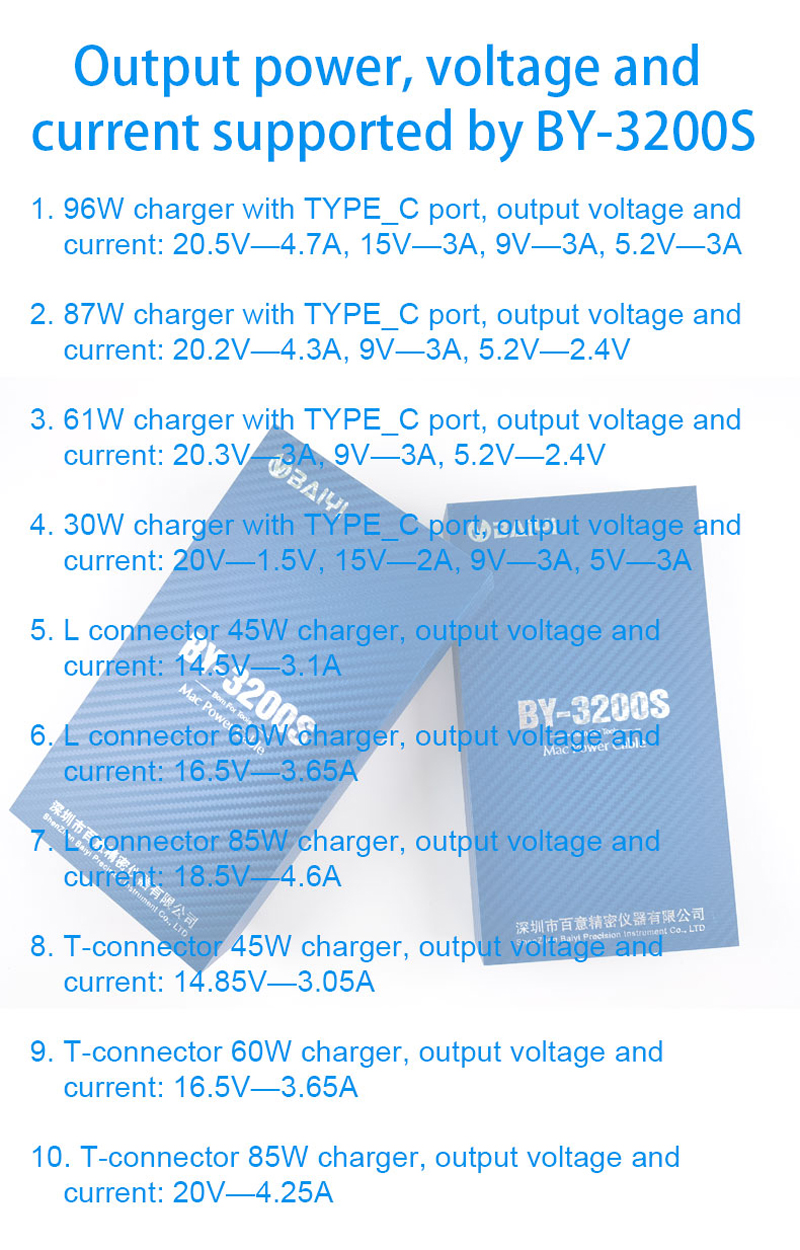

Output power, voltage and current supported by BY-3200S
1. 96W charger with TYPE_C port, output voltage and current: 20.5V—4.7A, 15V—3A, 9V—3A, 5.2V—3A
2. 87W charger with TYPE_C port, output voltage and current: 20.2V—4.3A, 9V—3A, 5.2V—2.4V
3. 61W charger with TYPE_C port, output voltage and current: 20.3V—3A, 9V—3A, 5.2V—2.4V
4. 30W charger with TYPE_C port, output voltage and current: 20V—1.5V, 15V—2A, 9V—3A, 5V—3A
5. L connector 45W charger, output voltage and current: 14.5V—3.1A
6. L connector 60W charger, output voltage and current: 16.5V—3.65A
7. L connector 85W charger, output voltage and current: 18.5V—4.6A
8. T-connector 45W charger, output voltage and current: 14.85V—3.05A
9. T-connector 60W charger, output voltage and current: 16.5V—3.65A
10. T-connector 85W charger, output voltage and current: 20V—4.25A
