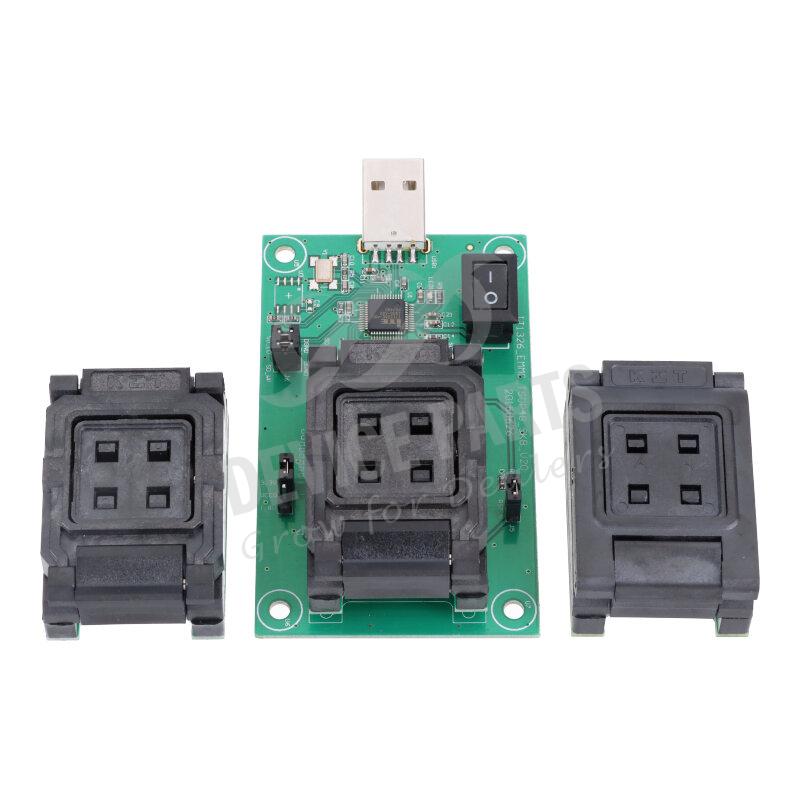

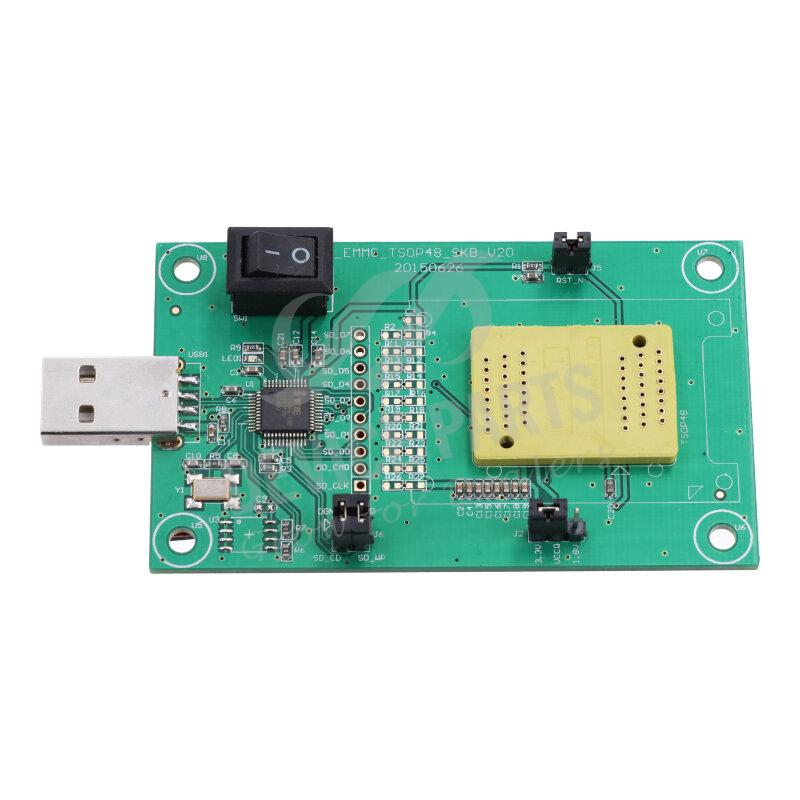

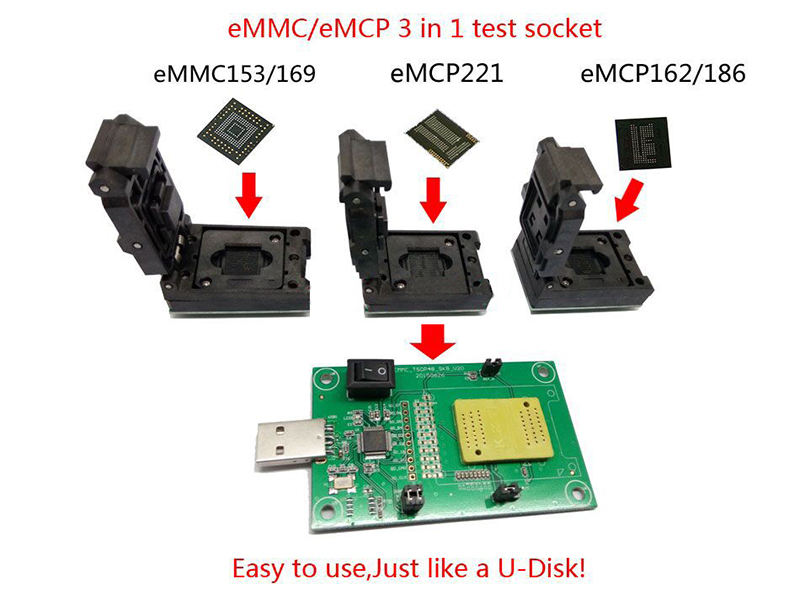

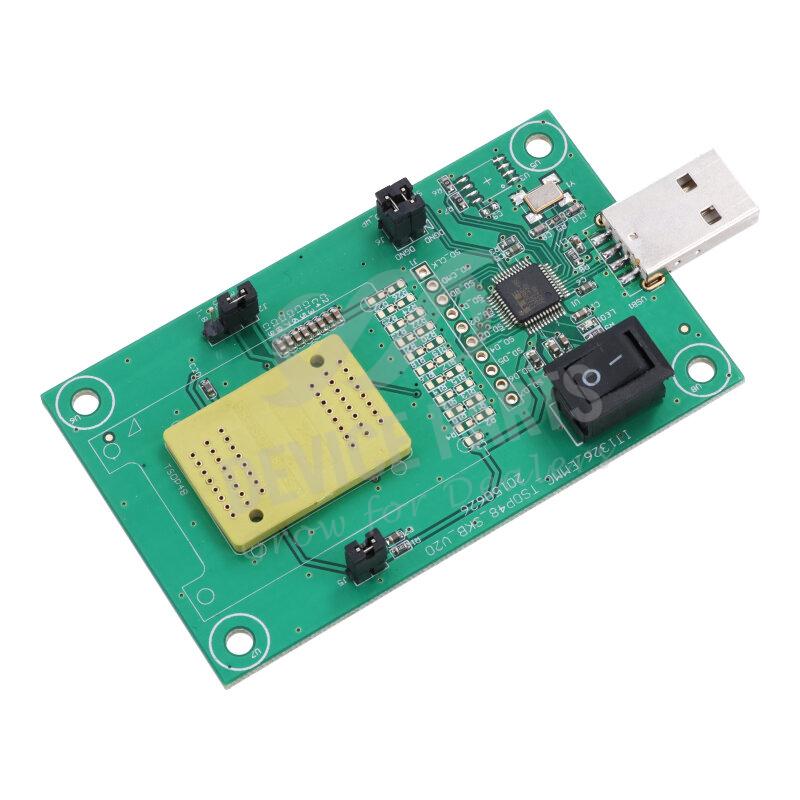

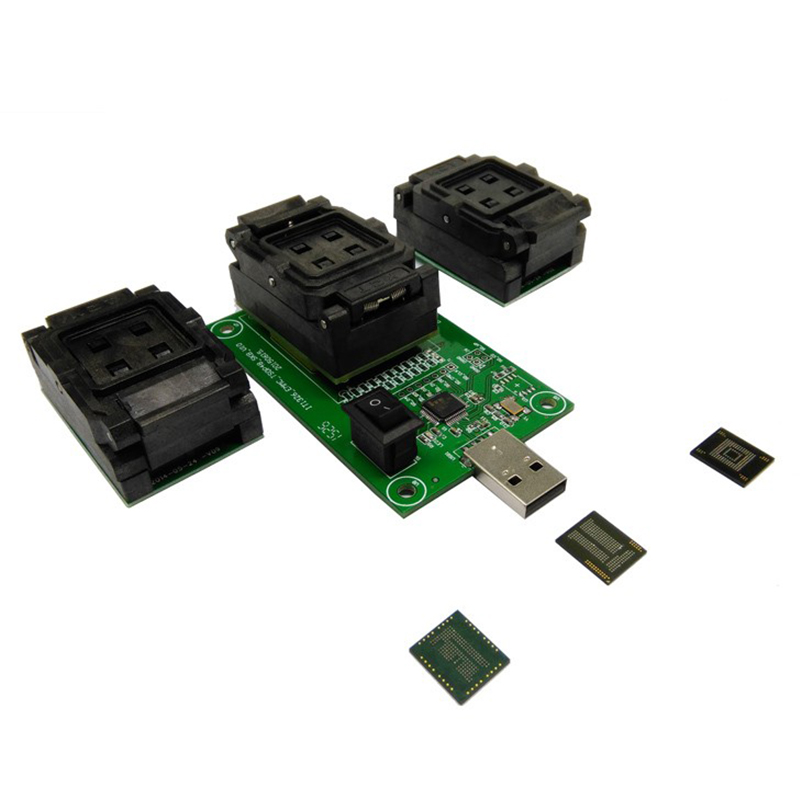

eMMC/eMCP Test Socket 3 in1 USB Adapter for BGA153/169/162/186/221 Data Recovery

Price: $180.34

CODE: AS068760

Ships in 24 hours Any questions? Email us

Specifications:

Gross weight129g
Package size19.00 cm x 9.00 cm x 5.50 cm

eMMC/eMCP Test Socket 3 in1 USB Adapter for BGA153/169/162/186/221 Data Recovery
1. For Samsung eMMC and eMCP, for Sandisk eMMC and eMCP, for Toshiba eMMC and eMCP, for Hynix eMMC and eMCP, for Micron eMMC and eMCP, for MTK eMMC and eMCP, for Intel eMMC and eMCP.

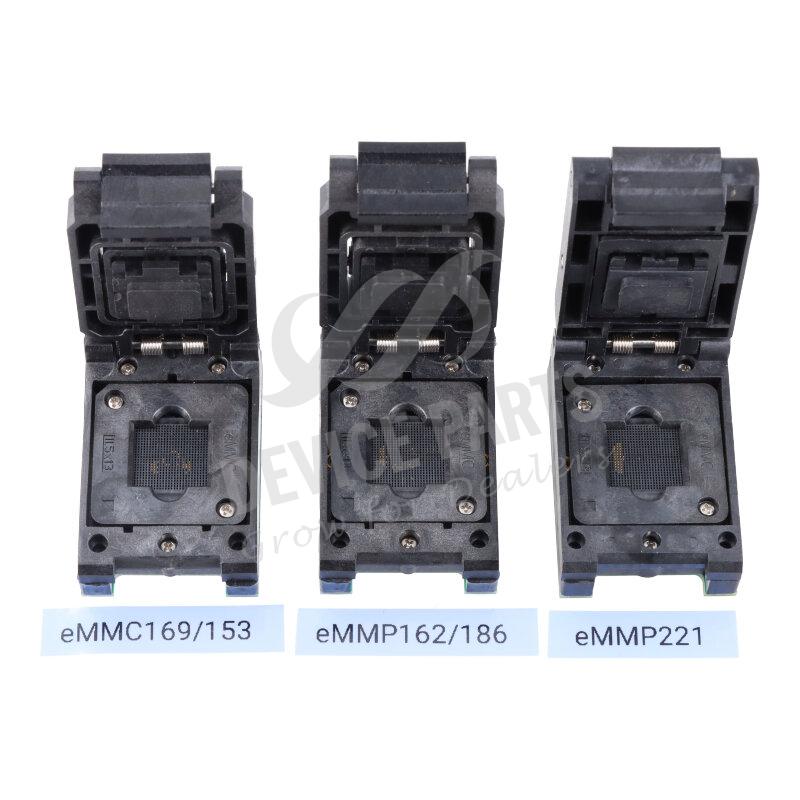

2. Apply BGA153 BGA169 BGA162 BGA186 BGA221. (just need to change the paired socket)
3. Easy operation by just inserting the USB into PC.
4. Apply eMCP / eMMC thickness from 0.8 to 1.5mm
5. BGA162 / BGA186 socket With 17 pins and pin pitch 0.5mm.
6. BGA221 socket With 36 pins and pin pitch 0.5mm.
7. BGA153 / BGA169 socket With 30 pins and pin pitch 0.5mm.
8. Life cycle is around 25000 times.
9. eMCP / eMMC data can be read and re-written easily.

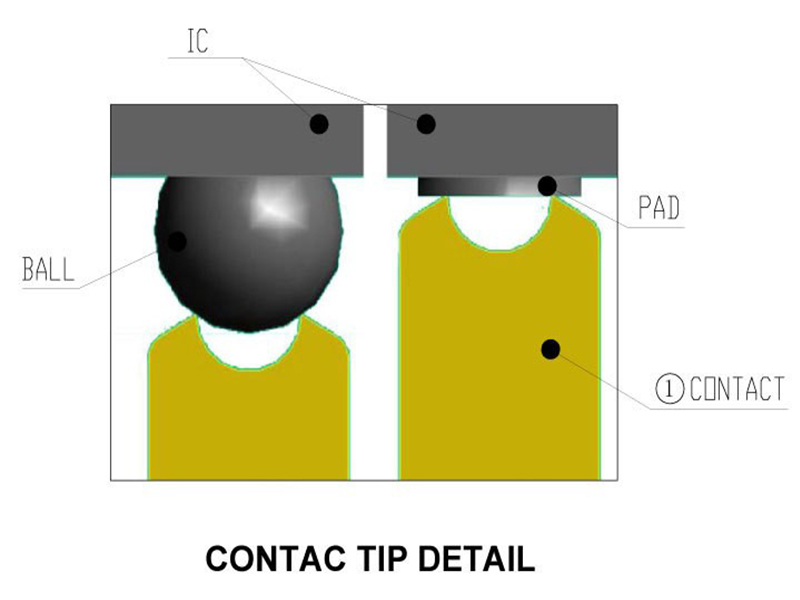

10. Support flat bottom and solder ball testing.
