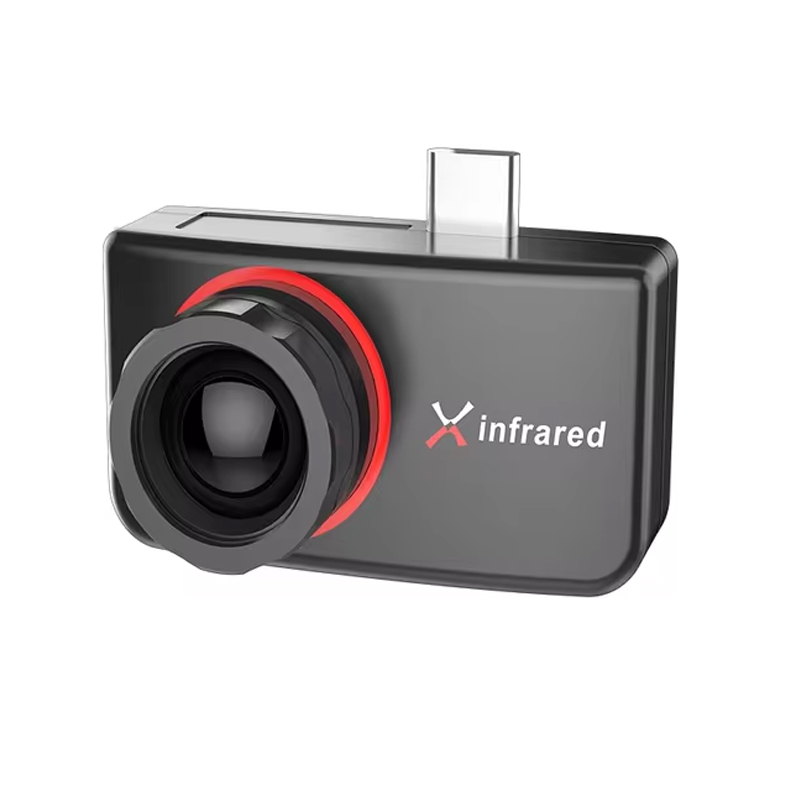

InfiRay T3 Pro 384*288 Type-C Port Infrared Thermal Camera with Macro Lens for Android Phones

CODE: AS149228

Ships in 24 hours Any questions? Email us
New Arrivals
256*192 Type-C Port Temperature Tester Infrared Thermal Imager
SUNSHINE TB-08 Pro Dual Light Direct Connection Rapid Diagnosis Motherboard Infrared Thermal Camera
LAUNCH Shortcam Mini 3D Flexible Gooseneck Thermal Imaging Camera for Quick Locates PCB Short Leakage Faults
SUNSHINE ShortCam II LC-AD15 256*192 400W Dual Light Imaging PCB Rapid Diagnosis Instrument

Specifications:

Gross weight200g

InfiRay T3 Pro 384*288 Type-C Port Infrared Thermal Camera with Macro Lens  for Android Phones

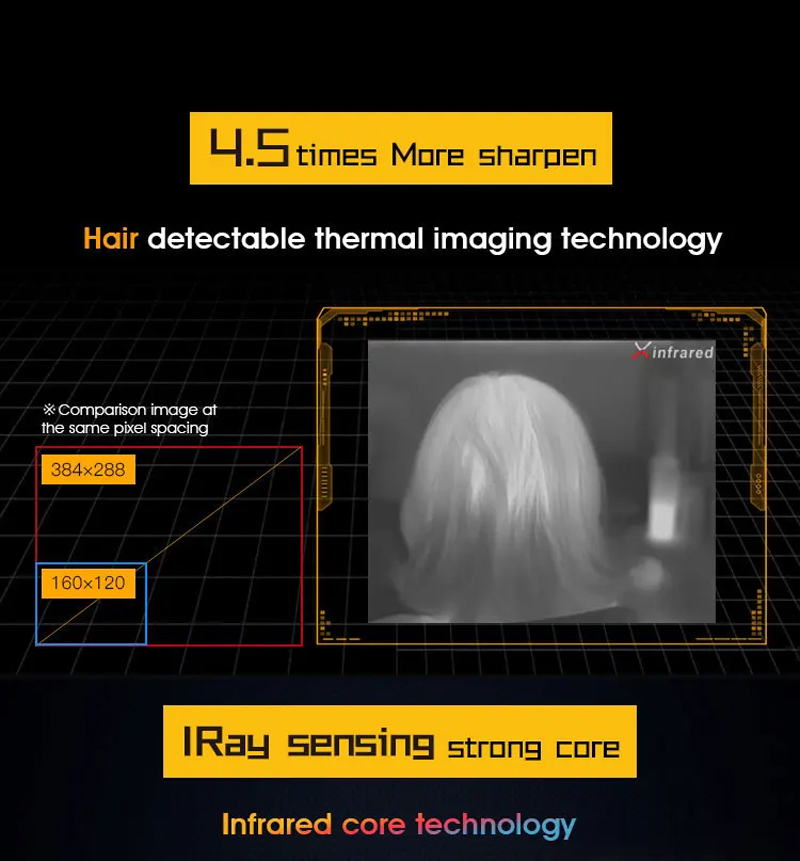

1. Resolution: 384×288
2. Pixel Pitch: 17μm
3. Spectral Band: 8~14μm
4. Objective Lens: 13mm

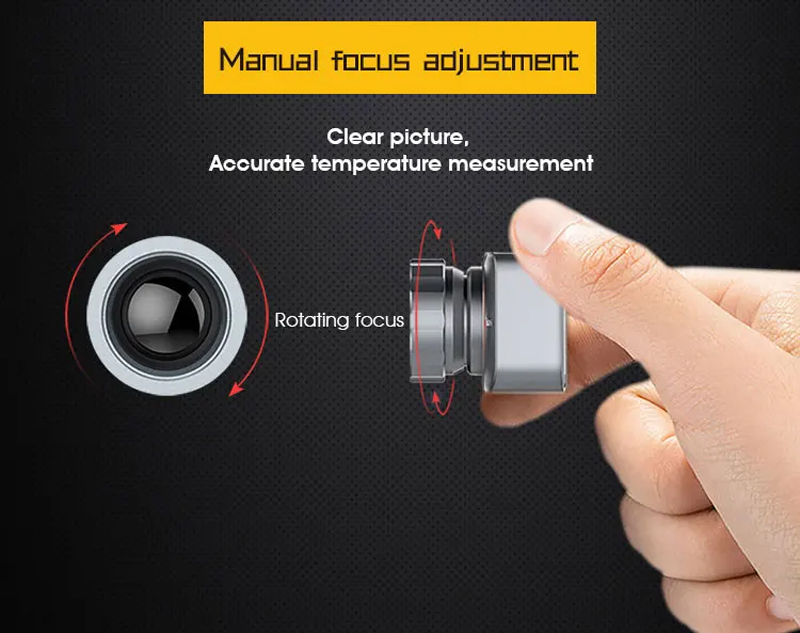

5. Focusing Mode: Manual
6. Frame Rate: 25Hz
7. NETD: ≤60mK@25℃,f#1.0
8. MRTD: ≤500mK@25℃,f#1.0
9. Operating Temperature: -10℃～+50℃

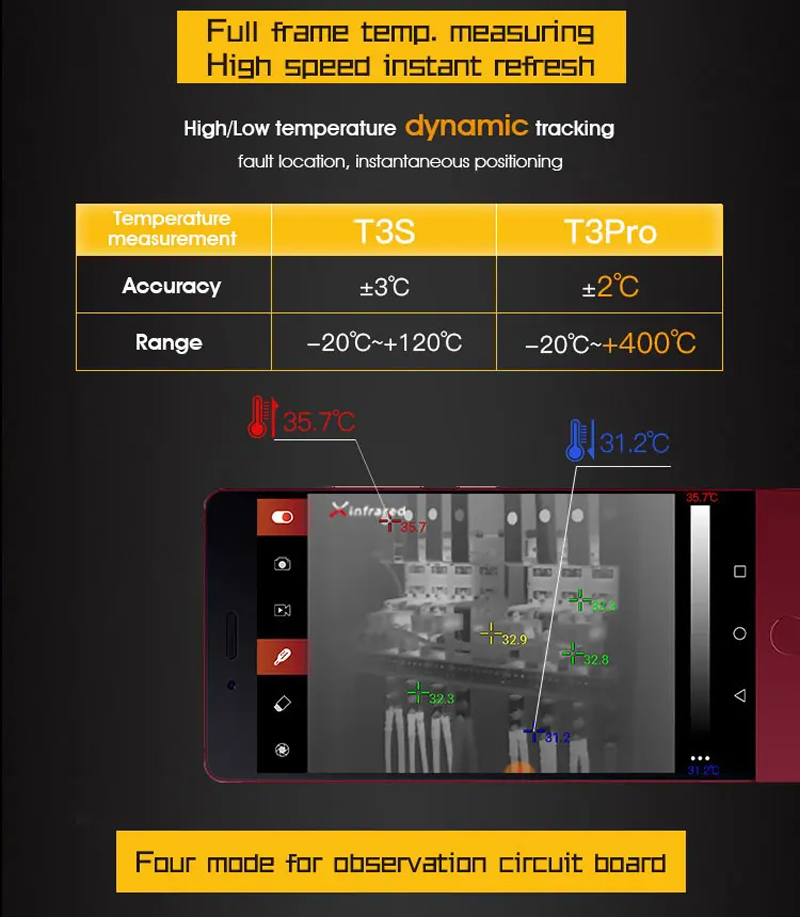

10. Measuring Range: -20℃~+120℃(Support extended range-20℃~400℃)
11. Measurement Accuracy : ±2℃or±2% of temperature
measuring range

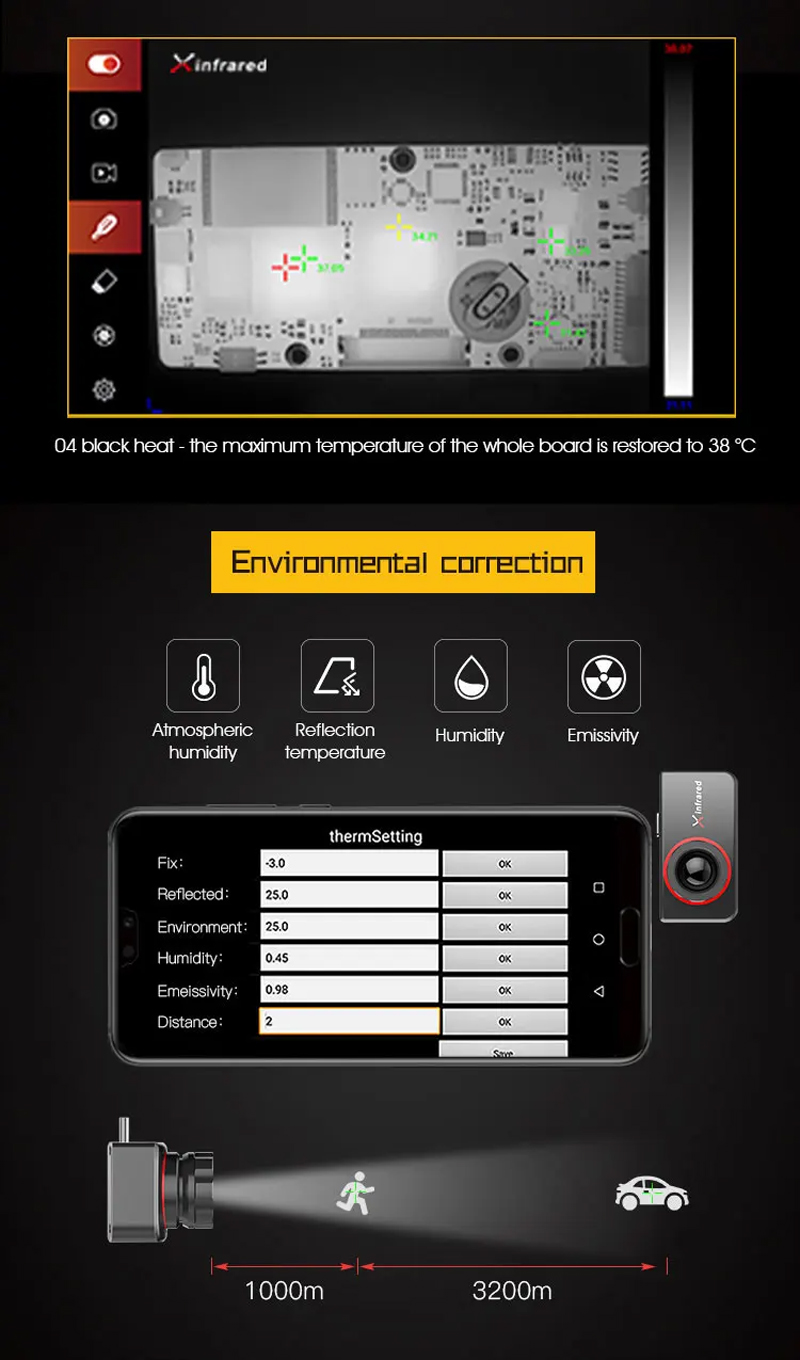

12. Temperature Correction: Manual/Auto

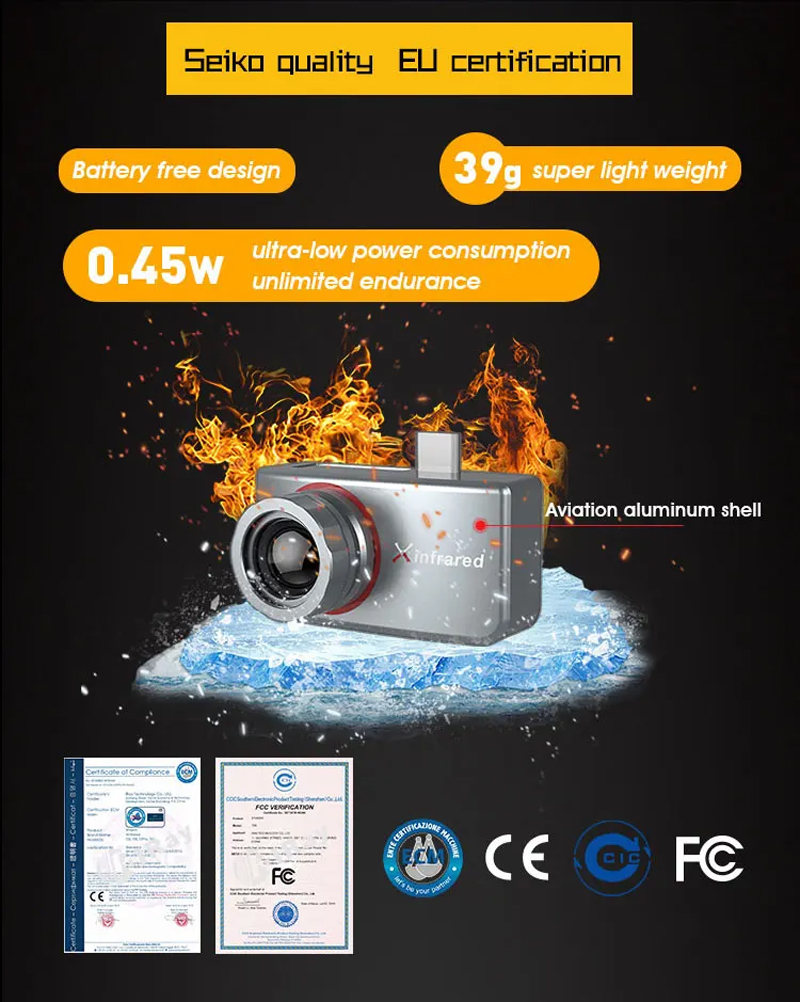

13. Power Consumption: <0.5W
14. Weight (with lens): <40g
15. Size (with lens): 49.5mm×26mm×27.5mm (13mm Lens)
16. Phone Compatibility: Android 6.0 and above
17. Image Enhancement: Digital detail enhancement
18. Image Correction: Manual
19. Color Palette: White hot/Black hot/Multiple pseudo color
options
20. SDK Develop: Support
21. Temperature Statistics: Support Dot/Line/Area Analysis Statistic
and Reporting Functions
22. Support Max./Min./Center Temp. Display,with up to Three Points Statistic
23. Photo&Video: Support
24. Online Software Update: Support
