Specifications:
| Gross weight | 18000g |
| Brands | Mechanic |

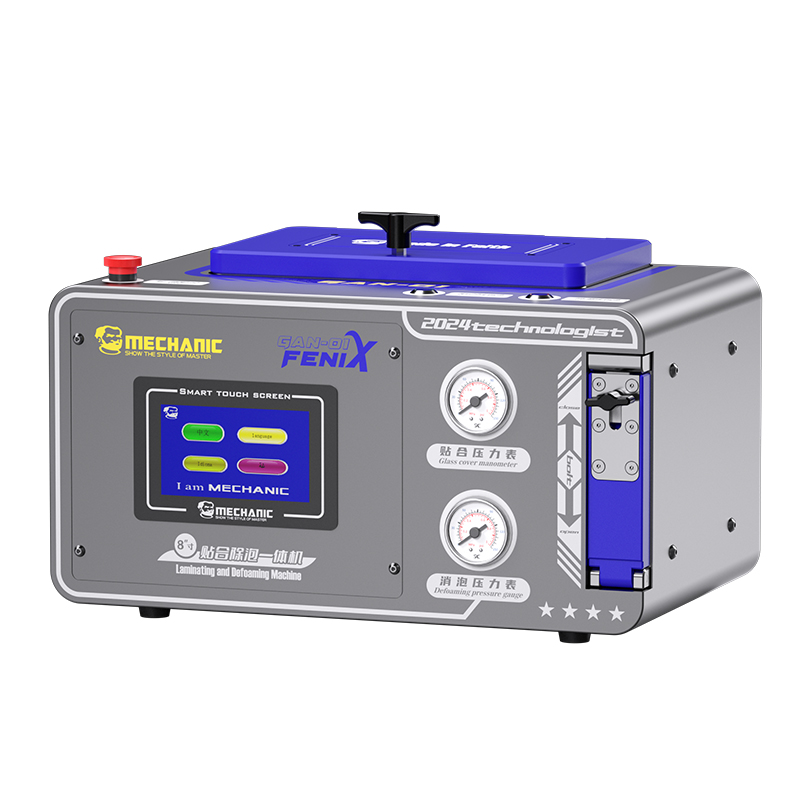

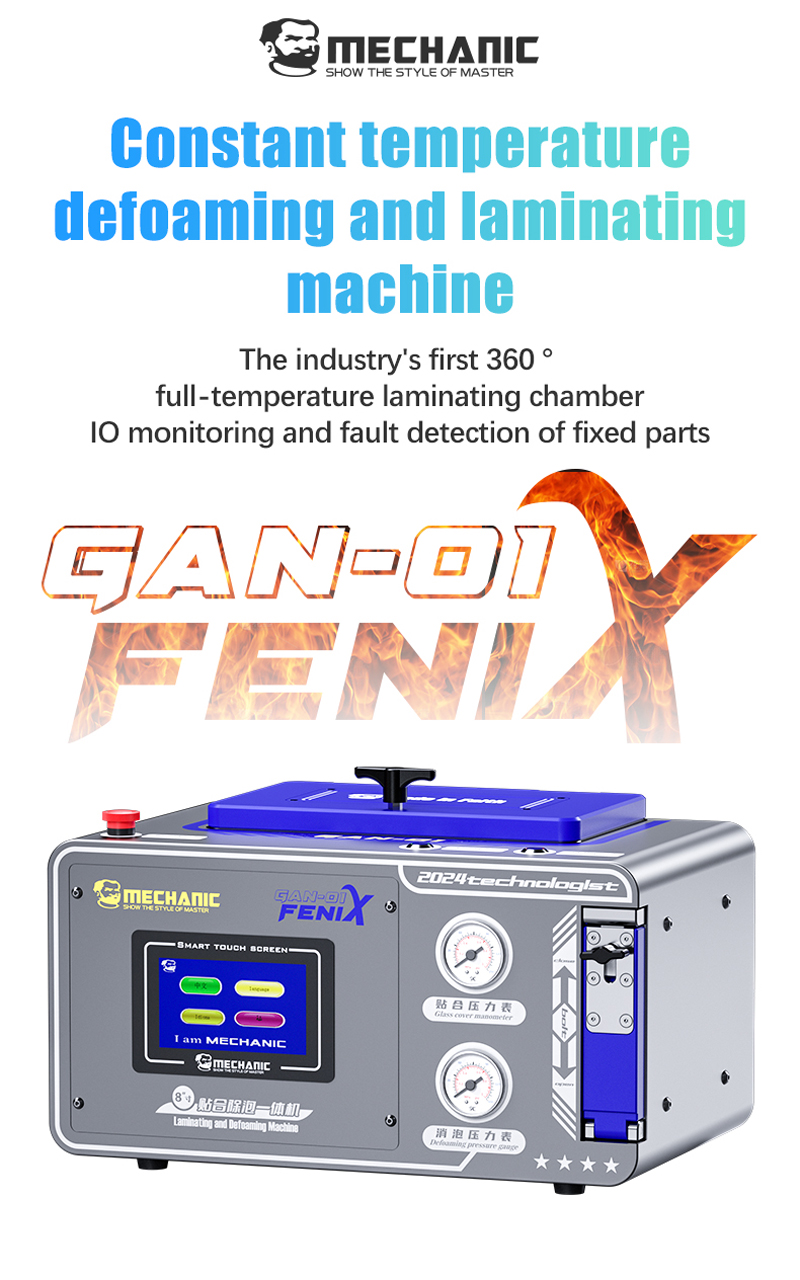

Mechanic GAN-01 FENIX 8 Inch 320W Constant Temperature Lamination Defoaming Integrated Machine 220V EU Plug
Features
1. Constant temperature surface laminating machine, the industry's first 360 ° full temperature zone
laminating silo, IO monitoring fixed pieces of fault troubleshooting.

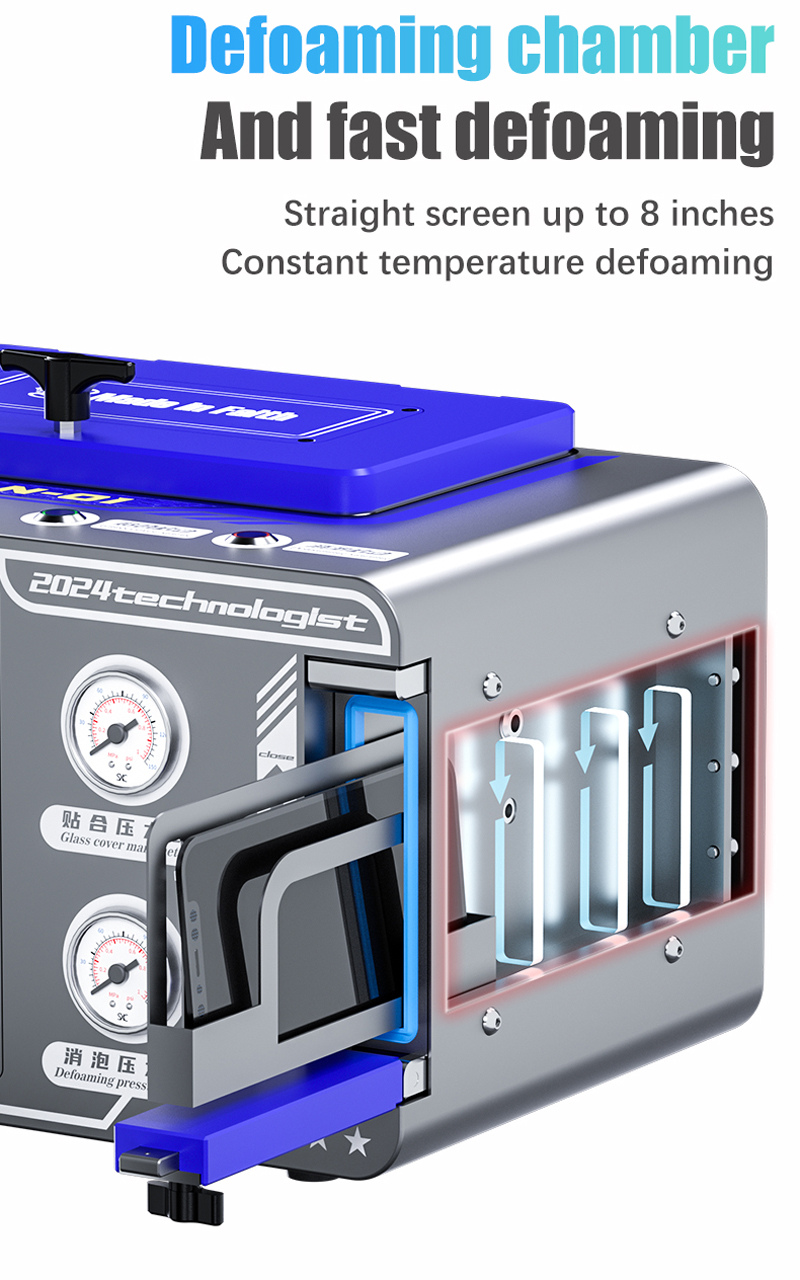

2. Integral aluminum defoaming chamber, high pressure resistant and fast defoaming, applicable to
8-inch LCD screen constant temperature defoaming.

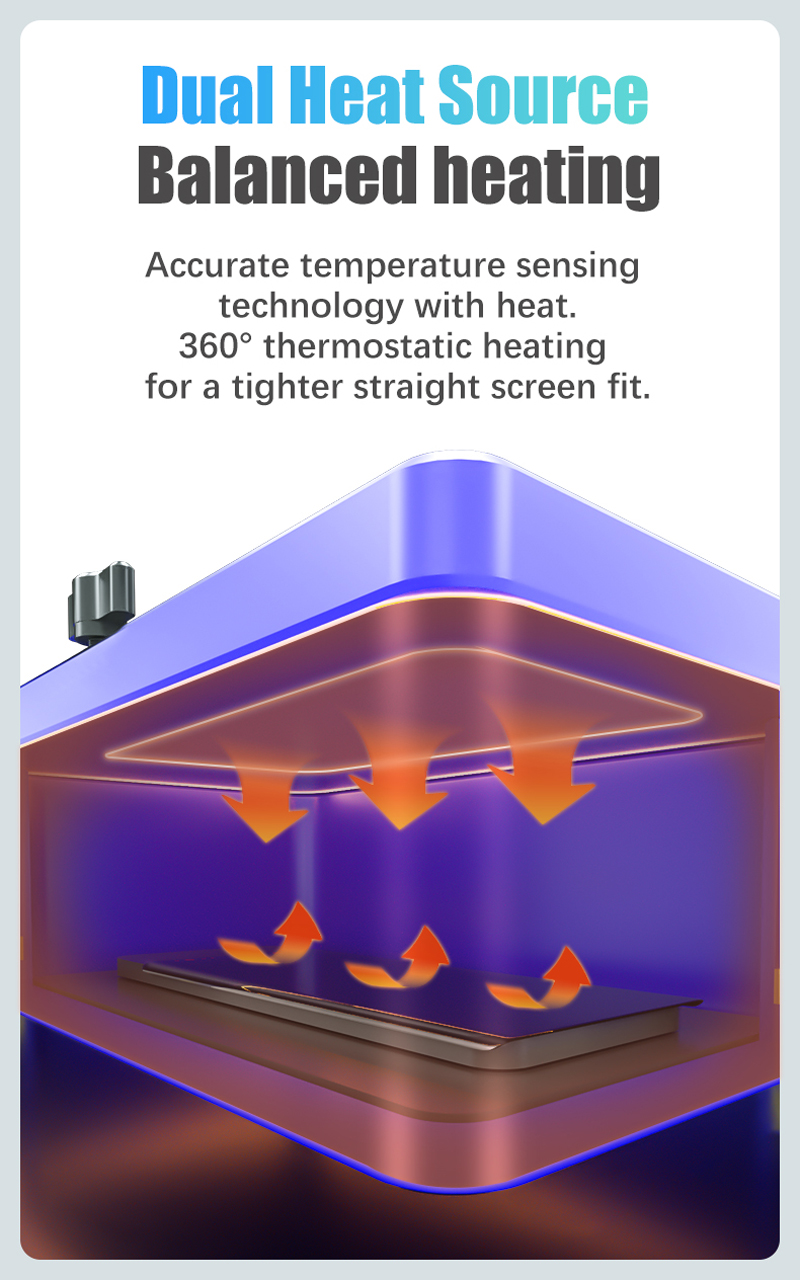

3. Dual heat source, balanced heating, accurate temperature sensing technology, uniform heating,
360 ° constant temperature heating so that the curved screen laminates more tightly.

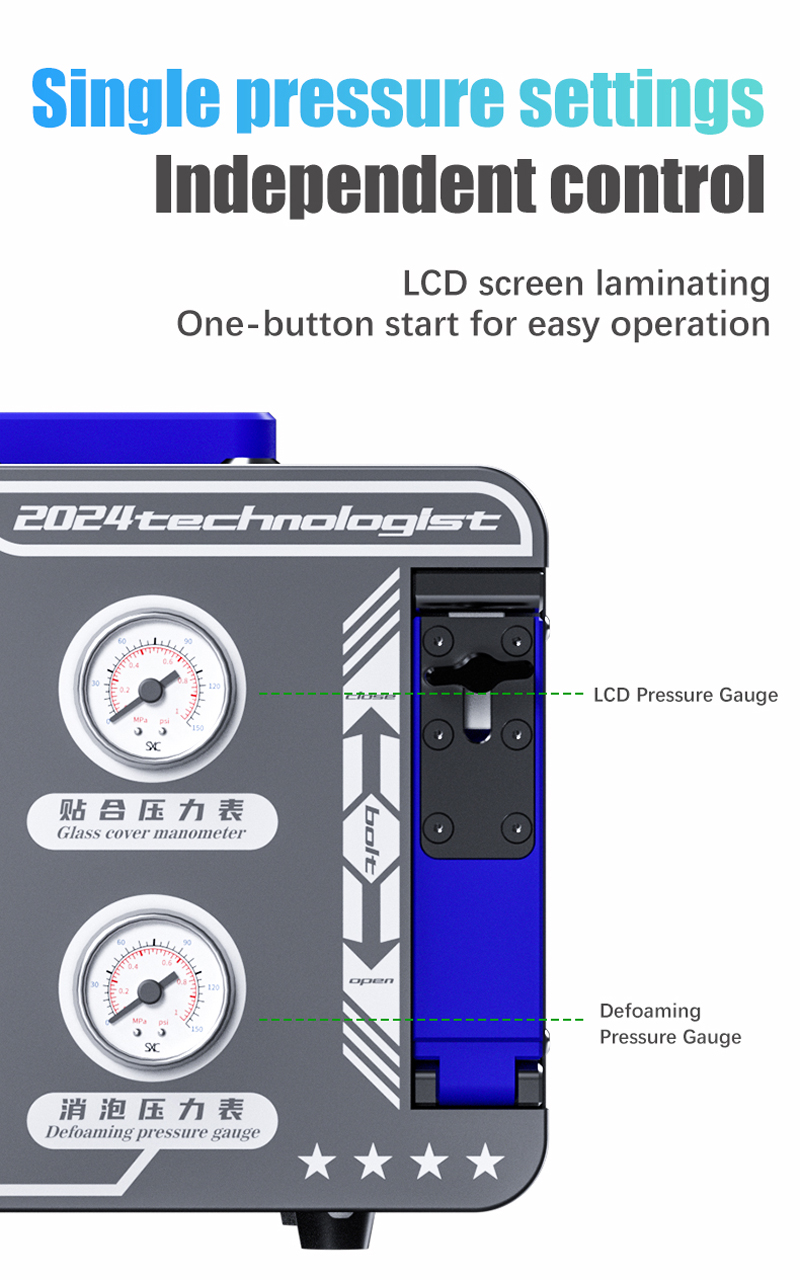

4. Dual regulator settings, independent control, LCD and OLED laminating parameters are different,
one-key start, convenient operation.

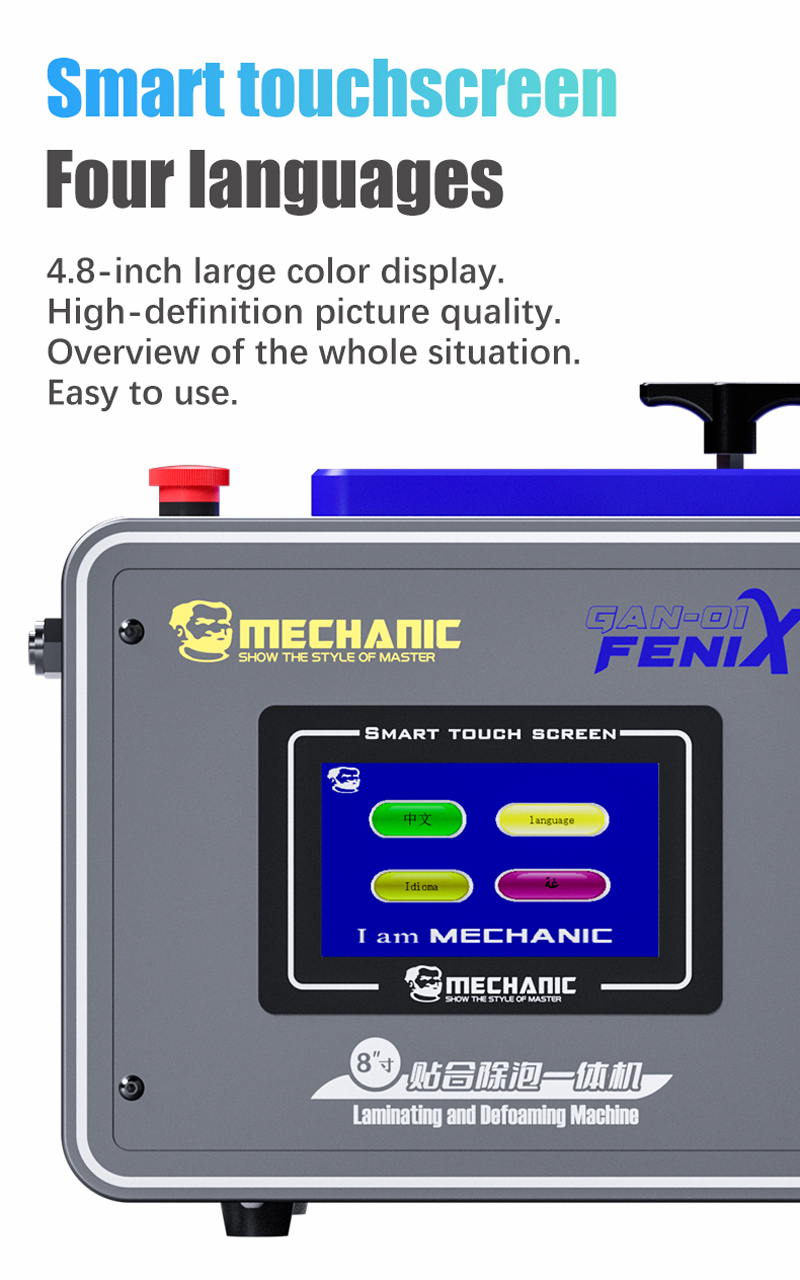

5. Intelligent touch screen, four language interfaces, 4.8-inch color screen, high-definition picture
quality, overview, easy to use.

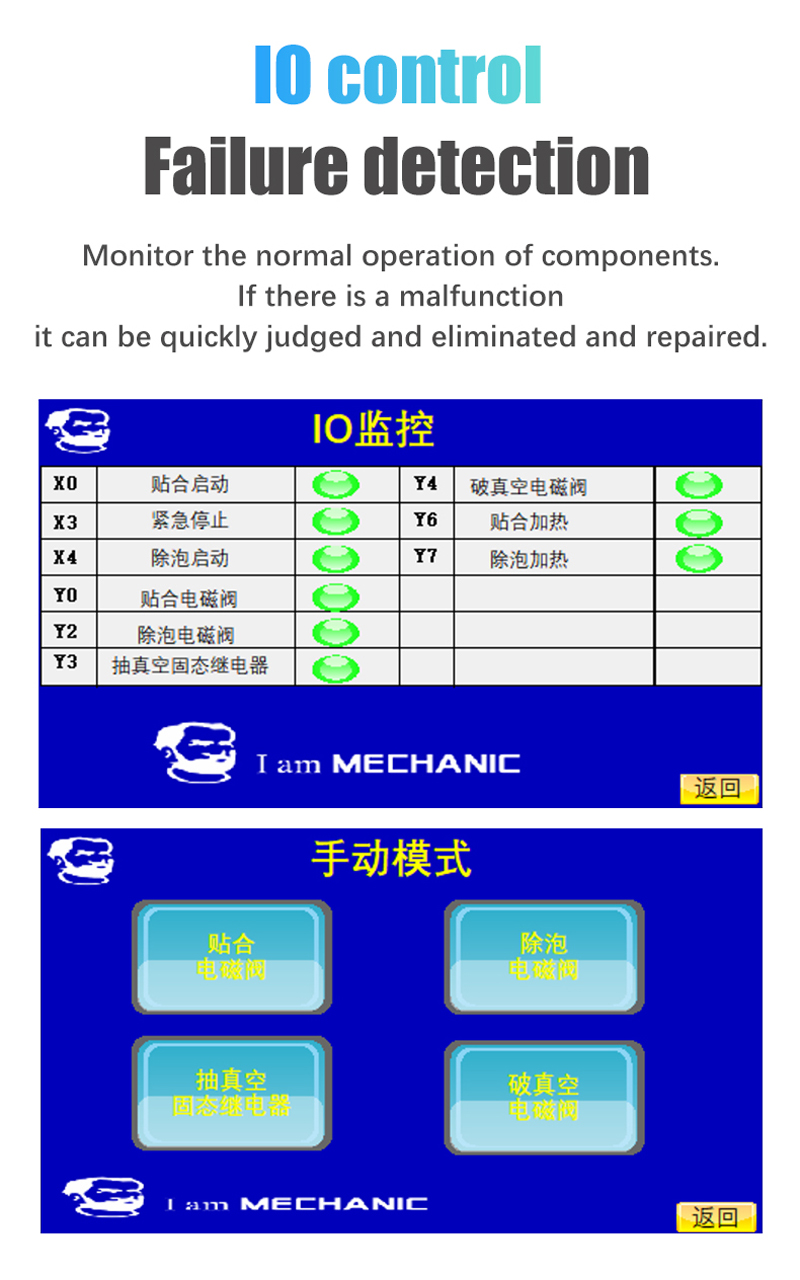

6. IO control, fault fixed pieces of scheduling, monitoring components whether the normal operation,
such as faults can be quickly judged and eliminated and repaired.
7. For LCD screen / OLED flexible LCD screen and glass cover plate bonding vacuum lamination, one step.
Specification
1. Model number: GAN-01 FENIX
2. Input voltage: AC 100~220V
3. Power: 320W
4. Precision: ±0.001mm
5. Fitting pressure: 0.1-0.4mPa

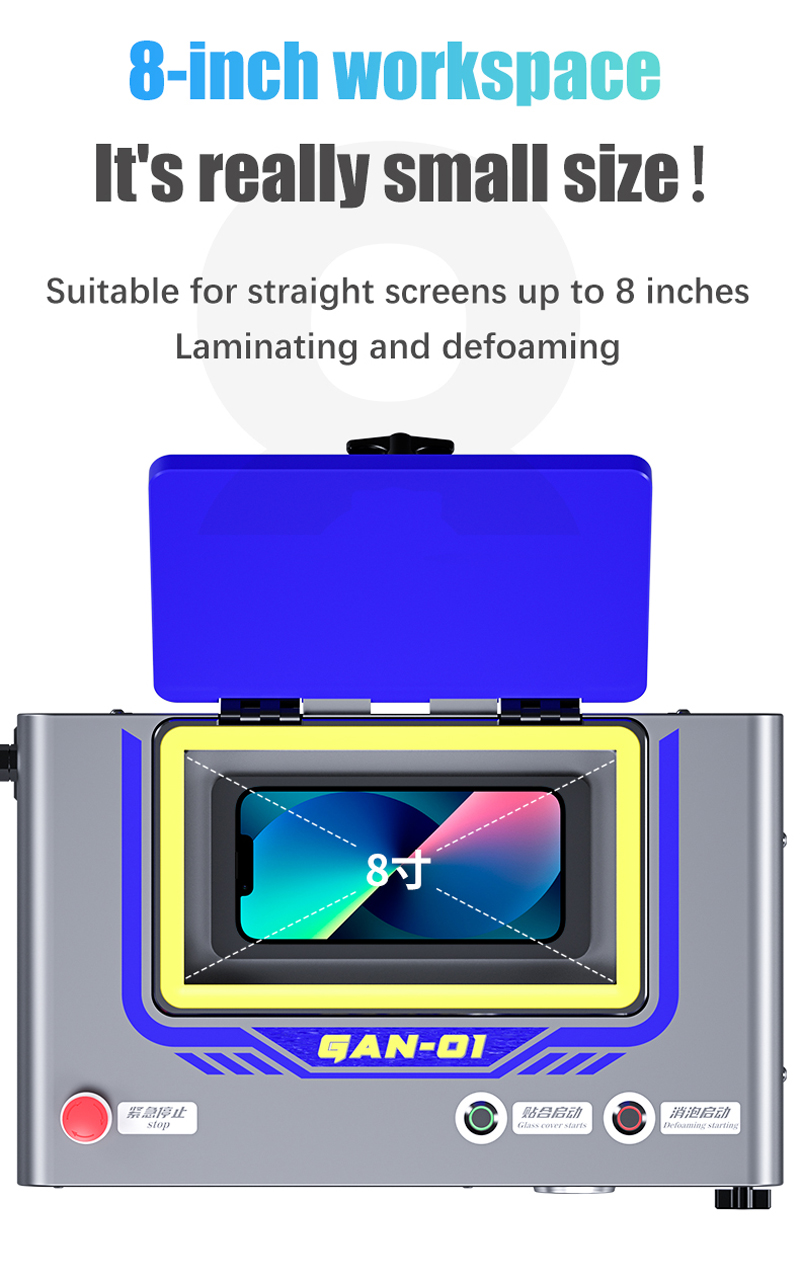

6. Scope of application: Under 8-inch LCD screen
7. Net weight: 14.8KG
8. Dimension: 350*250*245mm
9. Package size: 445*335*315mm
