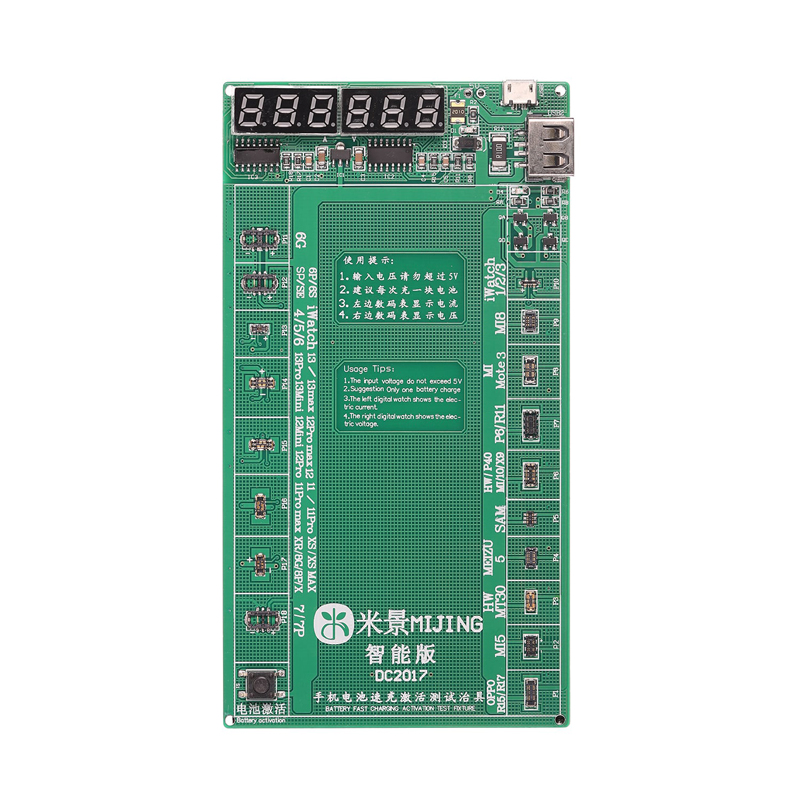

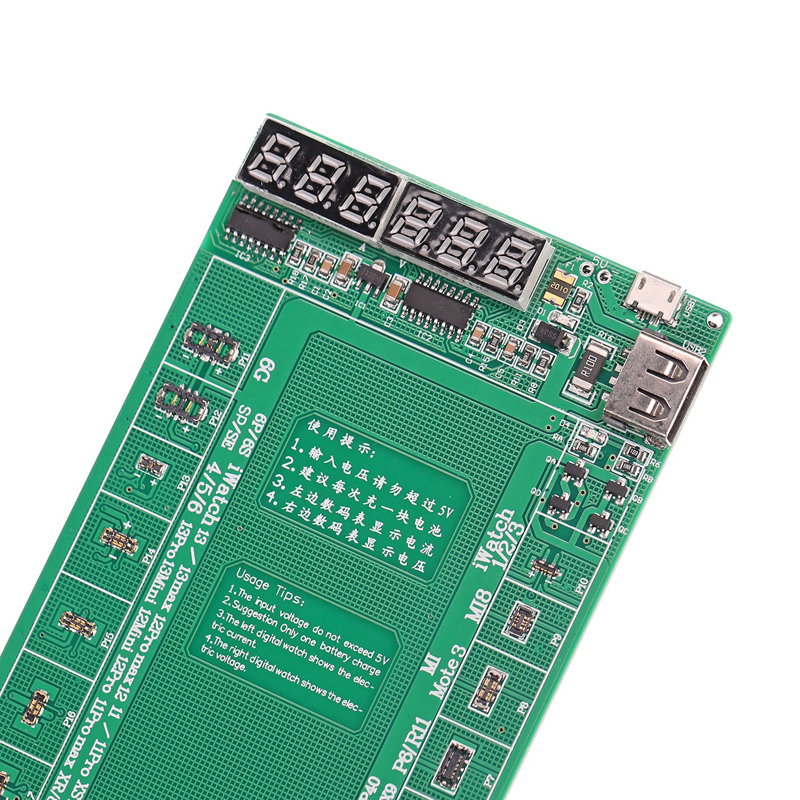

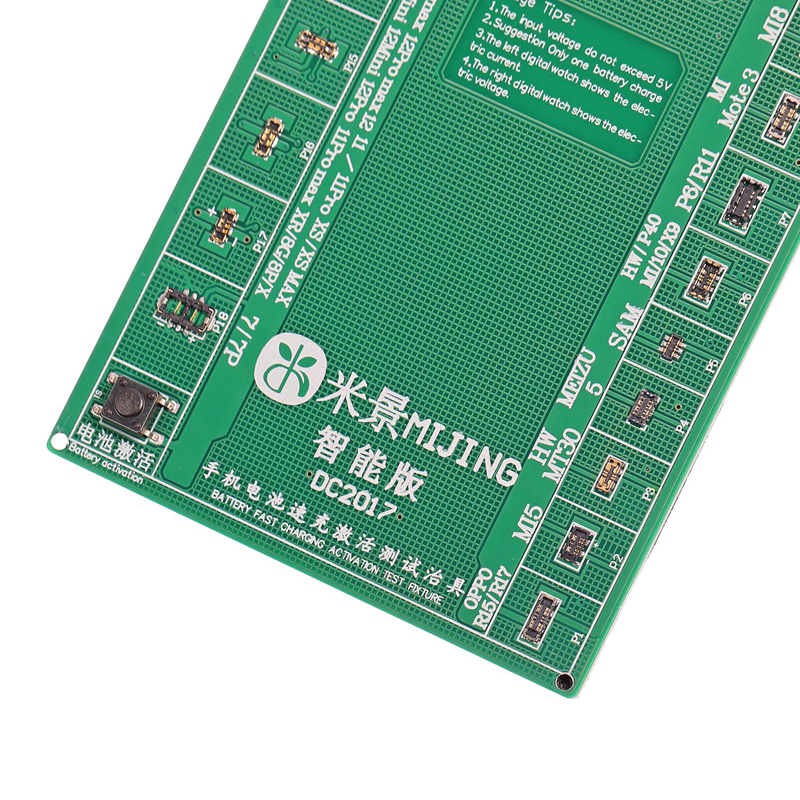

MiJing DC2017 Battery Fast Charger Activation PCB Board for iPhone 6-13 Pro Max/Huawei/Samsung/Xiaomi

CODE: AS094198

Ships in 24 hours Any questions? Email us

Specifications:

Gross weight139g
BrandsMiJing

MiJing DC2017 Battery Fast Charger Activation PCB Board for iPhone 6-13 Pro Max/Huawei/Samsung/Xiaomi
1. Input voltage please don't over 5V;
2. Suggested that charge 1pc battery in every time;

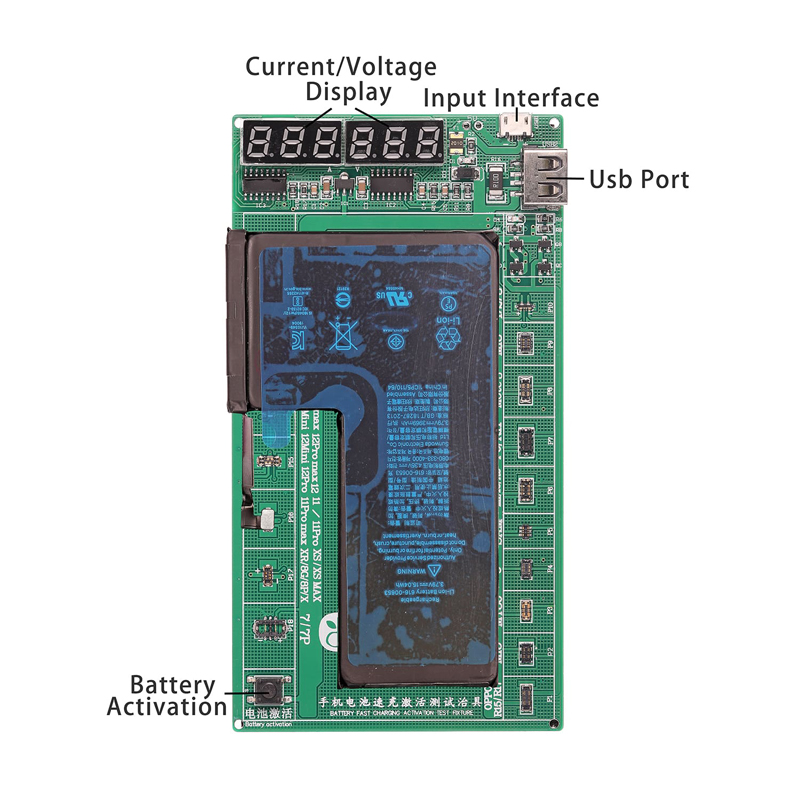

3. The number of left shows electric current;
4. The number of right shows the voltage.

Usage:
1. A button battery, when the battery voltage is less than 2.5V, digital meter and indicator
due to insufficient power supply does not show that higher than 2.5V displaying normally.
2. According to the display of the voltage to adjust the reasonable output voltage (maintenance
Power), higher voltage, current, when the table on the right shows the battery voltage is less than
or equal to 3V, please will adjust the output voltage of the maintenance of the power supply is below
3.5V trickle charging ways of filling for a minute or two, plug in the power cord, the table on the right
shows the current charging voltage.
3. If the buckle on the battery after display voltage 3.6V above can be used directly to over 4V charging
and the maintenance of the power supply voltage is high, left digital table will display the current charging
current, the right digital table shows the current charging voltage.
4. Such as the need to charge fast, please at the same time to pay attention to the left of the current show,
the highest can not exceed 2A (2000MA), or will automatically protect.
