Specifications:
| Gross weight | 50g |

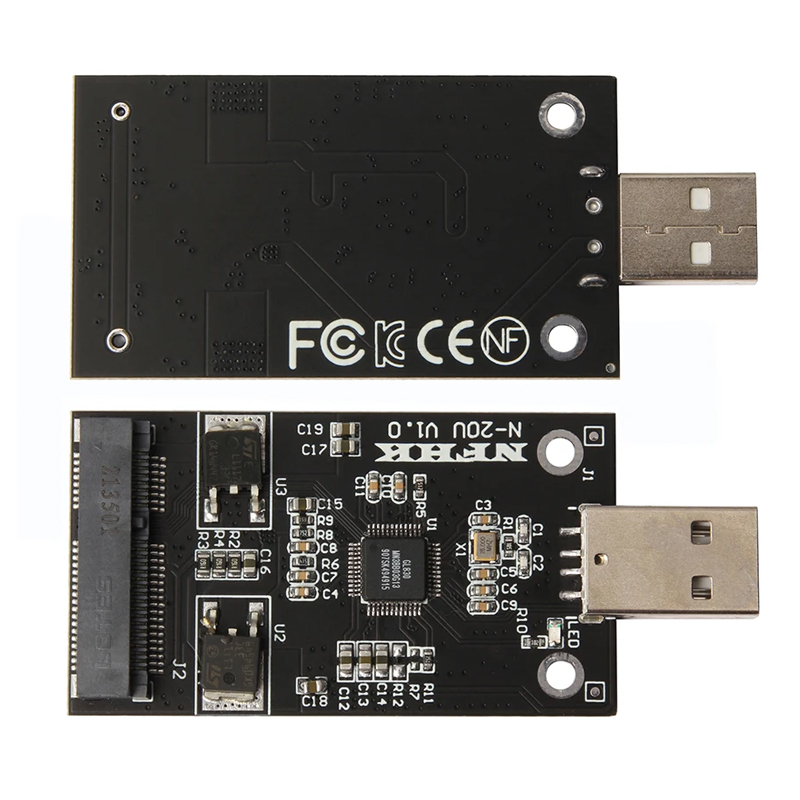

NFHK Mini PCI-E mSATA to USB2.0 External SSD Case Riser Card without Case
Description
1. This product only supports 5 cm length mSATA, SATA MINI PCI-E interface (same as the solid state type used
in asus EPCS101 900 901A)
2. USB 2.0 interface nominal power supply is 0.5A, the general equipment can provide 0.5A power supply, if
your hard disk rated current requirements are too large, unless you have a USB 3.0 interface computer, you
can plug in the USB 3.0 interface to use, otherwise there may be insufficient power supply, because the
USB 3.0 interface power supply is greater than the USB 2.0 interface! So how to connect USB2.0 can not be
used normally, please connect the USB3.0 interface.
The performance of insufficient power supply is: no load (do not connect the hard disk, only use the USB
cable to connect the hard disk box to the computer) is reactive, and there is no reaction after connecting the
hard disk; Or connect to the computer can recognize, but copy the data jumper; Or connect the computer and
connect it and drop the disk.
3. about the heat problem, the card itself circuit board needs power consumption of 0.12A, the heat it
generates is very small relative to the hard disk! After the composition of the mobile hard disk, the largest
part of the power consumption is the SSD, the faster the SSD speed, the higher the power consumption, the
greater the heat generation, you can buy a heat sink to cool the SSD.
4. Please note: Notes on the MINI PCIE interface:
This product does not support all KING POWER branded SSDs of this shape because it is not msata defined by
this interface! mini pci-e in addition to the length of 5cm and 7cm.
Specification
1. Product Name: USB to MSATA SSD Adapter
2. Color: Black
3. Product size: 75*33mm
4. Input Interface: USB 2.0
5. Output Interface: mSATA
6. Power Supply: 0.5A power supply required
7. Support system: Windows XP/2003/Vista/Win7/Win8/Win10 (32/64bit) ,MAC,Linuxoperating systems
