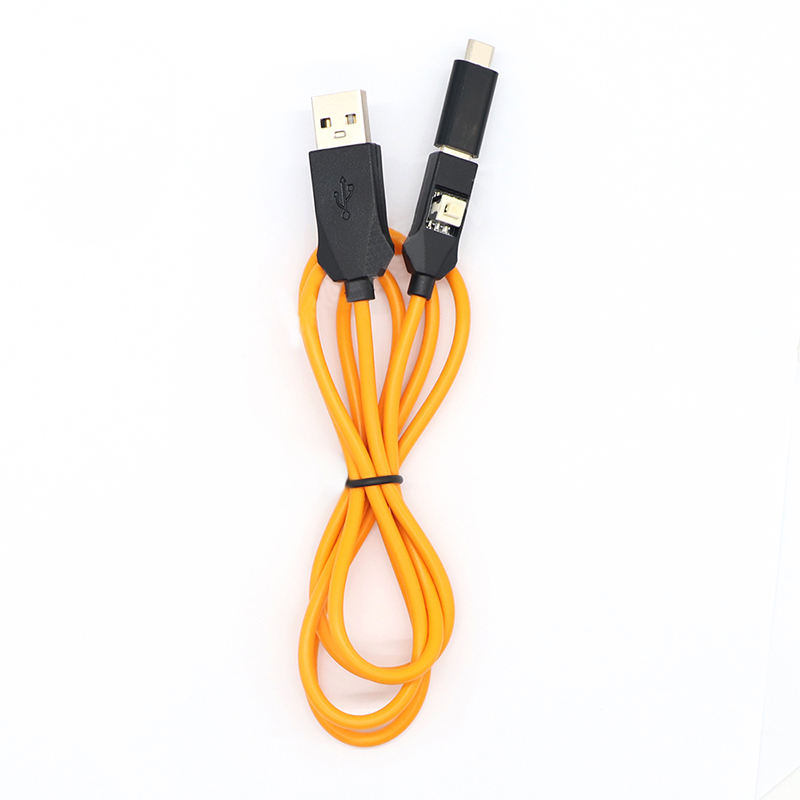

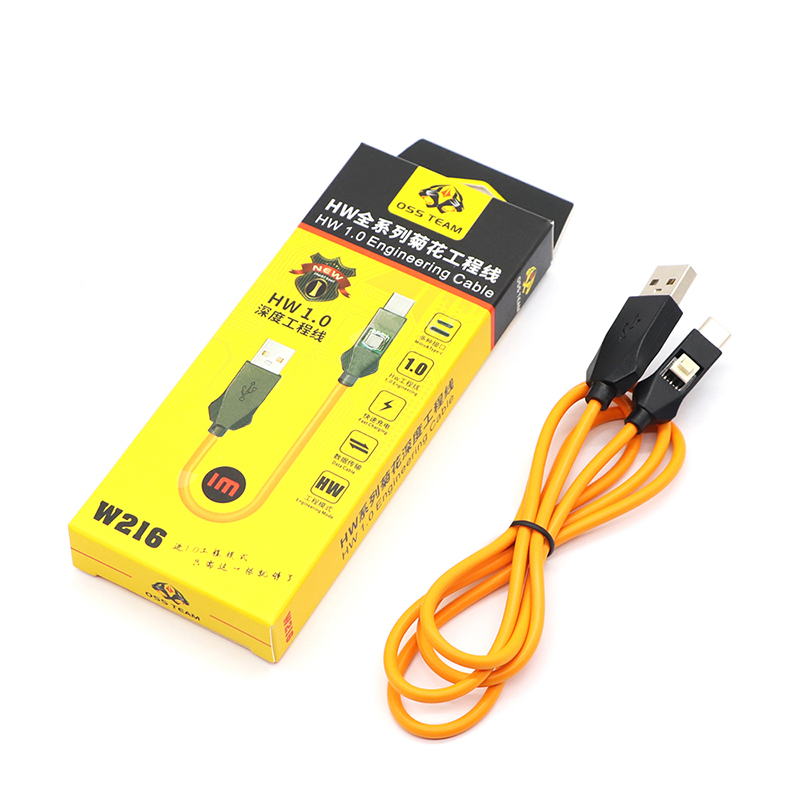

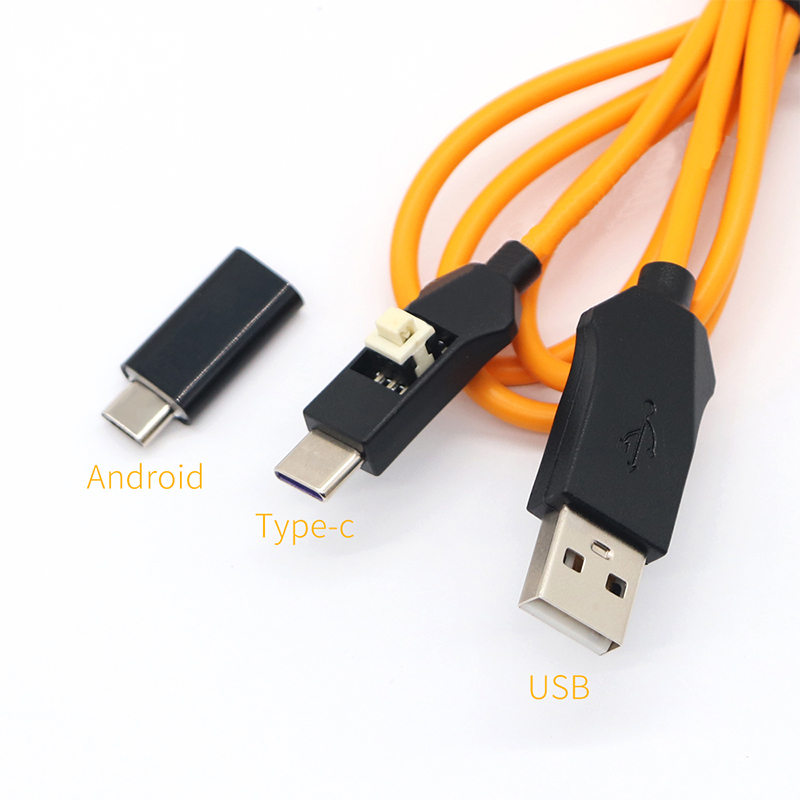

OSS TEAM W216 HW Chrysanthemum Engineering Cable Type-C Interface for Huawei Phone 1.0 Port

Price: $3.24

CODE: AS090429

Ships in 24 hours Any questions? Email us

Specifications:

Gross weight40g
BrandsOSS TEAM

OSS TEAM W216 HW Chrysanthemum Engineering Cable Type-C Interface for Huawei Phone 1.0 Port
Features
1. HW Chrysanthemum 1.0 Port solves mobile phone without USB 1.0 port after disassembling
and short circuit.
2.HW Chrysanthemum 1.0 Port solves mobile phone without USB1.0 port problem without Font
disassembly
3.HW Chrysanthemum 1.0 Port with switch button, which is more stable.
4. Independent power supply, not 5V, short circuit will not burn the phone.
5. With led indicator (power/power on indicator).
6.It can't unlock directly, just let the phone enter USB1.0.

Button description
1. It can be used as a normal cable without any operation;
2. Press the button to force the USB 1.0 port to start the engineering mode.

Instructions for use
1. Disassemble the mobile phone and short-circuit (short-circuit the point according to the respective
software prompts)
2. Insert the engineering cable into the mobile phone, press the button to start the engineering mode.
3. The USB 1.0 port that will appear on the computer, then burn the bottom layer through the software
(that is, turn on the BL)
4. After writing the bottom layer and switch to fast boot mode. press the switch twice (each time interval
is 3 seconds; you can test it yourself)
5. The driver will appear on the computer port, and then other operations can be performed.
