Specifications:
| Gross weight | 150g |

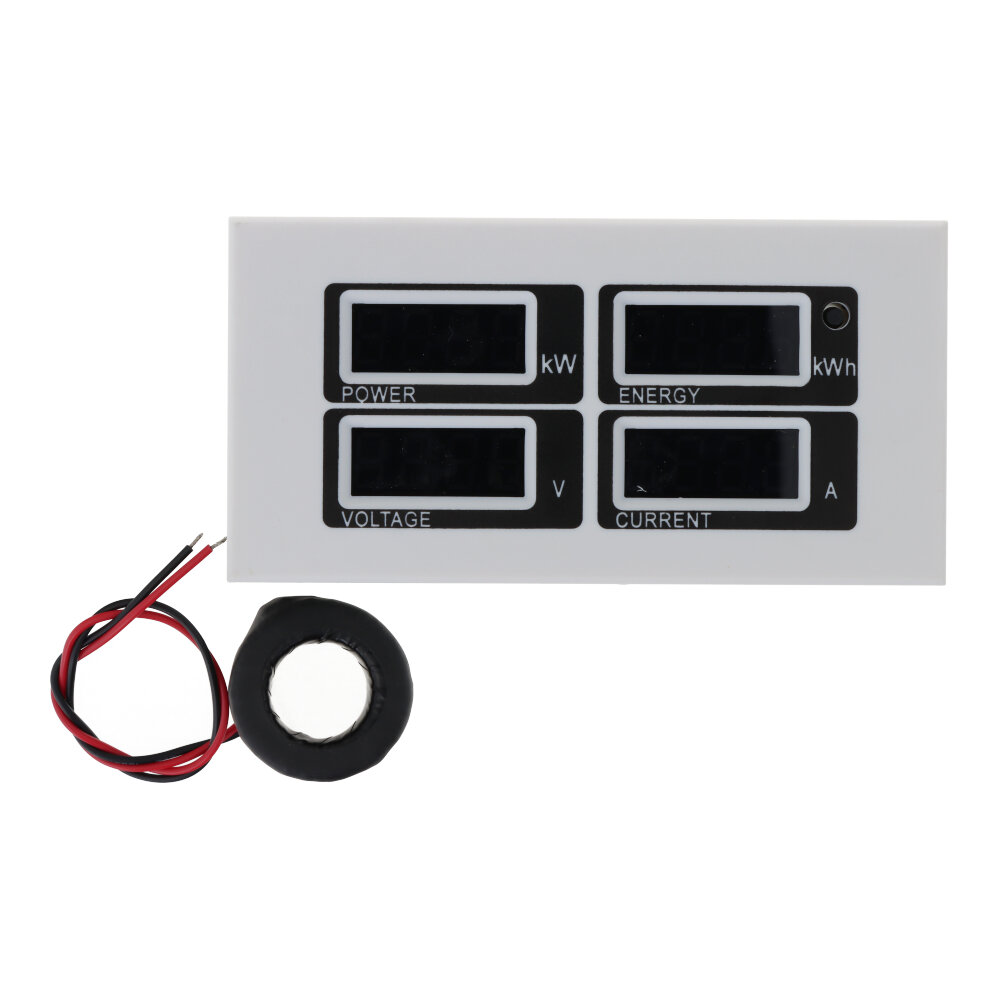

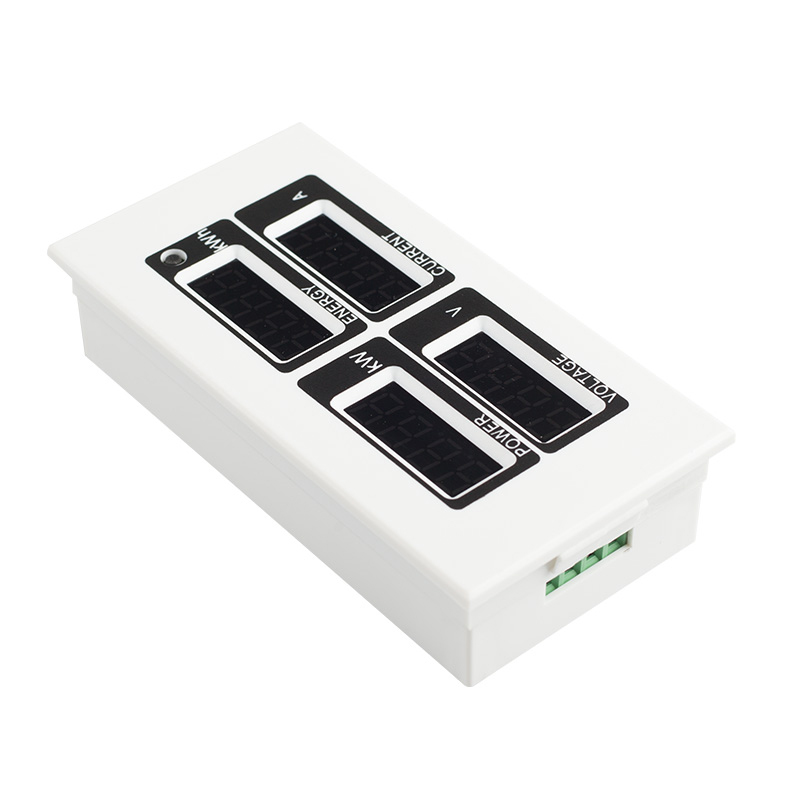

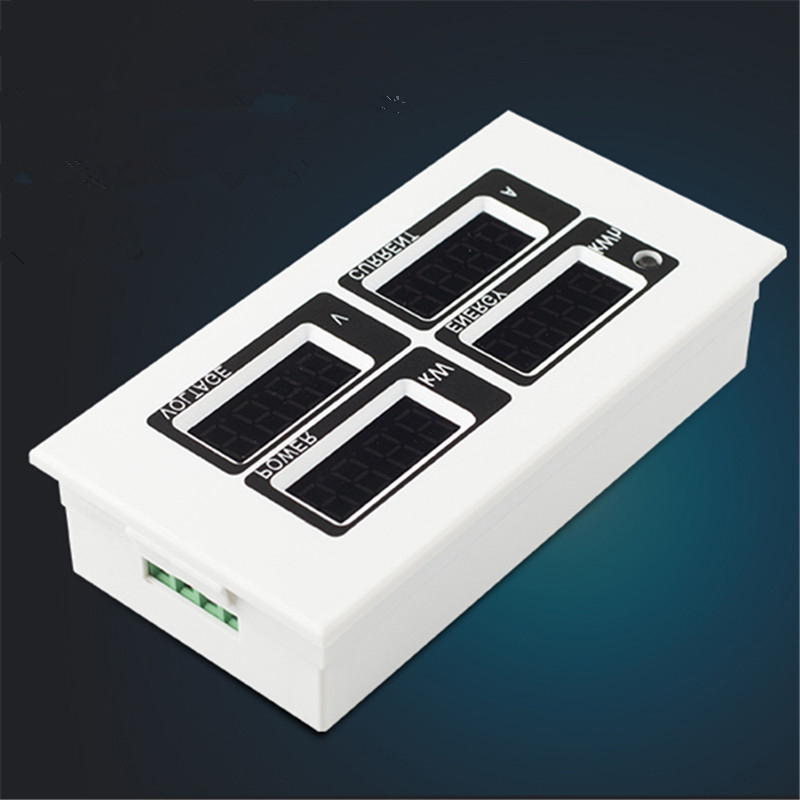

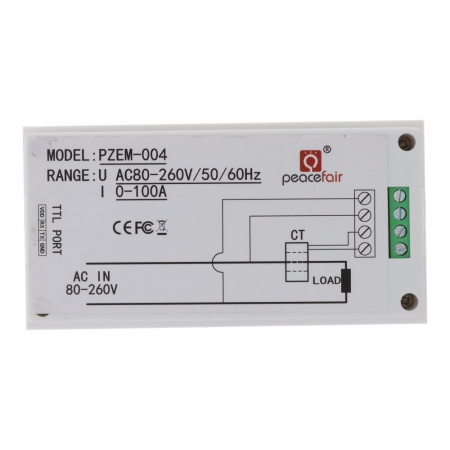

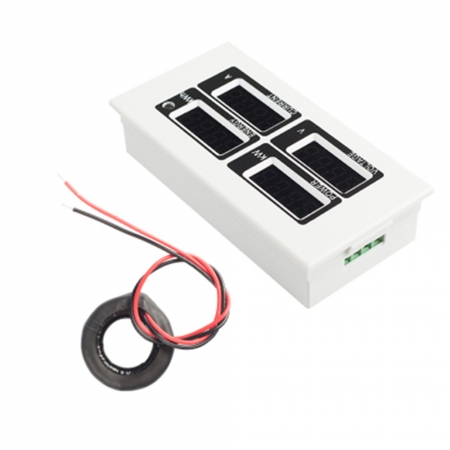

Peacefair PZEM-004 AC80-260V TTL Port Single Panel Digital Voltmeter Current Meter with Split CT
1. Working voltage: 80~VAC
2. Test voltage: 80~VAC
3. Rated power: 100A/22000W
4. Operating frequency: 45-65Hz
5. Measurement accuracy: 1.0 degree
Function
1. Electrical parameter measurement function (voltage, current, active power, energy).
2. Overload alarm function (power alarm threshold higher than power flash).
3. Power alarm threshold preset function (you can set the power alarm threshold).
4. The power key reset function.
5. Store data when power off (store power accumulated before power off).
6. Bright red digital display function (display voltage, current, active power, energy).

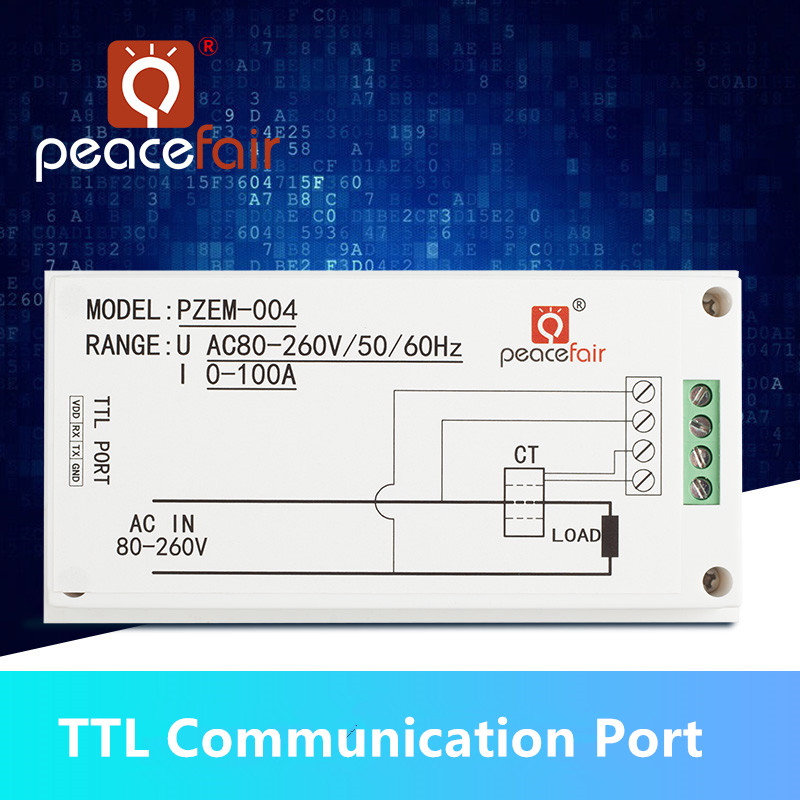

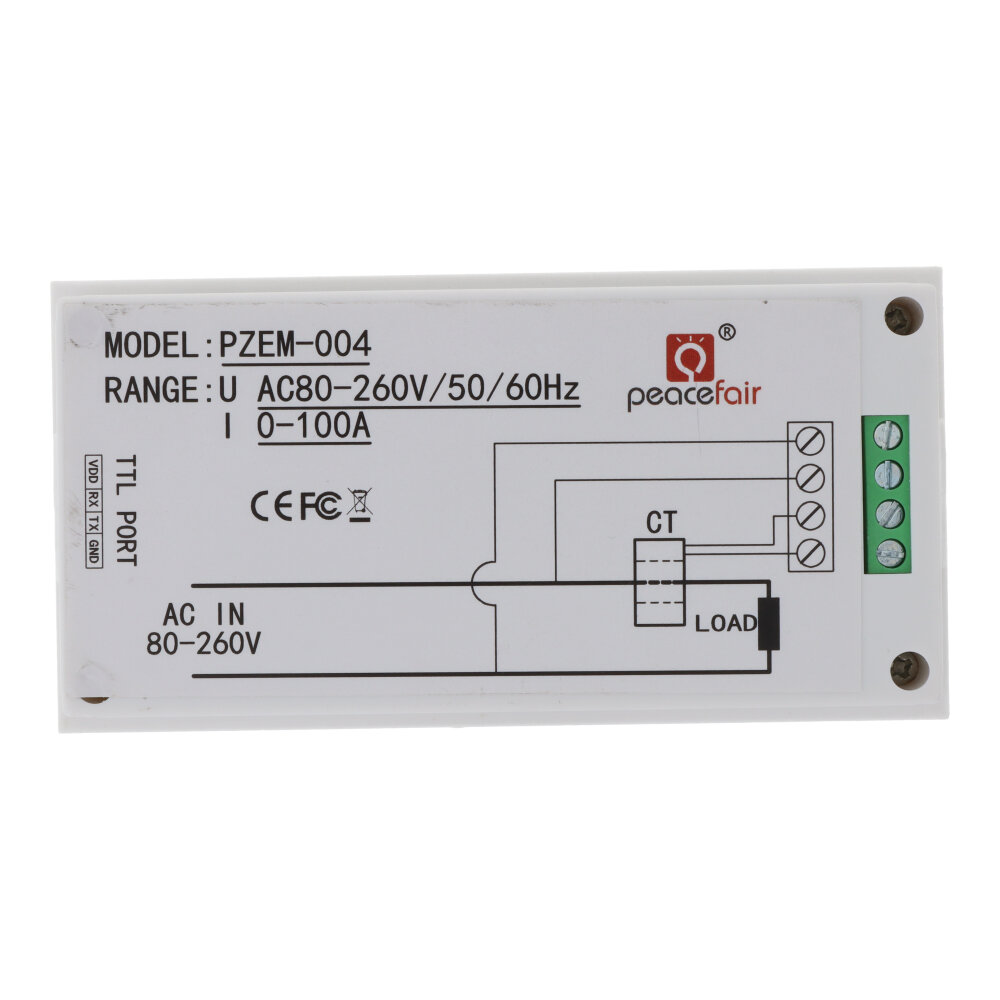

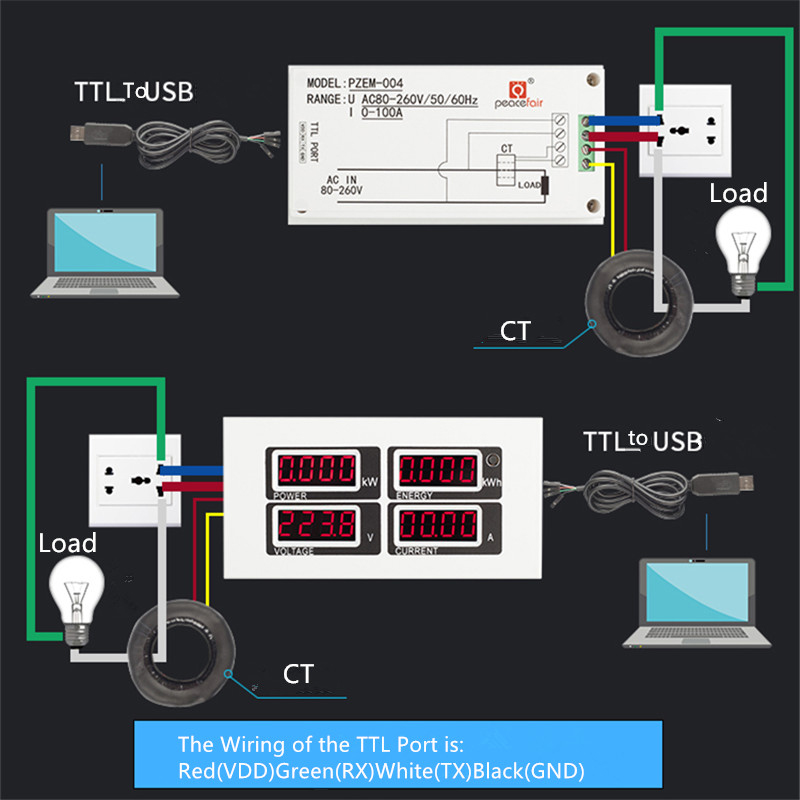

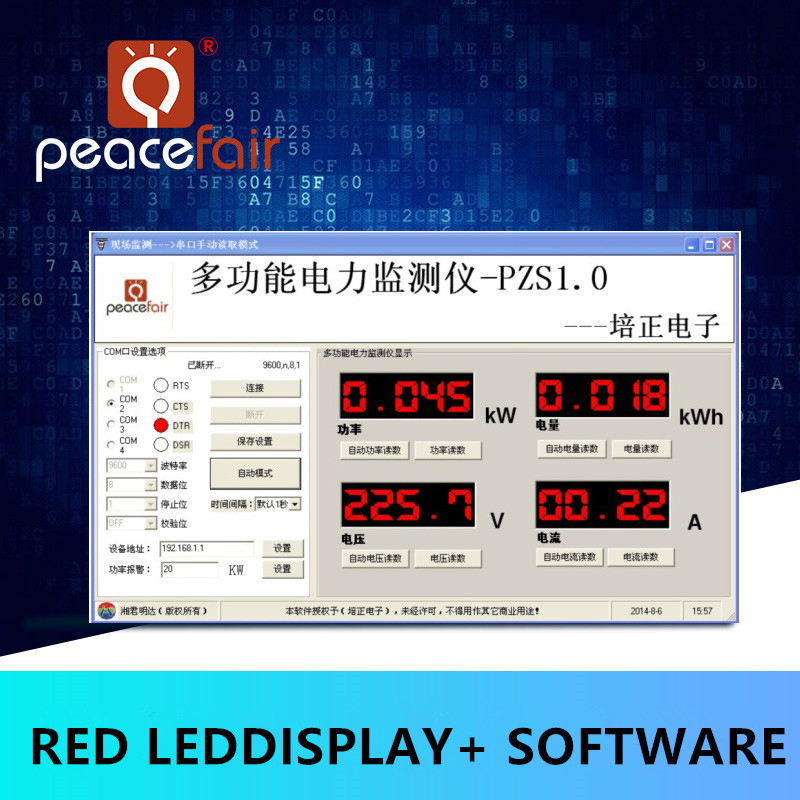

7. Serial communication function (with the TTL serial interface itself, it can communicate
with a variety of terminals through the pin board, read and set the parameters).

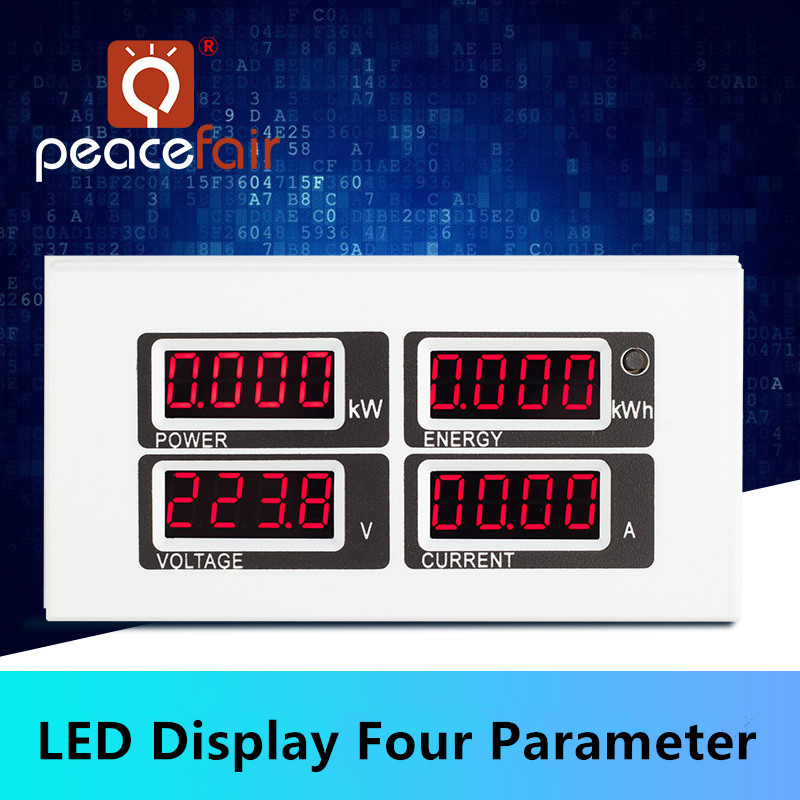

Screen Interface
The display interface is made up of four bright red digital tubes, used to display voltage, current,
power, and energy parameters.
Display Format
1. Power: Test Range: 0~22kW
Within 0 ~ 10kW, the display format is 0.000 ~ 9.999;
Within 10 ~ 22kW, the display format is 10.00 ~ 22.00.
2. Power: Test Range: 0~9999kWh
Within 0 ~ 10KWh, the display format is 0.000 ~ 9.999;
Within 10~100kWh, the display format is 10.00~99.99;
Within 100 ~ 1000kWh, the display format is 100.0 ~ 999.9;
1000 ~ 9999kWh and above, the display format is 1000 ~ 9999.
3. Voltage: test range: 80 ~ VAC
The display format is 110.0 ~ 220.0.
4. Current: Test Range: 0~100A
The display format is 00.00 ~ 99.99.
Key Keychain
1. There is a key on the panel, you can use it to reset the power.
2. The power reset method: Long press the key for 5 seconds until the power digital display window
flashes, then release the key. Short press the key again, then power data is cleared and stop flashing
state, now the reset operation is completed; If it is pressed for 5 seconds again until it no longer flashes,
it means to exit the reset status.
