Specifications:
| Gross weight | 180g |
| Brands | QIANLI MEGA-IDEA |

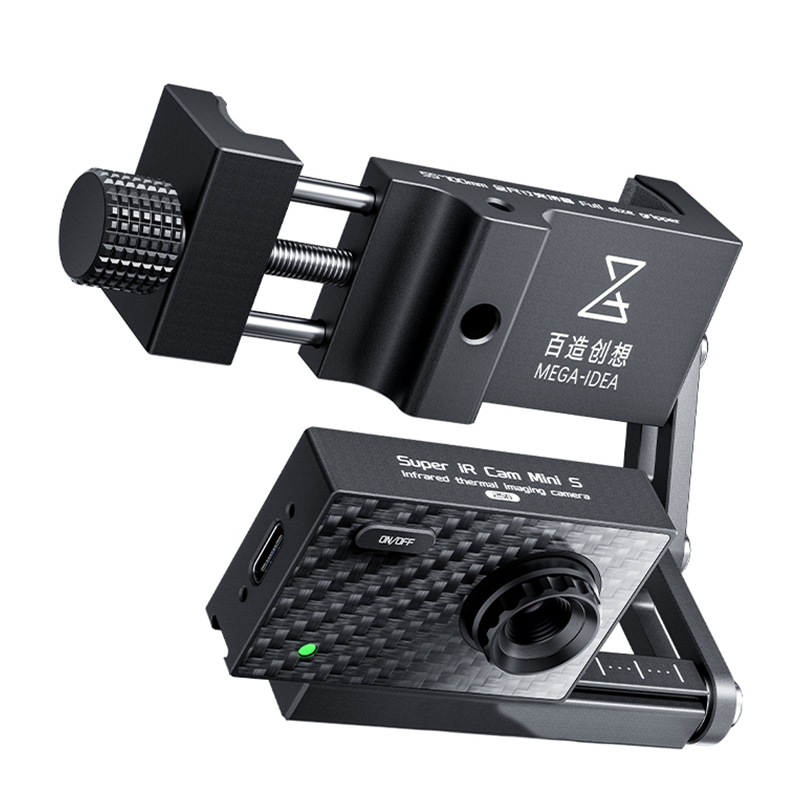

QIANLI MEGA-IDEA Super IR Cam Mini S Microscope Infrared Thermal Imaging Camera for Motherboard Detected
Features
1. Upgraded version with focusing adjustable lens, angle adjustable bracket, large clim range, comes with
specific Type-C with screw locks.
2. Brand new upgraded adjustable focus distance, clearer the image.
3. Upgraded adjustable focus distance, adjust it clockwise, and the image captured by the thermal camera
is getting clear, the focus range is 2mm~∞.
4. Rotate the lens and adjust the distance between the lens and the object until the image shows clear.
5. Images captured by both the microscope and thermal camera, synchronize with each other for better viewing.
6. Images captured by both the microscope and thermal camera display at the same time, to better detect
and repair the board.
7. Using the microscope with this thermal camera, one can easily observe both damage at the surface and
internal heating.
8. Large range clip buckle, the rotatable clip comes with springs, makes a longer range and holds things firmly.
9. Sponge mat at the clip tips, to increase the resistance and more importantly to protect the microscope from
scratch.
10. Type-C cable with screw locks to keep the connection between the computer and the thermal camera still,
when the microscope is moving.
11. Specialized lock screws to make sure the cable connects the thermal camera more stable.
12. This thermal camera can be used with trinocular microscopes, to easily observe both damage on the surface
of the object and internal heating.
13. Mega-idea Super IR Cam Mini S to work with microscope specifically with large clip range design, multiple
ways suit for multiple scenarios.
14. Very popular among mechanics and technicians, so they could detect and locate defective components
right quickly.
Specification
1. Brand: QIANLI MEGA-IDEA
2. Name: Thermal Camera SuperlR Cam Mini S
3. Port type: Type-C port
4. Input power: 5V
5. Focus range: 2mm~∞
6. Temperature detection range: -20~120℃
7. Type-C length: 1500mm
8. Resolution: 49152 temperature detect points
9. Lens: Manual focus
