Specifications:
| Gross weight | 7000g |
| Brands | RF4 |

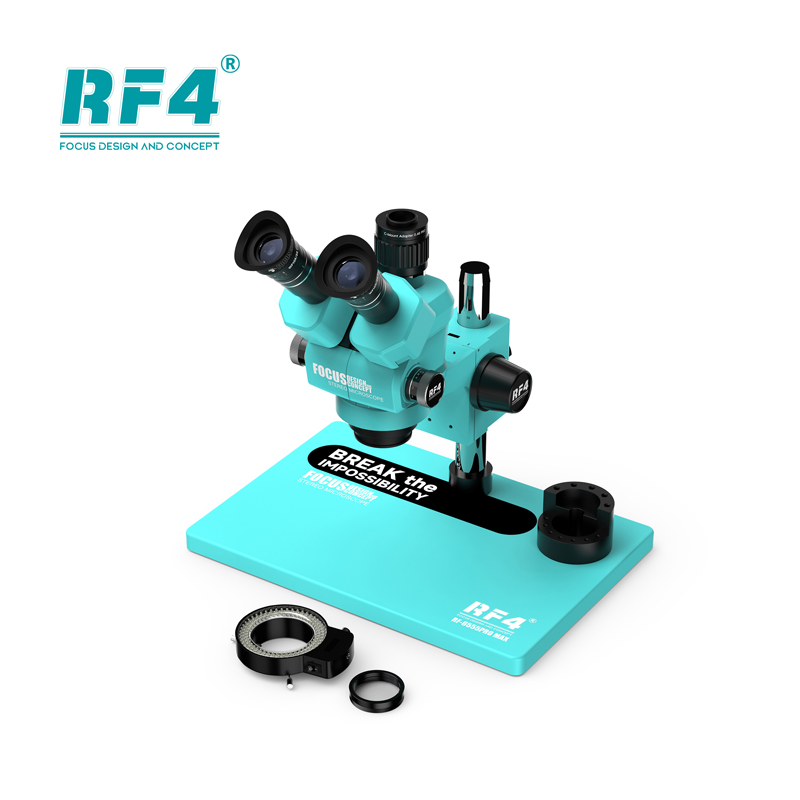

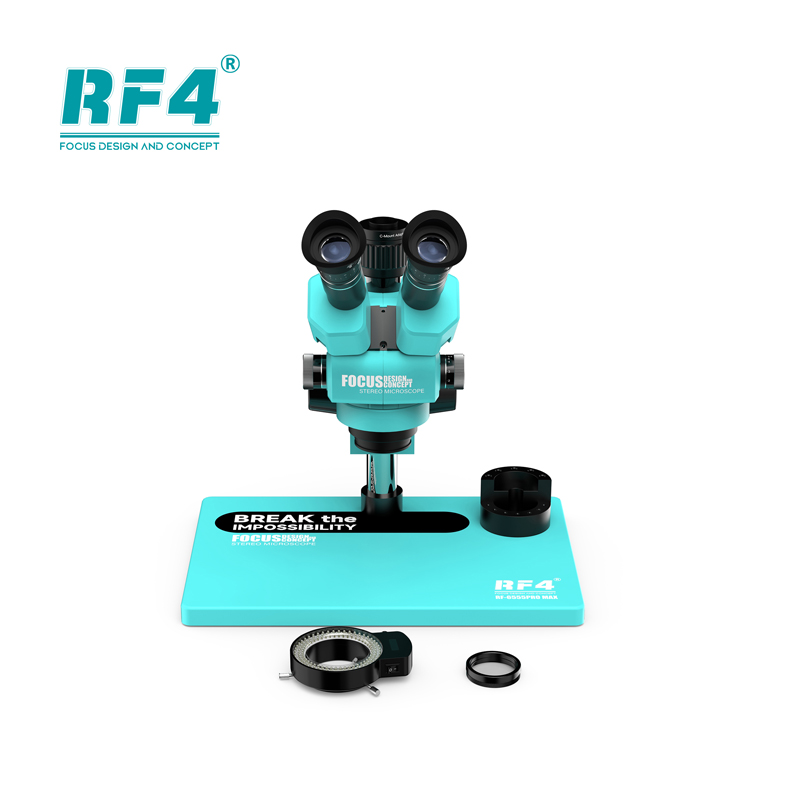

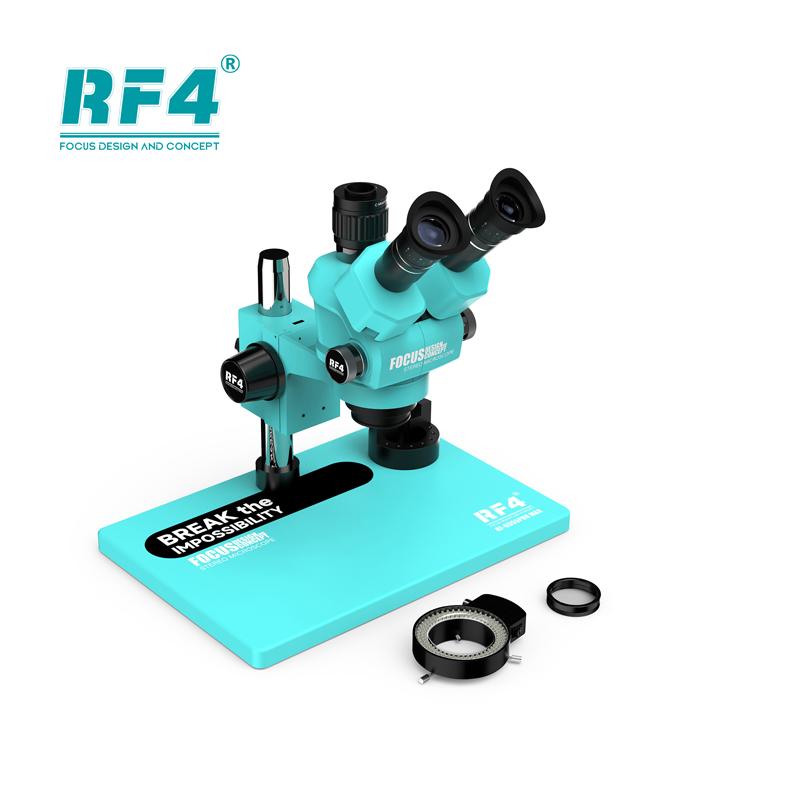

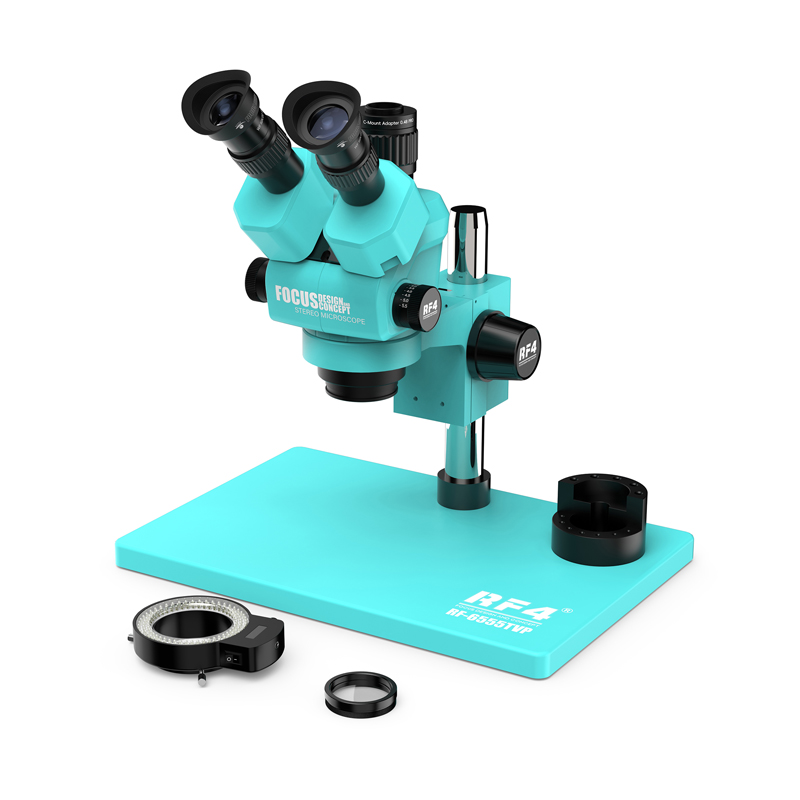

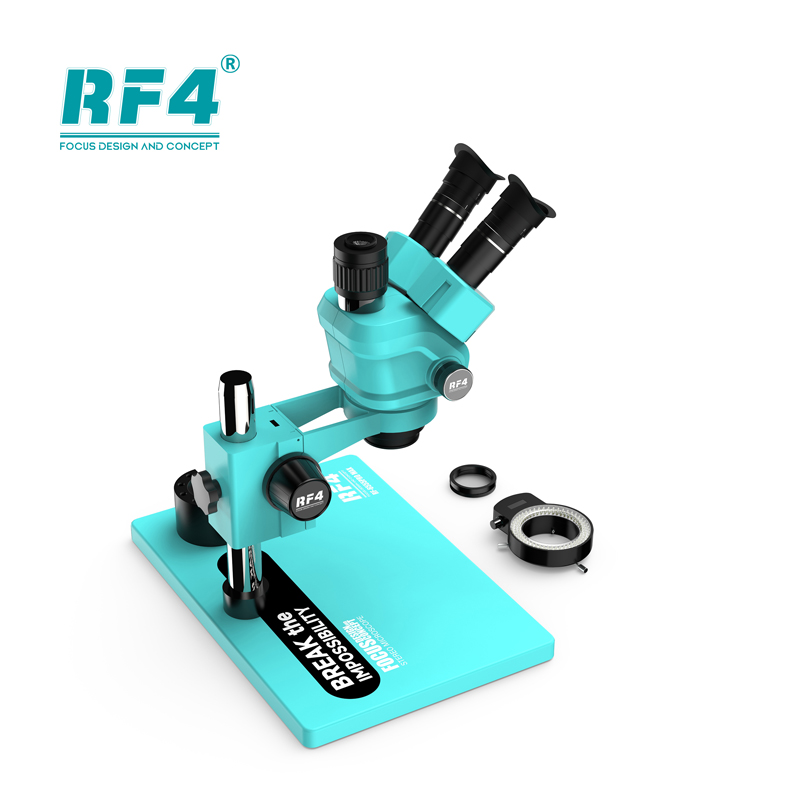

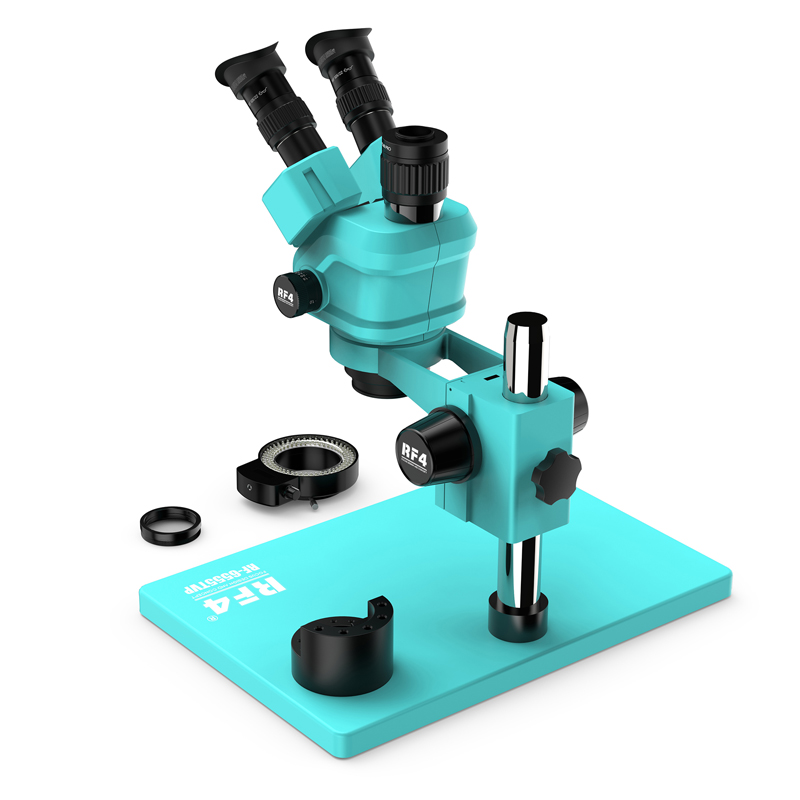

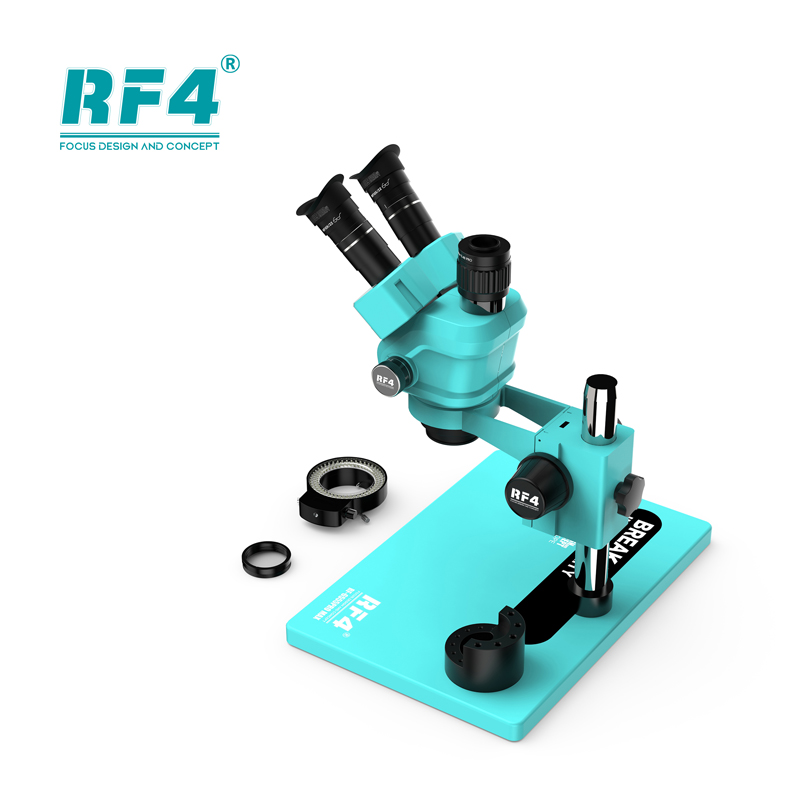

RF4 RF6555 Pro Max 6.5-55X Trinocular Stereo Microscope with 144 LED Ring Light & Dust Mirror
Specification

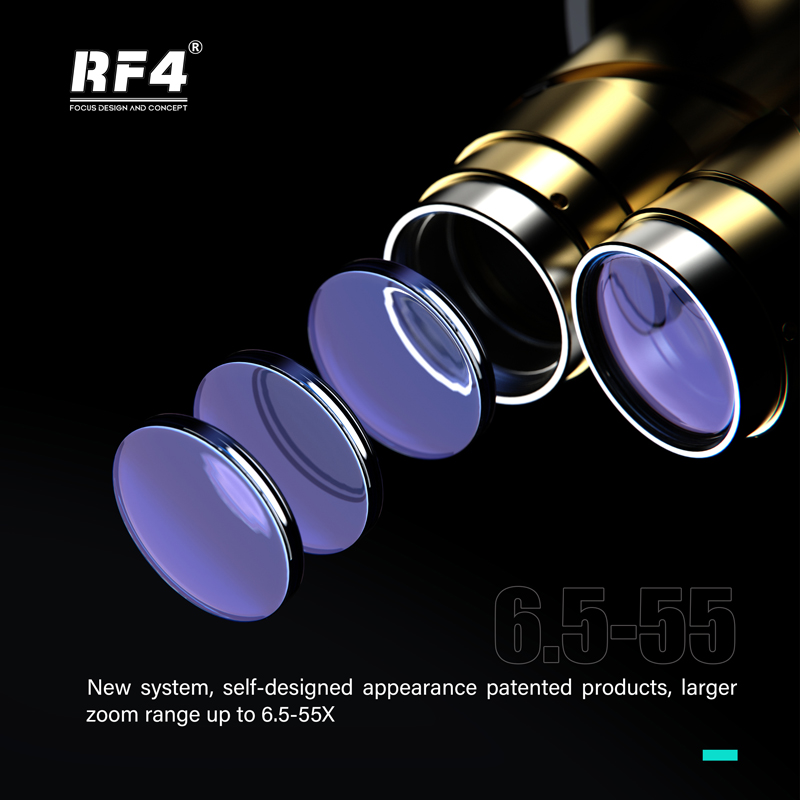

1. Magnification: Continuous zoom 6.5X to 55X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM adjustable
4. Objective: 0.65-5.5X

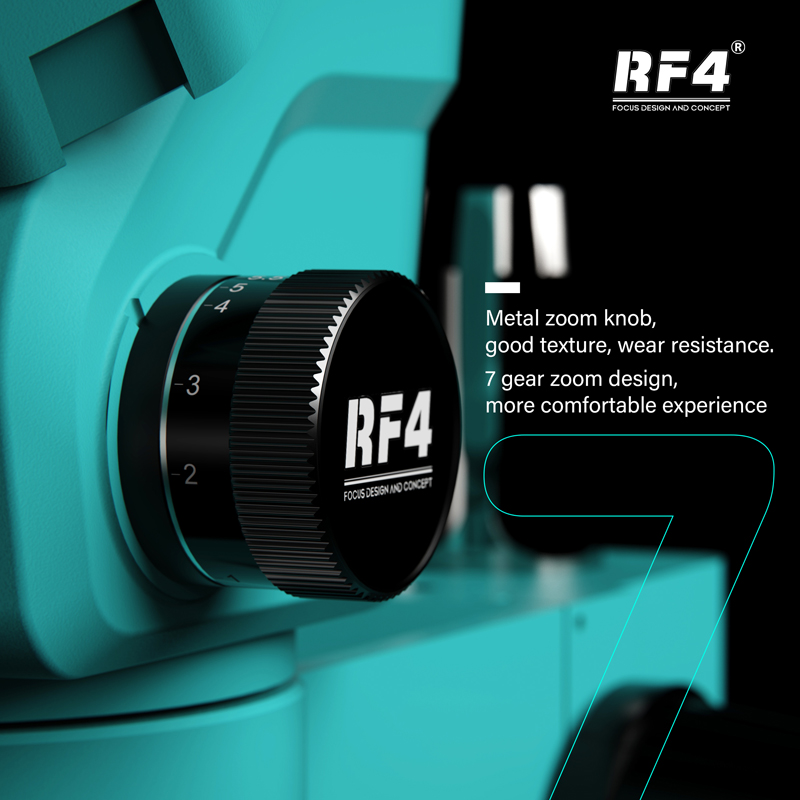

5. Zoom Knob: Metal knob 7 gear zoom
6. Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom)

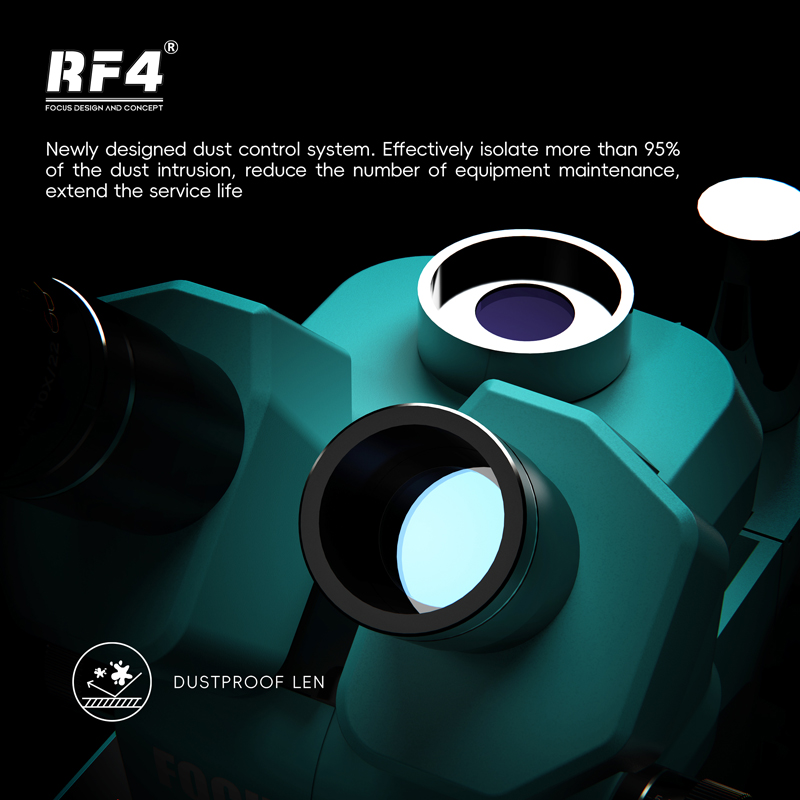

7. Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup
Support Parameters
1. Column aperture: Φ32mm
2. Lens aperture: Φ76mm
3. Center distance: 155mm
4. Lifting range: 50mm
Wide-angle Eyepieces 10X/22
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching size: 30mm
4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV Len
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet.
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus.
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming.
144 LED Ring Light
1. Input: AC 100~240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm
