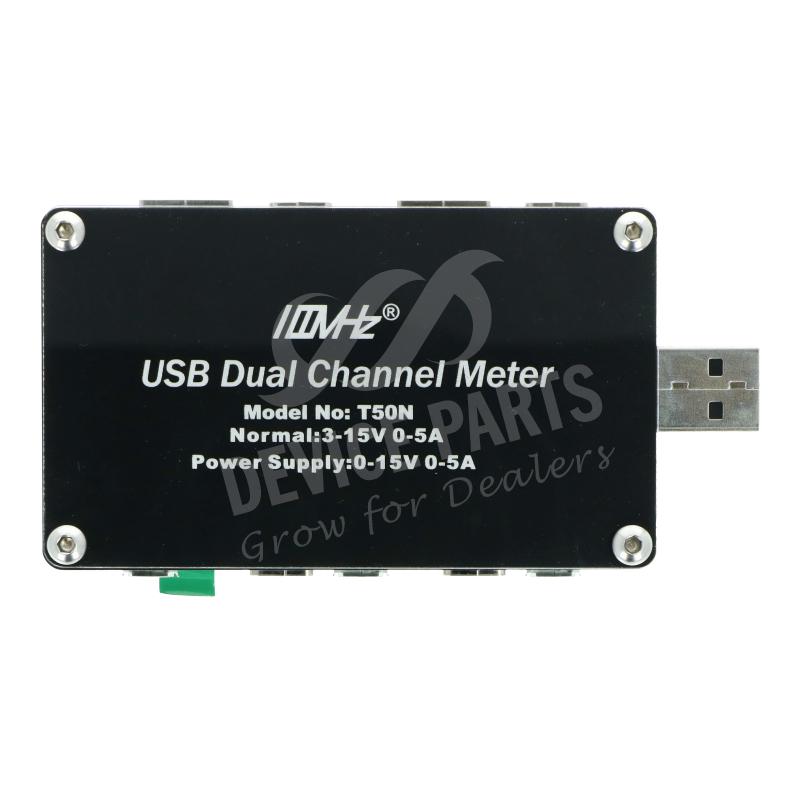

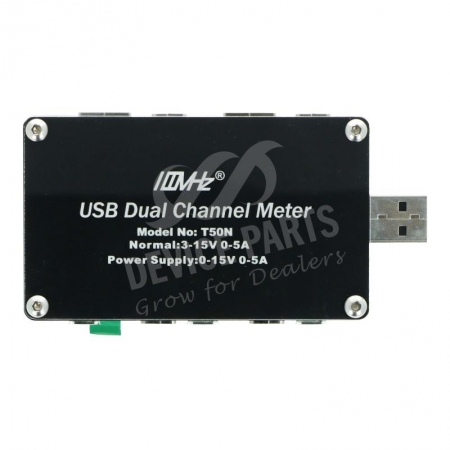

T50N USB Dual Channel Meter

Off The Shelves

Specifications:

Gross weight500g

Product Features:

voltage, current, power measurement, Ah, Wh of capacity, energy display load resistance measurement

shows equivalent resistance, QC, FCP, PD monitoring (non-decoy) double voltage and current in curved real time.

Product Specification:

1. Model: T50N dual USB table

2. Display: 2.6 inch IPS TFT 320 * 240

3. Dimensions: 95 * 50 * 14mm

4. Sampling resistance: 25 milliohms

5. Own internal resistance: 50 milliohms

6. Consumption: about 0.6 W (120mA at 5V)

7. Fast charge trick: do not support

8. D + D-voltage: not displayed

9. vVoltage range: 3-25V (independent 0-25V power supply)

10. Current range: 5A

11. Resolution: 0.001 V 0.001A

12. Precision: 0.03V 0.005A

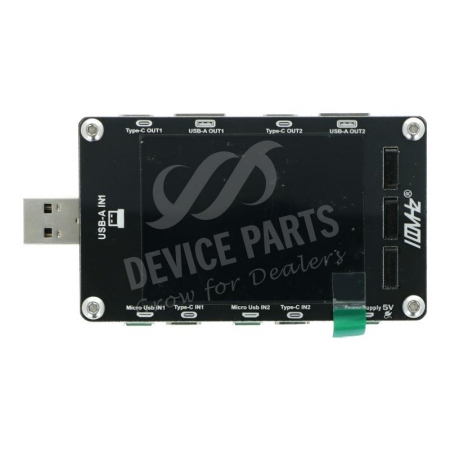

13. Input Interface: USB-A male * 1

14. Micro USB Mother * 2

15. Type-C mother * 2

16. Output interface: USB-A Mother * 2

17. Type-C mother * 2

18. Power Interface: Micro USB Female * 1

Note:

1. The bold line represents the power line, take a large current, if 5A circuit, in order to ensure that thick line

     part of the circuit and the pad can withstand 5A current for a long time;

2. Two ways of a common ground; Power can also be replaced by a road, with 2 load;

3. 5V power supply available OUR support stepping plate steal electricity from 1, 3-25V can work;

4. Because the 5V power supply is connected 1117 change 3.3V, and 5V direct access to the OP07, and these

    two devices in the following 10V can work properly, 5V then slightly higher point, as (6 V), but be sure Stable,

    or OP07 at different offset voltage is not the same, which leads to the need to recalibrate; since this product is

    based on Usart-GPU production, all interfaces are fully customizable with the GpuMaker host to meet the product:

Package information:

Content: 1 x T50N USB Dual Channel Meter

Tips:

1. The product prevails in kind, pictures are just for reference.

2. Please read related information carefully before ordering to avoid mistakes.

3. The item will be shipped in 2 working days after ordering.
