Specifications:
| Gross weight | 6500g |
| Brands | YIHUA |

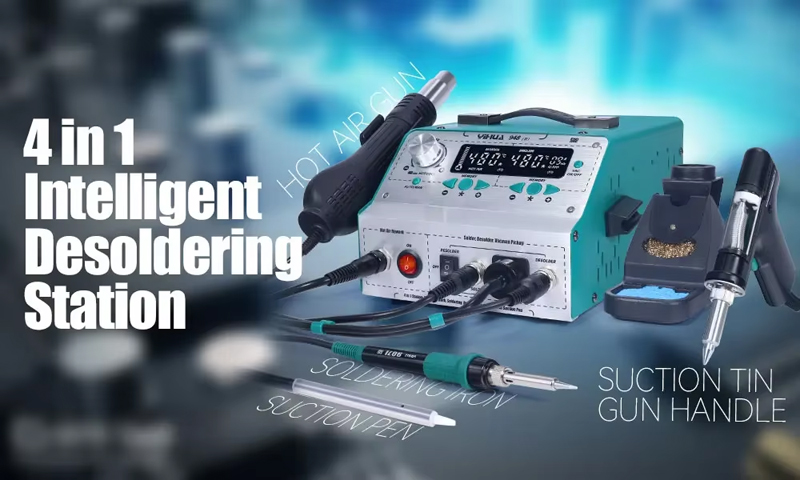

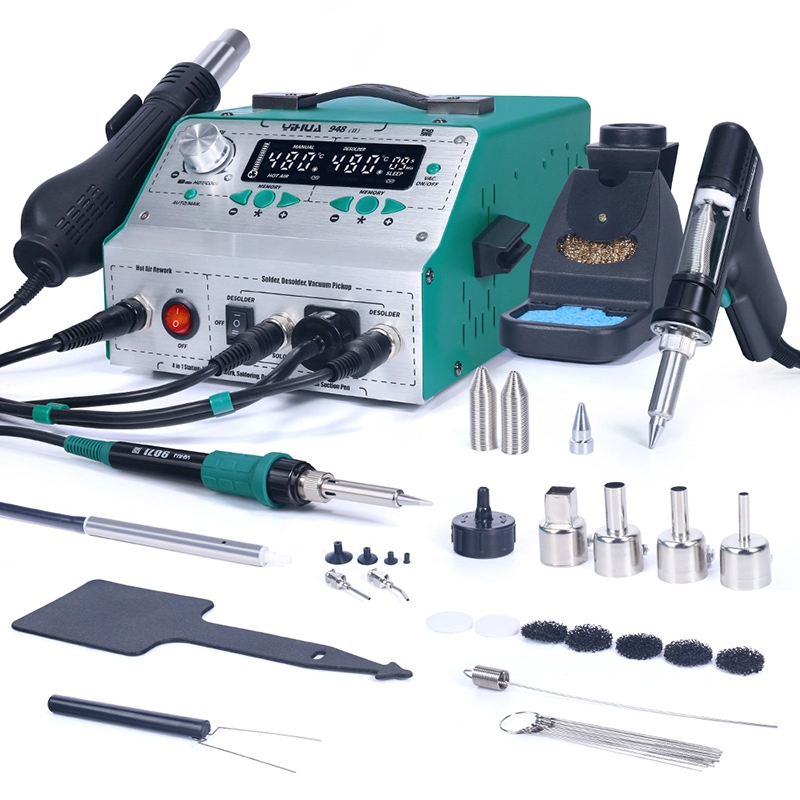

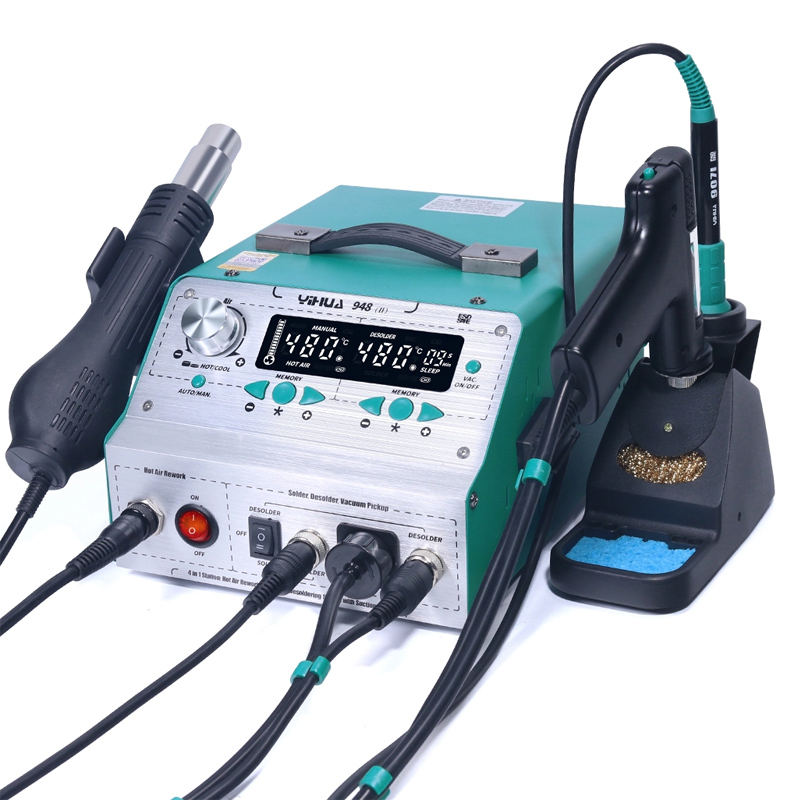

YIHUA 948-II 4 in 1 Hot Air Gun Rework Soldering Iron Suction Tin Gun Pick Up Pen Desoldering Soldering
Station
Station
Specification

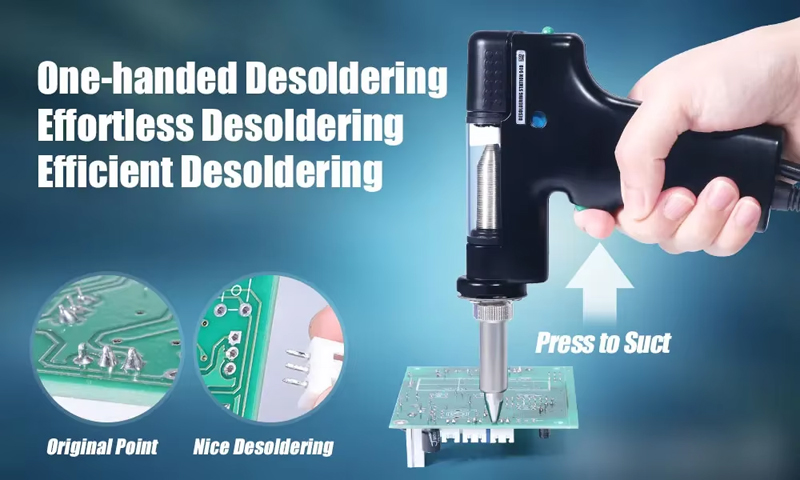

1. Desoldering iron gun power: 75W
1. Anti-static design prevents electrostatic component damage or leakage.

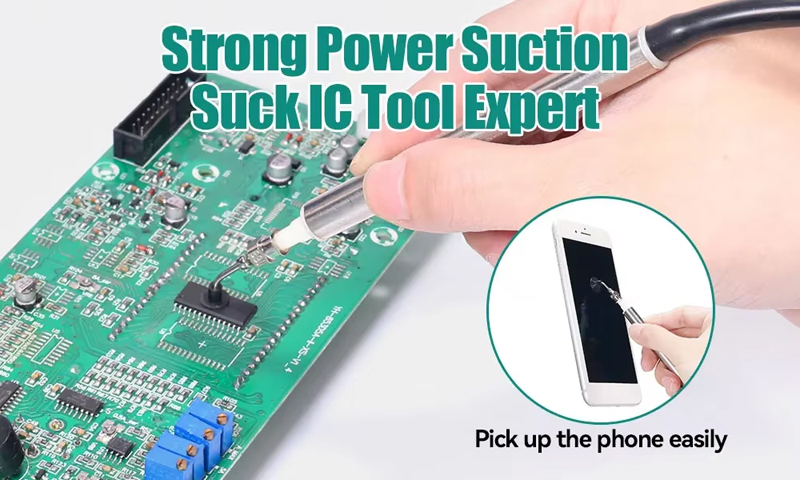

2. Built-in vacuum with strong suction and without an external vacuum system, easy to carry.
3. The design of machine has the following strong humanization functions:

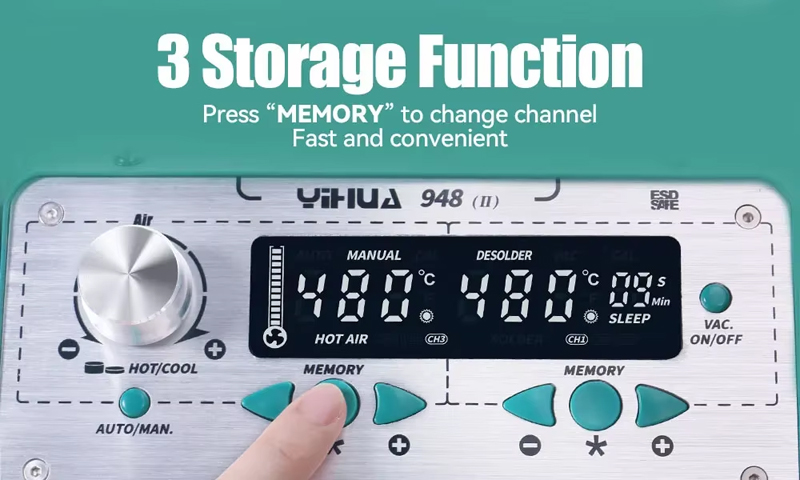

A. With 3 storage function: Different parameters can be stored separately, it is convenient to choice, and easy
to operate.

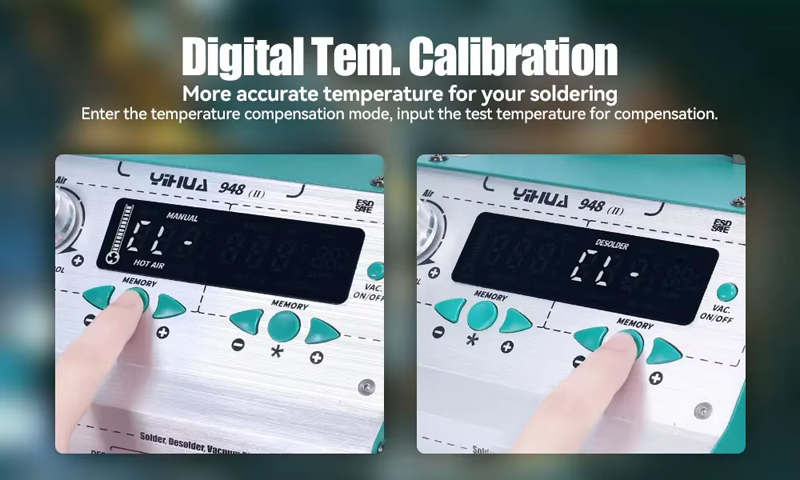

B. Digital temperature correction function: You can use this feature to correct the temperature when the iron
temperature is different from the display temperature ,which caused by the environmental impact or replacing
heating element, iron tips or other components.

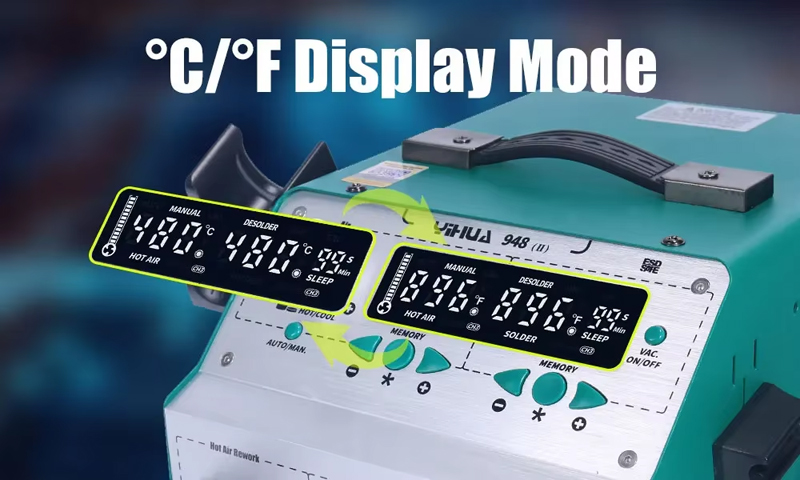

C. Temperature Celsius/Fahrenheit display function: This temperature display mode designed to meet the needs
of different markets, you can choose according to your customary or interest.

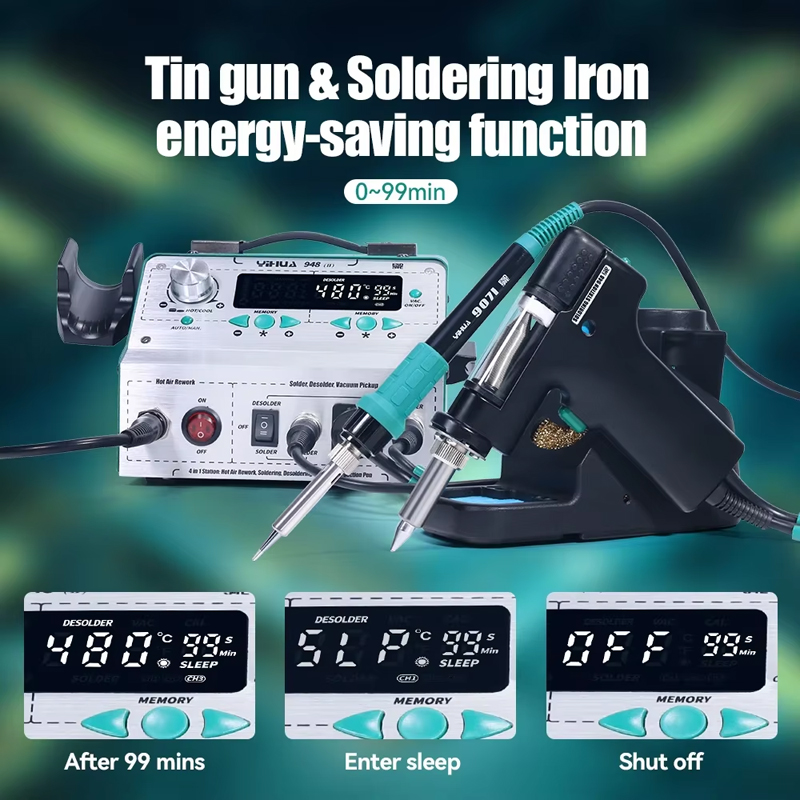

D. Iron sleep function, iron sleep setting time range:0-99mins.
E. Automatic shutdown function, shutdown setting time range:0-99mins.
F. Air gun without wind protection function: Non-normal stopping in the process of using a hot air gun, the heating
element will stop heating, it can prevent burn the handle, and greatly improved product safety.

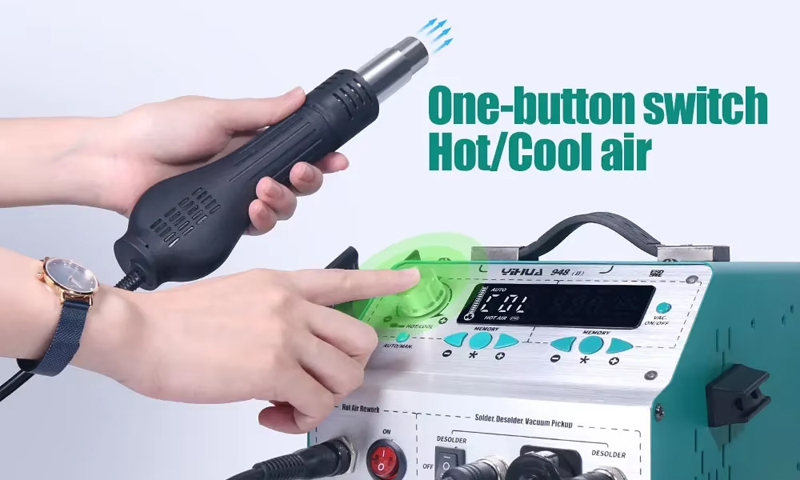

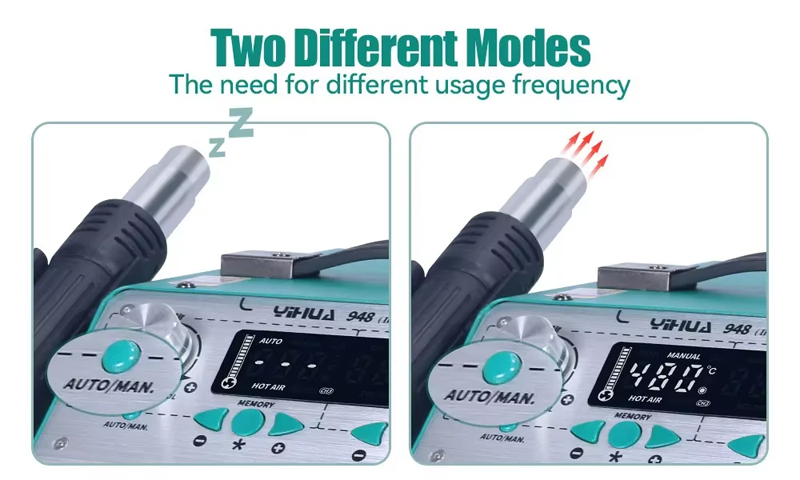

G. Air gun automatic/manual function:
4. Adopts silicone heat-resistant tubing to prevent heat generation and contact damage.8. The double-sided
internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is
both stable and safe, further improving its performance and adaptability to various harsh environments.
2. Soldering iron power: 60W

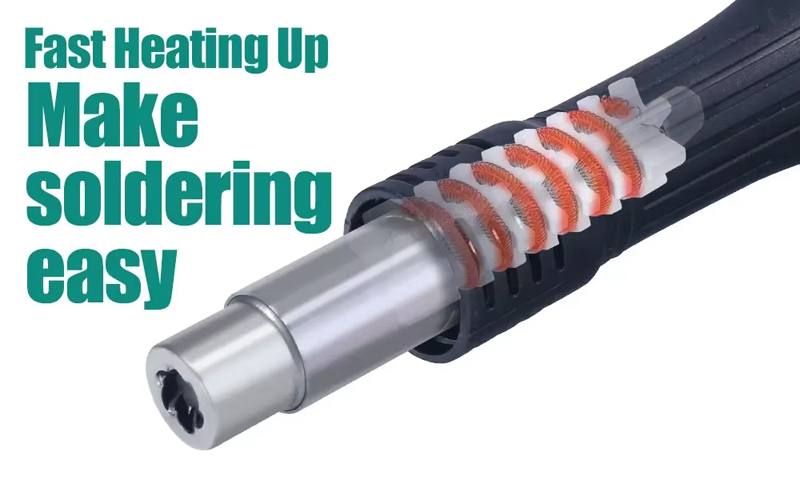

3. Hot air gun power: 650W
4. Desoldering iron gun temperature range: 350°C -480°C

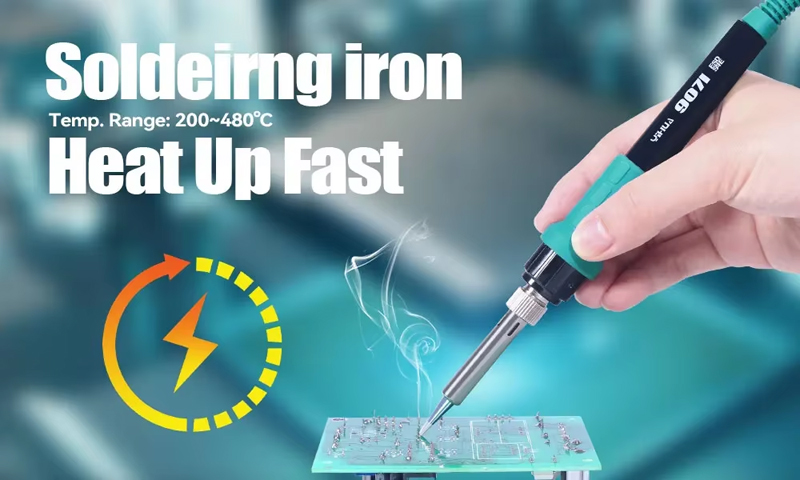

5. Soldering iron temperature range: 200°C -480°C

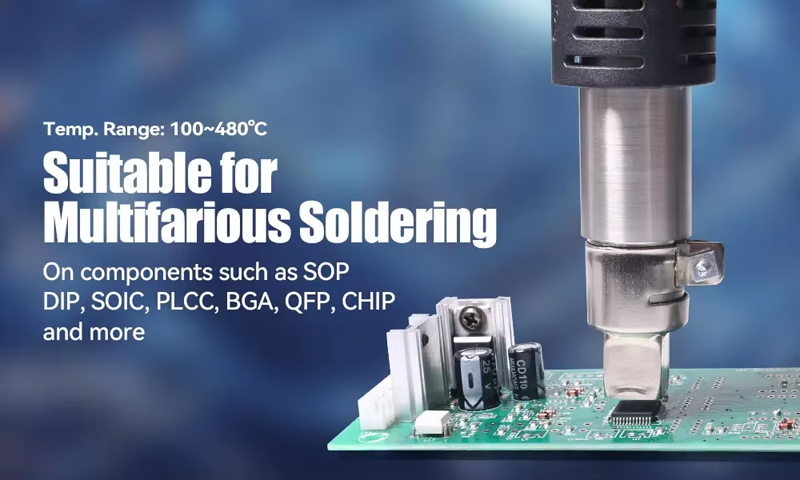

6. Hot air gun temperature range: 100°C -480°C
7. Display type: LCD digital
8. Temperature stability: ±1°C
9. Heating element voltage: AC 26V ±10%
10. De-soldering pump power: 12W
11. Vacuum suction: 0.012MPa
12. Tip of ground resistance: <2Ω
13. Dimensions: L280xW187xH135mm ±5mm
14. Handle cord length: ≥120cm
15. Operating temperature: 0-40°C/32°F-104°F
16. storage temperature: -20°C-80°C/-4°F-176°F
17. Storage humidity: 35% -45%
