Specifications:
| Gross weight | 9000g |

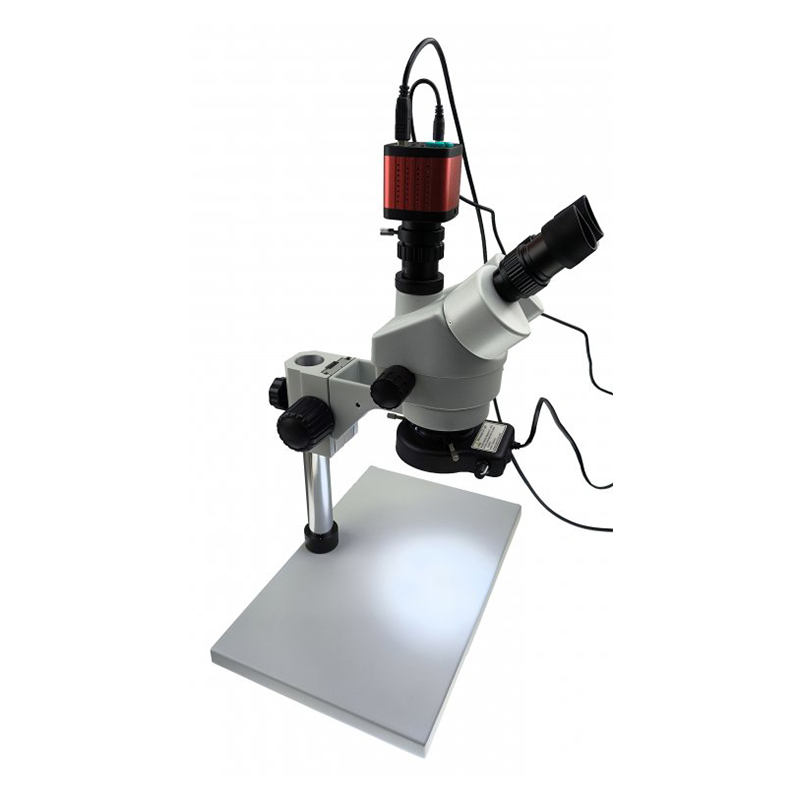

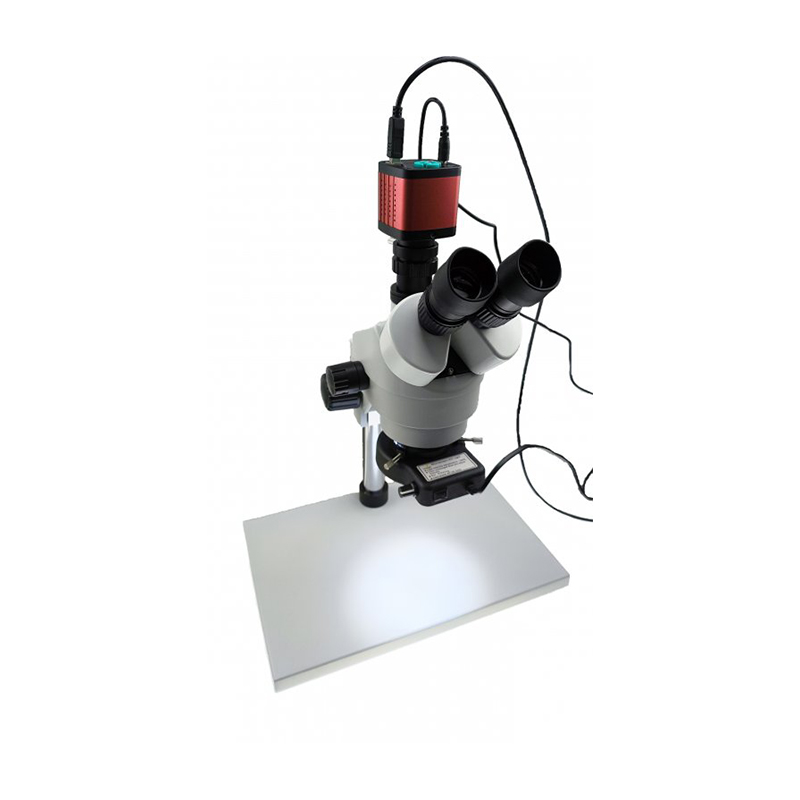

ZS-7045 7X-45X Stereo Binocular Microscope with 1605B Camera + Ring Lamp
Features
1. Magnification Factor: 45X
2. Maximum Working Distance: 165 mm
3. Base Dimensions (Platform): 200x255 mm
4. Maximum Device Height: 49 cm
Microscope Specifications
1. Magnification: Zoom objective 6.7X-45X
2. Eyepiece: High point ocular WF10X/22 mm, wide field; suitable for users wearing glasses
*Optional eyepieces: 15X/16mm, 20X/12mm, 25X/9mm, 30X/8mm
3. Main Body: 45° inclined head, 360° rotatable, can be locked in any desired position. Diopter adjustment: ±5 diopters
4. Sensor: 1/2", Panasonic CMOS, 48 MP
5. Interpupillary Distance Adjustment: 54-75 mm
6. Stereo Zoom Objective: 0.67X-4.5X;
7. Zoom Ratio: 6.7:1
8. Auxiliary Lens: 0.5X, 2X
9. Focusing Mount: Track support with a vertical working distance of 104 mm
10. Stop: Track support
11. Vertical Height: 300 mm; Mount Size: 76 mm; Focus Distance: 106 mm
12. Plastic and Acrylic Plate: 95 mm B/W and paired clips
13. Base Size: 205 x 275 x 40 mm
14. Lighting: Top and bottom LED lighting with independent control;
15. Input power: 110V~240V
16. C Mount: MSC 1X C mount, MSC 0.5X Mount
17. Input Power Control: 110V~240V

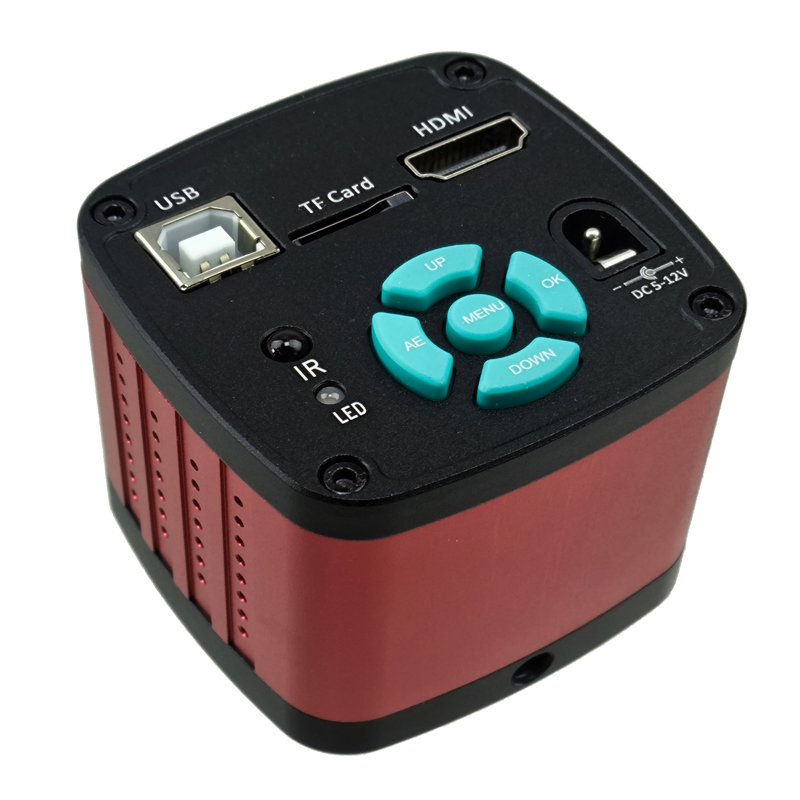

Camera Specifications
1. Sensor: 24MP CMOS
2. Optical Format: 1/2.9 inch
3. Pixel Size: 2.85μm x 2.85μm
4. Interfaces:
HDMI (Type A)
USB (Type B)
Small memory card slot (up to 128GB, card not included)
5. Image and Video Resolution:
HDMI Image Resolution: 24MP
Video Resolution:
2K at 30FPS
1080p at 30FPS
HDMI Resolution: 1920 x 1080p
HDMI Scale: Supports 4:3 and 16:9 screen formats
USB2.0 (Driver-free):
1920 x 1080 at 30FPS
1280 x 720 at 30FPS
640 x 510 at 30FPS
Additional Features
1. AWB (Auto White Balance): Supports automatic and manual color correction.
2. RGB Value Settings: Independent control of RGB values.
3. Exposure: Automatic and manual exposure modes, adjustable AE value.
4. Cross Lines: 8 customizable lines (color, width, position).
5. Scale Lines: 2 lines.
6. Dotted Lines: 2 lines, customizable in color, width, and position.
7. Sharpness, Contrast, and Color Gain Adjustment: Supported.
8. Mono Negative Film: Supported.
9. Mirror: Horizontal and vertical mirror.
10. Language: English, Simplified Chinese, French, Spanish, Japanese, German, and others.
11. Digital Zoom: Supported.
12. Infrared Remote Control: Supported.
13. Voltage Input: DC 12V
14. Power Supply: AC100-240V input, DC12V output
15. Power Consumption: Maximum 0.15W at 12V, 0.12A
16. Lens Interface: C/CS Port
