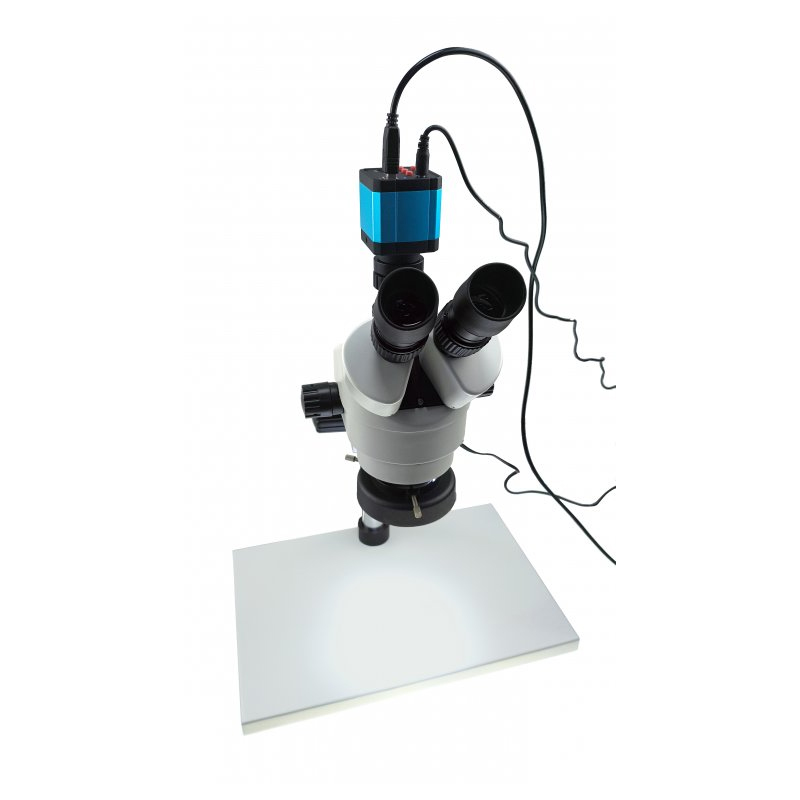

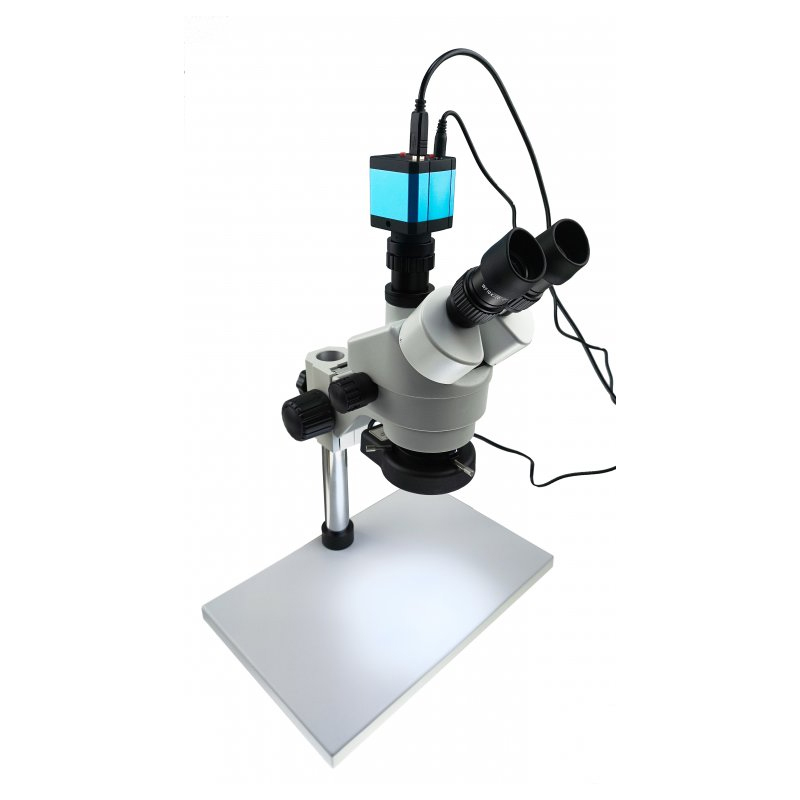

ST-7045 6.7X-45X Stereo Binocular Microscope with 2307 Camera + Ring Lamp

CODE: AS170943

Ships in 24 hours Any questions? Email us
New Arrivals
ZS-7045 7X-45X Stereo Binocular Microscope with 1605B Camera + Ring Lamp
Mechanic Robot Smart Eye 7X-45X Foldable Rotatable Human-Machine Integrated Microscope with MOS4K Pro Camera and Ring Lamp
YCS 7060X 7X-60X Trinocular Stereo Microscope with Big Base
YCS 6575X 6.5-75X Continuous Zoom Trinocular Microscope without Large Base

Specifications:

Gross weight12600g

ST-7045 6.7X-45X Stereo Binocular Microscope with 2307 Camera + Ring Lamp
Features
1. High resolution, excellent flatness, and contrast provide clear images.
2. Wide zoom range of 7x-45x with wide-field stereoscopic imaging.
3. Binocular head with a 360° rotatable eyepiece tube, 45° inclination, and adjustable diopter.
4. Fully optical glass components with precision-ground lenses, including rubber eyecups.
5. High precision reduces eye strain during prolonged observation.

Microscope Specifications
1. Type: Trinocular Microscope.
2. Tube: Binocular eyepiece + adapter for digital camera.
3. Eyepiece: WF10x (20 mm).
4. Objective zoom range: 0.7x - 4.5x.
5. Zoom ratio: 1:6.4.
6. Magnification: 7x-45x.
7. Interpupillary adjustment range: 54-75 mm.
8. Diopter adjustment: ±5 diopters.
9. Binocular tube: 45° inclination for easy observation, rotatable 360°.
10. Working distance: 100 mm (standard).
11. Stand: Pole stand, 250 mm height.
12. Base dimensions: 200 x 260 x 22 mm.

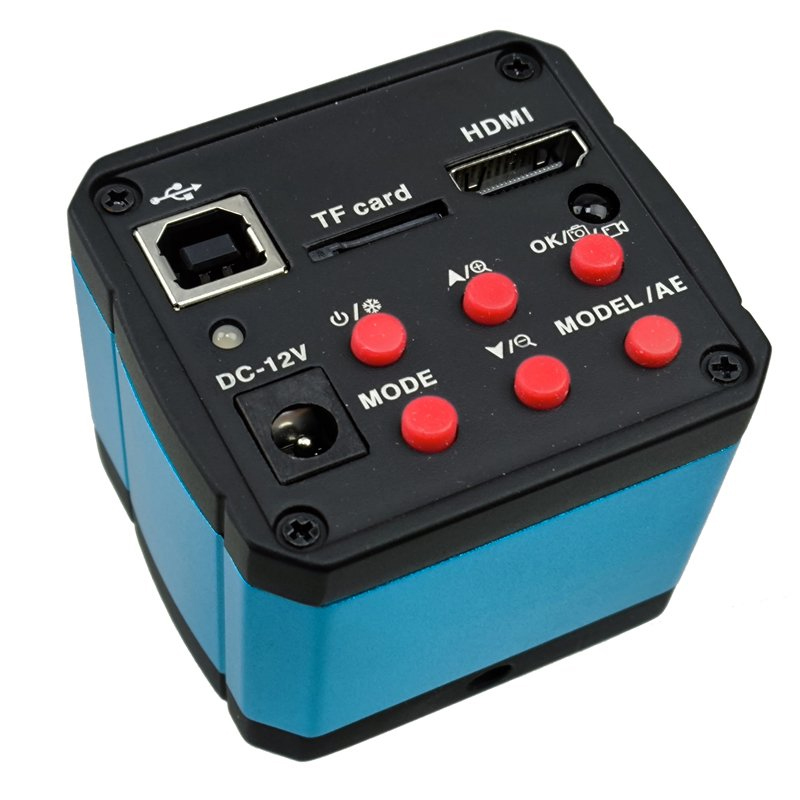

Camera Specifications
1. Model: Industrial HDMI camera for trinocular microscopes.
2. Size: 1.27 cm (1/2.8 inches).
3. Resolution: 16 MP.
4. Pixel size: 1.43 x 1.43 µm.
5. Video Output: Maximum resolution: 1920 x 1080 (Full HD).
6. Frame rate: Up to 60 FPS.
7. Interfaces:
HDMI for monitor connection.
USB Type B for PC connection.
TF (SD) card slot for storage.
Infrared remote control for configuration and operation.
8. Image Settings:
Brightness, contrast, saturation, white balance.
Black-and-white mode switching.
9. Advanced settings: exposure, flicker reduction, gamma, gain adjustment.
10. Additional Features:
Digital zoom.
Horizontal/vertical mirroring.
Image freeze.
Image capture and video recording (SD card storage).
Preview of stored images.
11. Reticle: 4 configurable types (color, thickness, position, visibility).
12. Crosshair: adjustable color, line thickness, and visibility.
13. Storage: Compatible with SD cards for image and video saving.
14. Menu Languages:
Chinese, English, Spanish, German, Portuguese, French, Russian, Italian.
15. Power Supply:
DC 12 V/1 A.
