Specifications:
| Gross weight | 10000g |
| Brands | YCS |

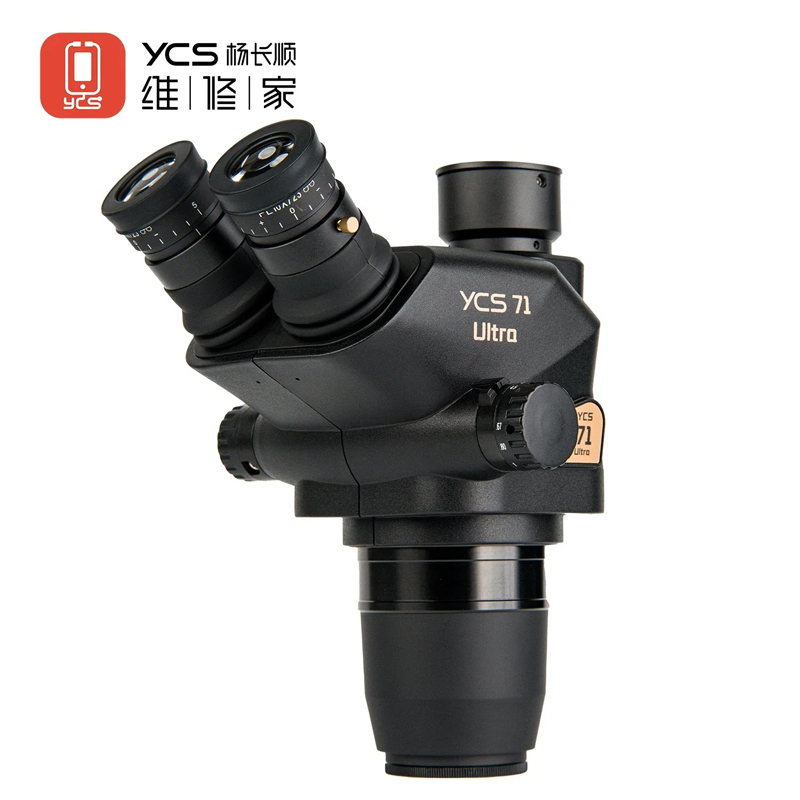

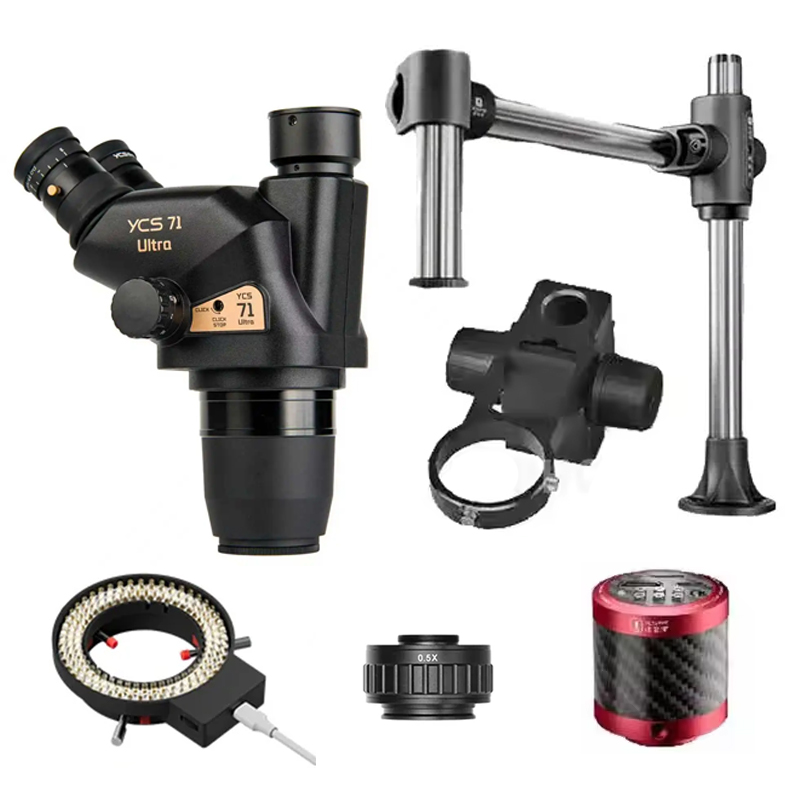

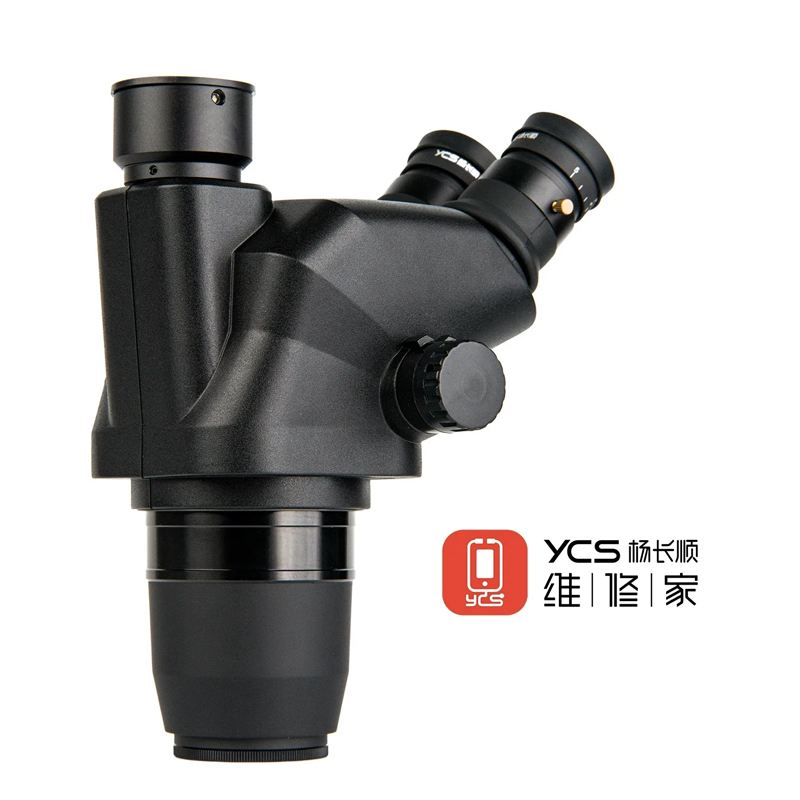

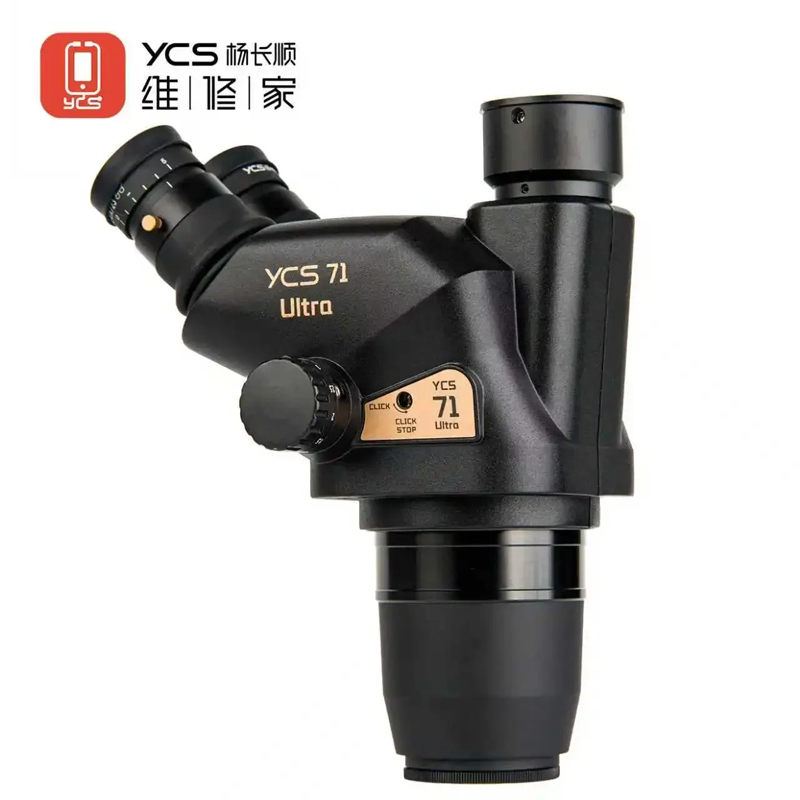

YCS 71 Ultra 6.7X-45X Trinocular Microscope Set with Focusing Bracket + YCS Swing Arm Stand + 144 LED Light + X80 4K Microscope Camera + 0.5X CTV Lens
Features
1. It can be applied to the electronic industry production line inspection, and single-board PCB verification,
and can also be used for the identification of paintings and calligraphy, as well as scientific research,
teaching demonstration, archaeology, and other fields.
2. The 71Ultra has a broader field of view and a fixed frame and magnification limit function, which is
suitable for PCB, LCD, and IC assembly and inspection.
3. Innovative push-pull three-way switching lever, fixed-frame and fixed-magnification mechanism, and
magnification-limiting function design, further ease the user's sense of long-time operation, in line with
ergonomic principles.

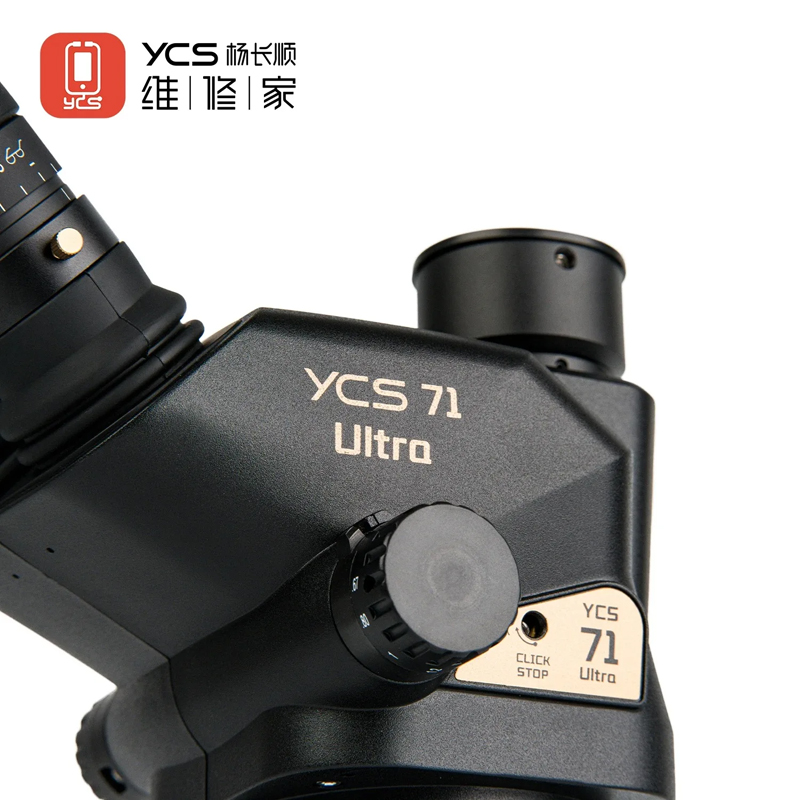

4. The new main magnification fixed frame function can repeat the same magnification, a good solution
to the problem of magnification calculation when observing objects.
5. The hand wheel is light and comfortable, effectively avoiding the fatigue caused by long-term operation.
6. Grignot optical system, 10° body vision convergence angle, large field of view of the flat field eyepiece,
to ensure a large depth of field under the image of the flat field.
7. 45° tilt binocular observation head, fixed frame, fixed magnification mechanism, and the highest and
lowest magnification adjustment lock function, high eye point, large field of view, flat field eyepiece.
Specification
1. Standard magnification 6.7X~45X continuous zoom, expandable to 2X~225X

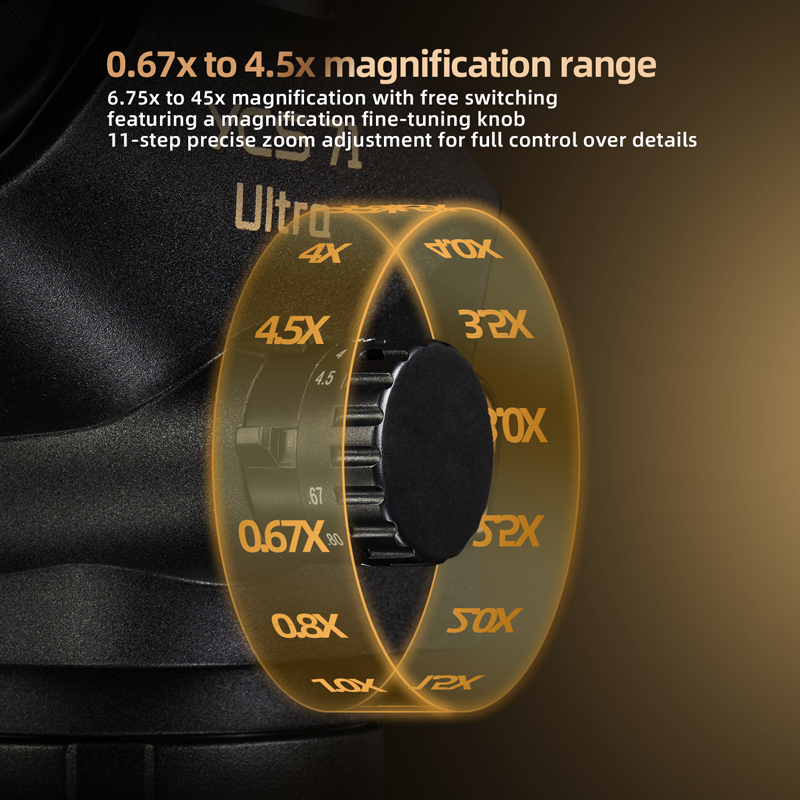

2. 0.67X~4.5X continuous zoom lens, zoom ratio 6.7:1

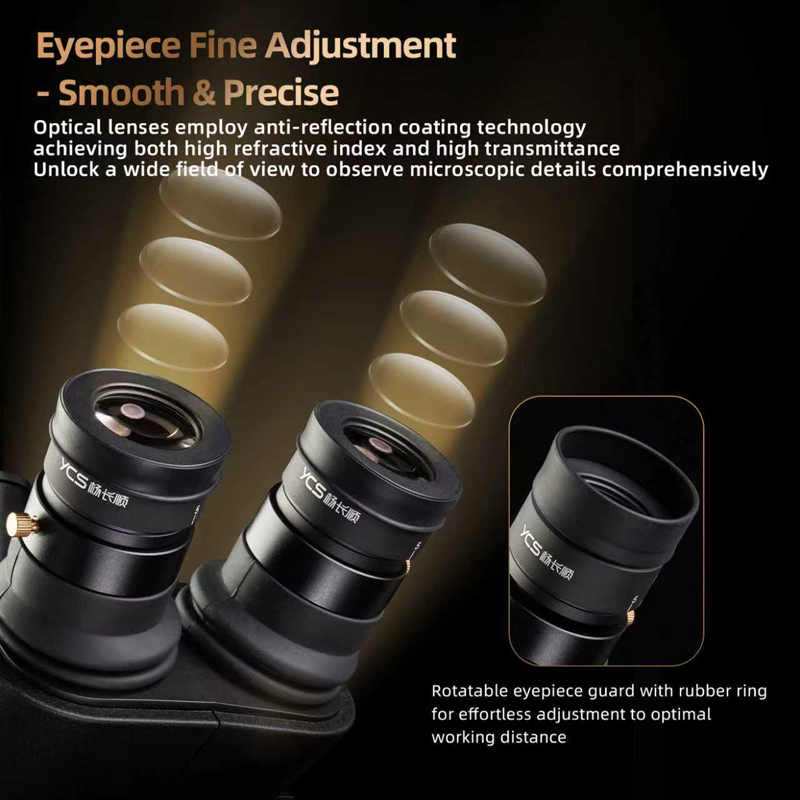

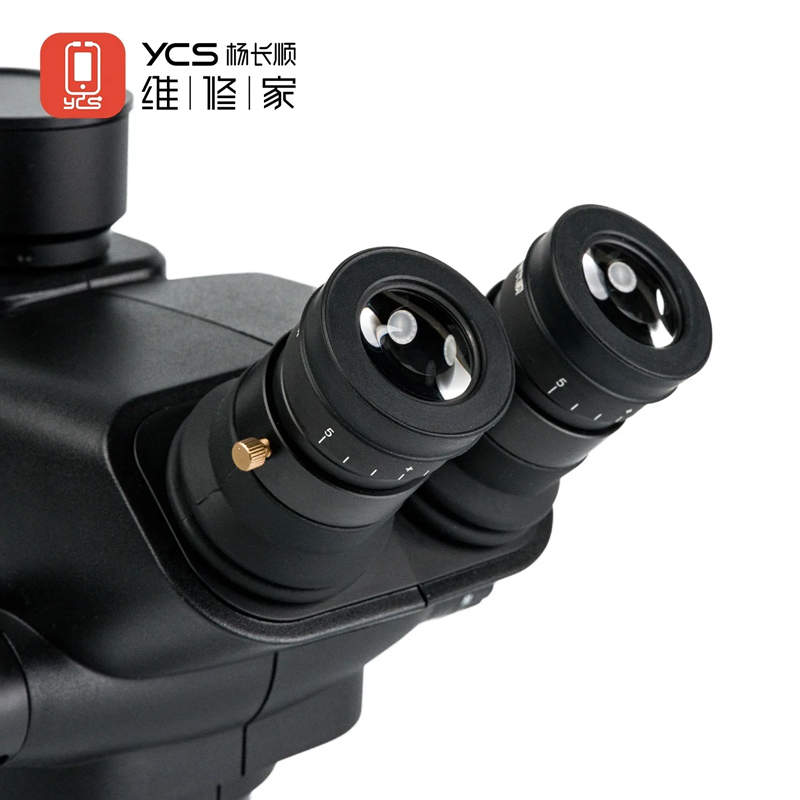

3. Using the large field of view eyepiece PL10X/22mm, adjustable vision, adjustment range ± 5 diopters,
ultra-wide field of view, and the high eye point
4. Binocular head / trinocular head eyepiece barrel 45 ° tilt, the host head 360 ° rotation
5. Binocular or trinocular beam splitting ratio 20% / 80%

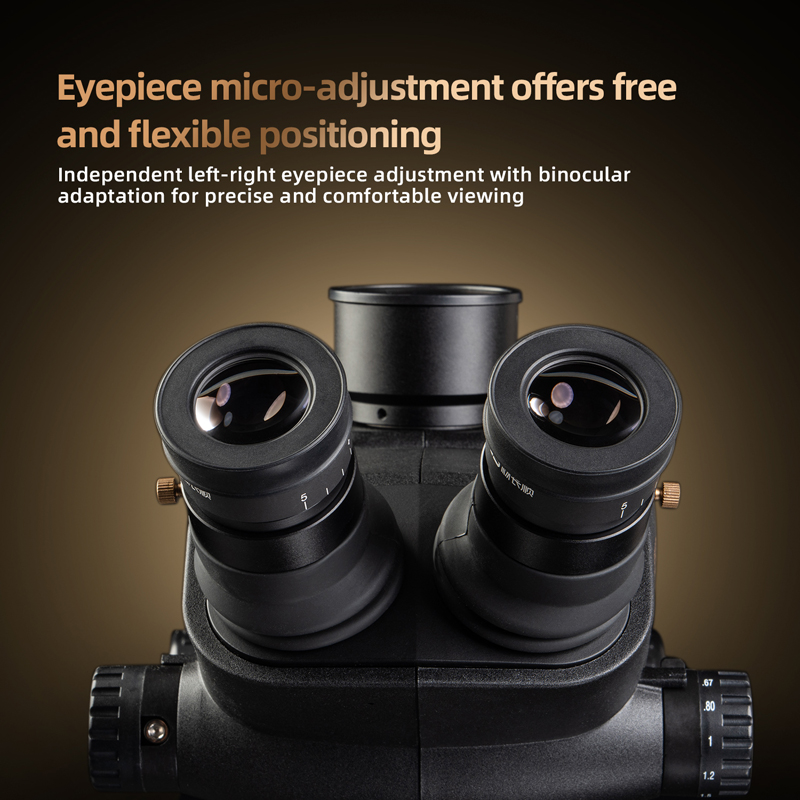

6. Pupil distance adjustment range 52mm~76mm
7. Standard working distance 110mm
8. Optional eyepieces: PL10X/22mm, PL15X/16mm, PL20X/12mm (adjustable visual acuity)
9. Optional auxiliary objective: 0.3X/287mm, 0.4X/217mm, 0.5X/177mm, 0.7X/120mm, 1.5X/47mm,
2X/26mm
10. Optional camera interface: 0.35X, 0.5X, 0.65X, 1X C-type interface, focusable
